Description

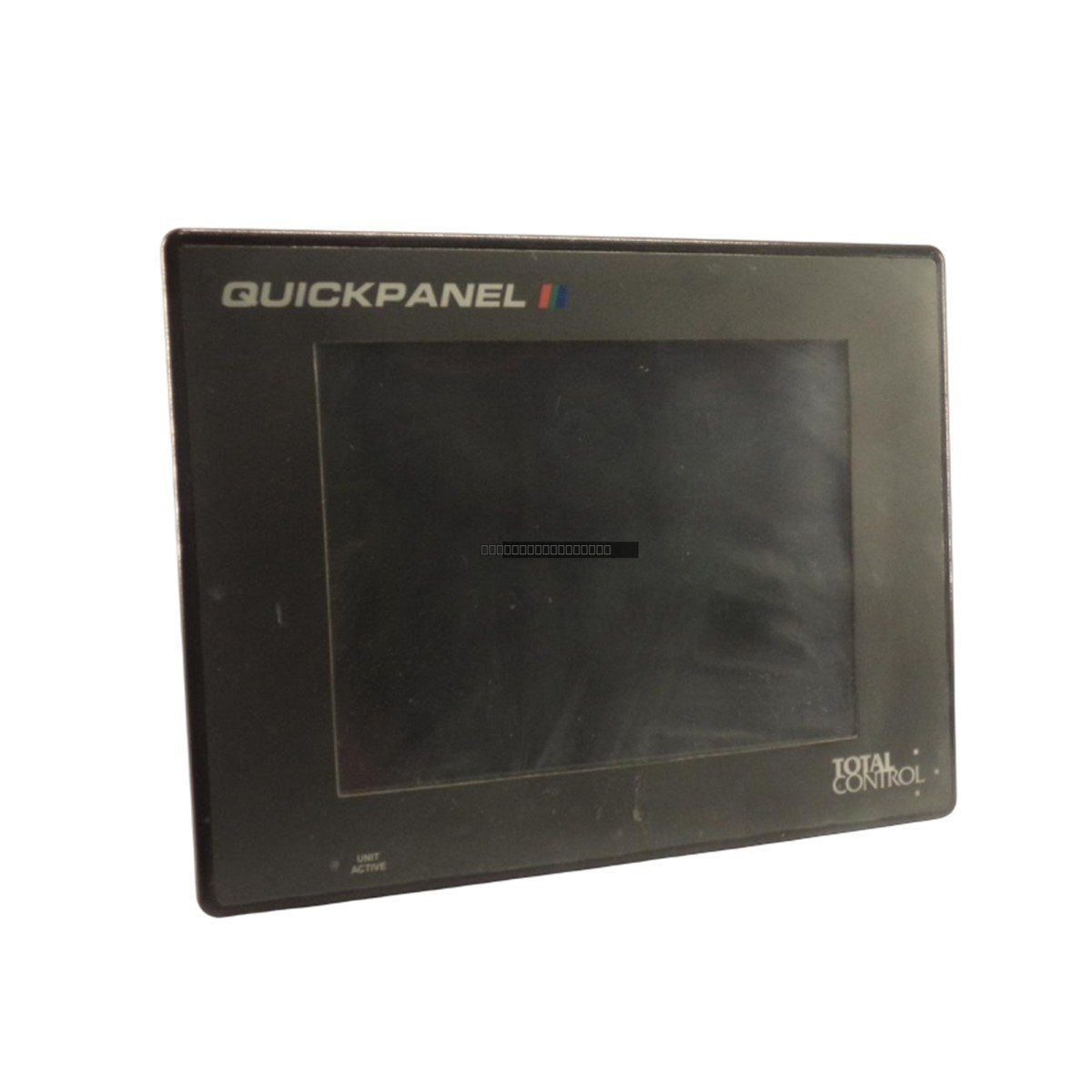

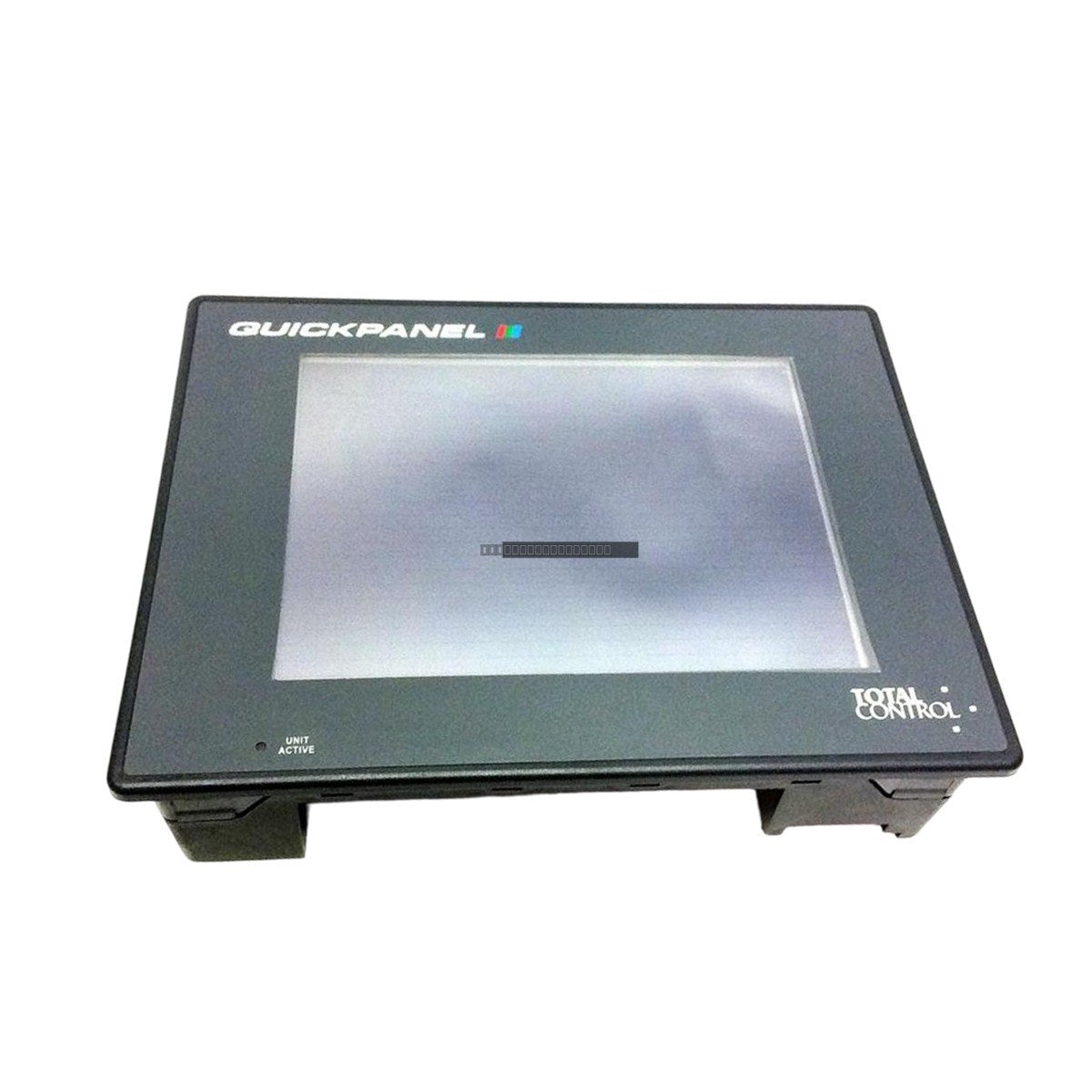

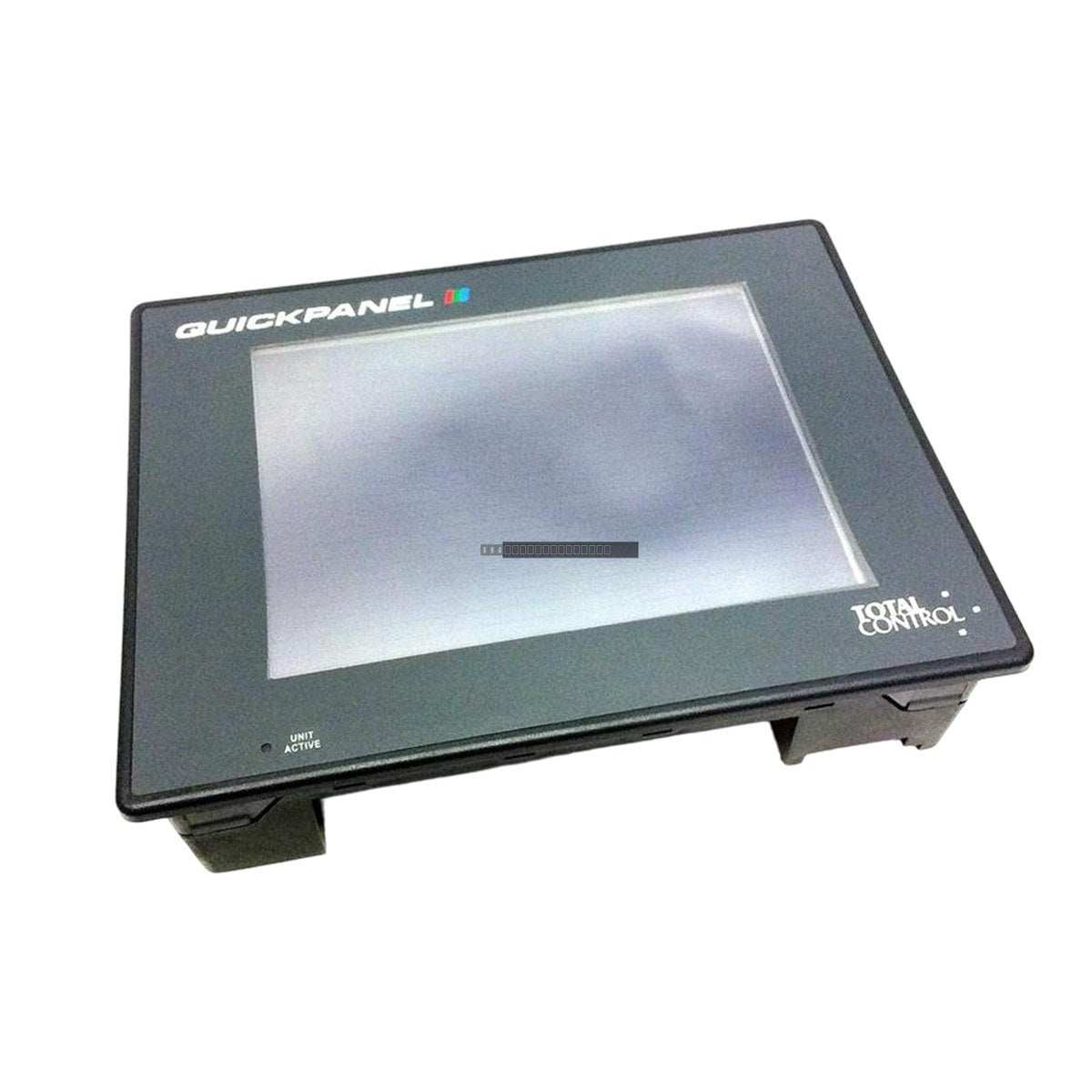

The GE Fanuc QPL2D200C2P is a 12.1-inch TFT color touch screen display engineered for the QuickPanel series. This HMI unit provides operators with high-resolution visualization and real-time control feedback in industrial settings such as petrochemical, pharmaceutical, and automotive manufacturing. By facilitating clear status monitoring and diagnostics, the QPL2D200C2P supports efficient system management and helps maintain legacy control architectures.

Features

• 12.1-inch TFT color display supporting 8 solid and 8 flashing colors for clear alarm and status indication.
• NEMA 4X/12 and IP65-rated enclosure for protection against dust, moisture, and harsh environmental conditions.
• Flexible 24 VDC power input with a range of 20.4 to 27.6 VDC.
• Integrated power failure immunity of 20 milliseconds to ensure data preservation during brief power interruptions.
• Compatible with QuickDesigner Version 3.7 software for screen configuration and PLC integration.

Applications

This HMI is designed for industrial automation environments requiring reliable, large-format graphical interfaces. It is commonly utilized for machine status monitoring, process visualization, and diagnostic control within automated production lines.

Technical Specifications

Installation Guidelines

• Ensure the panel cutout is prepared according to the manufacturer's dimensions to maintain the integrity of the NEMA/IP seal.
• Verify that the power supply is within the 20.4 to 27.6 VDC range before connecting to the unit.
• Use shielded communication cables to minimize electromagnetic interference (EMI) in high-noise industrial environments.
• Ensure proper grounding of the chassis to the control cabinet to prevent electrical noise and potential damage.
• Always disconnect power before performing any wiring changes or maintenance on the terminal blocks.

FAQ

Is the QPL2D200C2P compatible with modern GE PLC systems?
Yes, this unit is designed to integrate with GE PLC systems using QuickDesigner software. Please verify your specific PLC communication protocol and software version compatibility.

What is the purpose of the NEMA 4X/12 rating?
The NEMA 4X/12 rating indicates that the display is protected against dust, falling dirt, splashing water, and corrosion, making it suitable for demanding industrial environments.
