Description

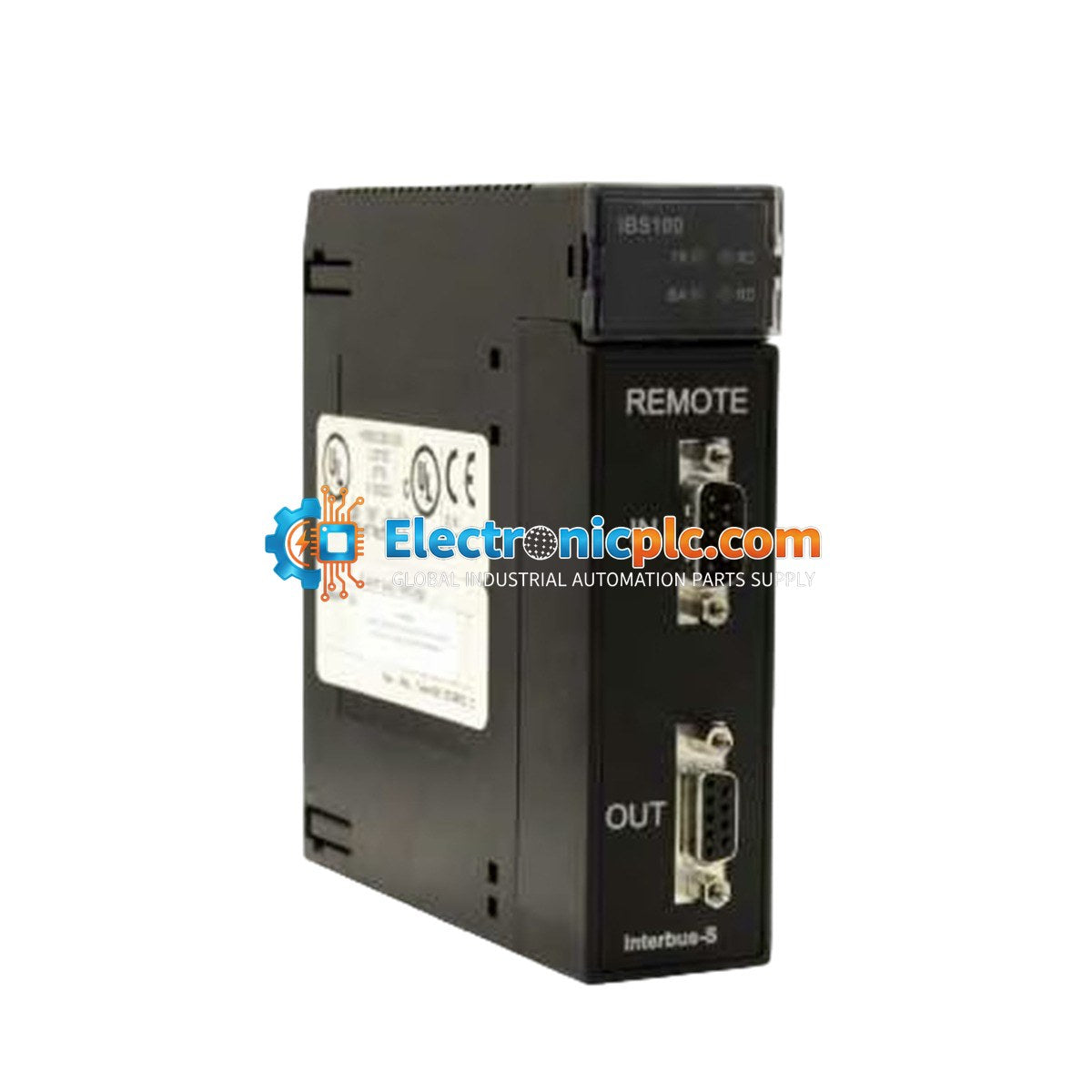

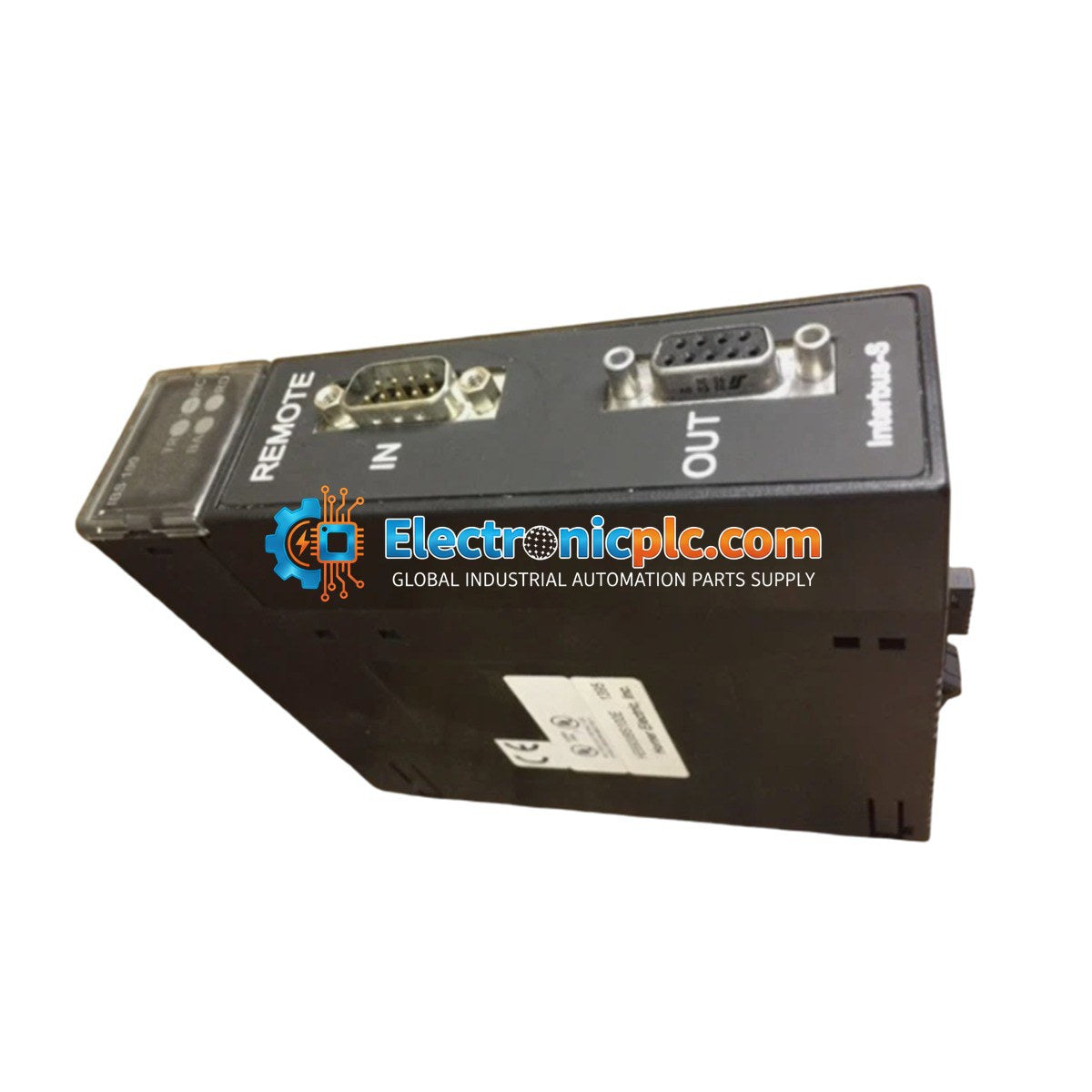

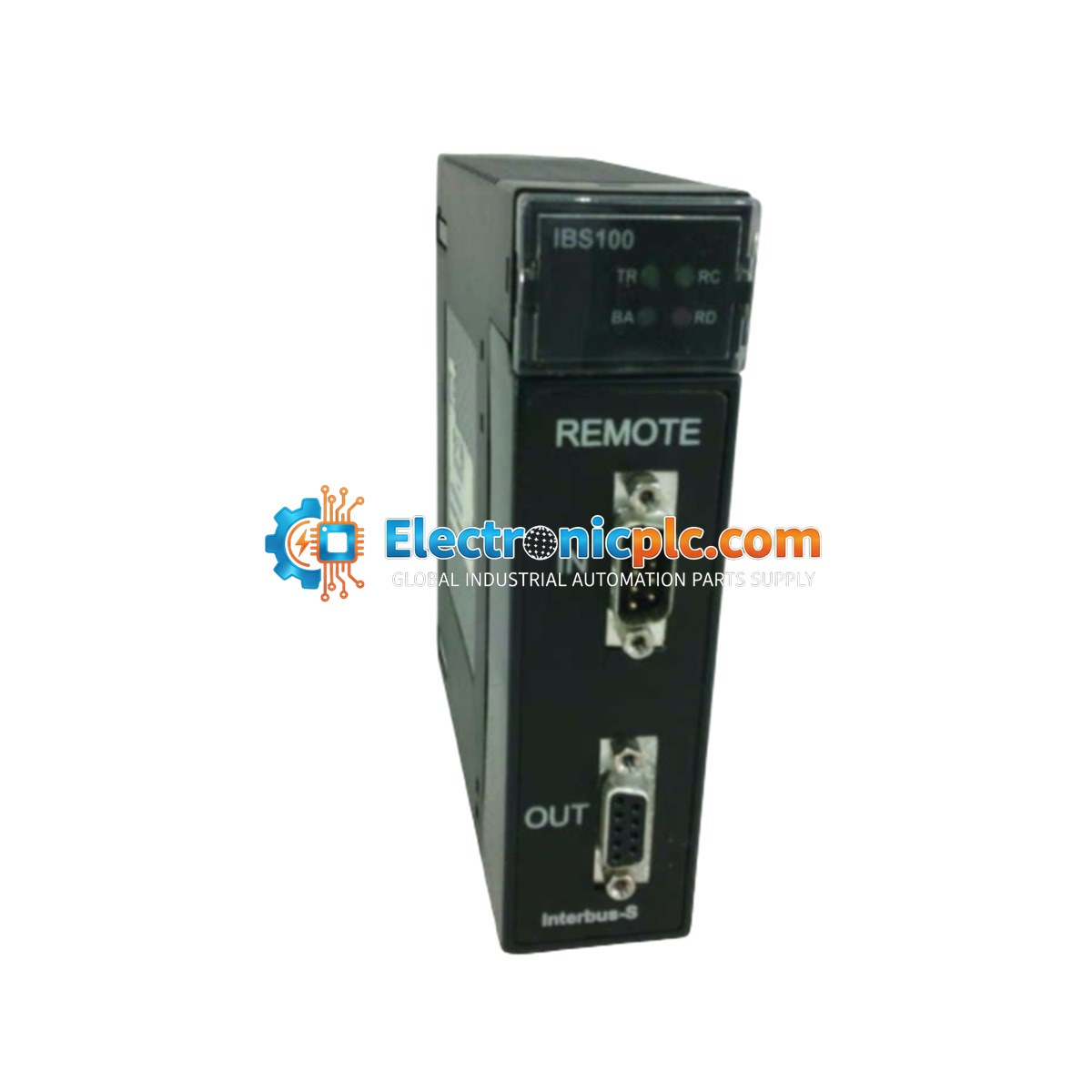

The General Electric HE693IBS100 is an Interbus-S Slave Module designed for the Series 90-30 PLC platform. This interface unit facilitates communication between the GE 90-30 controller and an Interbus-S fieldbus network, acting as a slave device to exchange data with a master controller. It supports the transmission of up to 64 words of data, providing reliable integration for distributed I/O and remote automation components within the Interbus-S ecosystem.

Features

• Designed for seamless integration with GE Series 90-30 PLC racks.
• Supports up to 64 words of data exchange.
• Fixed baud rate of 500 kbit/s for consistent network performance.
• 1500 V ac isolation to protect against electrical noise and surges.
• Standard 9-pin D-sub female interface for fieldbus connectivity.

Technical Specifications

Installation Guidelines

• Ensure the PLC rack power is disconnected before installing or removing the module to prevent electrical damage.
• Slide the module into an available slot in the Series 90-30 rack, ensuring proper alignment with the backplane connector.
• Secure the module using the built-in locking tabs or screws to ensure a stable mechanical connection.
• Use a shielded 9-pin D-sub cable for the Interbus-S connection to minimize EMI interference.
• Maintain proper ventilation within the control cabinet to ensure the module operates within its specified temperature range.
• Follow standard ESD (Electrostatic Discharge) precautions when handling the module to prevent component damage.

FAQ

What is the primary function of the HE693IBS100?

The HE693IBS100 serves as an Interbus-S slave interface, allowing a GE Series 90-30 PLC to communicate as a slave node on an Interbus-S fieldbus network.

Can the baud rate be adjusted on this module?

No, the HE693IBS100 operates at a fixed baud rate of 500 kbit/s.

Is this module hot-swappable?

It is recommended to power down the PLC rack before inserting or removing any I/O module to prevent potential damage to the backplane or module electronics.
