Description

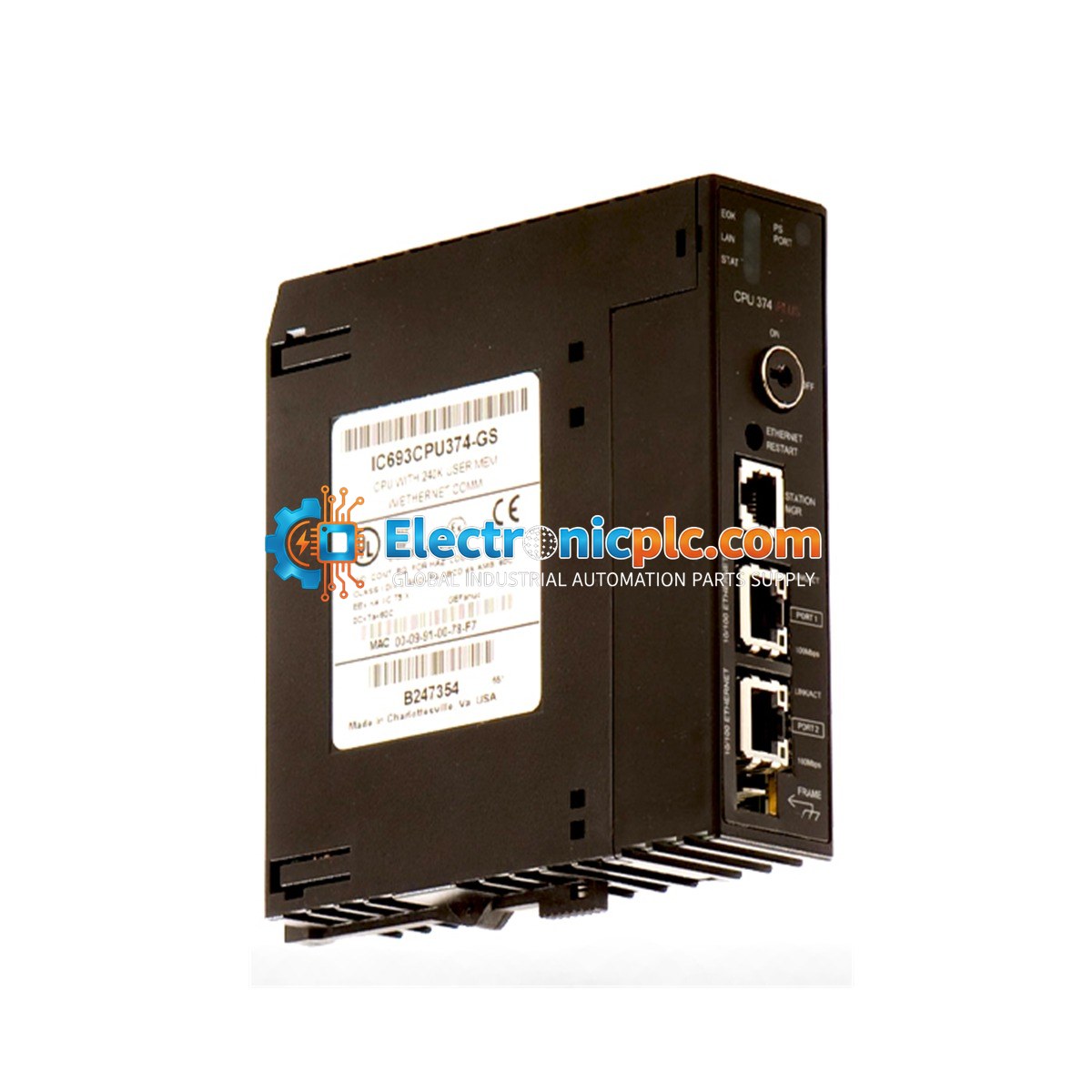

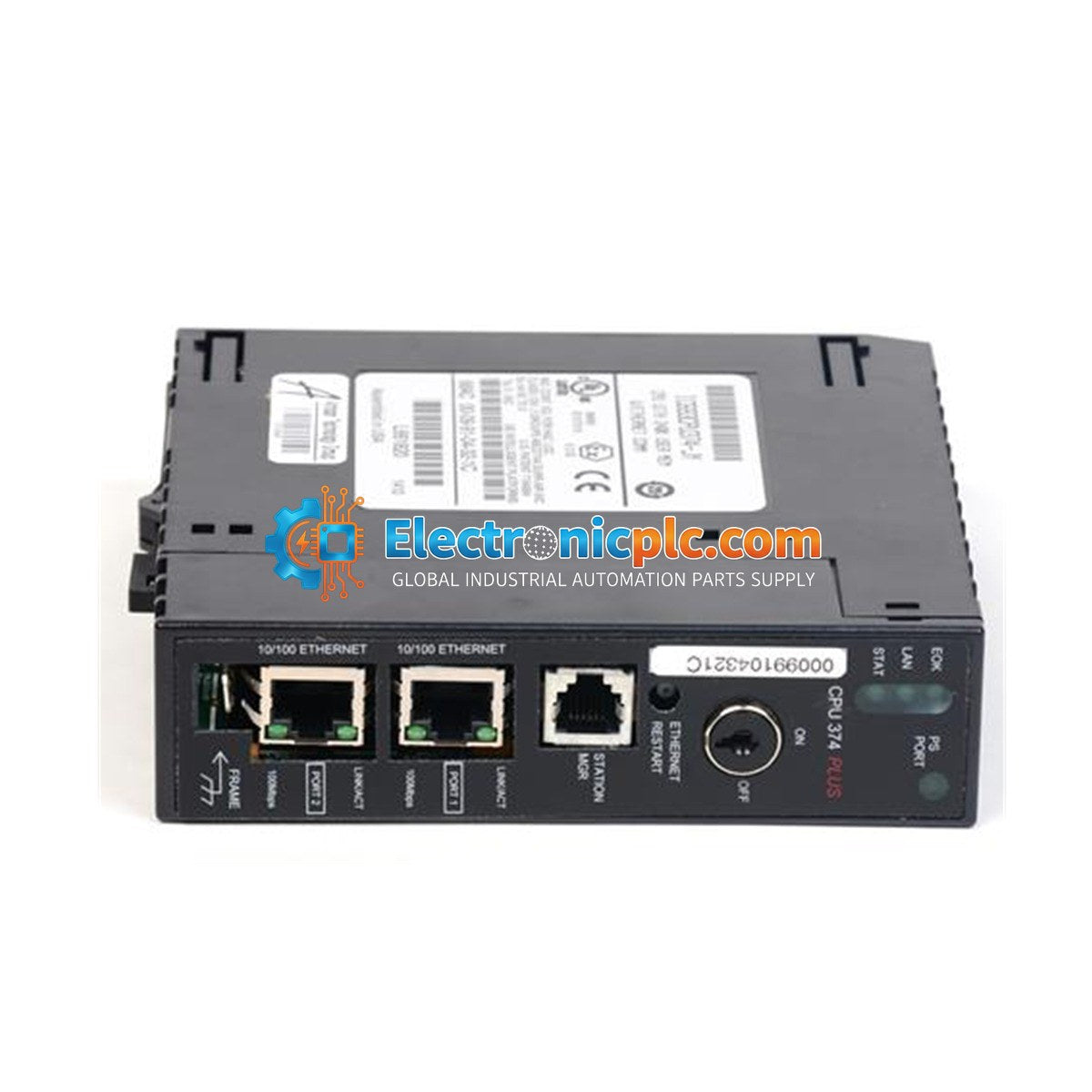

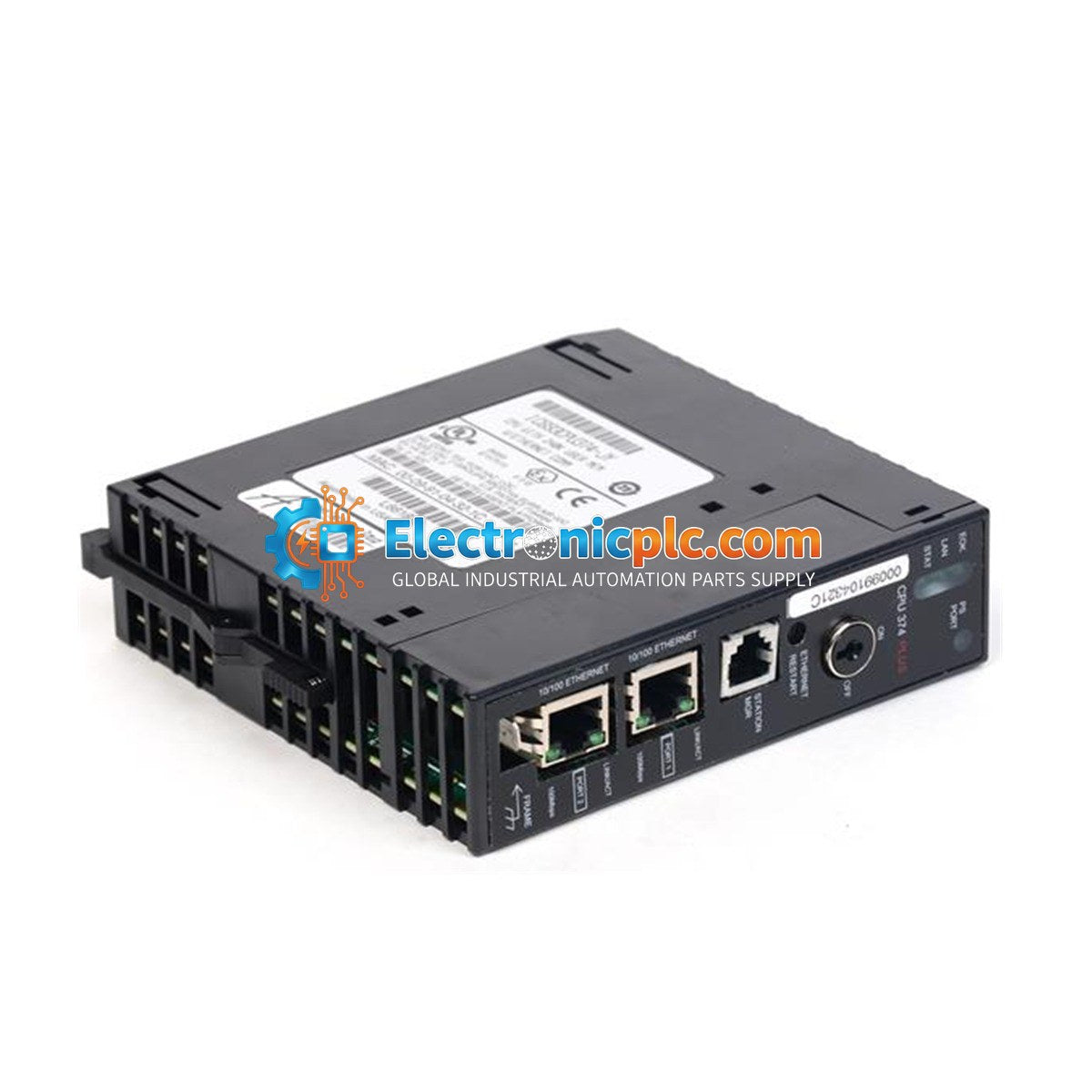

The General Electric IC693CPU374 is a high-performance, single-slot CPU module designed for the Series 90-30 Programmable Logic Controller (PLC) family. This module features an integrated Ethernet interface with dual 10/100 Mbps auto-sensing ports, providing robust networking capabilities for industrial control systems. It is engineered to facilitate seamless communication between Series 90-30, PACSystems, and VersaMax PLCs, as well as host computers running CIMPLICITY or other TCP/IP-based programming software.

Features

• Integrated 133 MHz AMD SC520 processor for high-speed logic execution.
• Built-in Ethernet interface supporting SRTP server capability and Ethernet Global Data (EGD) protocols.
• 240 KB of configurable user memory (RAM and Flash).
• Supports up to 2,048 discrete input and 2,048 discrete output points.
• Web-browser-based remote PLC monitoring capability.
• Physical memory protection switch to prevent unauthorized logic modifications.

Applications

• Automated Packaging & Bottling: Manages high-speed conveyor logic, filling accuracy, and labeling synchronization.
• Batch Processing: Controls temperature, pressure, and mixing ratios in food and beverage operations.
• Substation Automation: Monitors power quality, circuit breaker status, and load shedding logic.
• Renewable Energy: Manages pitch control systems in wind turbines and solar tracking systems.

Technical Specifications

Installation Guidelines

• ESD Precautions: Always use a grounded wrist strap when handling the module to prevent electrostatic discharge damage to internal components.
• Power Down: Ensure the PLC rack power supply is switched off before inserting or removing the CPU module.
• Seating: Ensure the module is fully seated in the designated slot and that the locking tabs are engaged to maintain a secure connection to the backplane.
• Cable Routing: Route Ethernet communication cables away from high-voltage power lines and sources of electromagnetic interference (EMI) to ensure signal integrity.
• Battery Backup: For extended memory retention (up to 15 months), install the optional IC693ACC302 external battery.

FAQs

What is the primary function of the IC693CPU374?

It serves as the central processing unit for the Series 90-30 PLC, managing logic execution, I/O processing, and network communications via its built-in Ethernet ports.

Does this module support Modbus/TCP?

Yes, the module supports Ethernet Global Data (EGD), SRTP, and Modbus/TCP protocols for versatile integration with various industrial devices.

Can I monitor this PLC remotely?

Yes, the CPU374 supports basic remote PLC monitoring through a standard web browser.
