Description

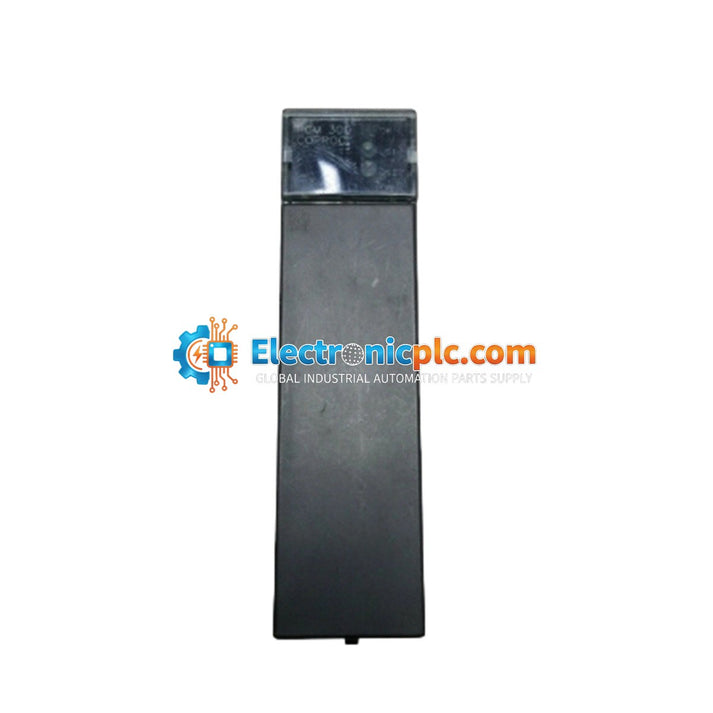

The GE Fanuc IC693PCM300 is a high-performance Programmable Coprocessor Module (PCM) engineered for the Series 90-30 PLC platform. This module is designed to offload complex communication and data processing tasks from the primary CPU, improving overall system efficiency and throughput. By handling specialized tasks independently, the IC693PCM300 reduces CPU overhead, making it an ideal solution for demanding industrial automation environments, including water management and discrete manufacturing, where high availability is required.

Features

• Dual-Port Connectivity: Features one RS-232 port (Port 1) and one RS-485 port (Port 2) for versatile field device integration.
• Programming Versatility: Supports custom application development using both MegaBasic and C programming languages.
• Memory Architecture: Equipped with 160K total RAM, with 35K specifically allocated for User MegaBasic memory.
• Data Retention: Includes a lithium-backed memory system to ensure data integrity during power cycles.
• Diagnostic Feedback: Integrated LED indicators provide real-time status monitoring for simplified troubleshooting.

Applications

The IC693PCM300 is widely utilized in applications requiring custom communication drivers, specialized data processing, or integration with third-party peripherals such as CRT displays and programming terminals. It is commonly deployed in GE Fanuc Series 90-30 systems to manage Modbus RTU and CCM protocol communications.

Technical Specifications

Installation Guidelines

• Safety First: Always disconnect power from the PLC rack before inserting or removing the module to prevent electrical damage.
• Mounting: The module is designed to be installed in a standard Series 90-30 CPU baseplate slot. Ensure the module is fully seated and the locking levers are engaged.
• Grounding: Ensure the baseplate is properly grounded according to local electrical codes to minimize EMI and protect sensitive internal components.
• Wiring: Use shielded cables for RS-232 and RS-485 connections. Route communication cables away from high-voltage power lines to prevent signal interference.
• ESD Precautions: Handle the module by its edges or the faceplate. Avoid touching the backplane connectors or internal circuitry to prevent electrostatic discharge damage.

FAQ

What is the primary function of the IC693PCM300?

The IC693PCM300 acts as a coprocessor, offloading communication and data processing duties from the main Series 90-30 CPU to improve system performance and response times.

Can this module communicate with third-party devices?

Yes, the module supports industry-standard protocols like Modbus RTU, allowing it to interface with a wide range of third-party field devices, sensors, and supervisory systems.

What programming languages are supported?

The module supports development in both MegaBasic and C, providing flexibility for custom driver and routine creation.
