Description

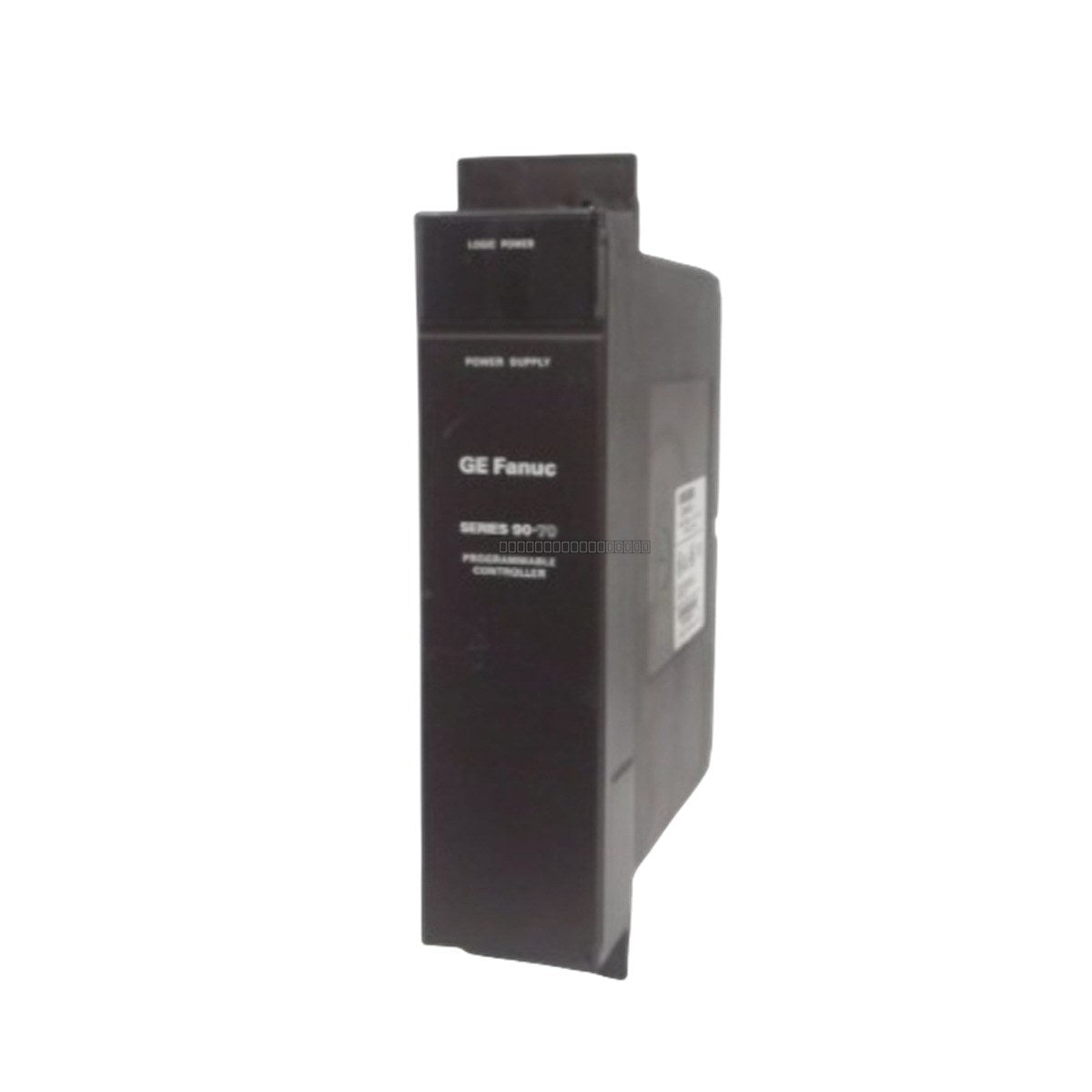

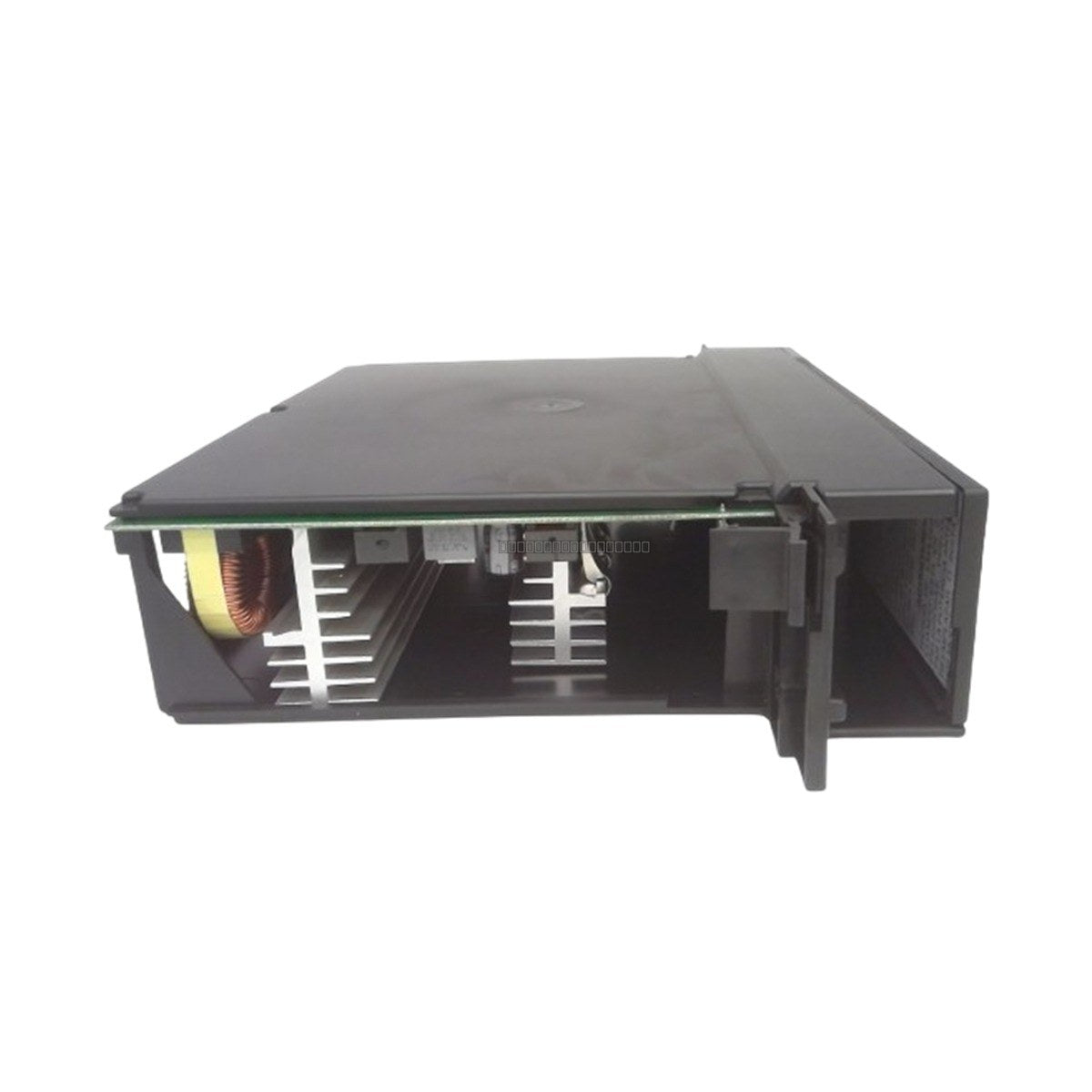

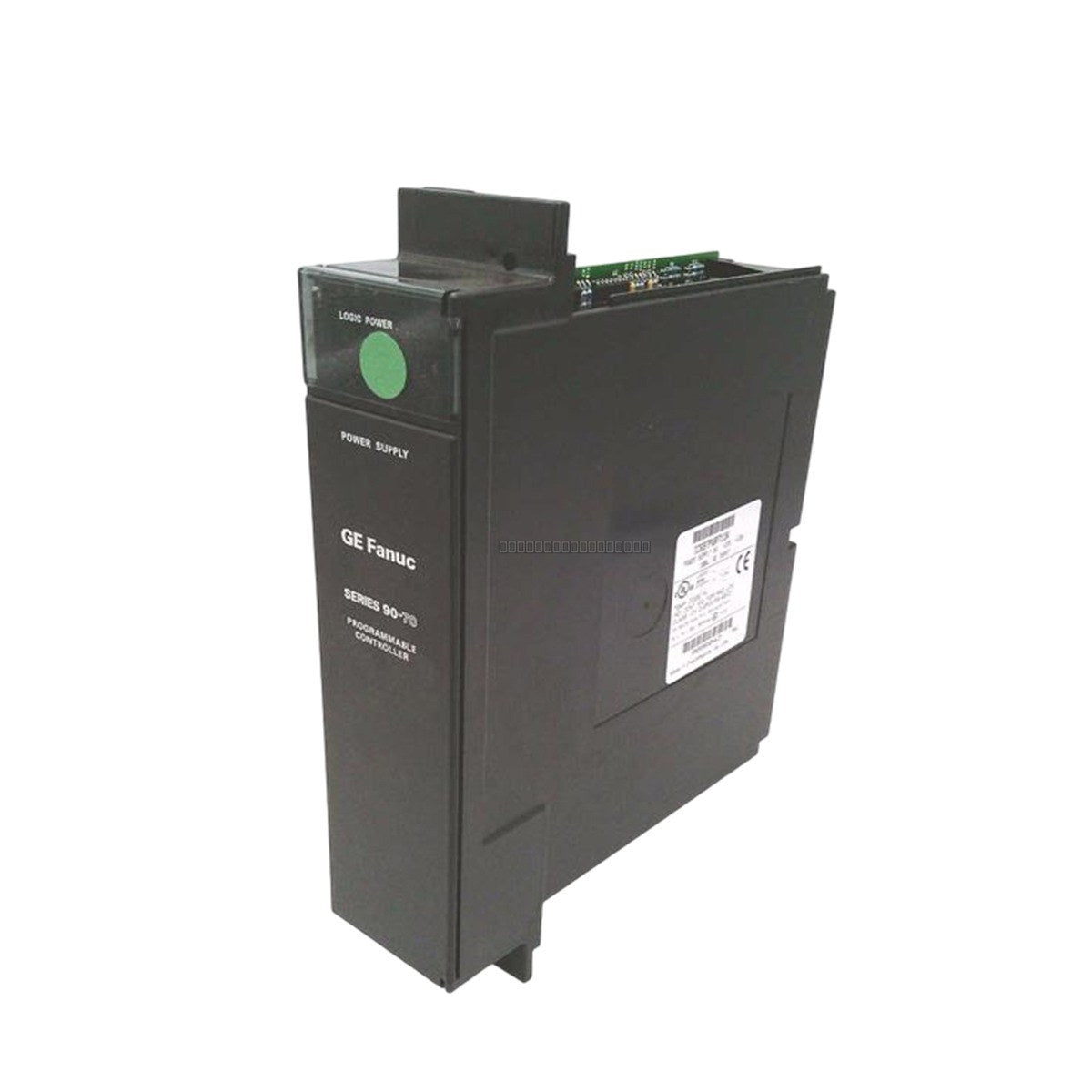

The General Electric IC697PWR711 is a 100-watt power supply module designed for the Series 90-70 PLC platform. This rack-mounted unit is engineered to provide reliable power to one or two racks, delivering +5 VDC, +12 VDC, and -12 VDC outputs to the backplane. It supports flexible input configurations, including 120 VAC, 240 VAC, or 125 VDC sources, making it adaptable to various industrial power environments.

Features

• Supports nominal 120 VAC, 240 VAC, or 125 VDC input voltages.
• Provides 100 watts of total power across +5 VDC and +/- 12 VDC outputs.
• Slide-in rack mount design for installation in the leftmost slot of the rack.
• Integrated electronic short circuit and overcurrent protection.
• Capable of powering two racks simultaneously when total load is within specifications.
• Logic-level sequencing signals provided directly to the backplane.

Technical Specifications

Installation Guidelines

• Ensure the power supply is installed in the leftmost slot of the rack.
• The module connects directly to the 48-pin backplane connector.
• For two-rack applications, use a pre-wired cable to interconnect the racks.
• Verify input voltage jumper settings before applying power.
• Ensure adequate ventilation; derating may be required for operation above 55 degC.
• Always power down the system before inserting or removing the module to prevent electrical damage.
• If the overvoltage protection circuit triggers, the unit must be power-cycled to reset.

FAQ

What is the IC697PWR711?

The GE IC697PWR711 is a 100-watt power supply module for the GE Fanuc Series 90-70 PLC system, designed for rack-mounted applications.

What is the input voltage range for the IC697PWR711?

The module supports a nominal 120 VAC or 240 VAC, with an operational range of 90–132 VAC or 180–264 VAC. It also supports 125 VDC, with a range of 100–150 VDC.

Can this power supply work in a two-rack application?

Yes, it can power two racks, provided the total power demand stays within the 100W supply rating.
