Description

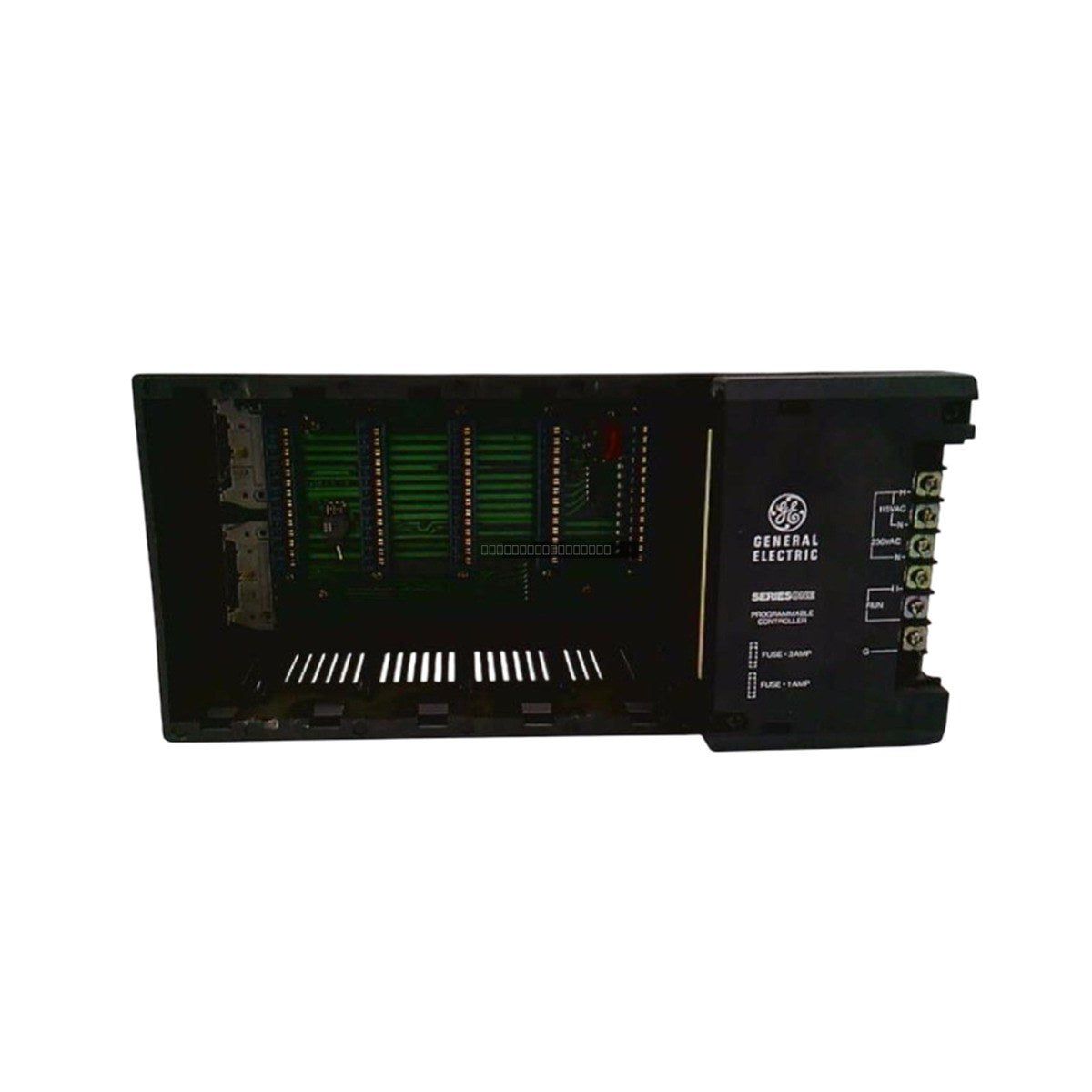

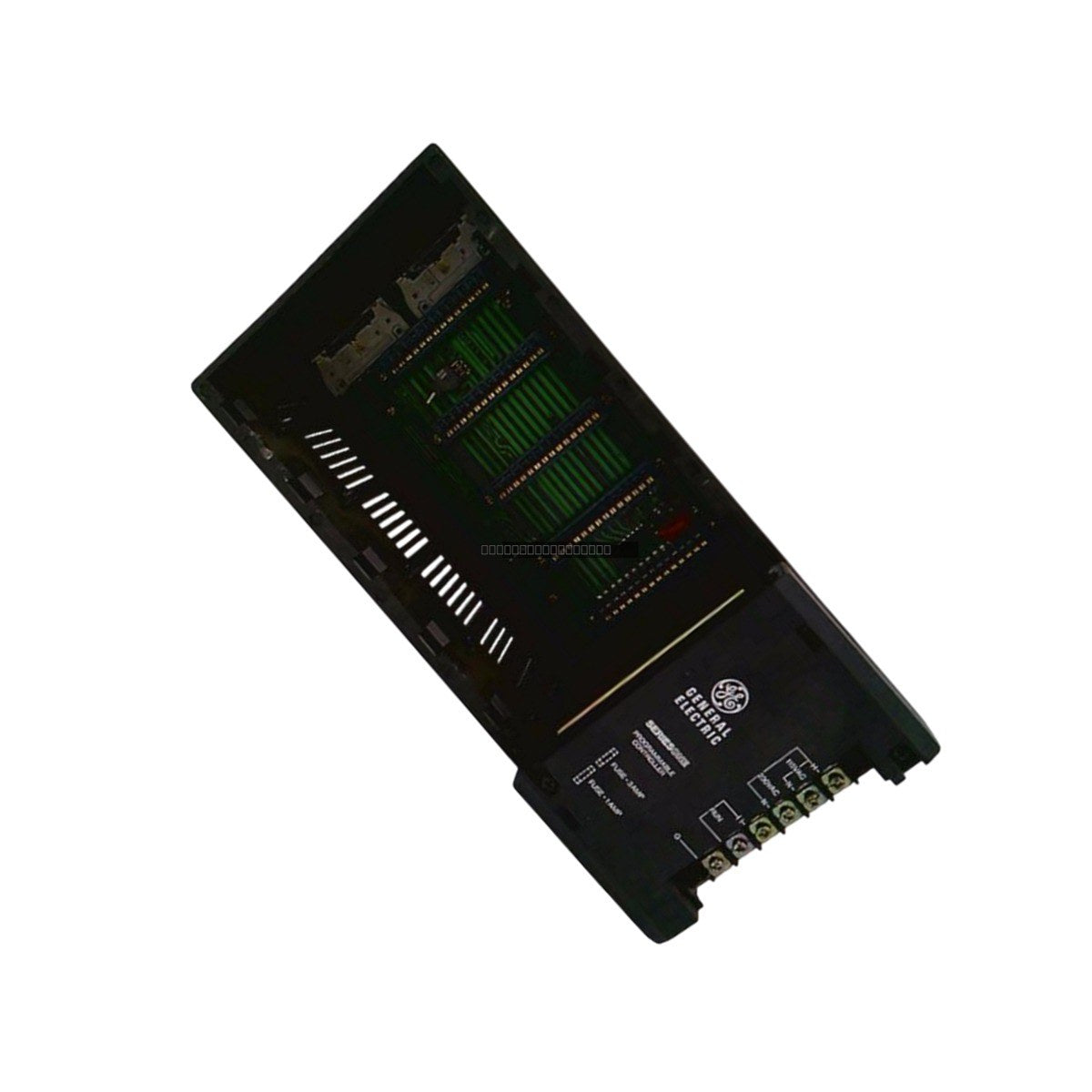

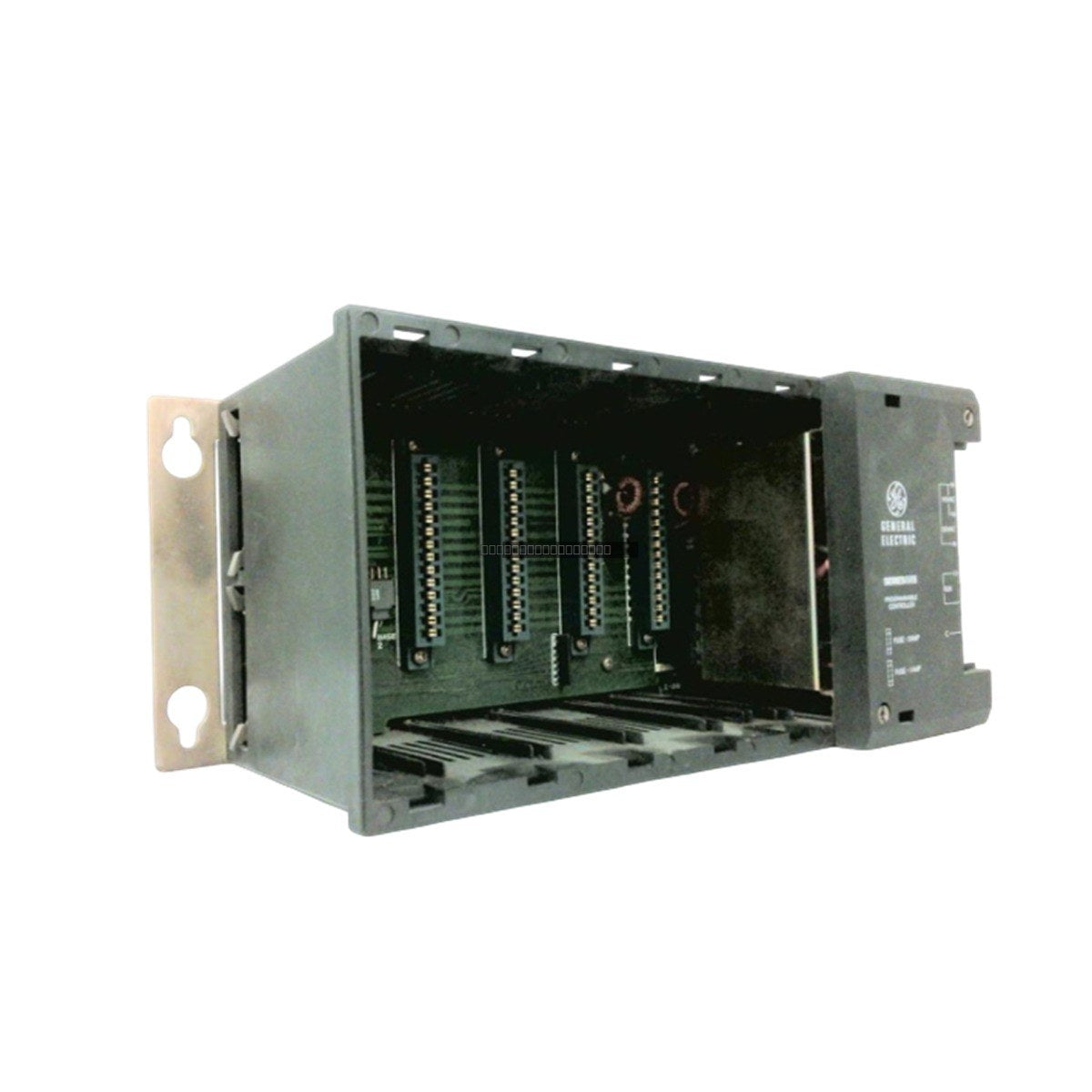

The GE Fanuc IC610CHS100 is a five-slot input/output rack engineered specifically for the Series One automation platform. This chassis serves as a centralized mounting and communication backplane, providing a stable, vibration-resistant environment for I/O modules in fixed-architecture control systems. It is designed to facilitate reliable signal distribution and power management for discrete manufacturing, packaging, and machine tool control applications.

Features

• Five-slot capacity for high-density I/O configurations.
• Integrated overcurrent protection supporting both 1-Amp and 3-Amp fuse types.
• Robust mechanical design suitable for demanding industrial environments.
• Non-expandable, compact footprint for space-constrained control panels.
• Supports standard industrial power inputs of 115 to 230 VAC.

Applications

This rack is typically utilized in Series One PLC systems where a fixed, reliable I/O count is required. It is commonly found in automated assembly lines, material handling systems, and small-to-medium scale process control environments.

Technical Specifications

Installation Guidelines

• Ensure the rack is mounted on a flat, vibration-dampened surface within a NEMA-rated enclosure.
• Always disconnect all power sources before inserting or removing I/O modules from the rack slots.
• Maintain adequate clearance around the rack to ensure proper convection cooling and airflow.
• Verify that the incoming power supply matches the 115-230 VAC specification before energizing.
• Use appropriate grounding practices to minimize EMI and ensure signal integrity across the backplane.

FAQ

Is this rack expandable?

No, the IC610CHS100 is a non-expandable, five-slot fixed-architecture rack designed for specific I/O density requirements.

What type of fuses are compatible with this unit?

The rack supports both 1-Amp and 3-Amp fuses to provide overcurrent protection for the installed modules and field devices.
