Description

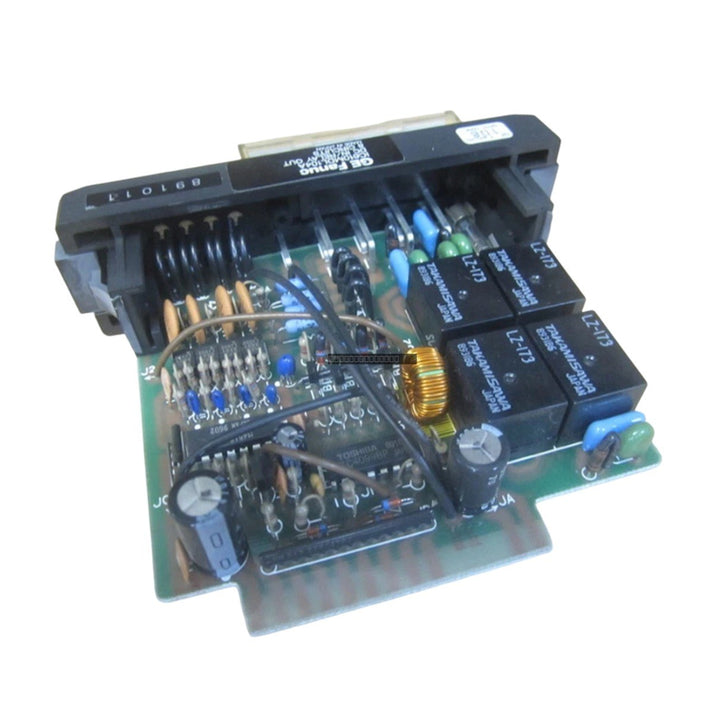

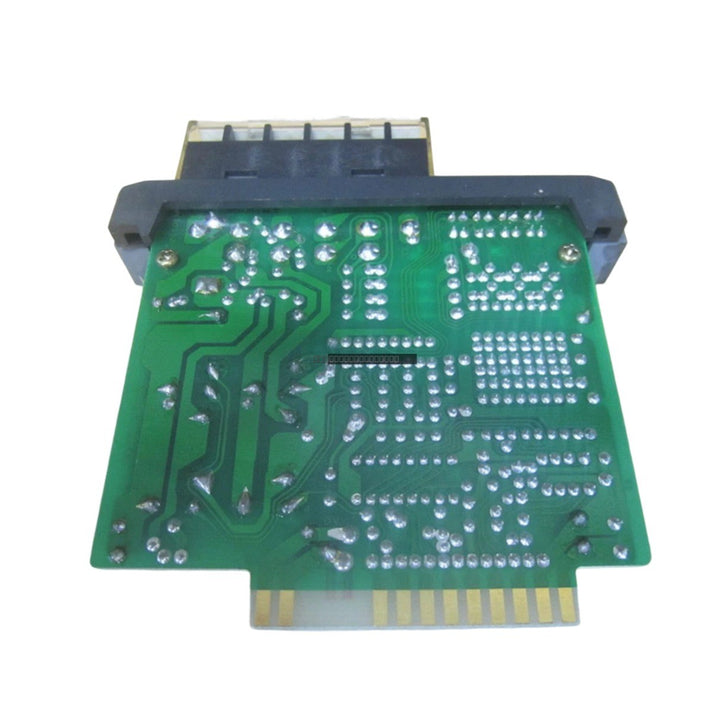

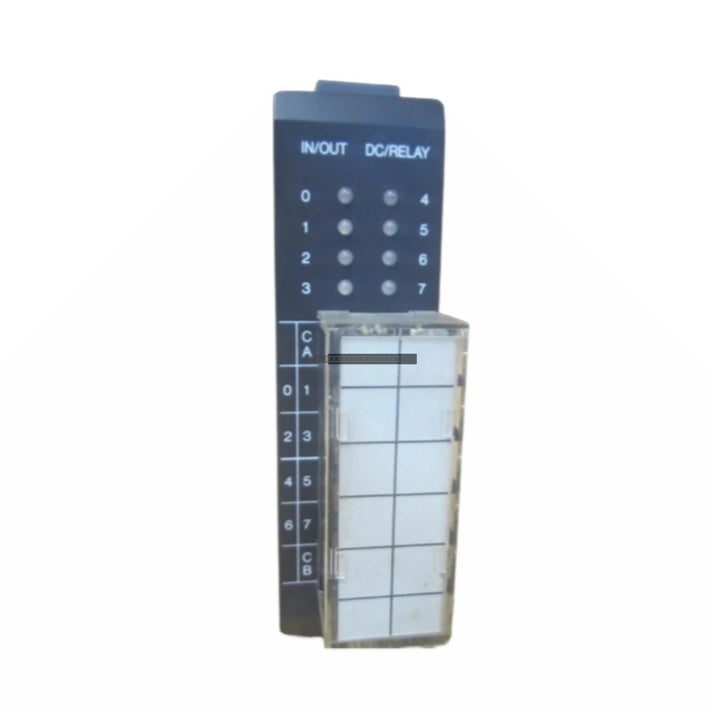

The GE Fanuc IC610MDL104 is a high-density, combined I/O module designed specifically for the legacy Series One PLC architecture. This module integrates 24 VDC discrete input processing with electromechanical relay output switching, providing a versatile interface for field devices in a single-slot footprint. By consolidating input and output functions, it enables efficient rack space utilization and simplifies wiring for control systems in industrial environments such as material handling, water treatment, and mining.

Features

• Hybrid I/O Configuration: Combines discrete 24 VDC inputs with robust relay outputs to handle diverse field signal requirements.
• Compact Design: Occupies only one slot on the Series One backplane, ideal for space-constrained control cabinets.
• Electromechanical Relay Outputs: Provides reliable dry-contact switching for various industrial loads.
• Rugged Construction: Engineered to withstand demanding industrial conditions, including high relative humidity levels.
• Passive Cooling: Designed for vertical mounting to facilitate natural convective airflow across internal components.

Applications

This module is intended for use in legacy GE Fanuc Series One PLC systems. It is commonly utilized for interfacing sensors, limit switches, and pushbuttons with actuators, contactors, or small motor starters in automated machinery and process control applications.

Technical Specifications

Installation Guidelines

• Power Off: Always disconnect system power before inserting or removing the module from the backplane to prevent electrical damage or arcing.
• Mounting Orientation: Ensure the module is mounted vertically to maintain proper thermal dissipation and prevent overheating of the relay coils.
• Wiring: Use appropriate wire gauges for the terminal blocks and ensure all connections are secure to prevent intermittent signal loss.
• Grounding: Follow standard industrial grounding practices for the PLC rack to minimize electromagnetic interference (EMI).
• Environment: Install in an enclosure that protects the module from direct moisture, dust, and corrosive gases.

FAQ

What is the primary function of the IC610MDL104?

The IC610MDL104 is a hybrid I/O module for the GE Series One PLC that processes 24 VDC inputs and provides relay outputs for controlling field devices.

Can this module be mounted horizontally?

No, the manufacturer specifies that this module must be mounted in a vertical orientation to ensure adequate passive convective cooling for the internal relay components.

Is this module compatible with modern GE PLC systems?

This module is specifically engineered for the legacy Series One PLC product line. It is not compatible with modern GE RX3i or Series 90-30 platforms.
