Description

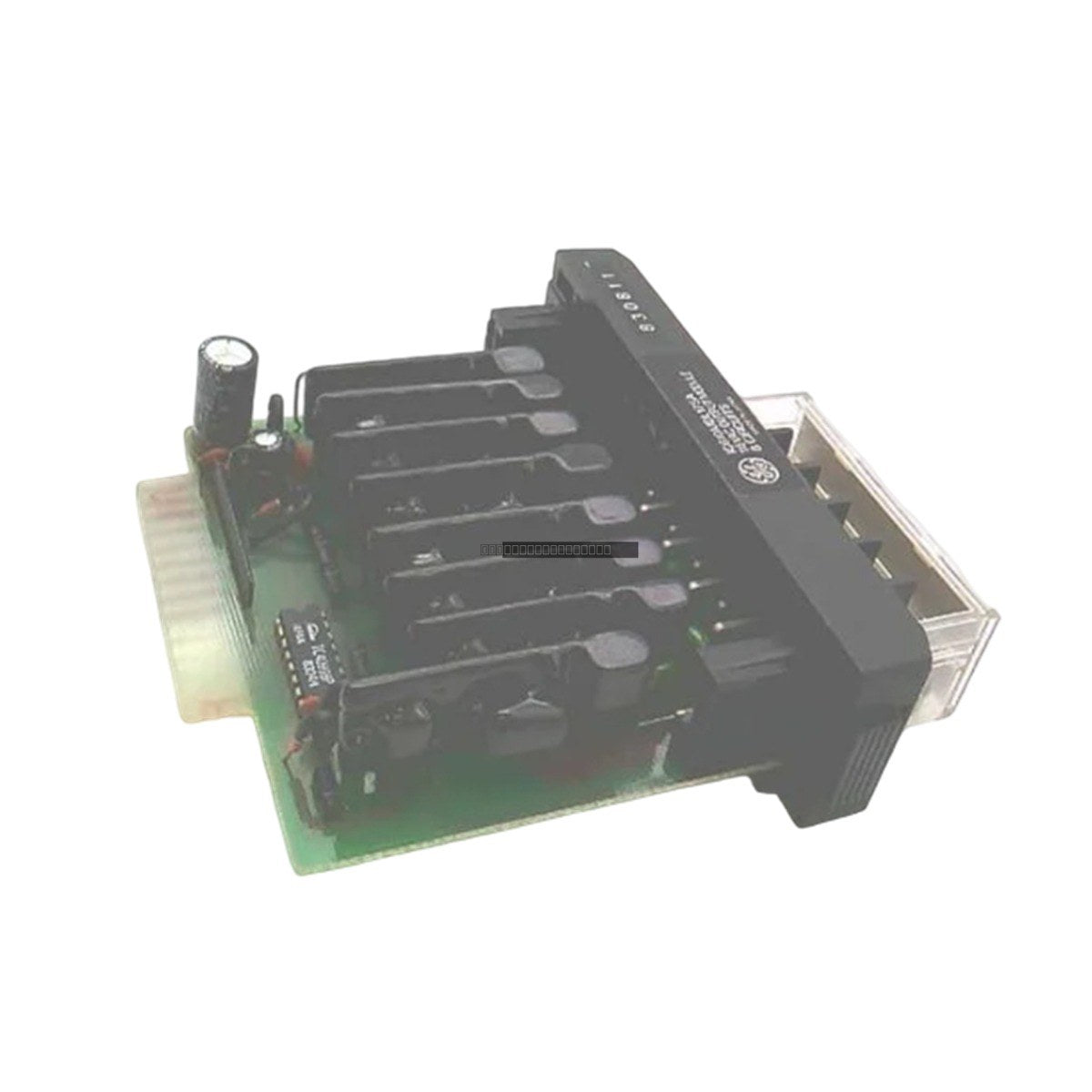

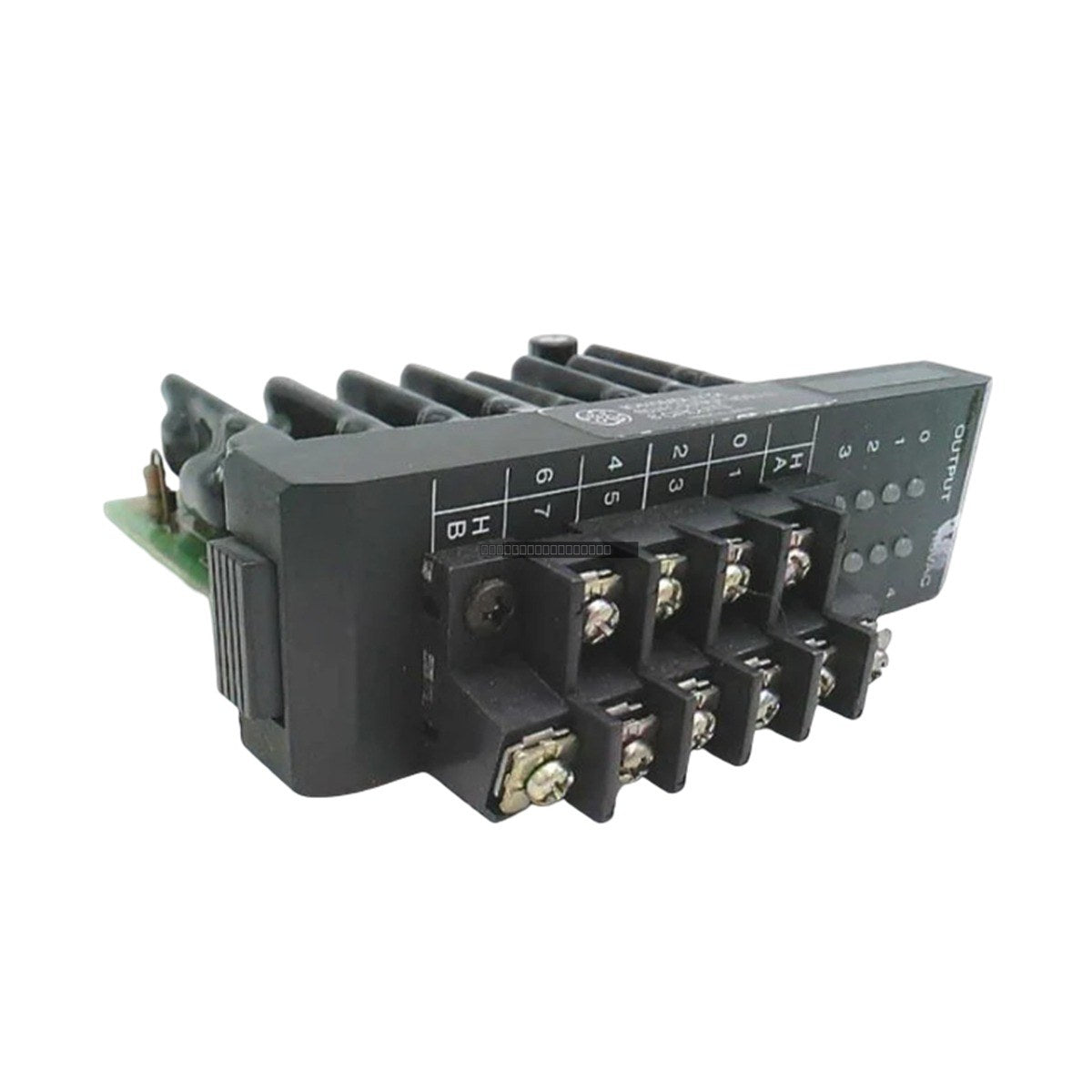

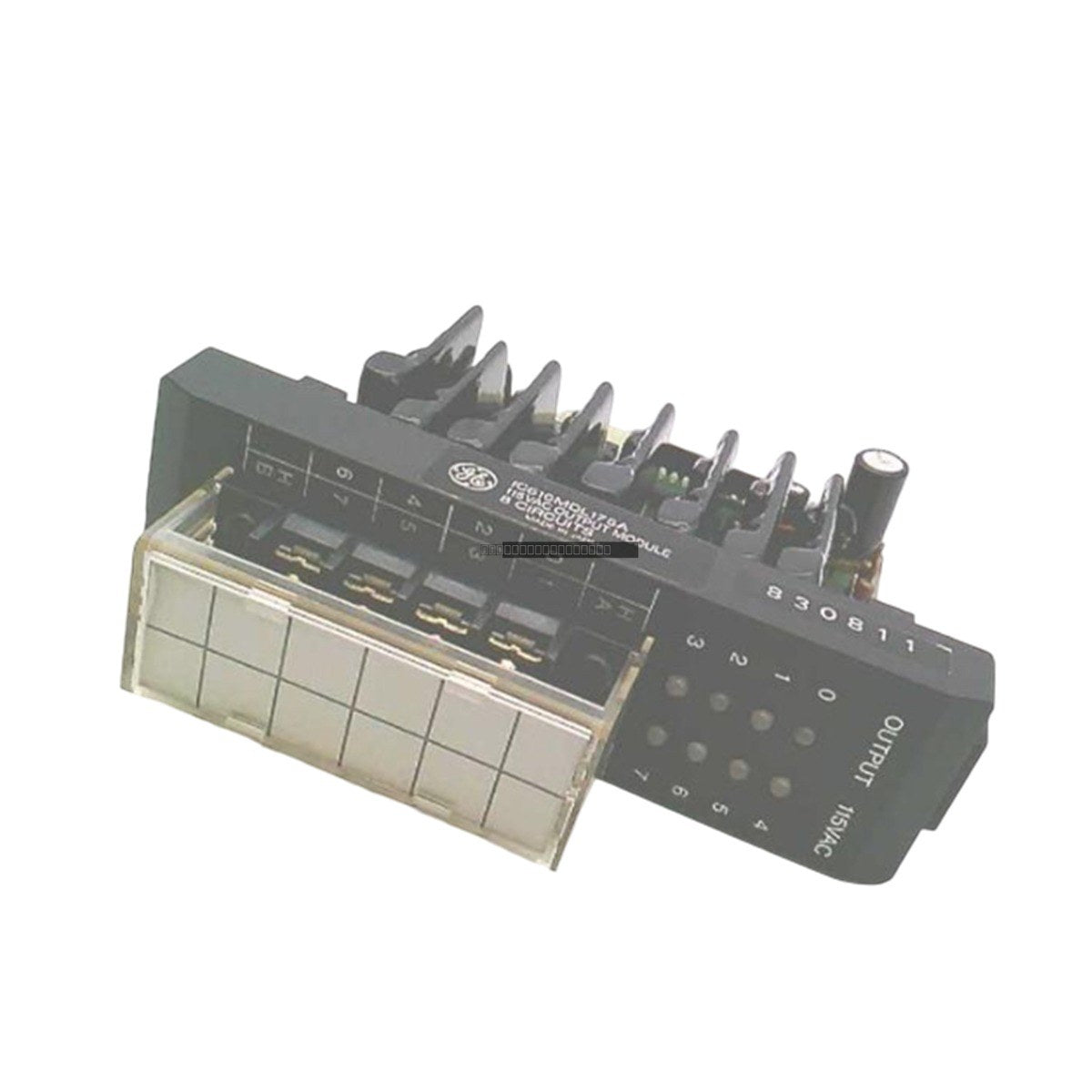

The GE Fanuc IC610MDL180 is a robust 8-point relay output module engineered for the Series One PLC platform. This module is designed to provide reliable switching for field devices in industrial automation applications, including discrete manufacturing and process control. By utilizing independent relay contacts, the IC610MDL180 allows for flexible integration into various control architectures, ensuring operational stability and reliable signal execution under diverse load conditions.

Features

• 8 independent relay output channels for versatile field device control.
• Wide operating voltage range supporting 4 to 265 VAC.
• Consistent 5 ms switching delay for both turn-on and turn-off cycles.
• Low leakage current of 1 mA to prevent false triggering of sensitive inputs.
• Designed for high-reliability performance in demanding industrial environments.

Applications

This module is suitable for interfacing PLC control logic with external field equipment such as contactors, solenoids, and indicators. Its relay-based output architecture makes it ideal for applications requiring galvanic isolation between the PLC backplane and the field-side load.

Technical Specifications

Installation Guidelines

• Ensure the PLC power is disconnected before installing or removing the module from the rack.
• Verify that the field wiring is properly secured to the terminal blocks to prevent intermittent connections.
• Maintain adequate spacing within the enclosure to allow for proper heat dissipation.
• Observe all local electrical codes regarding wire gauge and grounding requirements for relay output circuits.
• Avoid routing high-voltage field wiring in the same conduit as low-voltage signal cables to minimize electromagnetic interference.

FAQ

What is the primary function of the IC610MDL180?
The IC610MDL180 is a relay output module for the Series One PLC, used to switch external field devices using 8 independent relay contacts.

Can this module handle high inrush currents?
Yes, the module is rated to support a peak inrush current of up to 5 A, provided it remains within the specified operational parameters.

Is there a minimum load requirement for this module?
Yes, to ensure reliable relay contact operation, it is recommended that the connected load be at least 5 mA.
