Description

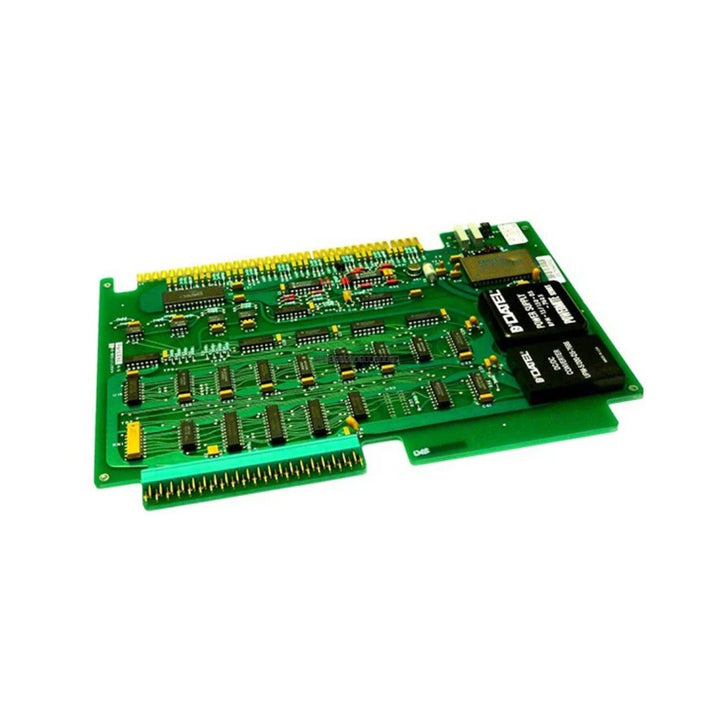

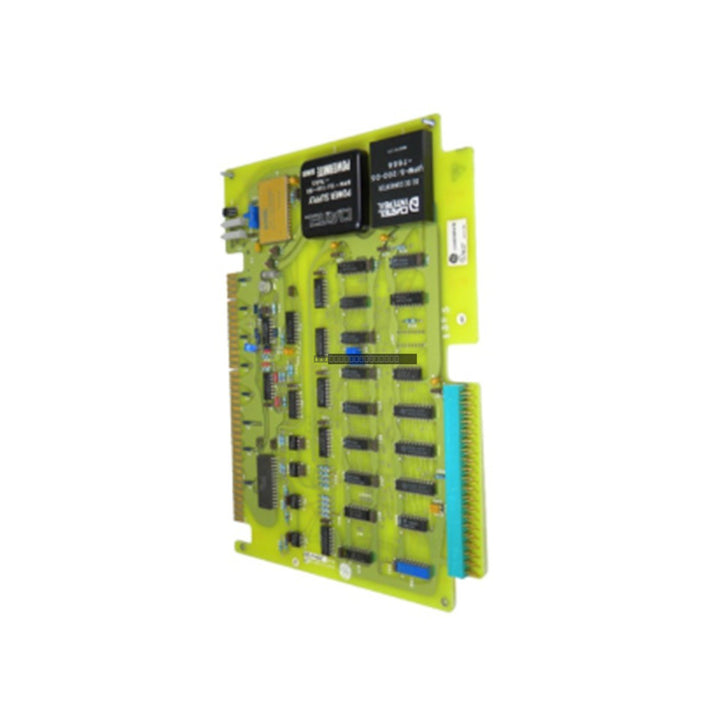

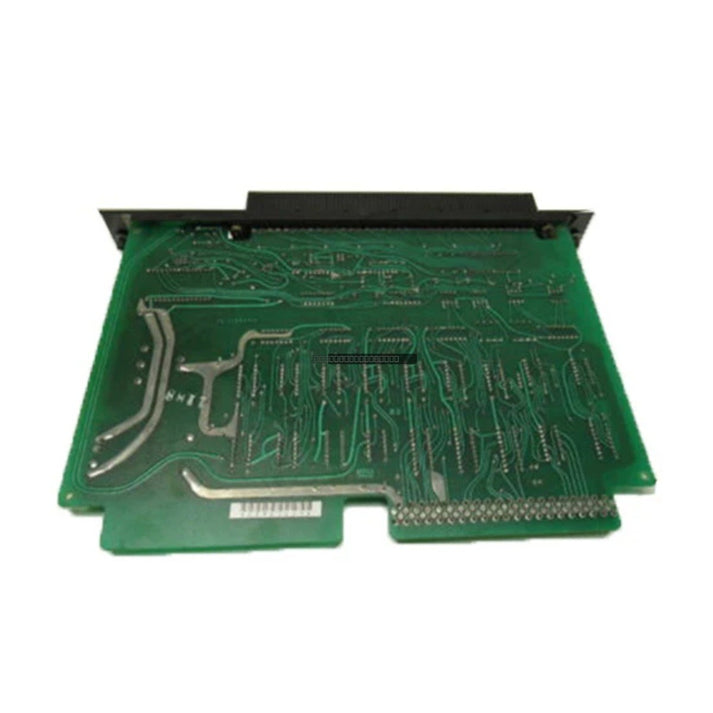

The GE IC600BF843 is an 8-point analog input module designed for the Series Six programmable controller system. This module provides high-density analog signal processing capabilities, allowing for the integration of standard industrial process signals into the Series Six control environment. Please note that this unit is discontinued by the manufacturer, making it a critical component for maintaining legacy automation infrastructure.

Features

• Designed specifically for the GE Series Six PLC architecture.
• Supports 8-point analog input configuration.
• Standard current loop input range of 4-20 mA.
• Reliable interface for industrial sensing and process monitoring.
• Direct replacement for or compatible with the IC600BF843L spare model.

Technical Specifications

Installation Guidelines

• Ensure the Series Six rack power is completely disconnected before attempting to install or remove the module.
• Handle the module using proper ESD (Electrostatic Discharge) precautions to prevent damage to internal circuitry.
• Verify that the module is correctly seated in the backplane slot to ensure proper communication with the CPU and power supply.
• Ensure all field wiring is routed away from high-voltage cables or sources of electromagnetic interference to maintain signal integrity for the 4-20 mA inputs.
• Check that the terminal connections are secure and that the wiring matches the specific loop requirements of your process instrumentation.

FAQ

Is the IC600BF843 still being manufactured? No, this module has been discontinued by General Electric. We supply these units to support legacy systems.

What is the difference between IC600BF843 and IC600BF843L? The IC600BF843L is recognized as the spare or replacement version for the standard IC600BF843 model, maintaining identical operational specifications.

Does this module require external power? It is powered via the Series Six rack backplane; refer to your specific Series Six system manual for power budget calculations when adding high-density I/O modules.
