Description

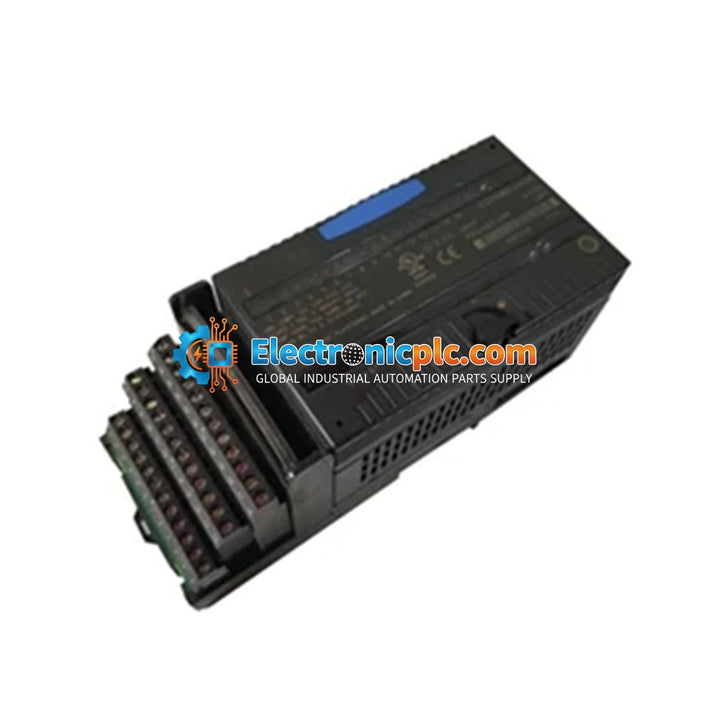

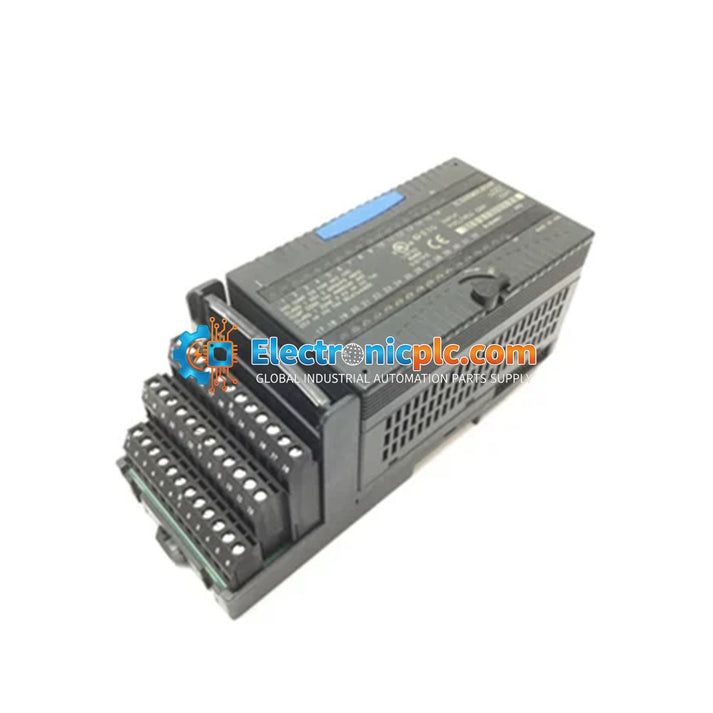

The IC200MDL650 is a high-density 32-point discrete input module designed for the GE VersaMax I/O platform. This module provides reliable signal acquisition for industrial control systems, supporting both positive and negative logic wiring configurations. It is organized into four groups of eight input channels each, allowing for flexible integration with various field devices such as limit switches, proximity sensors, pushbuttons, and auxiliary contacts.

Features

• 32 discrete input channels arranged in four groups of eight.
• Supports both positive and negative logic configurations.
• Configurable input filtering (0 ms, 1.0 ms default, or 7.0 ms) to suppress noise and eliminate mechanical contact bounce.
• High-density design suitable for space-constrained control cabinets.
• Group-to-group isolation rated at 250 VAC continuous and 1500 VAC for 1 minute.

Applications

• Pump station control and monitoring of start/stop status.
• Hydropower station signal acquisition for turbines and circuit breakers.
• Intelligent fire-fighting water supply systems using pressure and level switches.
• Thermal control and conveyor logic for industrial furnace applications.

Technical Specifications

Installation Guidelines

• Ensure the PLC system is powered down before installing or removing the module from the backplane.
• Mount the module on a standard DIN rail or compatible VersaMax rack system, ensuring secure seating to maintain backplane connectivity.
• Use shielded cabling for input signals to minimize electromagnetic interference (EMI) in high-noise environments.
• Maintain proper wire routing to separate signal lines from high-voltage power cables.
• Observe correct polarity when wiring for positive or negative logic configurations.
• Handle with care using ESD-safe practices to prevent damage to sensitive internal components.

FAQs

What is the IC200MDL650?

The GE IC200MDL650 is a 32-point, 24VDC discrete input module from the VersaMax PLC series, used to interface field devices with the control system.

What is the input voltage range?

The module operates with a 24 VDC nominal voltage, with an input range of 0 to 30 VDC.

How are the inputs configured?

The 32 inputs are organized into four groups of eight channels each, supporting both positive and negative logic wiring.

Can the input response time be adjusted?

Yes, users can configure input filter times via the CPU software to 0 ms, 1.0 ms (default), or 7.0 ms to filter out noise or contact bounce.
