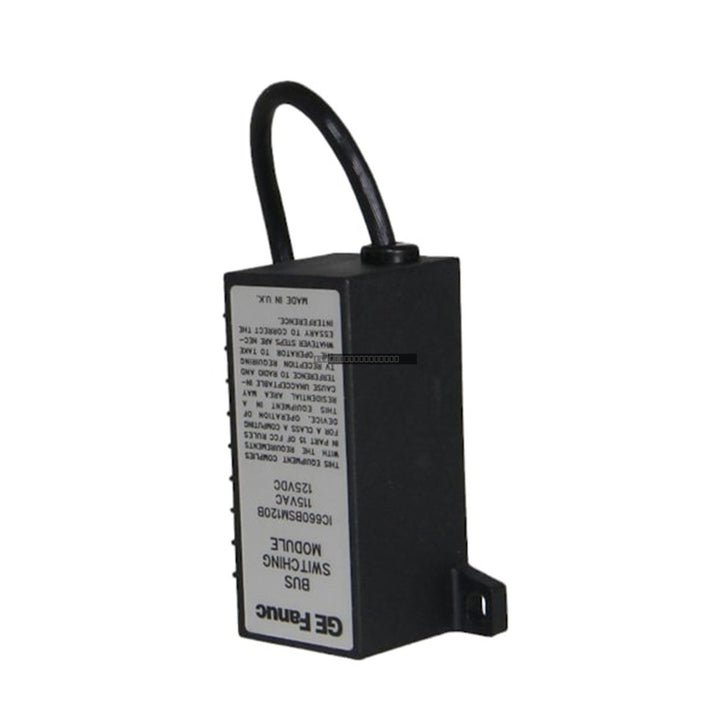

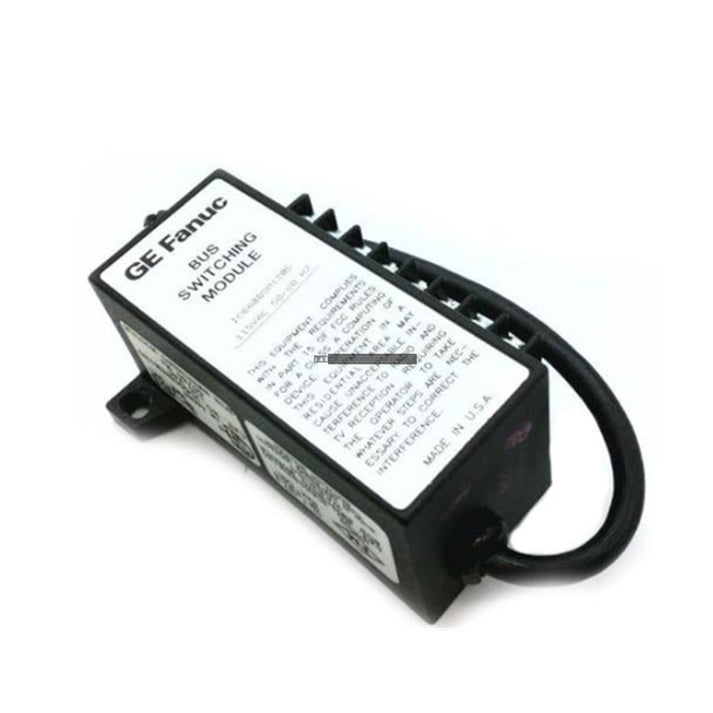

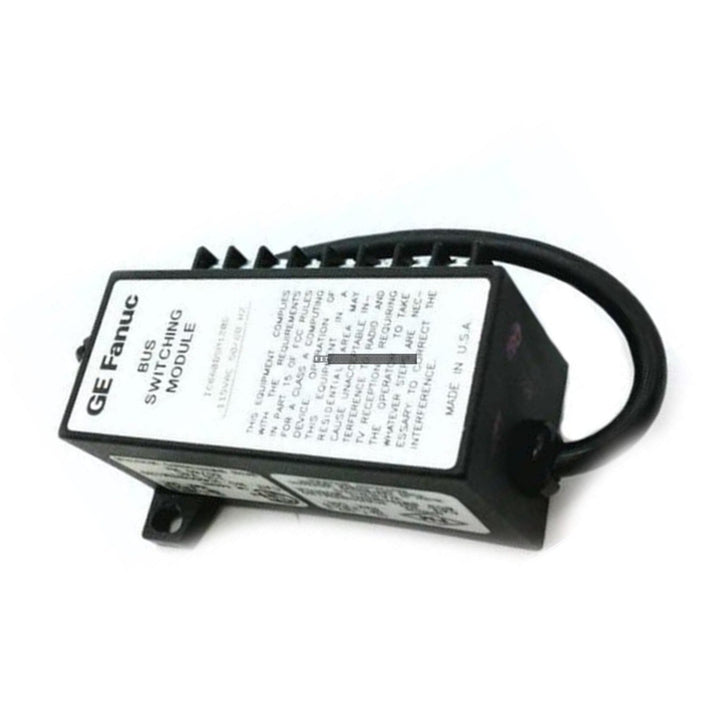

The General Electric IC660BSM120 is a dedicated Bus Switching Module designed for the Genius I/O system. This module facilitates reliable communication and signal management within the serial bus architecture, providing essential connectivity for industrial automation control systems.

Features

• Designed for integration with the Genius I/O serial bus network.
• Supports configuration via handheld monitor or CPU.
• Equipped with dual serial bus connectors for robust network interfacing.
• Compact design optimized for space-constrained control cabinets.
• Operating temperature range of 0 to 60 degC to suit standard industrial environments.

Applications

This module is primarily utilized in industrial automation environments where Genius I/O systems are deployed. It serves as a critical component for managing bus traffic and maintaining communication integrity between distributed I/O blocks and the central controller.

Technical Specifications

Installation Guidelines

• Ensure the control system power is disconnected before installing or removing the module.
• Mount the module in a clean, dry environment protected from excessive vibration and extreme temperatures.
• Verify that all serial bus cable connections are secure and properly seated to prevent intermittent communication errors.
• Maintain adequate clearance around the module to allow for proper heat dissipation and airflow.
• Follow standard ESD (Electrostatic Discharge) precautions when handling the module to prevent damage to internal circuitry.

FAQ

What is the primary function of the IC660BSM120?
The IC660BSM120 acts as a bus switching module within the GE Genius I/O system, enabling efficient management and switching of serial bus communications.

How is this module configured?
The module can be configured using a standard Genius I/O handheld monitor or through the system CPU.

What is the operating temperature range for this unit?
The module is rated for operation in temperatures ranging from 0 to 60 degC.
