Description

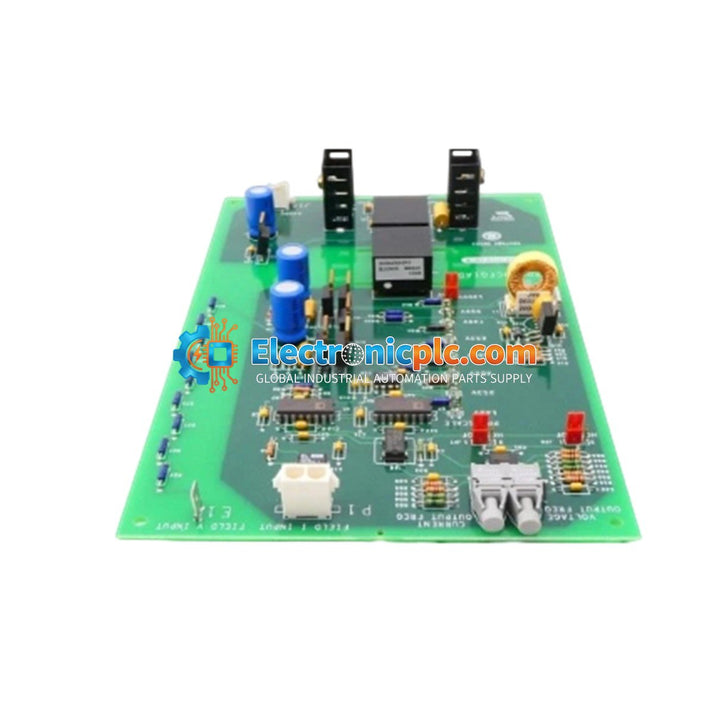

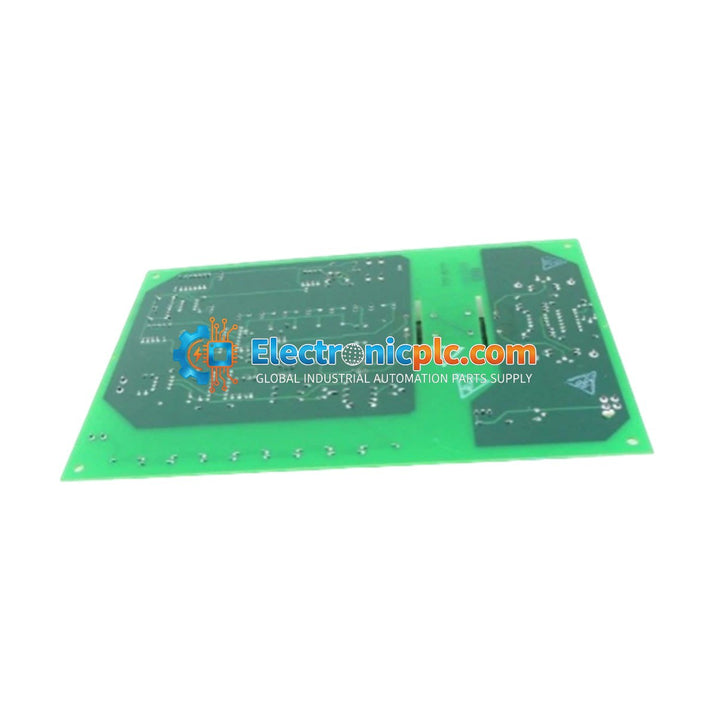

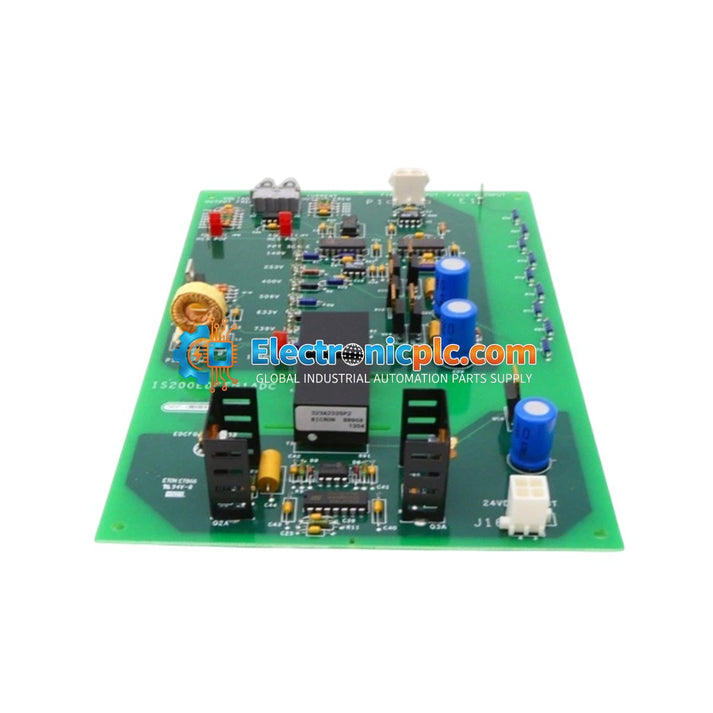

The IS200EDCFG1ADC is a specialized Exciter DC Feedback Board engineered for the GE EX2100e excitation system. This module is responsible for the real-time acquisition of field current and field voltage parameters directly at the Silicon-Controlled Rectifier (SCR) bridge. By converting these critical analog measurements into high-speed digital signals, the board provides essential feedback to the control algorithms, enabling precise regulation of generator output.

Features

• High-Speed Communication: Utilizes a dedicated fiber-optic link to transmit data to the EISB board in the control panel, ensuring rapid response times.
• Electrical Isolation: The optical interface provides a robust physical safety barrier, protecting sensitive control electronics from high-voltage transients.
• EMI/RFI Immunity: Advanced design architecture ensures immunity to electromagnetic interference, which is critical in high-noise SCR switching environments.
• Precision Measurement: Monitors shunt-based field current and bridge-side field voltage to maintain stable excitation control under varying load conditions.

Applications

This board is a mission-critical component used in large-scale power generation facilities. It is specifically designed for integration within the GE EX2100e excitation control architecture, where it serves as the primary feedback interface for generator field regulation.

Technical Specifications

Installation Guidelines

• ESD Protection: Always use a grounded wrist strap and anti-static mat when handling the board to prevent damage to sensitive electronic components.
• Power-Down Procedure: Ensure the excitation system is fully de-energized and locked out before attempting to install or remove the module.
• Fiber-Optic Handling: Use caution when connecting fiber-optic cables; ensure connectors are clean and free of debris to maintain signal integrity.
• Mounting: Ensure the board is securely seated in the designated EX2100e rack slot and that all retaining mechanisms are fully engaged.
• Environment: Maintain the cabinet environment within specified temperature ranges and ensure proper ventilation to prevent thermal degradation.

FAQ

What is the primary function of the IS200EDCFG1ADC?
It serves as a feedback board that measures field current and voltage at the SCR bridge and transmits this data via fiber optics to the control system.

Does this board require special handling?
Yes, as a sensitive electronic module, it must be handled according to standard ESD (Electrostatic Discharge) protocols to avoid component failure.
