Description

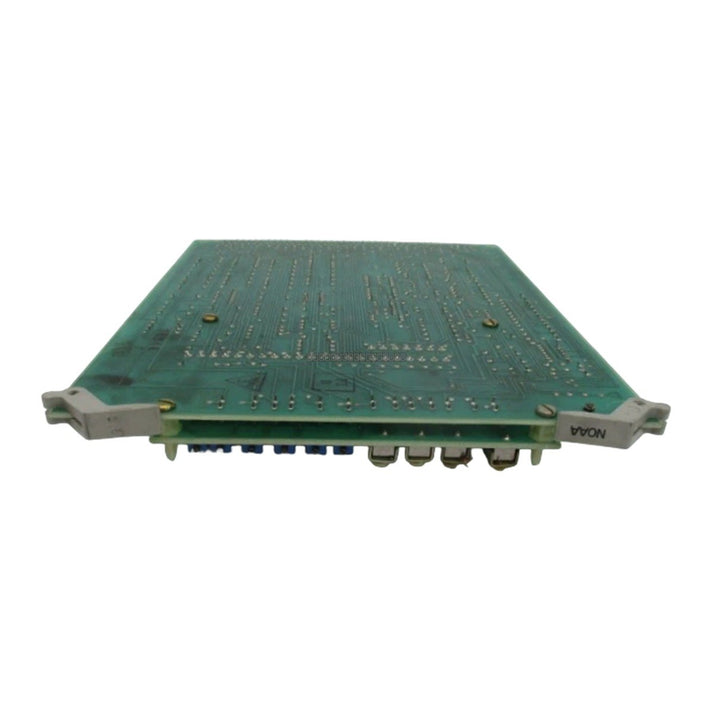

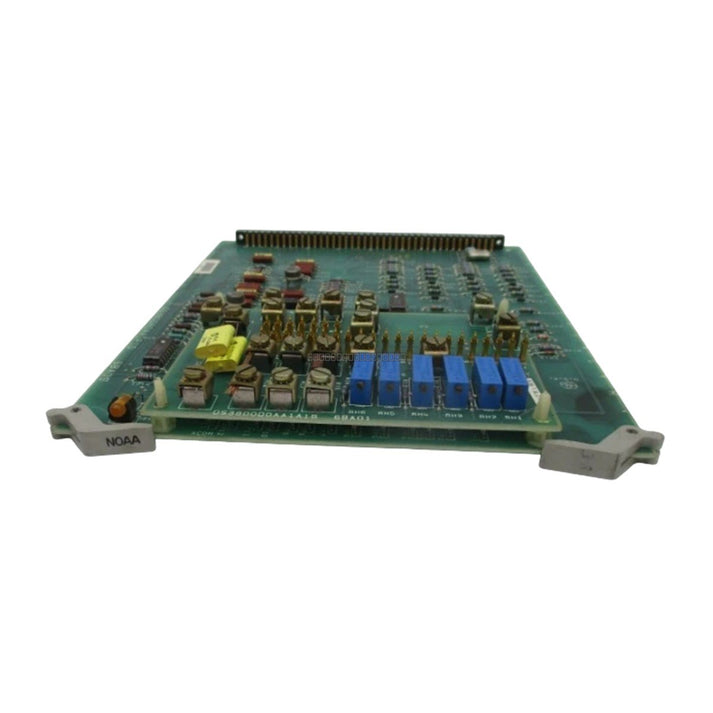

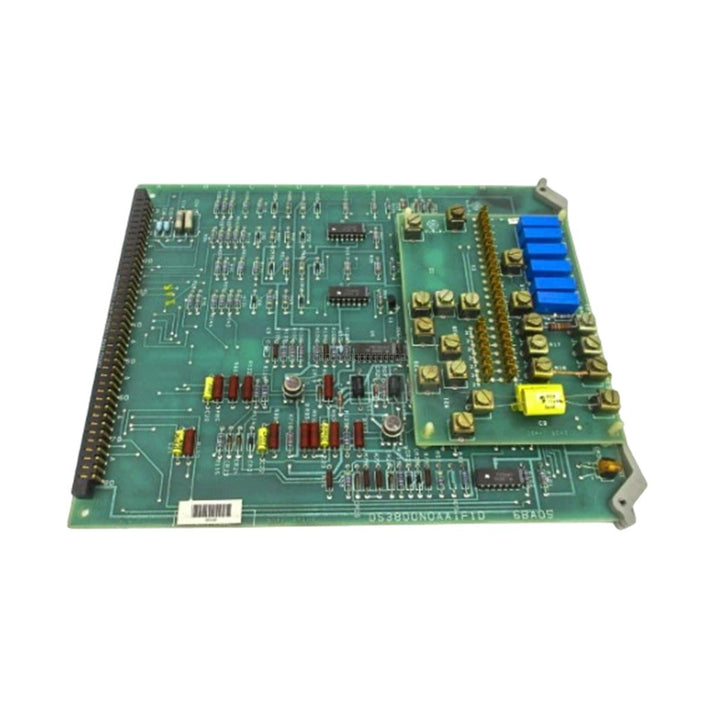

The DS3800NOAA1F is an Operational Amplifier Auxiliary Card designed by General Electric for the Mark IV Speedtronic turbine control system. This module is engineered to provide robust signal conditioning, analog signal normalization, and comparative monitoring within turbine control environments, including gas turbine facilities and petrochemical refineries. By ensuring stable signal amplification and pre-processing, the card helps mitigate measurement drift and reduces the risk of unscheduled downtime.

Features

• Designed for integration within the GE Mark IV Speedtronic turbine control framework.
• Functions as a motherboard for optional auxiliary DOAA daughtercards.
• Features 29-pin board-to-board connector for high-density signal continuity.
• Equipped with 13 onboard test points for system diagnostics and troubleshooting.
• Includes an amber status LED for visual operational feedback.
• Robust construction with four corner-mounted extractor clips and mechanical alignment markings for ease of installation.

Applications

This card is primarily utilized in industrial turbine control systems where precise analog signal processing is required. It is commonly deployed in power generation, hydroelectric installations, and heavy industrial refinery control rooms to maintain the integrity of turbine automation data.

Technical Specifications

Installation Guidelines

• Ensure the control system is powered down before inserting or removing the card to prevent electrical damage.
• Handle the card by its edges or the provided extractor clips to avoid electrostatic discharge (ESD) damage to sensitive components.
• Verify that the PCB edge connector is properly seated within the corresponding slot of the Mark IV rack.
• Ensure the board is correctly aligned using the factory-drilled holes and alignment markings before securing.
• Maintain proper ventilation in the control cabinet to ensure the operating temperature remains within the specified 0 to 60 deg C range.

FAQ

What is the primary function of the DS3800NOAA1F?

The DS3800NOAA1F serves as an operational amplifier auxiliary card for the Mark IV system, responsible for analog signal normalization, filtering, and comparative monitoring.

Can this card be used with other modules?

Yes, this card acts as a structural motherboard designed to host an optional auxiliary DOAA daughtercard via a 29-pin board-to-board connector.

Is this card compatible with other GE control systems?

This module is specifically designed for the GE Mark IV Speedtronic turbine control system; it is not intended for use in other control platforms.
