Description

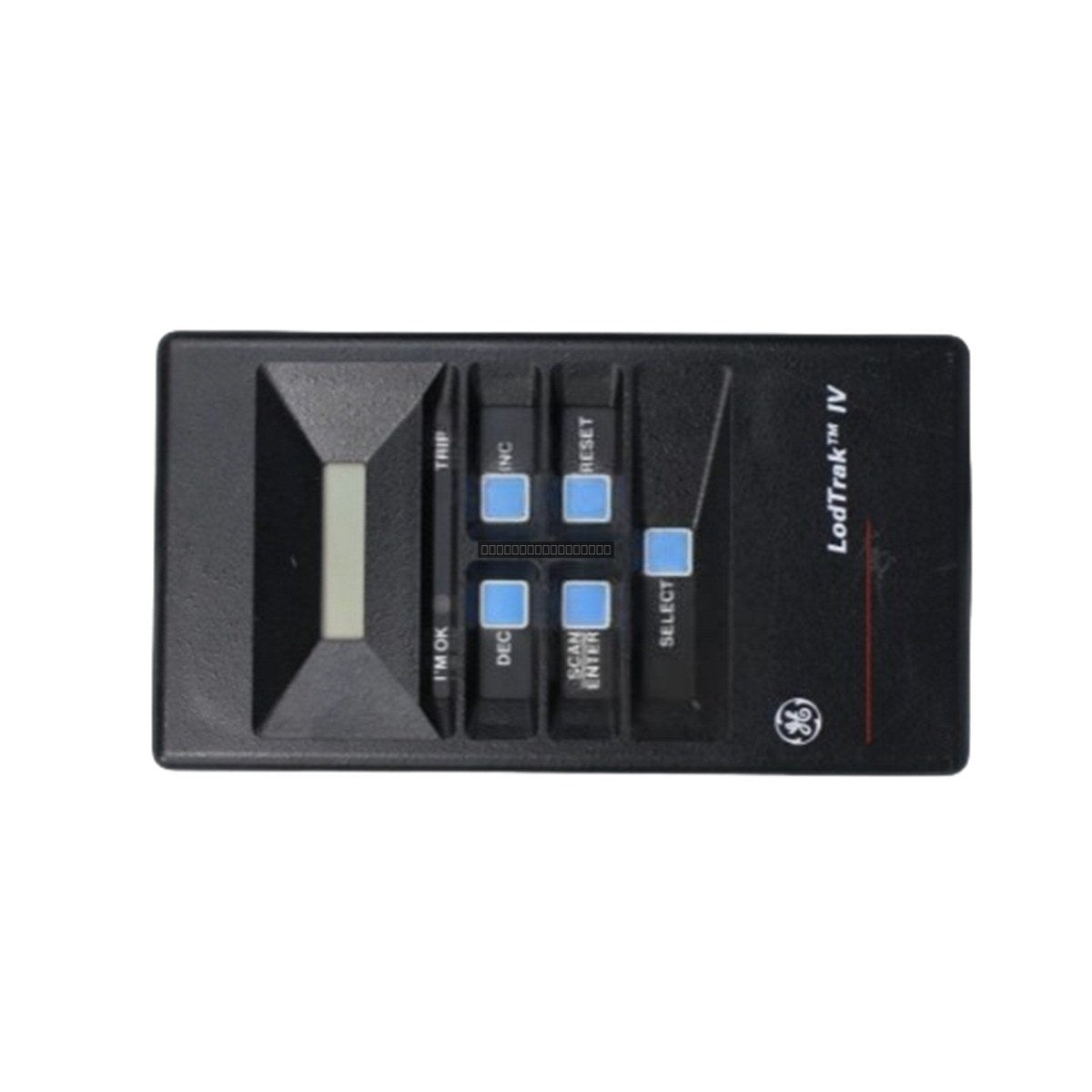

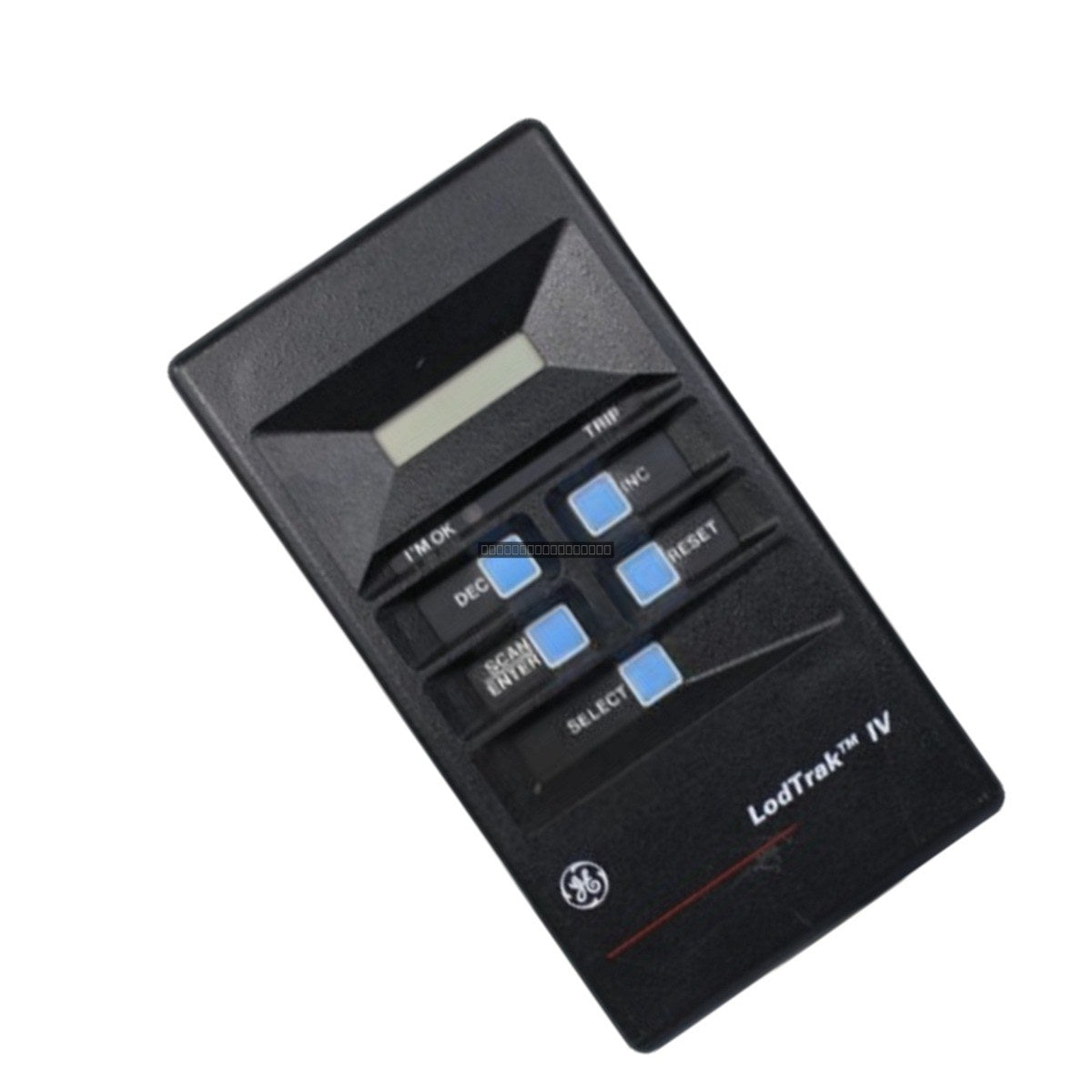

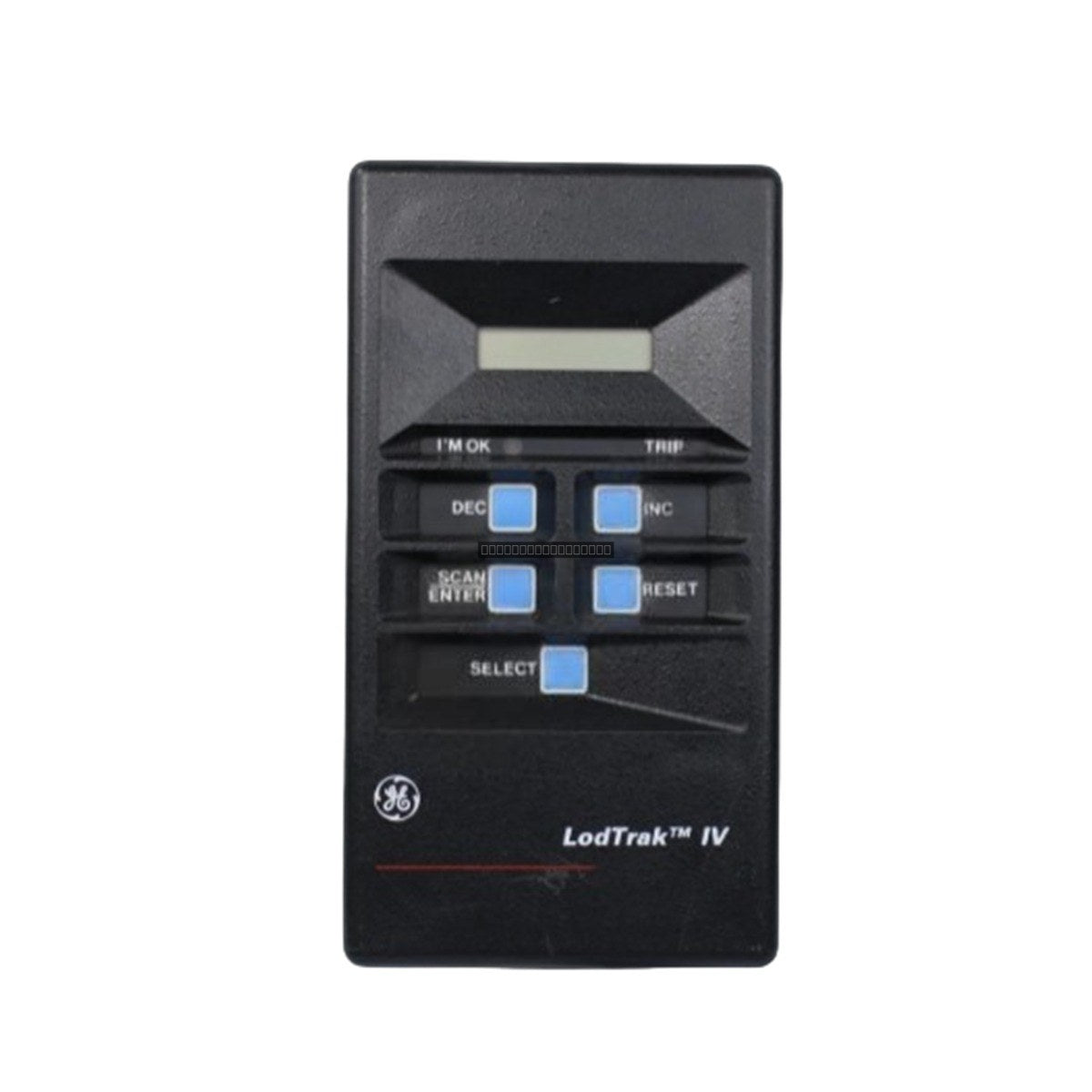

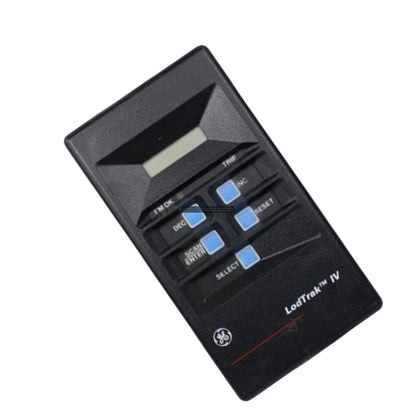

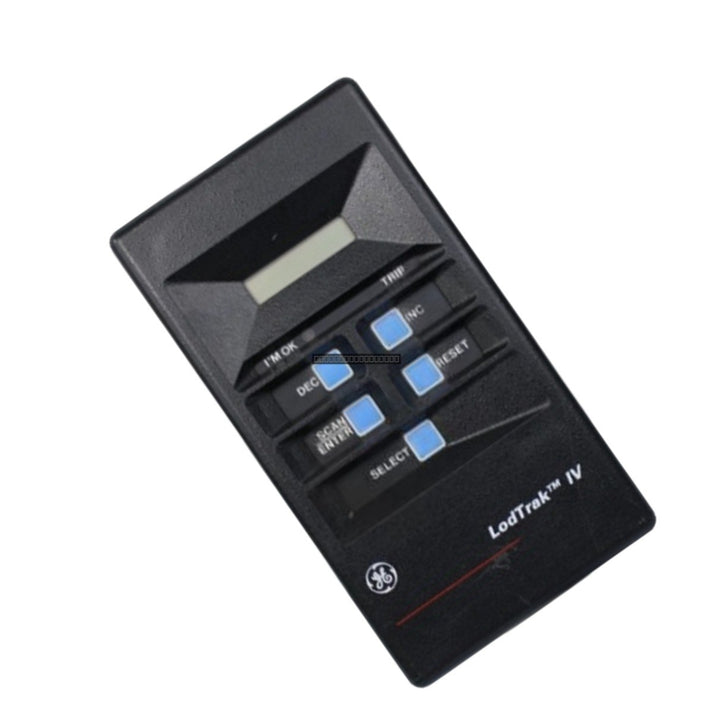

The DS3820LT4A is a specialized LodTrak Controller Module designed by General Electric for the Speedtronic Mark IV gas turbine control architecture. This module serves as a critical processing component in industrial power generation and petrochemical applications, managing turbine velocity loops and power regulation parameters. By processing real-time feedback from field instrumentation—including shaft speed, system pressure, and temperature sensors—the module executes precise closed-loop control algorithms. It also incorporates essential safety logic to trigger protective trip sequences in response to operational anomalies, such as over-speed conditions or loss of oil pressure, thereby safeguarding turbine integrity.

Features

• Designed specifically for the GE Mark IV Speedtronic turbine control environment.
• Integrated 12-channel relay output sub-assembly for discrete command execution.
• Advanced signal conditioning to mitigate electrical noise from analog field sensor inputs.
• Supports seamless integration with host PLCs and HMI systems for centralized monitoring and data logging.
• Robust hardware design suitable for demanding industrial environments.

Applications

This module is primarily utilized in heavy industrial settings, including municipal power generation facilities, gas turbine control systems, and large-scale petrochemical refinery operations where precise turbine speed and load management are required.

Technical Specifications

Installation Guidelines

• Ensure the turbine control system is fully de-energized before attempting to insert or remove the module from the rack.
• Handle the module using proper ESD (Electrostatic Discharge) mitigation techniques to prevent damage to sensitive internal circuitry.
• Verify that the rack slot is clean and free of debris to ensure proper seating of the connector pins.
• Ensure all field wiring for sensors and relay outputs is properly routed and shielded to minimize EMI/RFI interference.
• Confirm that the power supply voltage levels match the module requirements (+5 VDC logic / 24 VDC relay) before applying power.

FAQ

What is the primary function of the DS3820LT4A?

The DS3820LT4A acts as a controller module for the Mark IV Speedtronic system, managing turbine speed, load control, and safety trip logic based on real-time sensor feedback.

Does this module support external communication?

Yes, the module is designed to interface with higher-level automation systems, including HMIs and PLCs, to facilitate system-wide coordination and telemetry logging.

What are the power requirements for this unit?

The module requires +5 VDC (8 A) for internal logic and 24 VDC for the relay output sub-assembly.
