Description

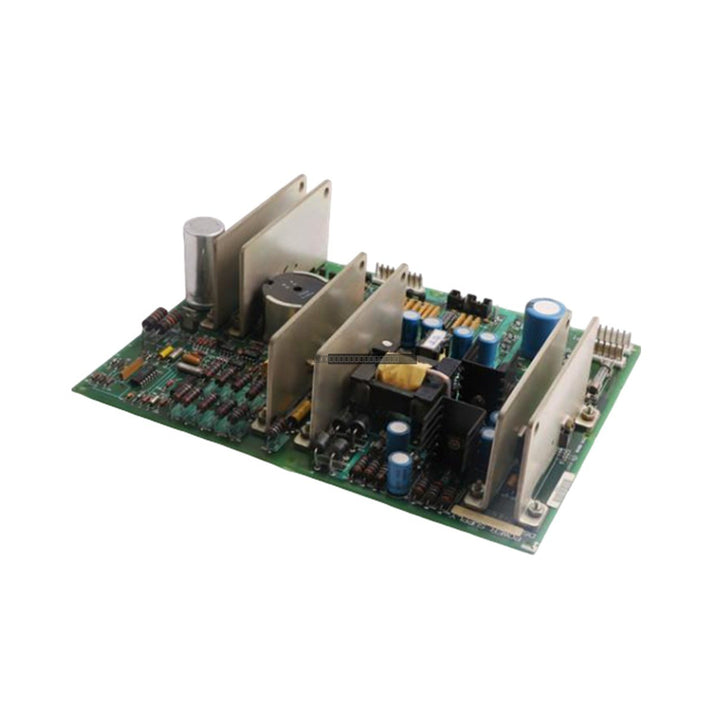

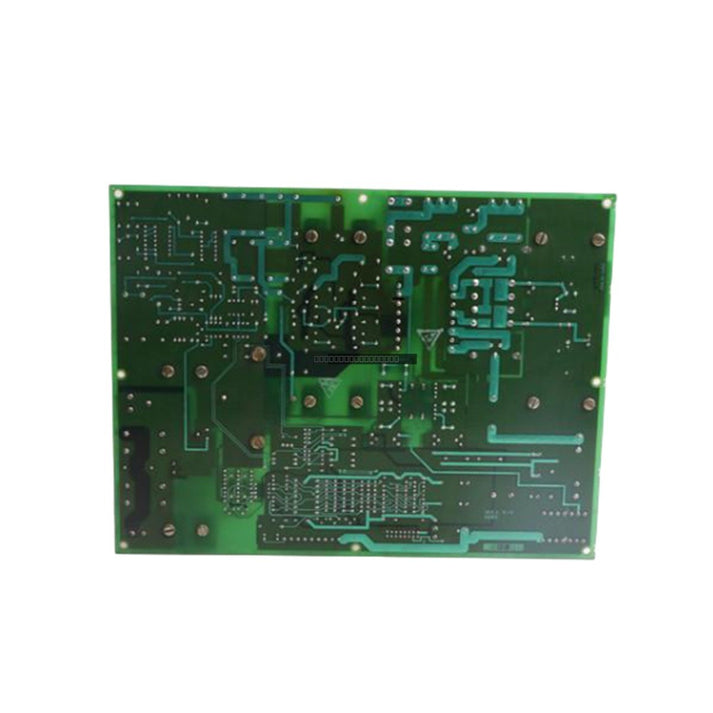

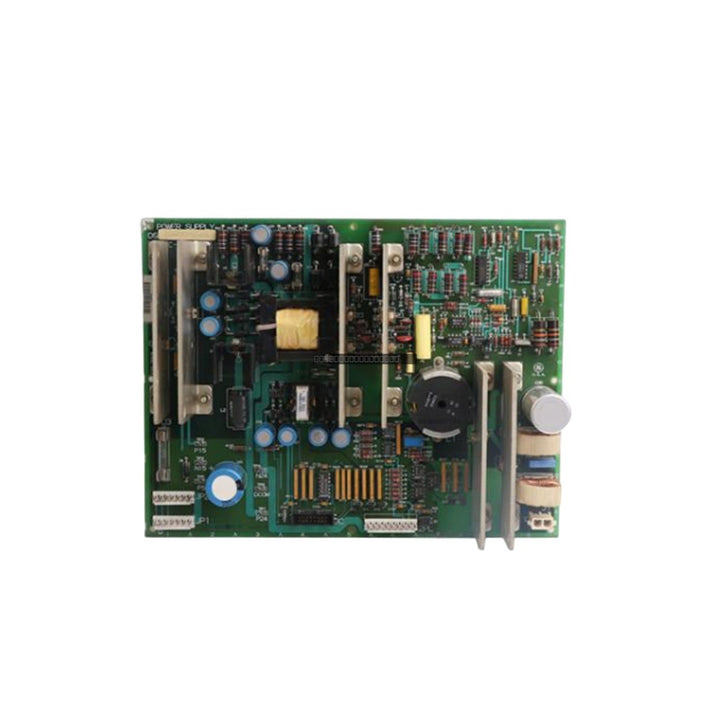

The GE DS200TCPSG1AME is a dedicated DC Input Power Supply board engineered for the Speedtronic Mark V gas turbine control system. As a vital component within the R core, this module is responsible for the conversion and distribution of 125 VDC power sourced from the PD core. It provides the necessary regulated voltage levels to support critical system functions, including microprocessor operations, servo valve current outputs, and RTD input processing. By maintaining consistent power integrity, this board ensures the operational stability of the turbine control architecture.

Features

• Designed specifically for integration within the GE Mark V control series.
• Supports essential turbine control functions including servo valve regulation and RTD signal conditioning.
• Plug-and-play design requires no manual hardware jumpers or software configuration.
• Integrated circuit protection features include replaceable fuses and metal oxide varistors (MOVs).
• Equipped with onboard heat sinks and inductors for thermal management and signal filtering.

Applications

This power supply board is primarily utilized in power generation facilities employing the Speedtronic Mark V control system. It serves as a central power distribution point for various downstream boards such as the TCCA, TCQC, and TCDA, ensuring that control modules receive stable voltage for continuous operation.

Technical Specifications

Installation Guidelines

• Ensure the system is fully de-energized before attempting to install or remove the board from the R core.
• Observe standard ESD (Electrostatic Discharge) precautions when handling the PCB to prevent damage to sensitive electronic components.
• Verify that all connectors (J1, 2PL, JC, JP1, JP2) are fully seated and securely locked into their respective sockets.
• Periodically inspect the board for signs of heat stress or fuse degradation, especially after significant system events.
• Ensure the surrounding cabinet environment is free from excessive dust or moisture to maintain optimal thermal performance of the onboard heat sinks.

FAQ

Does this board require software configuration? No, the DS200TCPSG1AME is a hardware-based power distribution module and does not require software setup or hardware jumper configuration.

What is the primary function of this board? It converts 125 VDC input from the PD core to provide regulated power to downstream boards like the TCQC, TCCA, and TCDA within the Mark V system.
