Description

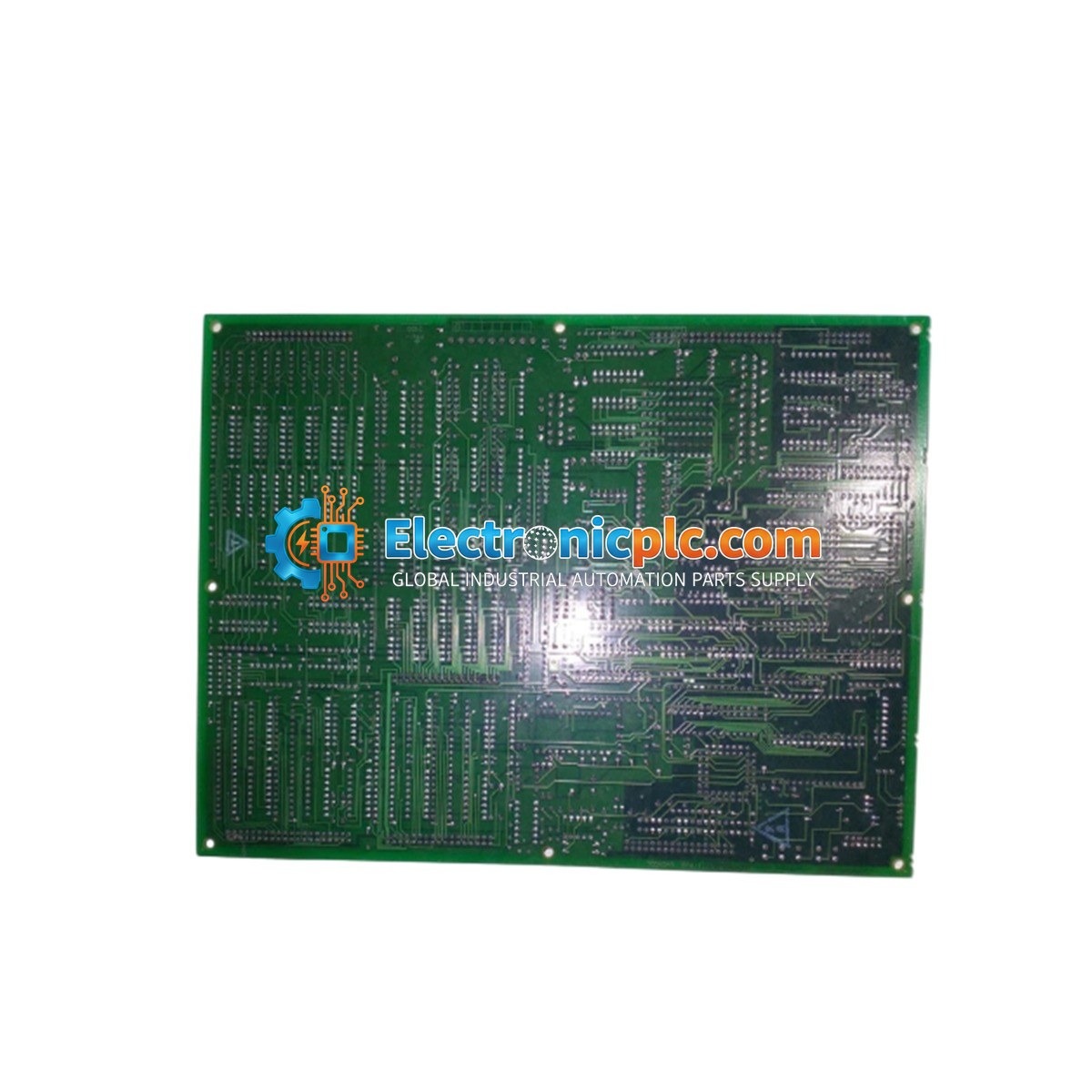

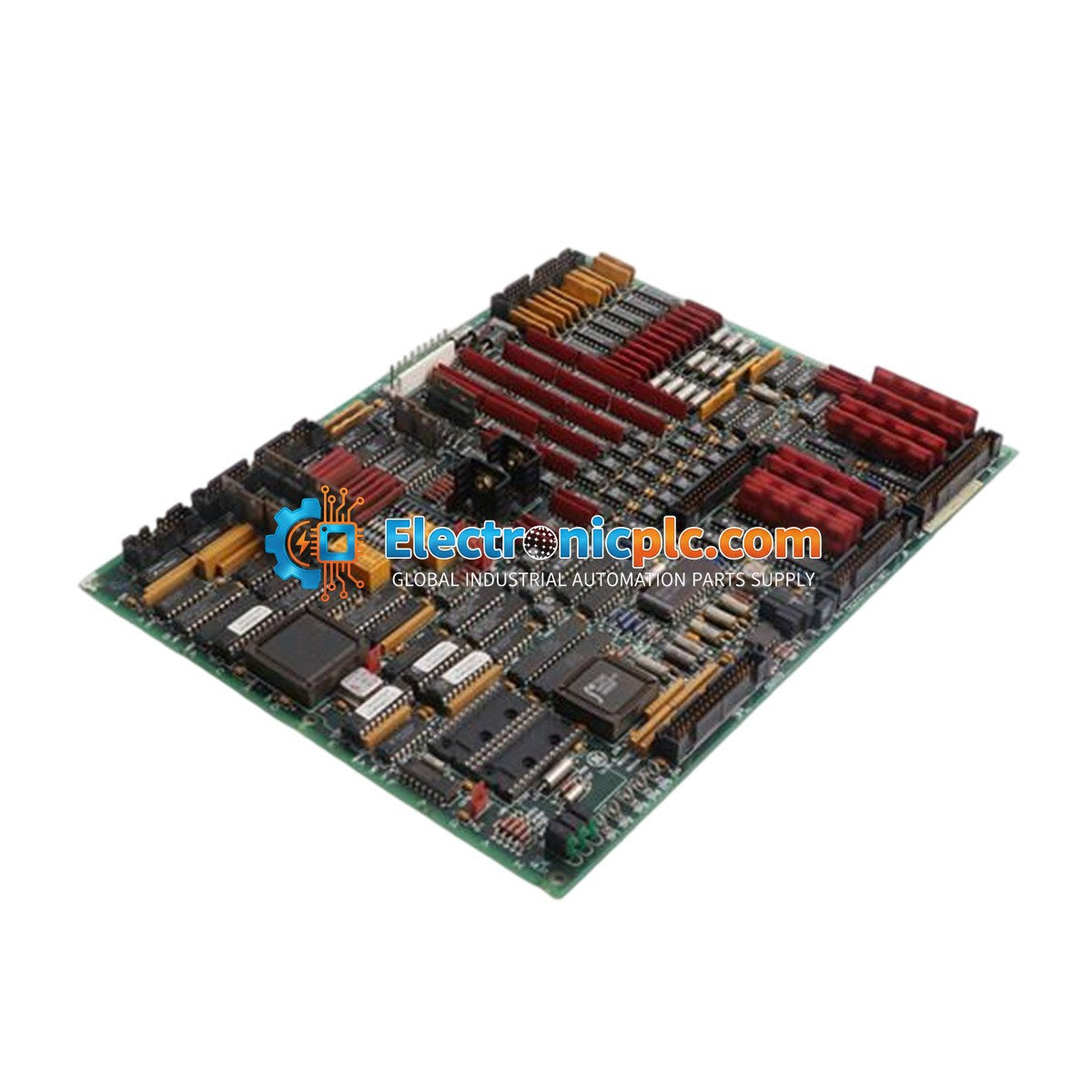

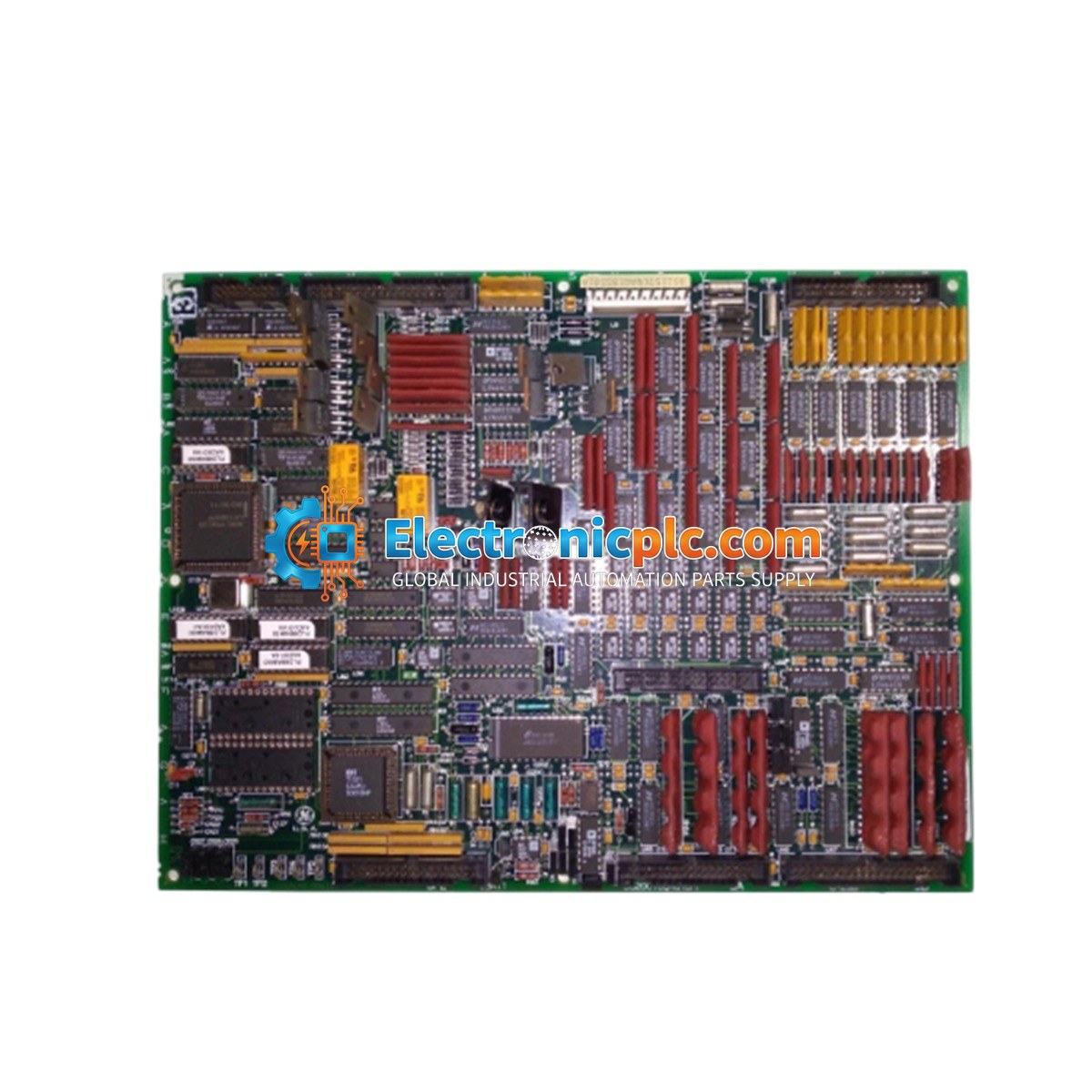

The GE DS215TCQAG1BZZ01A is an Analog I/O board designed for the GE Mark V Speedtronic turbine control system. Identified by the functional acronym TCQA, this board performs essential analog signal scaling, conditioning, acquisition, and distribution for turbine control and protection. It serves as a critical interface between field instrumentation—such as LVDTs, thermocouples, vibration sensors, pressure transmitters, and 4–20 mA devices—and the R, S, and T control cores of the Mark V system.

Features

• Designed for Mark V turbine control systems (RST architecture).
• 8 configurable analog input channels with selectable impedance (250, 500, 1200, and 2500 Ohm).
• 4 dedicated analog output channels for actuator control.
• 16-bit resolution with ±0.10% full-scale accuracy at 25 degC.
• Equipped with six 34-pin and two 40-pin connectors for system interfacing.
• Configurable hardware jumpers (J1, J2, J5, J6, J7, J8) for current range and test port selection.
• Conformal coating for protection against humidity and chemical corrosion.

Applications

• Turbine speed and fuel regulation via servo-actuators.
• Thermal diagnostics and exhaust temperature monitoring.
• Generator and grid synchronization.
• Aerodynamic operational safety and pressure monitoring.

Technical Specifications

Installation Guidelines

• Ensure the control system is powered down before inserting or removing the board.
• Handle the module using ESD-safe practices to prevent damage to sensitive components.
• The board is factory-drilled for mounting; ensure it is properly seated in the Mark V cabinet.
• Use two hands when manipulating screws and washers to prevent dropping metal debris onto live circuitry.
• Verify correct alignment using the marked board edges before securing.
• Ensure all ribbon cables are firmly seated in their respective connectors (JA, JB, JD, JE, JG, 3PL).

FAQ

What is the DS215TCQAG1BZZ01A?

It is a dedicated analog I/O circuit board with firmware, designed for use within the legacy General Electric (GE) Mark V gas and steam turbine control systems.

What types of inputs does DS215TCQAG1BZZ01A read?

The board is specifically designed to read LVDT (Linear Variable Differential Transformer) inputs along with standard 4-20 mA instrumentation.

How are LVDT inputs processed?

LVDT inputs are read directly by the TCQA section of the module and communicated to the control processor via dedicated ribbon cabling.
