Description

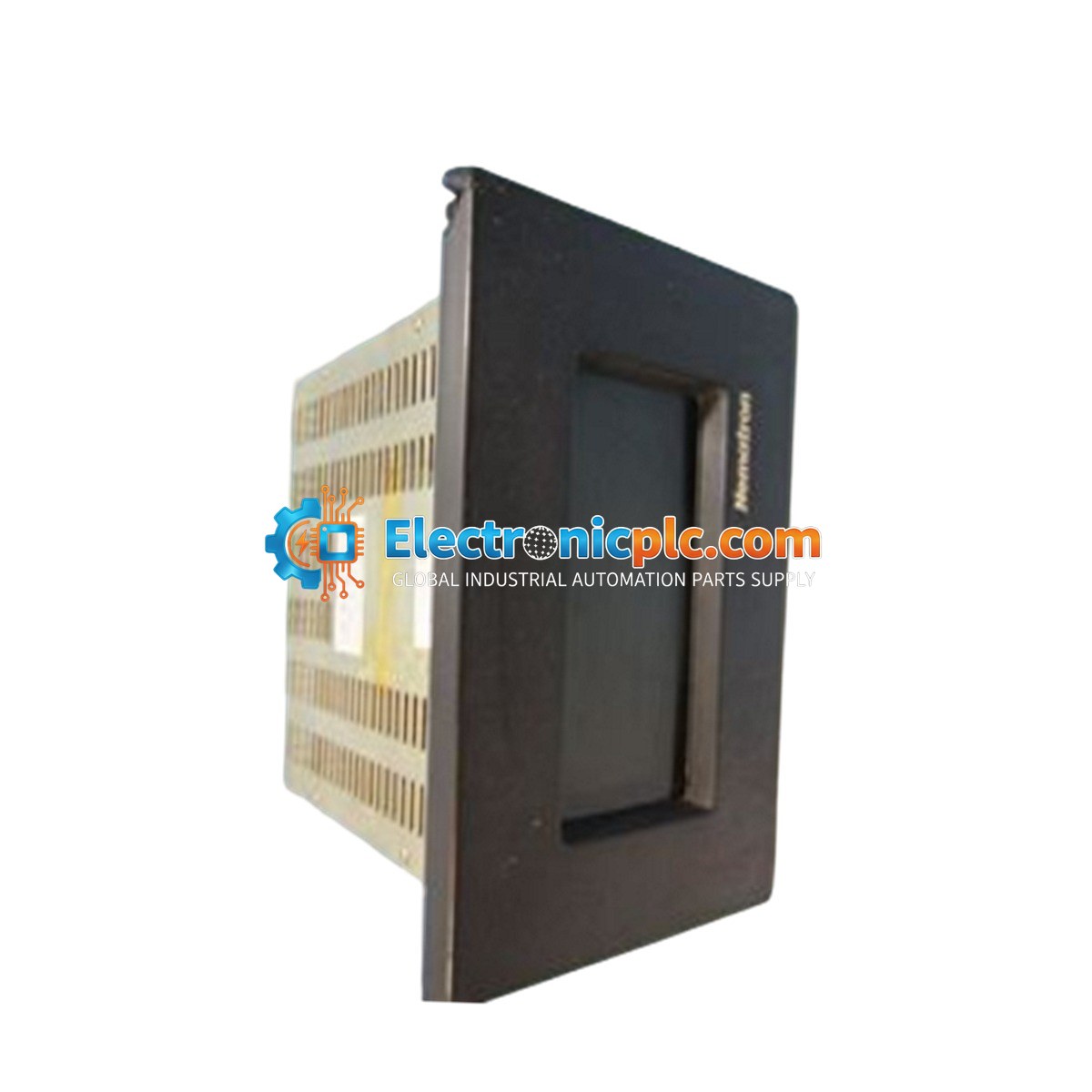

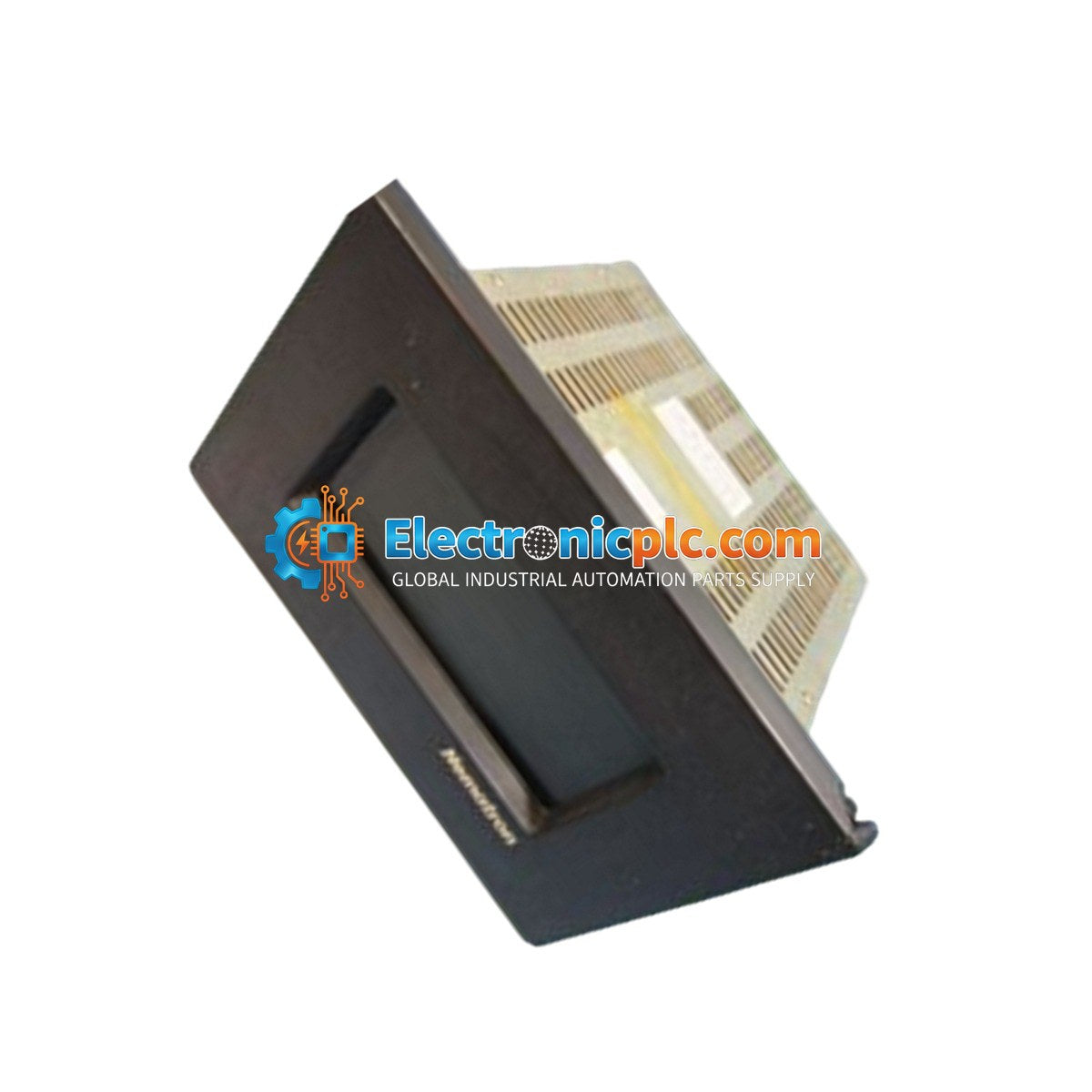

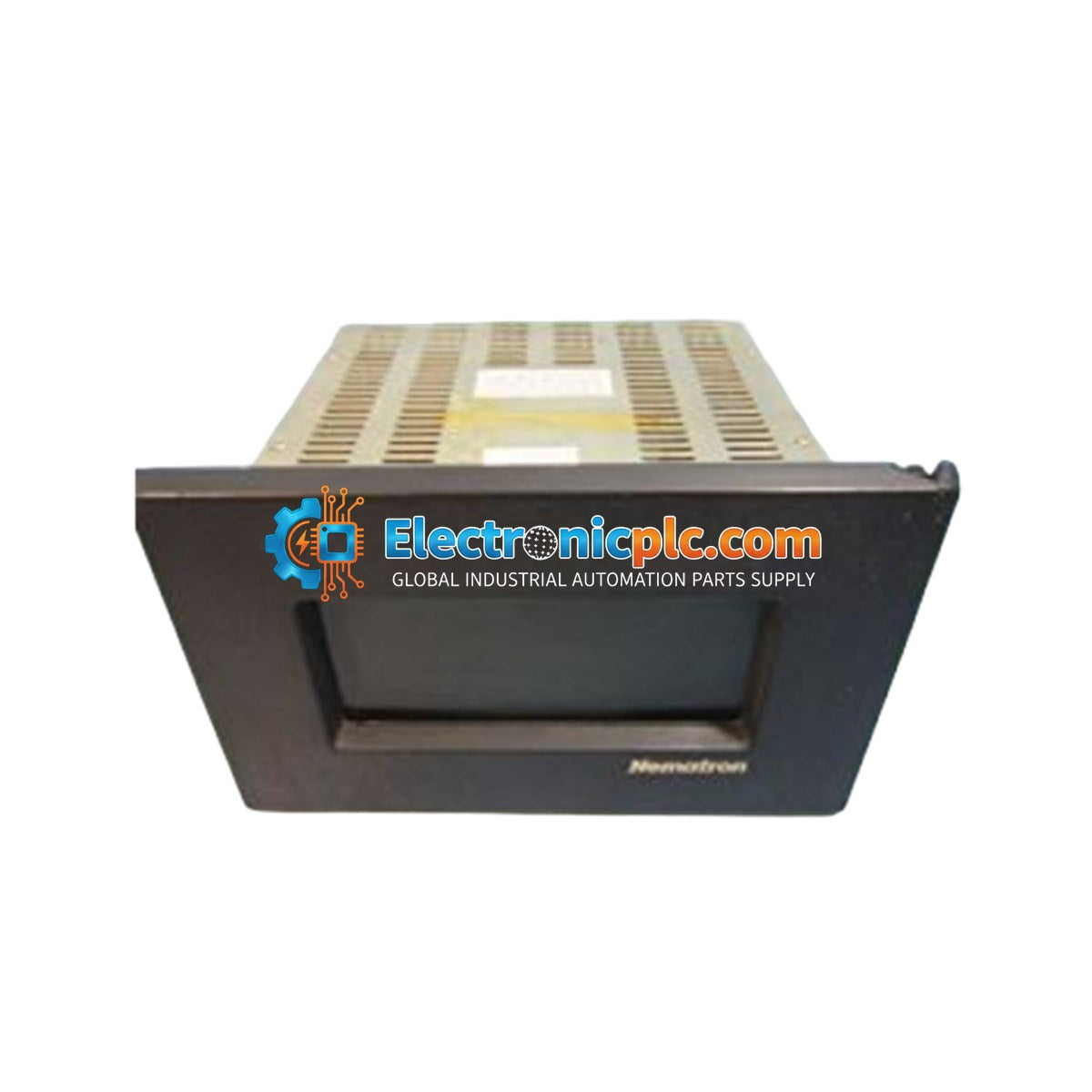

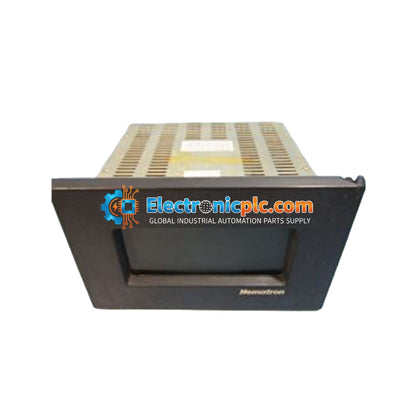

The GE Fanuc IC600KD516 is a specialized operator interface workstation engineered for seamless integration with the GE Series Six programmable logic controller (PLC) architecture. This terminal serves as a critical visualization and control interface, enabling operators to monitor system status, perform setpoint adjustments, and execute diagnostic tasks within heavy industrial, power distribution, and manufacturing environments. As a legacy support component, it provides the necessary human-machine interface (HMI) functionality to maintain and manage Series Six automation systems.

Features

• Designed specifically for GE Series Six PLC ecosystems.
• Direct operational replacement for IWS-3005T series terminals.
• Ruggedized industrial enclosure suitable for high-EMI environments.
• Centralized data display for efficient fault isolation and real-time parameter monitoring.
• Standard 120 VAC power input for legacy infrastructure compatibility.

Applications

This operator interface is intended for use in legacy GE automation environments, including:

• Power generation and distribution control rooms.
• Heavy industrial processing and manufacturing lines.
• Diagnostic and maintenance stations for Series Six PLC systems.

Technical Specifications

Installation Guidelines

• Power Down: Ensure all power to the workstation and the associated PLC rack is disconnected before installation or cable connection.
• Environment: Mount the unit in a location that minimizes exposure to extreme heat, moisture, and direct vibration.
• Grounding: Ensure the chassis is properly grounded to the cabinet or system ground to mitigate EMI/RFI interference.
• Wiring: Use shielded communication cables where applicable to maintain signal integrity in high-EMI industrial zones.
• Ventilation: Maintain adequate clearance around the unit to ensure proper airflow and prevent overheating during continuous operation.

FAQ

Is the IC600KD516 compatible with modern GE PLC systems?

This unit is specifically designed for the legacy GE Series Six PLC architecture. It is not intended for use with modern RX3i or VersaMax systems.

Can this unit replace an IWS-3005T?

Yes, the IC600KD516 is designed as a direct operational replacement for the IWS-3005T and its variants (IWS-3005T-GE, IC600KD516A/B).
