Description

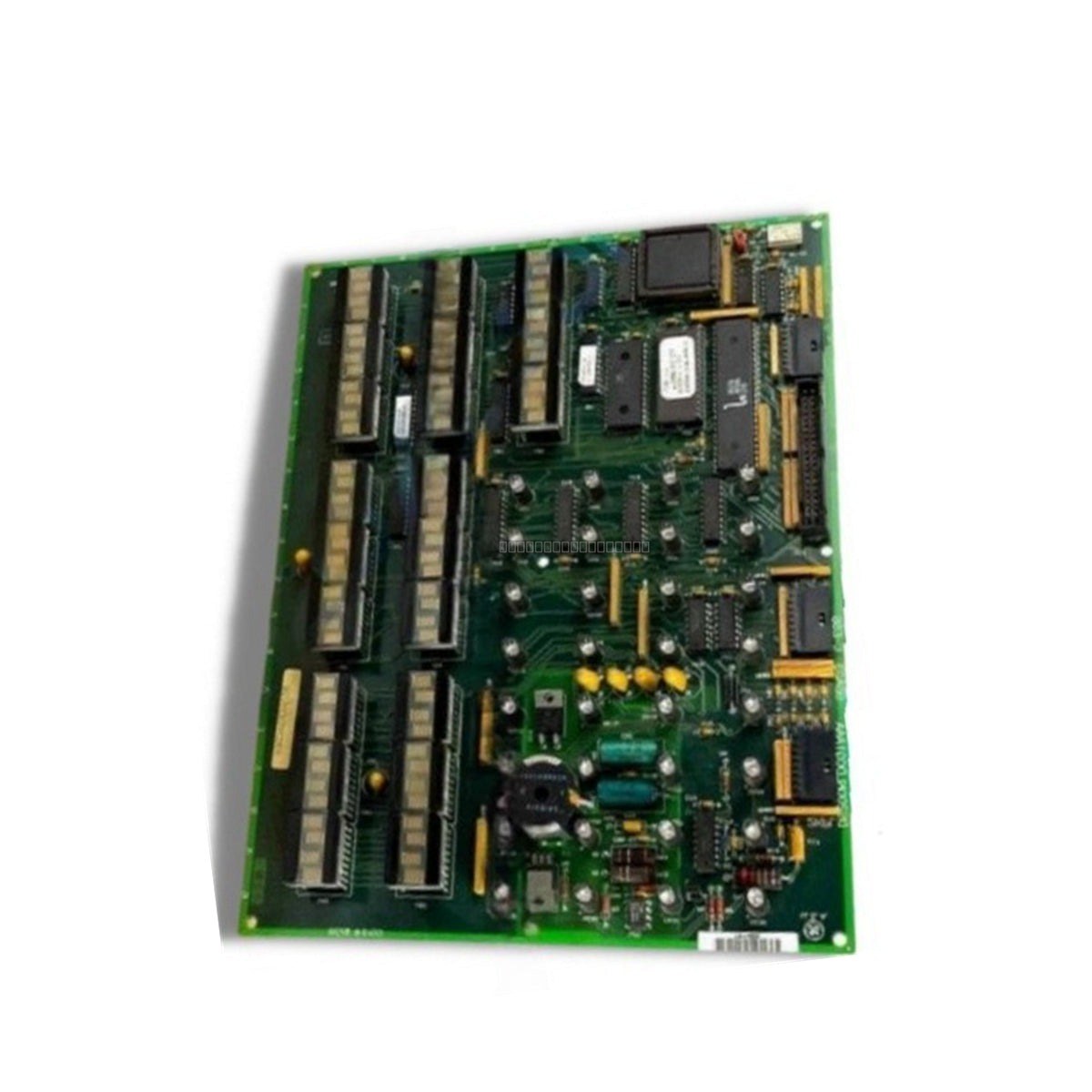

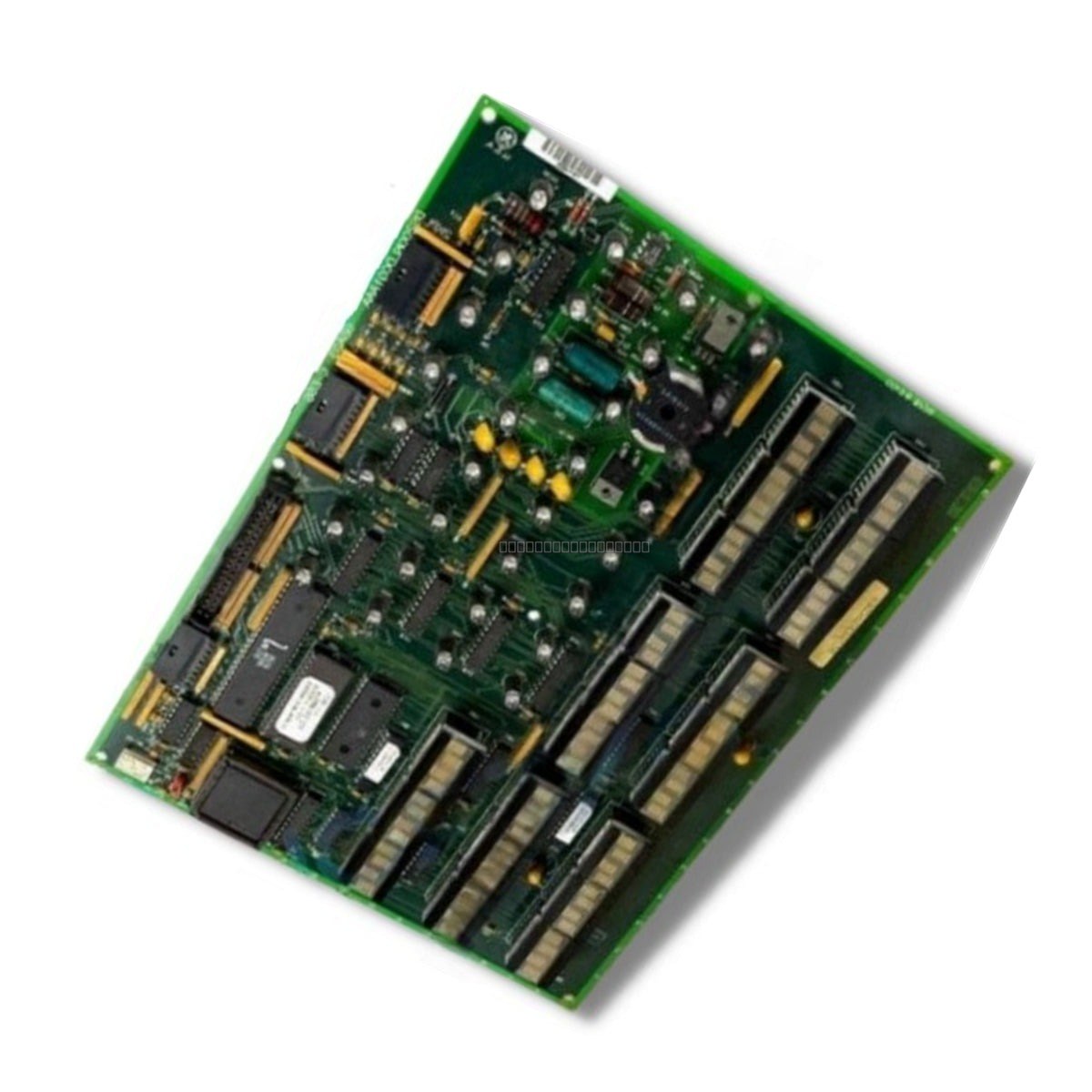

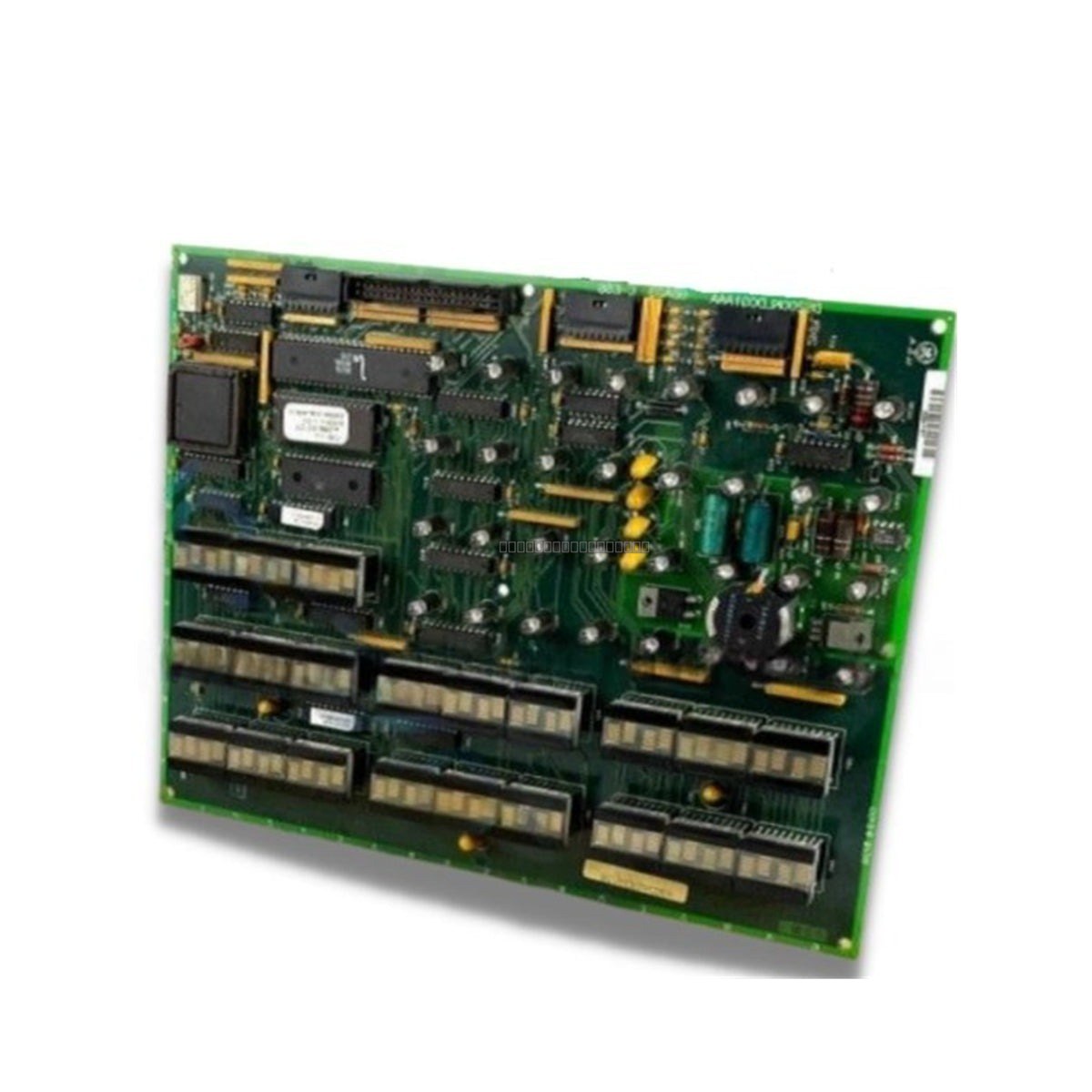

The DS200KLDCG1A is a specialized Key/LED/Display Relay Output Board engineered by General Electric for the Mark V Speedtronic turbine control system. This module is primarily utilized in gas turbine generation stations, thermal power plants, and heavy industrial utility environments. It integrates multi-channel relay execution with local visual monitoring, providing operators with real-time drive diagnostics and telemetry to facilitate rapid troubleshooting and manual override control. By offering immediate visual feedback and local command capabilities, this board helps streamline maintenance intervals and reduce unscheduled downtime.

Features

• Integrated visual feedback system with 32 discrete LED indicators (DS1-DS32).
• 21 alphanumeric display blocks for real-time telemetry and status monitoring.
• Onboard user interface keys for manual alarm acknowledgment and relay triggering.
• High-density circuit design combining low-voltage logic with robust DC relay command execution.
• Configurable via an onboard hardware jumper for specific system parameters.

Technical Specifications

Installation Guidelines

• Ensure all power is removed from the Mark V cabinet before inserting or removing the board to prevent electrical damage or system faults.
• Handle the board using proper ESD (Electrostatic Discharge) precautions to protect sensitive logic components.
• Verify that the 24-position terminal block and multi-pin connectors are securely seated and aligned to prevent intermittent signal loss.
• Ensure adequate ventilation within the cabinet to maintain the operating temperature between 30 and 75 deg C.
• Check the position of the onboard hardware jumper prior to installation to ensure it matches site-specific configuration requirements.

FAQ

What is the primary function of the DS200KLDCG1A board?

This board acts as a local operator interface and relay output module for the Mark V Speedtronic system, allowing for real-time monitoring of turbine status via LEDs and displays, as well as manual relay control via integrated keys.

Is this board compatible with other Speedtronic systems?

The DS200KLDCG1A is specifically designed for the Mark V series. It is not intended for use in earlier or later generations of GE turbine control systems.
