Description

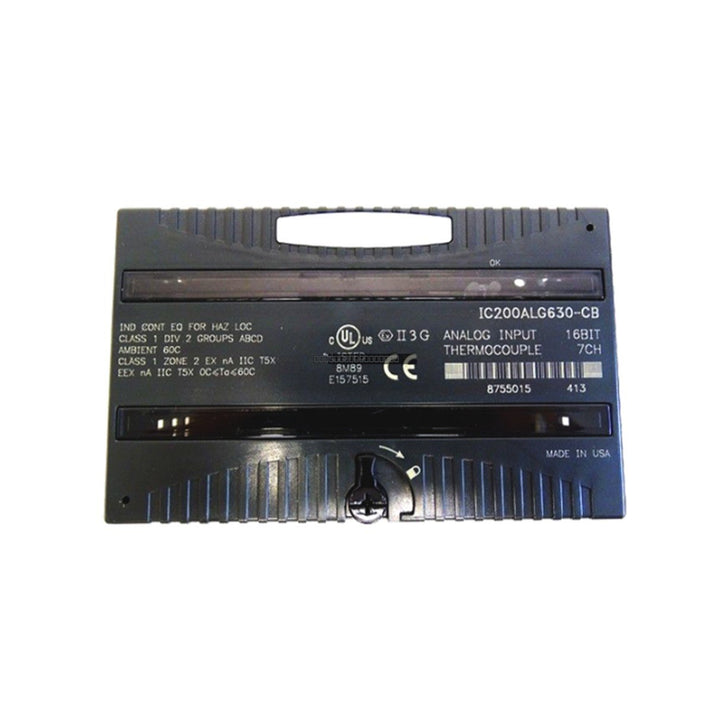

The General Electric IC200ALG630 is a high-performance analog input module designed for the VersaMax I/O system. This module is specifically engineered to interface with thermocouple sensors, providing accurate temperature data acquisition for industrial control applications. It supports multiple thermocouple types and offers high-resolution conversion to ensure precise monitoring in demanding environments.

Features

• Supports thermocouple types J, K, T, S, and R.
• 16-bit resolution (15 bits plus sign) for high-precision data capture.
• Seven isolated input channels for versatile sensor connectivity.
• Excellent noise immunity with 60dB normal mode rejection and 120dB common mode rejection.
• Configurable input spans ranging from 19.5mV to 625mV.
• Robust electrical isolation between channels and logic circuitry.

Technical Specifications

Installation Guidelines

• Ensure the VersaMax rack power is disconnected before installing or removing the module.
• Mount the module onto a compatible VersaMax I/O carrier.
• Use shielded thermocouple extension wire to minimize electromagnetic interference (EMI).
• Ensure proper grounding of the cable shields at the control panel to maintain signal integrity.
• Verify that the thermocouple polarity matches the module terminal assignments to prevent measurement errors.
• Maintain adequate clearance around the module for proper ventilation and heat dissipation.

FAQ

What thermocouple types are supported by the IC200ALG630?
This module supports J, K, T, S, and R type thermocouples.

How many channels does this module provide?
The IC200ALG630 features 7 input channels.

What is the resolution of the analog-to-digital converter?
The module utilizes a 15-bit plus sign converter, providing 16-bit resolution for temperature inputs.
