Description

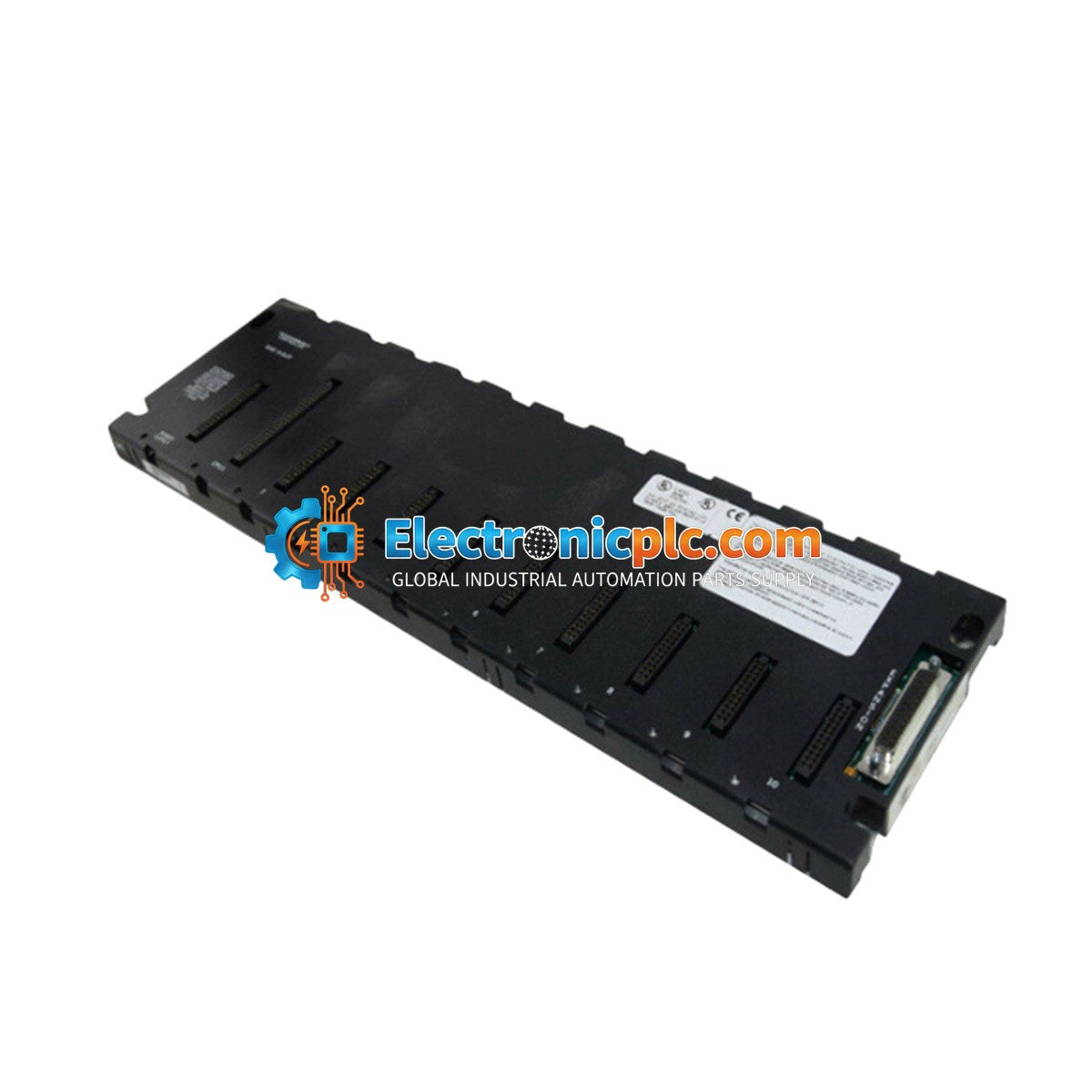

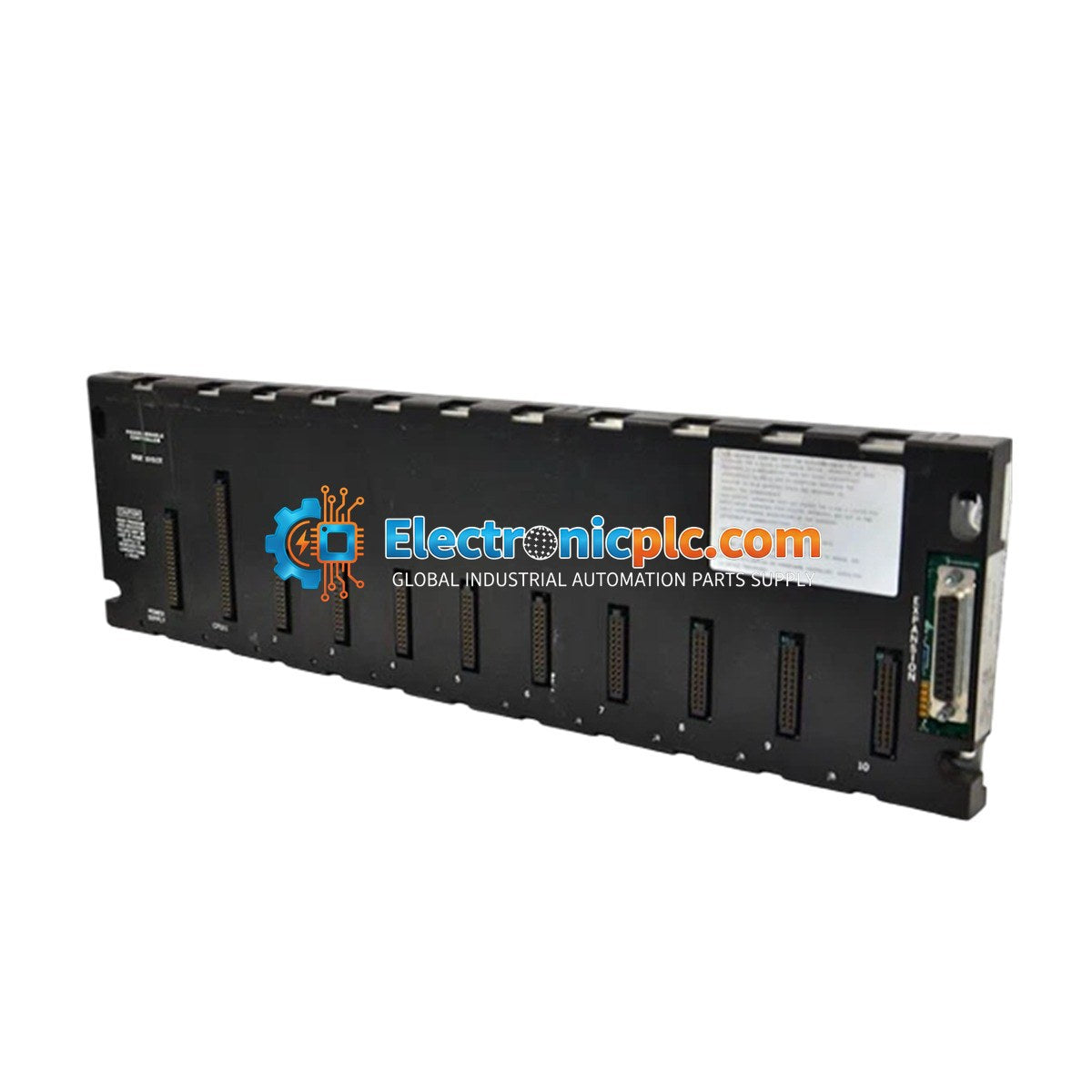

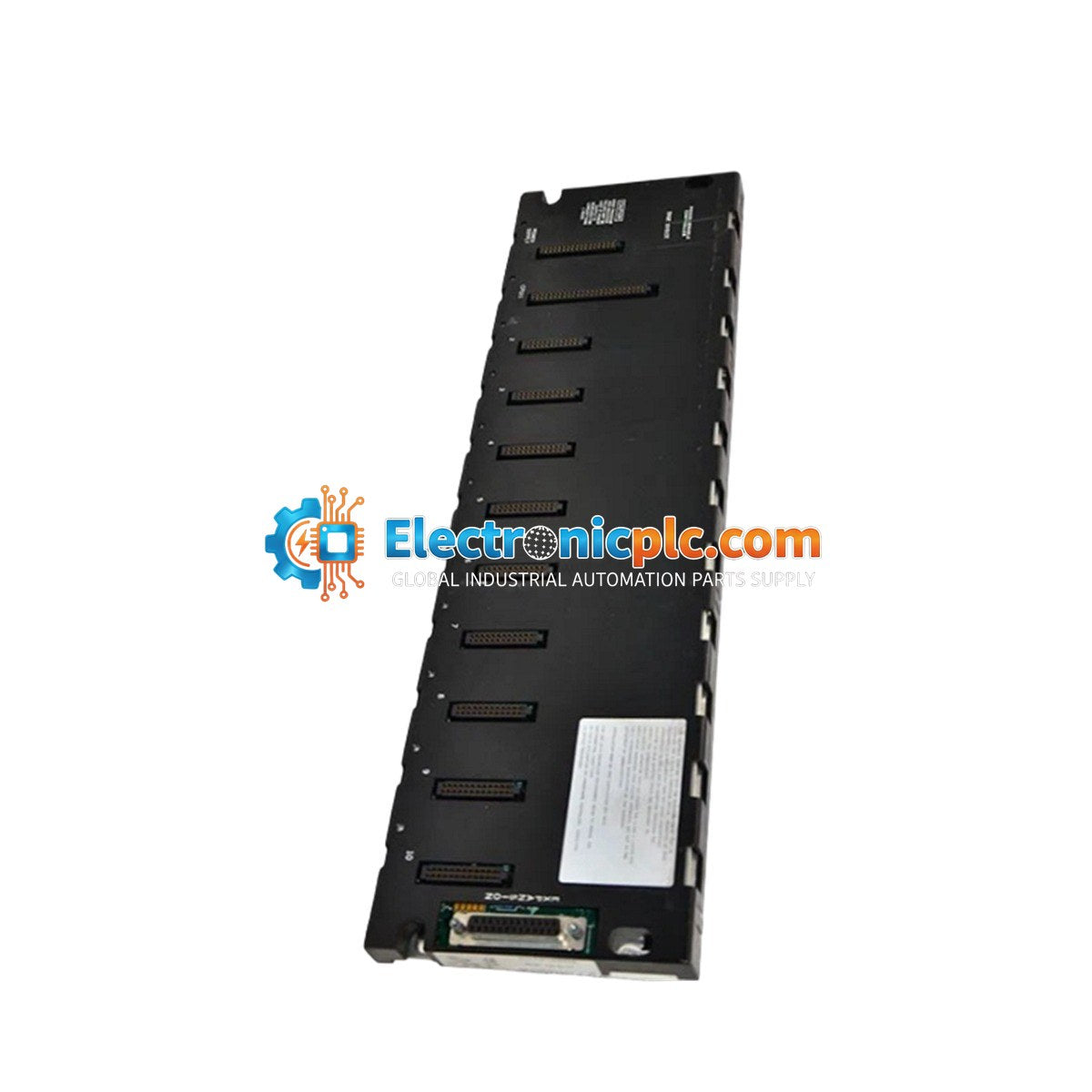

The General Electric IC693CHS391H is a 10-slot expansion baseplate designed for the Series 90-30 Programmable Logic Controller (PLC) system. This modular baseplate provides the necessary physical mounting and electrical interconnects for a CPU module and up to nine additional I/O or specialty modules. It is engineered to support robust communication and power distribution across the 90-30 rack architecture.

Features

• Ten total slots: One dedicated CPU slot and nine slots for I/O or specialty modules.
• Modular design: Facilitates easy expansion and maintenance of the PLC rack configuration.
• Integrated power distribution: Operates at 5 Volts DC with a current requirement of 420 mA.
• Connectivity: Includes a 25-pin female connector for system expansion and communication.
• Compatibility: Fully compatible with the GE Fanuc Series 90-30 product ecosystem.

Applications

This expansion baseplate is utilized in industrial automation environments where additional I/O capacity is required beyond the primary CPU rack. It is commonly found in manufacturing, process control, and machine automation systems where the Series 90-30 PLC platform is deployed to manage distributed I/O modules.

Technical Specifications

Installation Guidelines

• Ensure the power supply is disconnected before installing or removing any modules from the baseplate.
• Mount the baseplate securely to a flat, vibration-resistant surface within an industrial enclosure.
• Maintain adequate clearance around the baseplate to ensure proper airflow and cooling for the modules.
• Handle modules using proper ESD (Electrostatic Discharge) protection practices to prevent damage to internal circuitry.
• Verify that all modules are fully seated in their respective slots and that the backplane connectors are aligned correctly.
• Route communication cables away from high-voltage power lines to minimize electromagnetic interference (EMI).

FAQ

What is the primary function of the IC693CHS391H baseplate?

The IC693CHS391H serves as a mounting and communication interface for a Series 90-30 CPU and up to nine additional I/O or specialty modules, allowing for the expansion of the PLC system.

Can this baseplate be used as a standalone rack?

Yes, it functions as a standard baseplate in the 90-30 system, providing the necessary backplane bus for the CPU and I/O modules to communicate.

What type of connector is used for expansion?

The unit features a 25-pin female connector for system expansion purposes.
