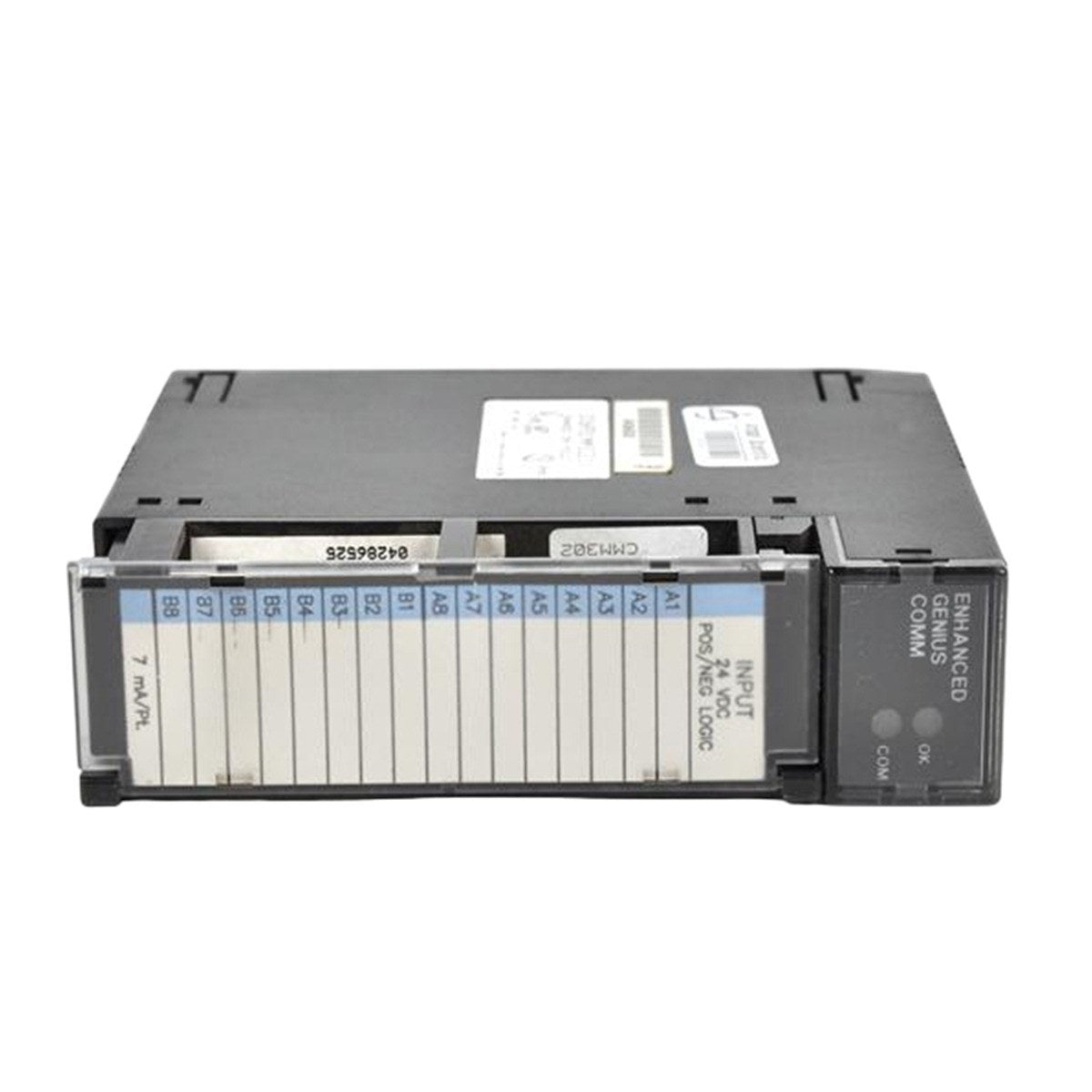

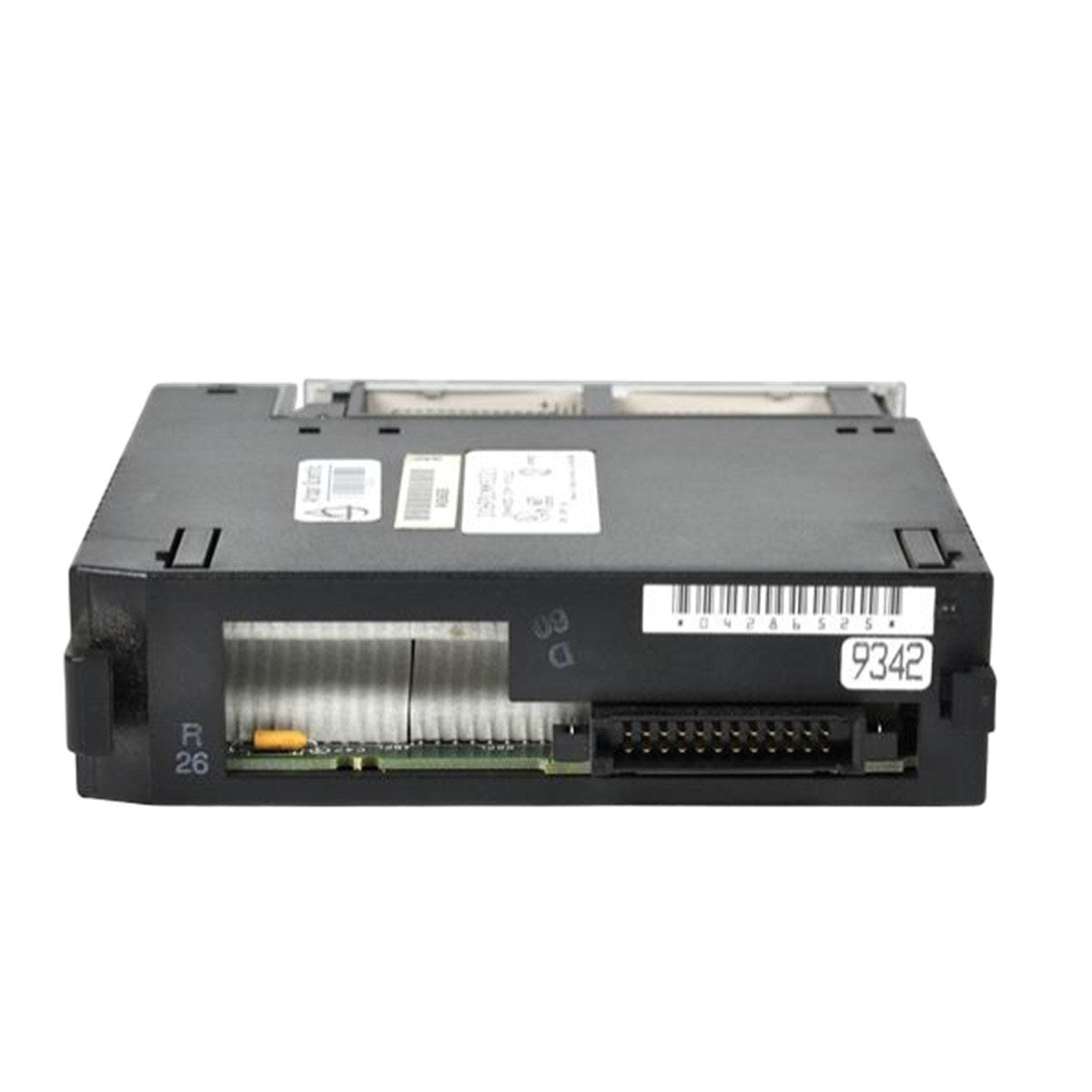

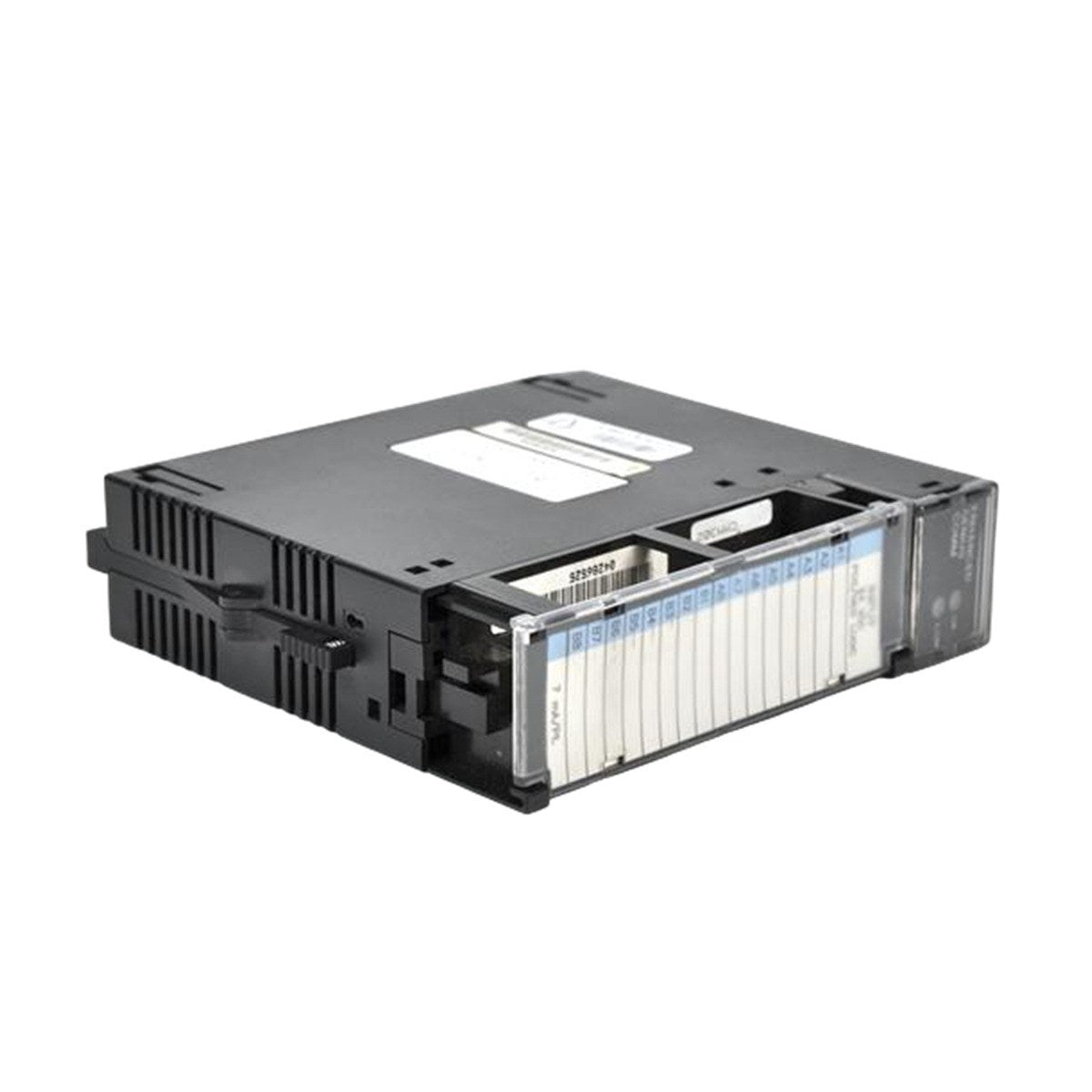

The General Electric IC693CMM302C is an Enhanced Genius Communications Module designed for the Series 90-30 Programmable Logic Controller (PLC) system. This module facilitates high-speed communication between the PLC and other devices on a Genius I/O network, providing robust data exchange capabilities for industrial automation environments.

Features

• Supports up to 31 bus devices on the Genius network.
• Provides 128 bytes of global data for both transmit and receive operations.
• Occupies a single slot on the Series 90-30 baseplate.
• Equipped with two diagnostic LED indicators: Module OK and COMM status.
• Compatible with CPU, expansion, and remote baseplates within the 90-30 series.
• Low power consumption with a backplane current draw of less than 300 mA at 5VDC.

Applications

This module is engineered for integration into GE Series 90-30 PLC systems requiring distributed I/O control, remote data acquisition, and inter-controller communication via the Genius protocol. It is suitable for manufacturing, process control, and material handling systems that utilize Genius bus architecture.

Technical Specifications

Installation Guidelines

• Ensure the PLC power is disconnected before installing or removing the module from the baseplate.
• The module can be installed in any available slot on the CPU, expansion, or remote baseplates, excluding the dedicated CPU slot.
• Align the module carefully with the backplane connector and slide it into the guide rails until fully seated.
• Secure the module using the integrated mounting screws to ensure proper grounding and mechanical stability.
• Maintain proper ventilation within the control cabinet to prevent overheating during operation.
• Handle the module using ESD-safe practices to prevent damage to internal electronic components.

FAQ

Can I use this module in the CPU slot? No, the IC693CMM302C is designed for standard I/O slots and is not compatible with the dedicated CPU slot on the Series 90-30 baseplate.

How many modules can be used in a single PLC system? The system supports up to 2 of these communication modules per PLC.
