Description

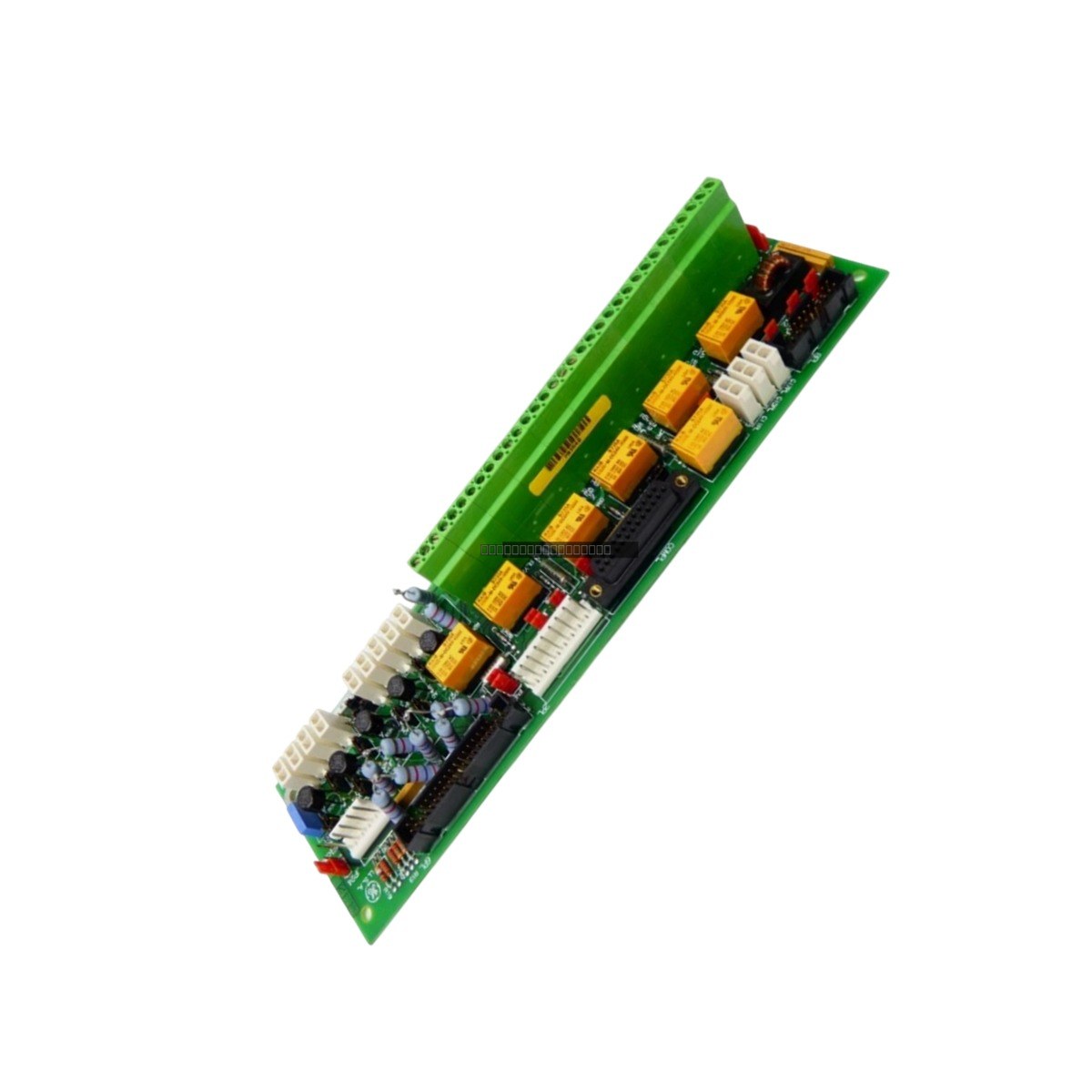

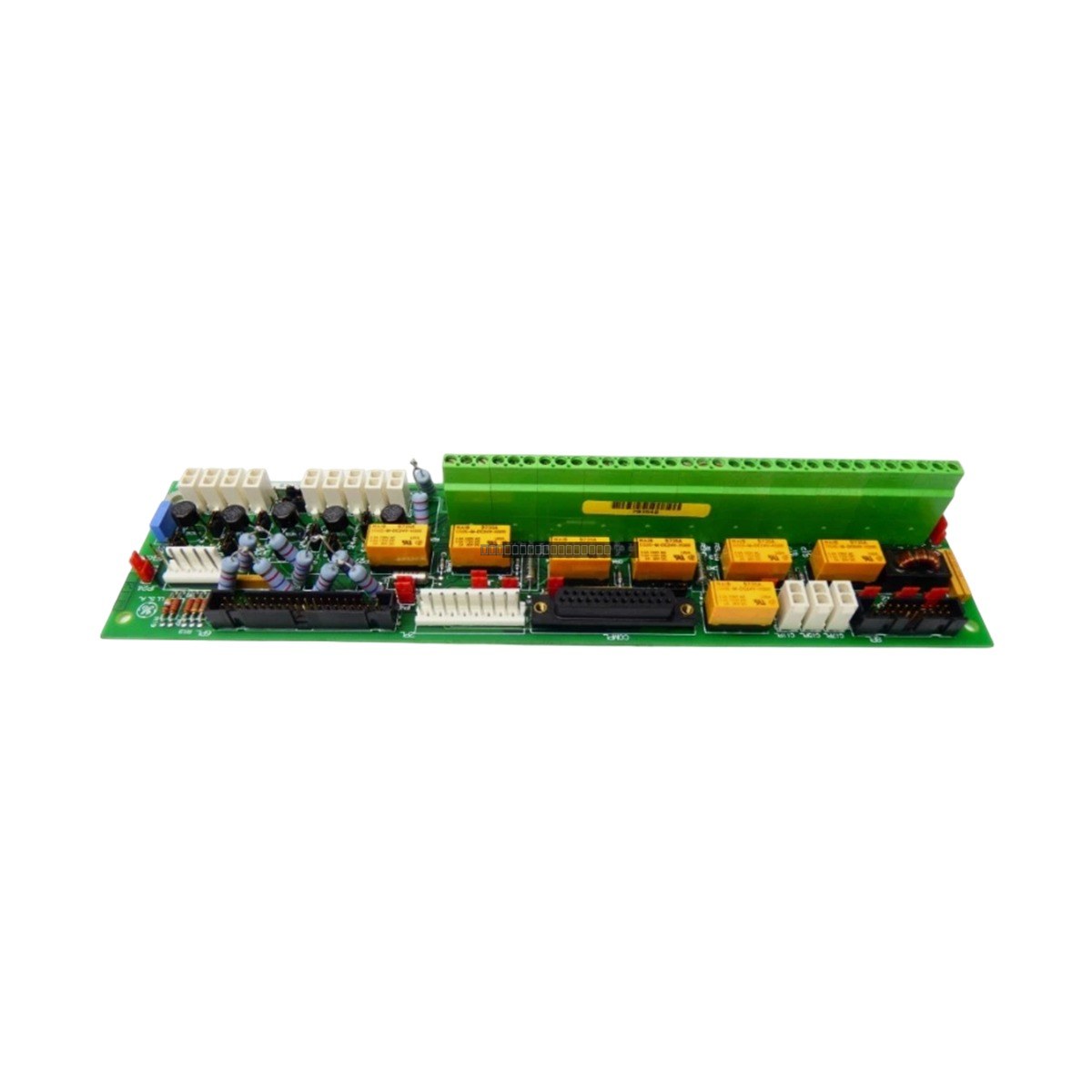

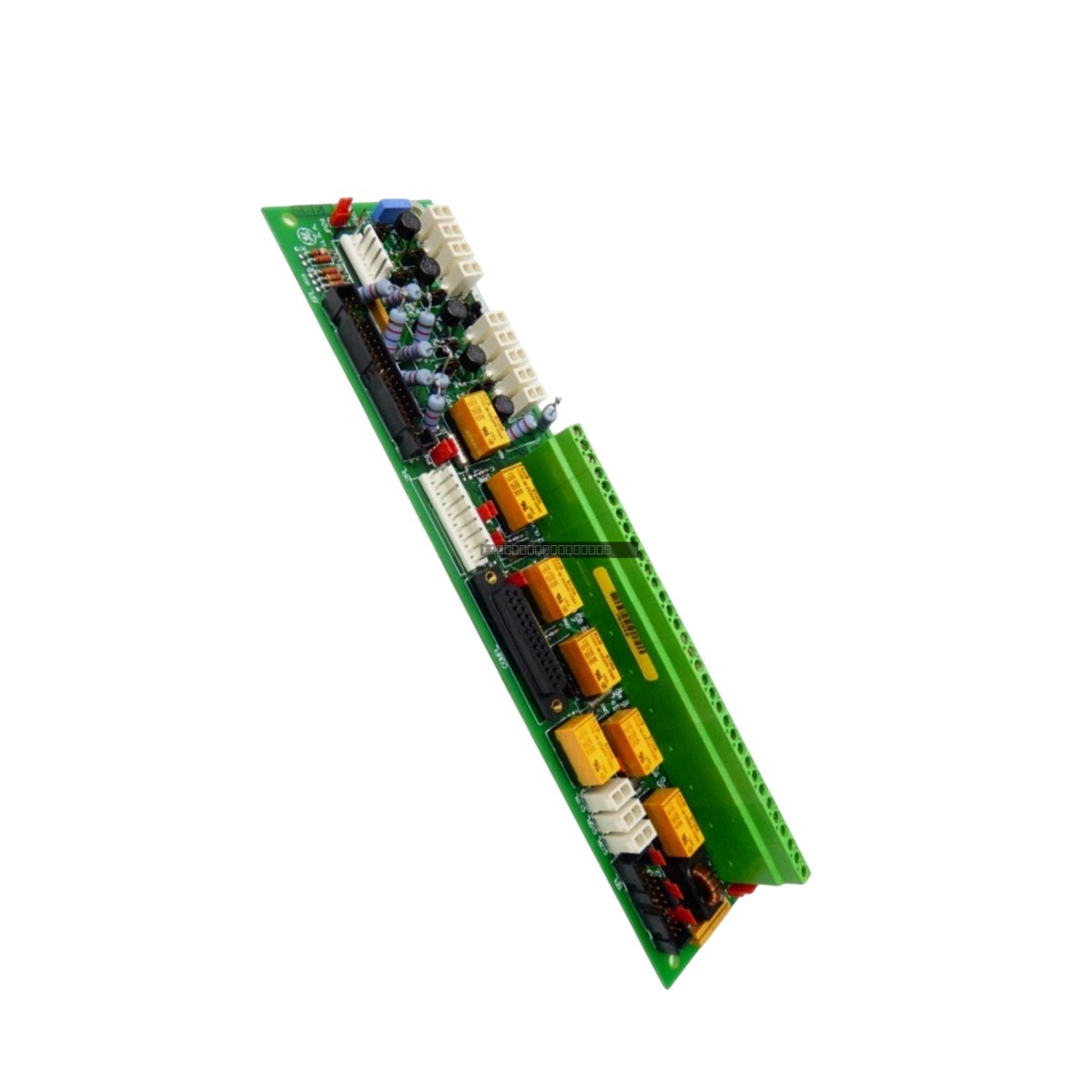

The GE Fanuc DS200STBAG1A is a specialized drive terminal board designed for the Drive Control series. This board acts as a critical interface for signal routing and power distribution within industrial motor drive systems. It is engineered to maintain signal integrity in demanding environments such as steel processing facilities, large-scale pumping stations, and motor control centers, ensuring consistent performance and reduced maintenance requirements.

Features

• High-density layout with 60 terminal points for comprehensive field wiring.
• Multi-stage power output support including regulated +5 VDC and +15 VDC, unregulated 124 VDC, and 120 VAC auxiliary supply.
• Integrated hardware jumpers for flexible distribution of encoder loads between supply rails.
• Dedicated RS232C communication port for serial data exchange.
• Eight discrete input channels (CI1-CI8) for control logic monitoring.

Technical Specifications

Installation Guidelines

• Ensure all power is disconnected from the drive system before attempting to remove or install the terminal board.
• Verify that all field wiring is properly secured to the 60-point terminal block to prevent intermittent signal loss.
• Handle the board using ESD-safe procedures to prevent damage to sensitive internal circuitry.
• Configure hardware jumpers according to the specific power requirements of your encoder setup before applying operational power.
• Ensure the environment is free from excessive vibration and moisture to prolong the lifespan of the board components.

FAQ

What is the primary function of the DS200STBAG1A?
It serves as a basic drive terminal board for GE Fanuc Drive Control systems, managing signal routing, communication, and multi-level power distribution for peripheral devices.

Can I adjust the encoder load settings?
Yes, the board features integrated hardware jumpers that allow technicians to distribute encoder loads between the +5 VDC and +15 VDC supply rails.

What communication protocols are supported?
The board includes an RS232C serial communication port for interfacing with external control equipment.
