Description

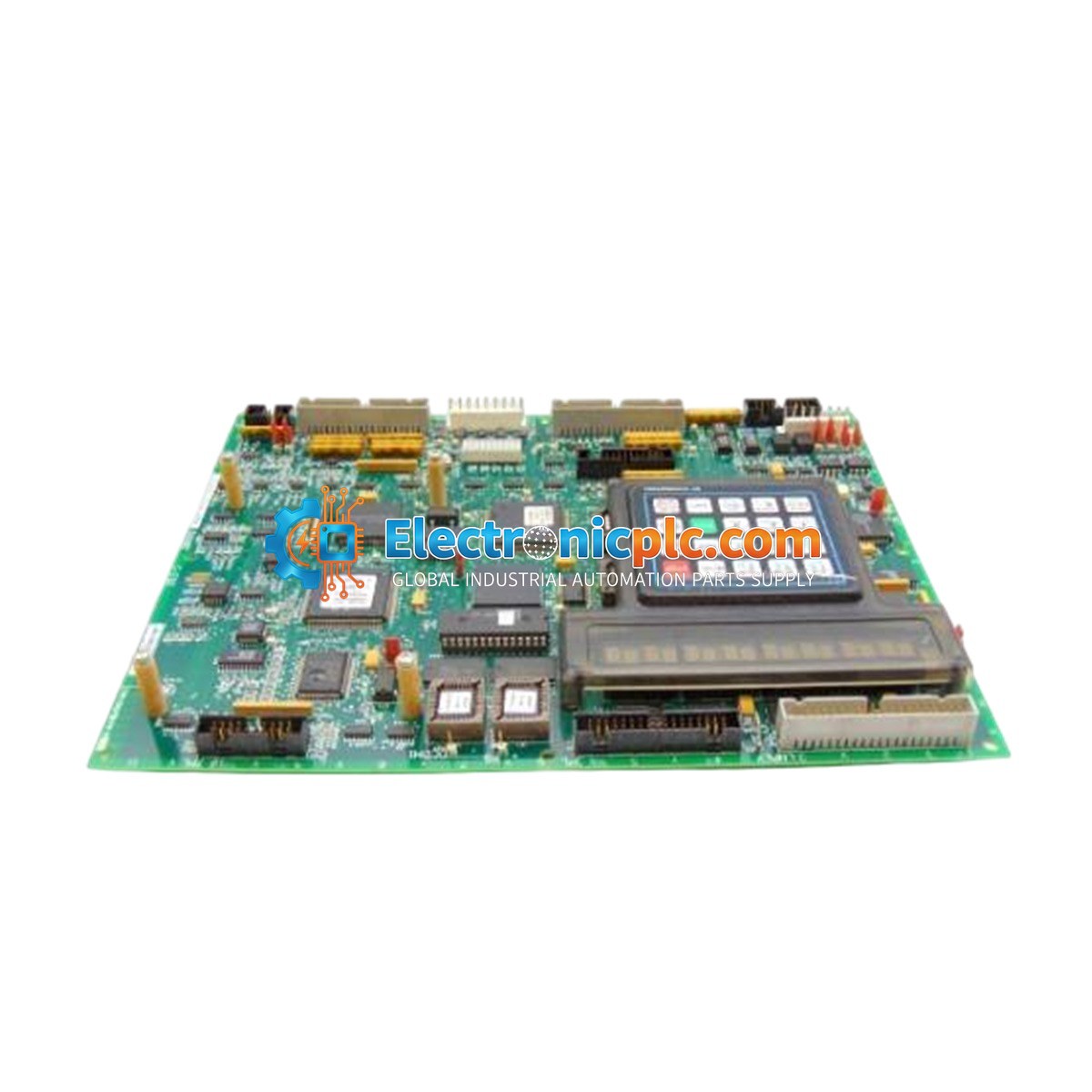

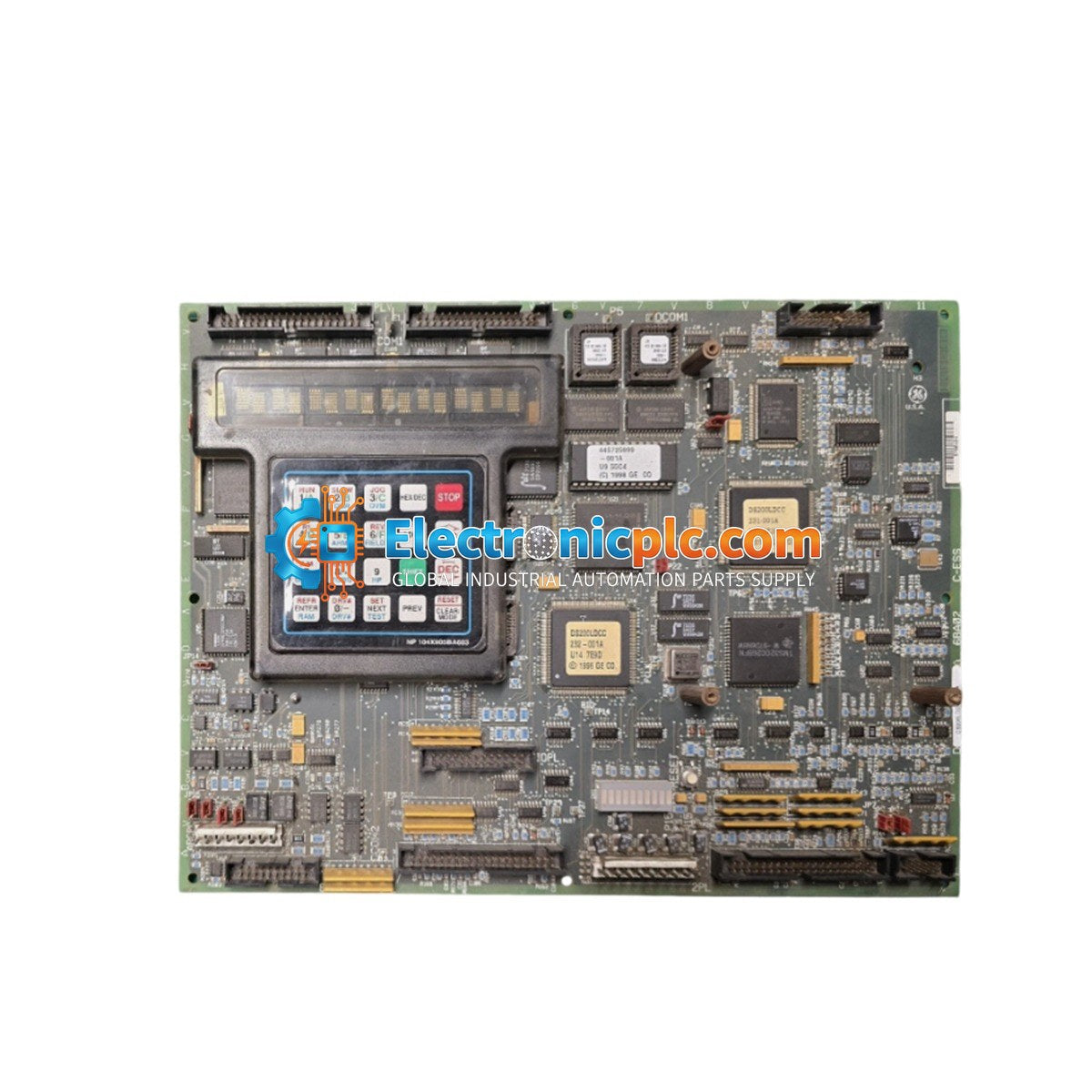

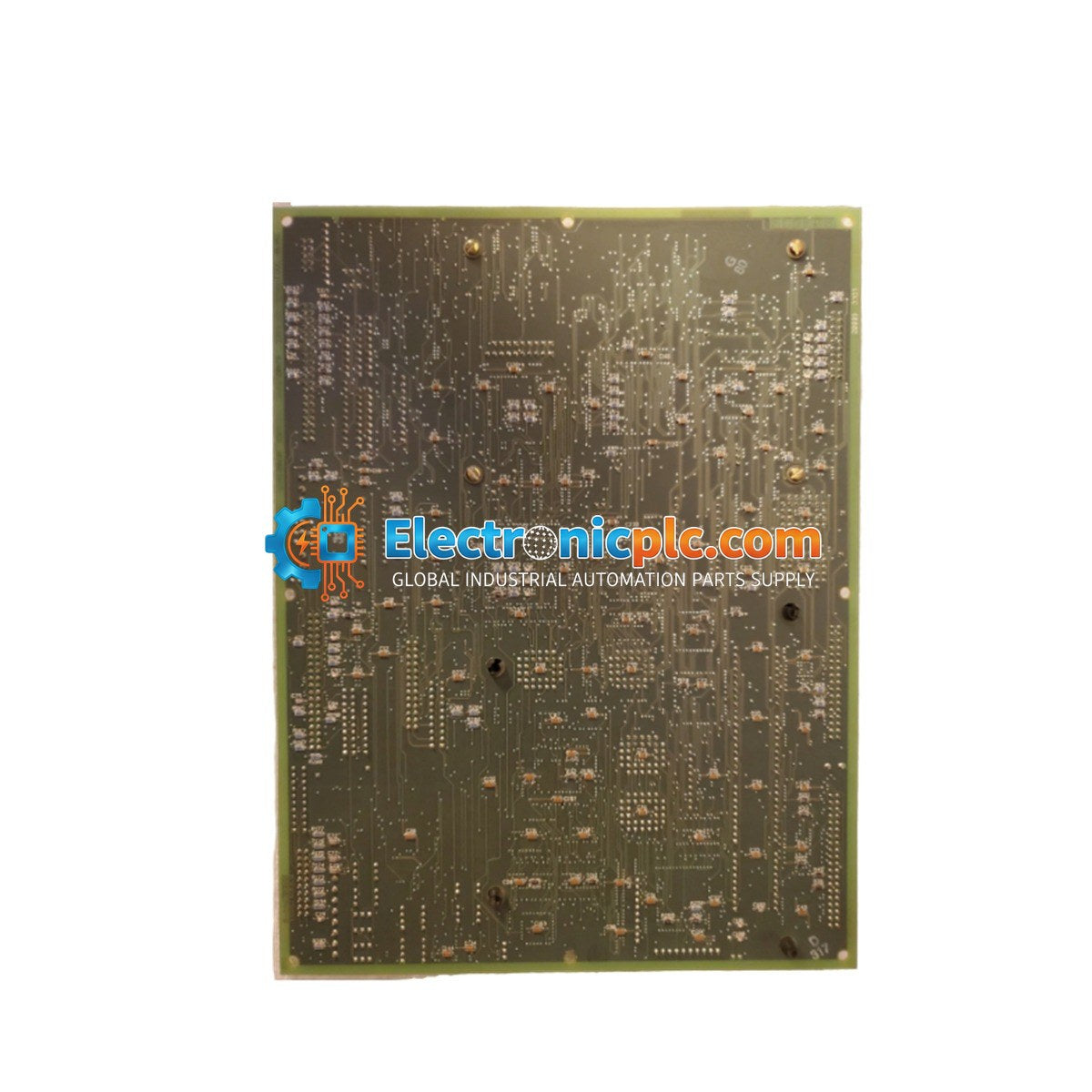

The DS200LDCCH1ALA is a high-performance Drive Control and LAN Communications card engineered for the General Electric Speedtronic Mark V series. Primarily utilized in DIRECTO-MATIC 2000 drives and exciters, this board facilitates critical management of wind, gas, and steam turbine automated drive assemblies. By integrating advanced I/O filtering and multi-processor synchronization, the DS200LDCCH1ALA ensures precise motor control and seamless network communication in heavy industrial sectors such as power generation and oil refining. Its multi-revision architecture provides enhanced stability and fault recovery, serving as a vital component for reducing unplanned system downtime in legacy turbine control infrastructures.

Features

• Multi-Processor Architecture: Features a quad-processor configuration including Drive Control (DCP), LAN Control (LCP), Motor Control (MCP), and Co-Motor (CMP) processors to distribute computational loads.
• Network Connectivity: Supports high-speed communication via DLAN+, Genius Interface, CPL Serial Link, and C-Bus Differential systems.
• System Integration: Includes a physical RESET button for fault recovery and an interface for an optional alphanumeric keypad.
• Robust Design: PCB features conformal coating for protection in harsh industrial environments.

Applications

This module is designed for use within the GE Speedtronic Mark V turbine control system and is specifically compatible with DIRECTO-MATIC 2000 series drives and exciters. It is commonly deployed in power generation facilities, oil and gas refineries, and large-scale industrial motor control applications.

Technical Specifications

Installation Guidelines

• ESD Protection: Always use a grounded anti-static wrist strap when handling the board to prevent damage to sensitive electronic components.
• Power Status: Ensure the drive unit is fully powered down and isolated before inserting or removing the board from the rack.
• Seating: Ensure the board is firmly seated in the designated slot and that all edge connectors are properly aligned to prevent pin damage.
• Optional Hardware: If utilizing Genius or CPL communication protocols, ensure the DS200ADCI terminal board is correctly installed and wired.
• Environment: Maintain the cabinet environment within the specified temperature range (0 to 60 deg C) to ensure long-term reliability.

FAQ

Q: Is the DS200LDCCH1ALA compatible with other Mark series?
A: This board is specifically designed for the Speedtronic Mark V series and DIRECTO-MATIC 2000 drives. It is not intended for use in earlier or later Mark series systems.

Q: What is the purpose of the quad-processor design?
A: The quad-processor design allows for the parallel execution of drive control, LAN communication, and motor control tasks, which reduces latency and improves the overall responsiveness of the turbine control system.
