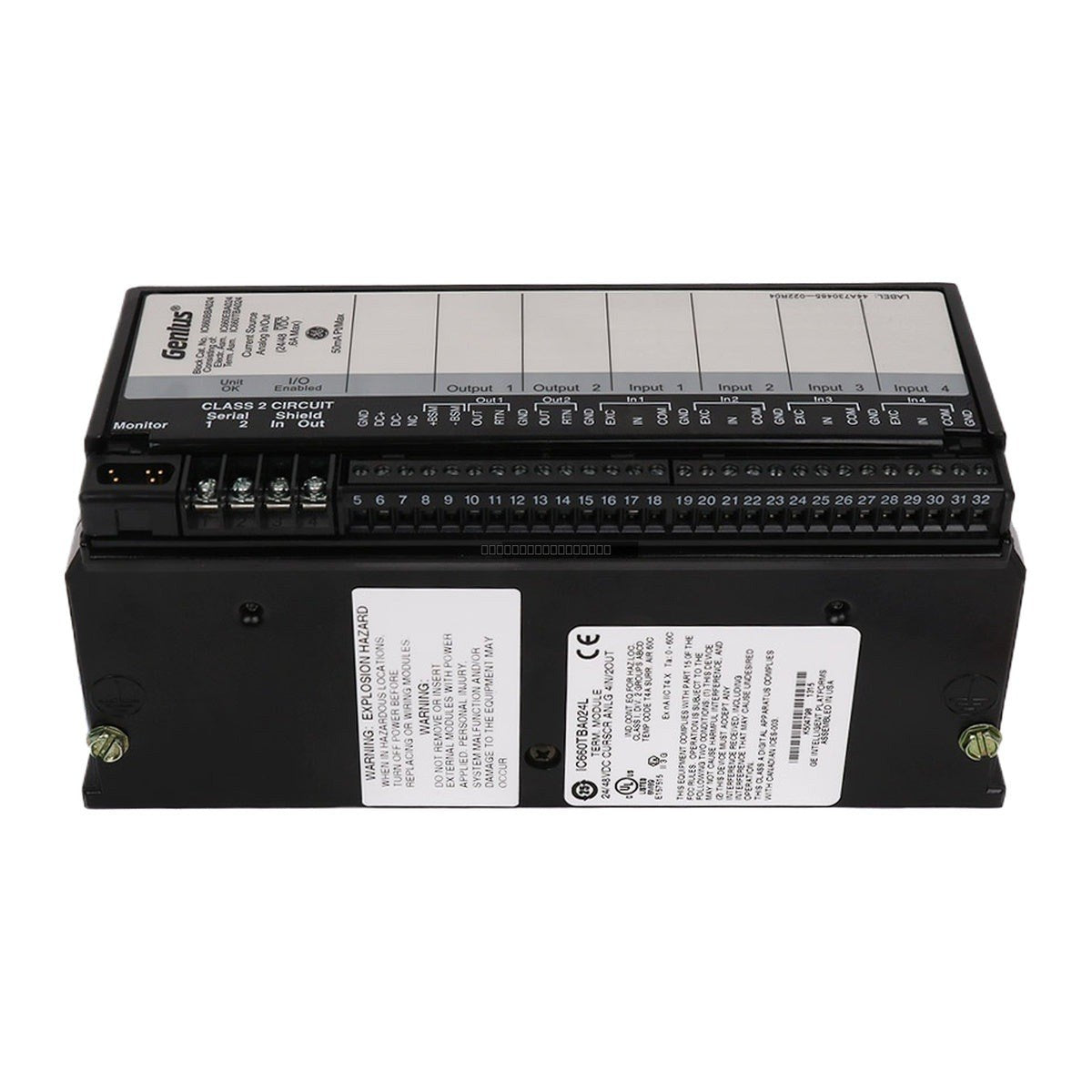

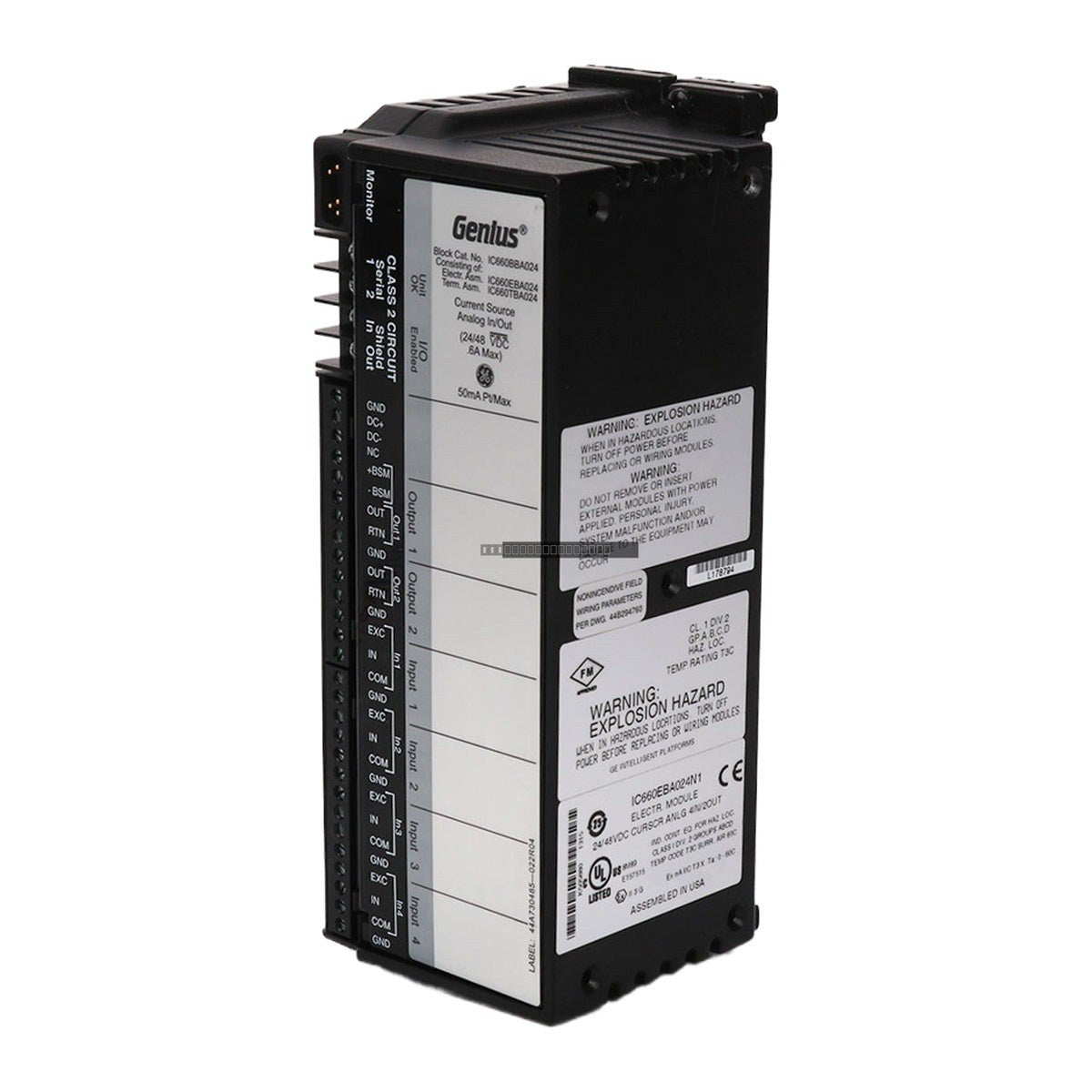

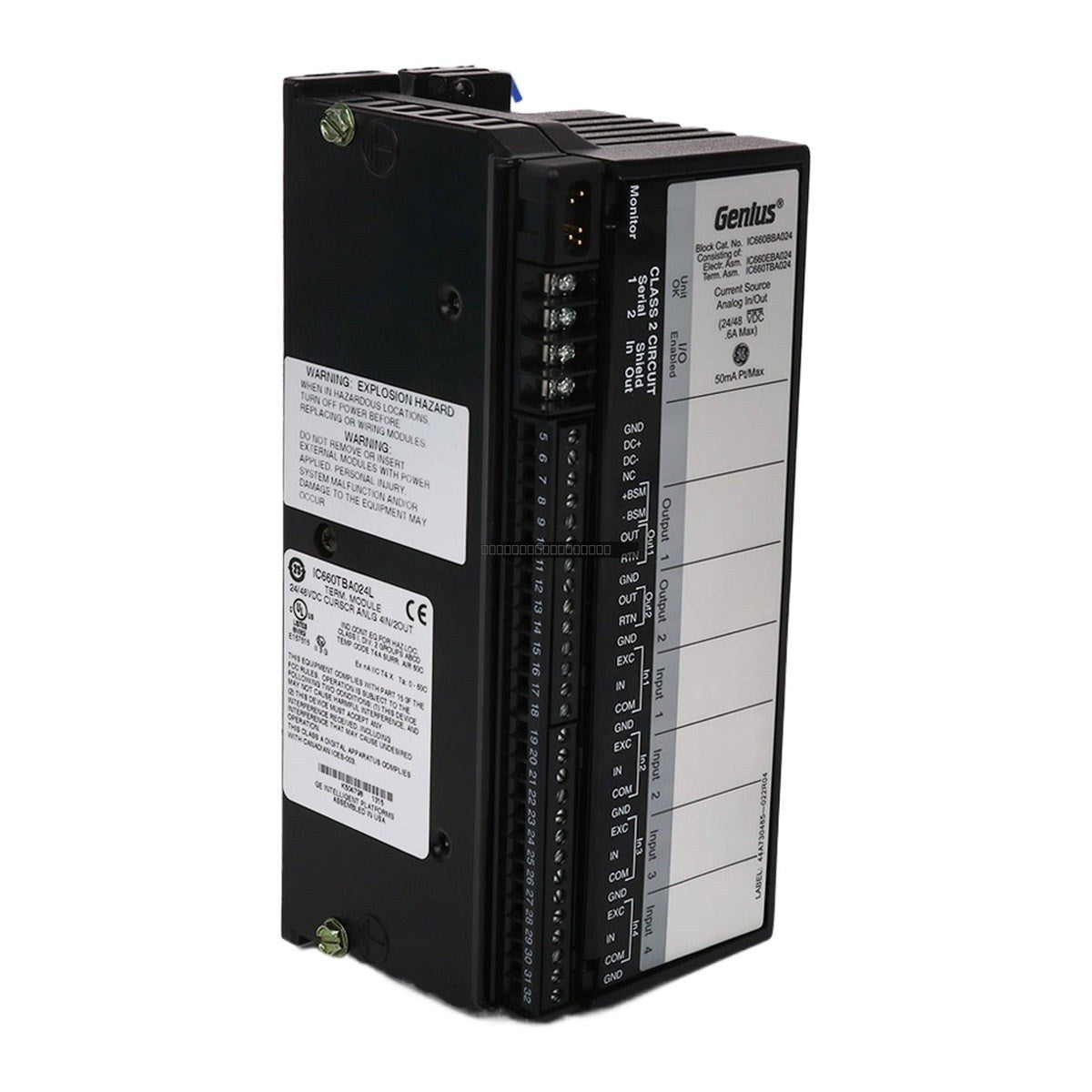

The General Electric IC660BBA024P1 is a Genius I/O block designed for industrial analog signal processing. This current source I/O block provides reliable interface capabilities for 4-20 mA signals, supporting 4 inputs and 2 outputs to facilitate integration within distributed control systems. It is engineered for operation with 24/48 VDC power supplies, ensuring compatibility with standard industrial control environments.

Features

• 4 Analog Current Inputs and 2 Analog Current Outputs (4-20 mA).
• Integrated status monitoring via Unit OK and I/O Enabled LEDs.
• Robust isolation rating of 1500 V RMS for block-to-block and group-to-group protection.
• Output resolution of 6 microamps for precise signal control.
• Designed for high-reliability industrial automation applications.

Applications

This Genius I/O block is typically utilized in process control systems where analog current loops are required for sensor data acquisition and actuator control. It is suitable for use in manufacturing, energy management, and material handling systems that rely on the GE Genius I/O communication network.

Technical Specifications

Installation Guidelines

• Ensure the system power is disconnected before installing or removing the I/O block to prevent electrical damage.
• Mount the block in a location that allows for adequate airflow to accommodate the 12W heat dissipation.
• Use shielded cabling for all analog signals to minimize electromagnetic interference (EMI) and ensure signal integrity.
• Verify that the 24/48 VDC power supply is correctly wired to the power terminals, observing proper polarity.
• Ensure the module is securely seated on the mounting surface and that all terminal connections are tightened to the specified torque.

FAQ

What is the primary function of the IC660BBA024P1?
This device acts as an analog I/O interface for the GE Genius I/O system, converting 4-20 mA signals for use within an automated control network.

What is the isolation rating of this block?
The block provides 1500 V RMS isolation for both block-to-block and group-to-group configurations, protecting the system from voltage surges.
