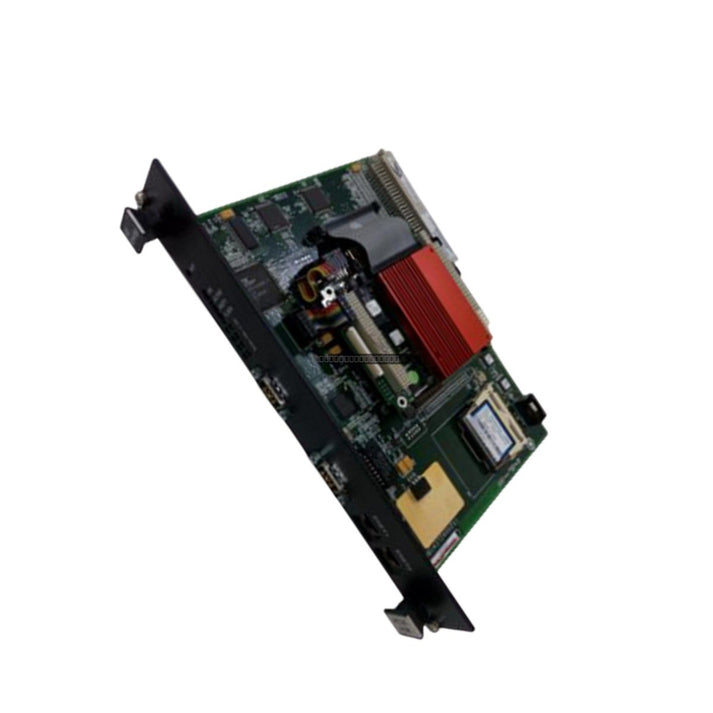

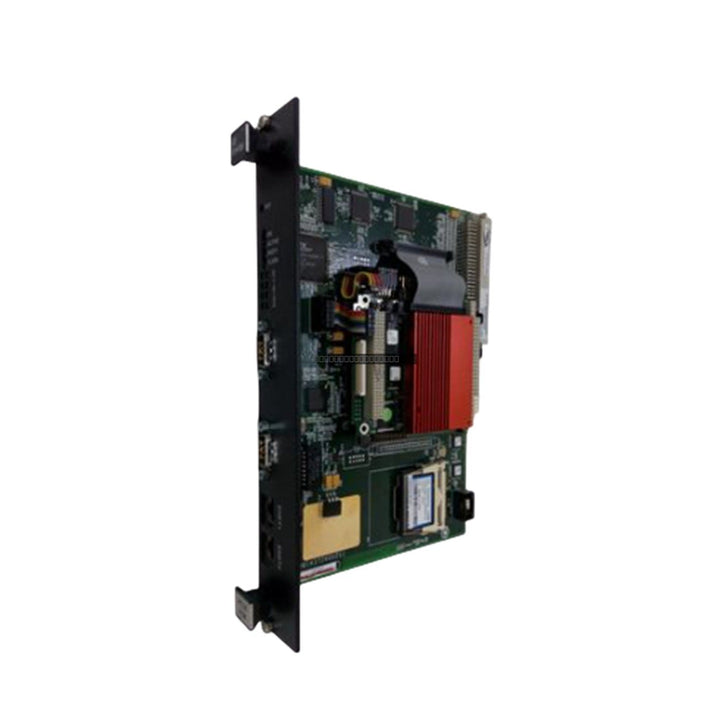

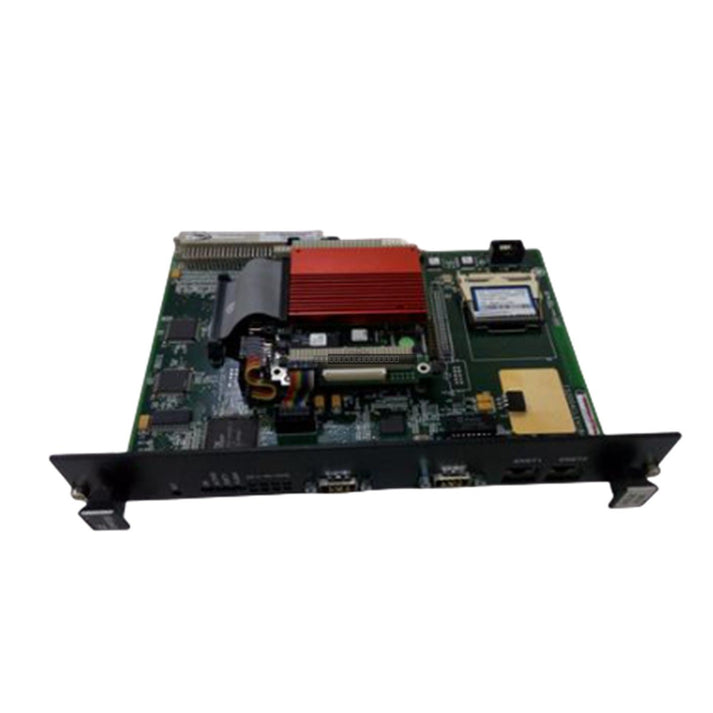

The General Electric IS200ACLEH1BCB (also identified as IS215ACLEH1BC) is an Application Control Layer (ACL) module designed for the EX2100 excitation control system. This module serves as a critical component in managing control logic and signal processing within the GE control architecture, providing reliable performance in demanding industrial environments.

Features

• Designed specifically for the GE EX2100 series excitation systems.
• Integrated analog output capabilities for precise control signal transmission.
• Robust construction suitable for high-reliability power generation and industrial applications.
• Wide operating temperature range for installation in diverse climate conditions.

Technical Specifications

Installation Guidelines

• Ensure the control system is powered down before attempting to install or remove the module to prevent electrical damage.
• Handle the module using proper ESD (Electrostatic Discharge) precautions to protect sensitive internal circuitry.
• Verify that the module is fully seated in the designated rack slot to ensure reliable backplane communication.
• Ensure that external loop power supplies are within the specified 6-30 Vdc range before connecting to the analog output terminals.
• Maintain proper ventilation in the cabinet to ensure the module operates within its specified temperature range.

FAQ

What is the primary function of the IS200ACLEH1BCB?
This is an Application Control Layer module used within the GE EX2100 excitation system to facilitate control logic and analog signal output management.

Is this module compatible with the IS200ACLEH1B?
Yes, the IS200ACLEH1BCB is often listed as a functional replacement or spare for the IS200ACLEH1B model.

What are the environmental requirements for this module?
The module is rated for operation between -30 degC and +65 degC with a non-condensing humidity range of 5% to 95%.
