Description

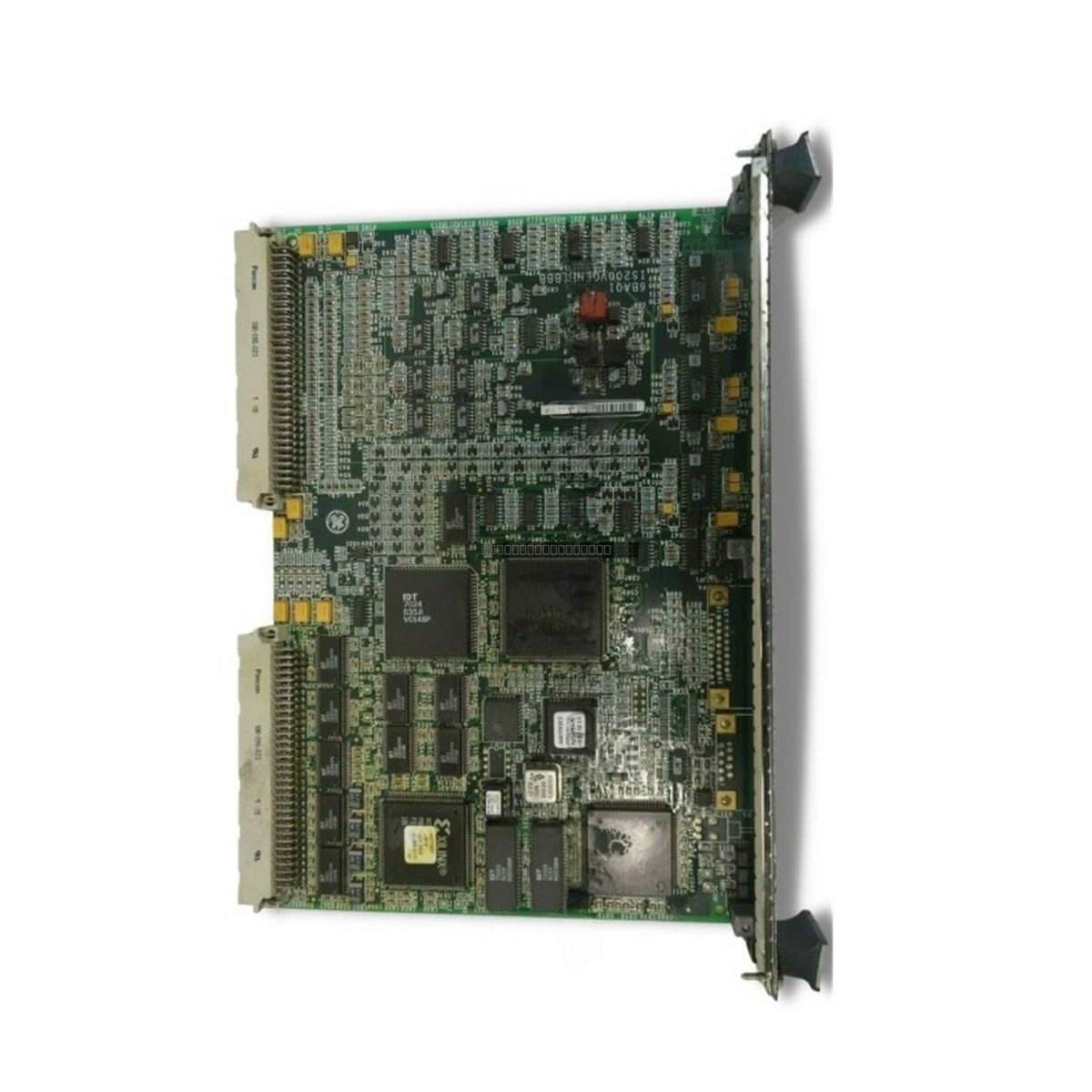

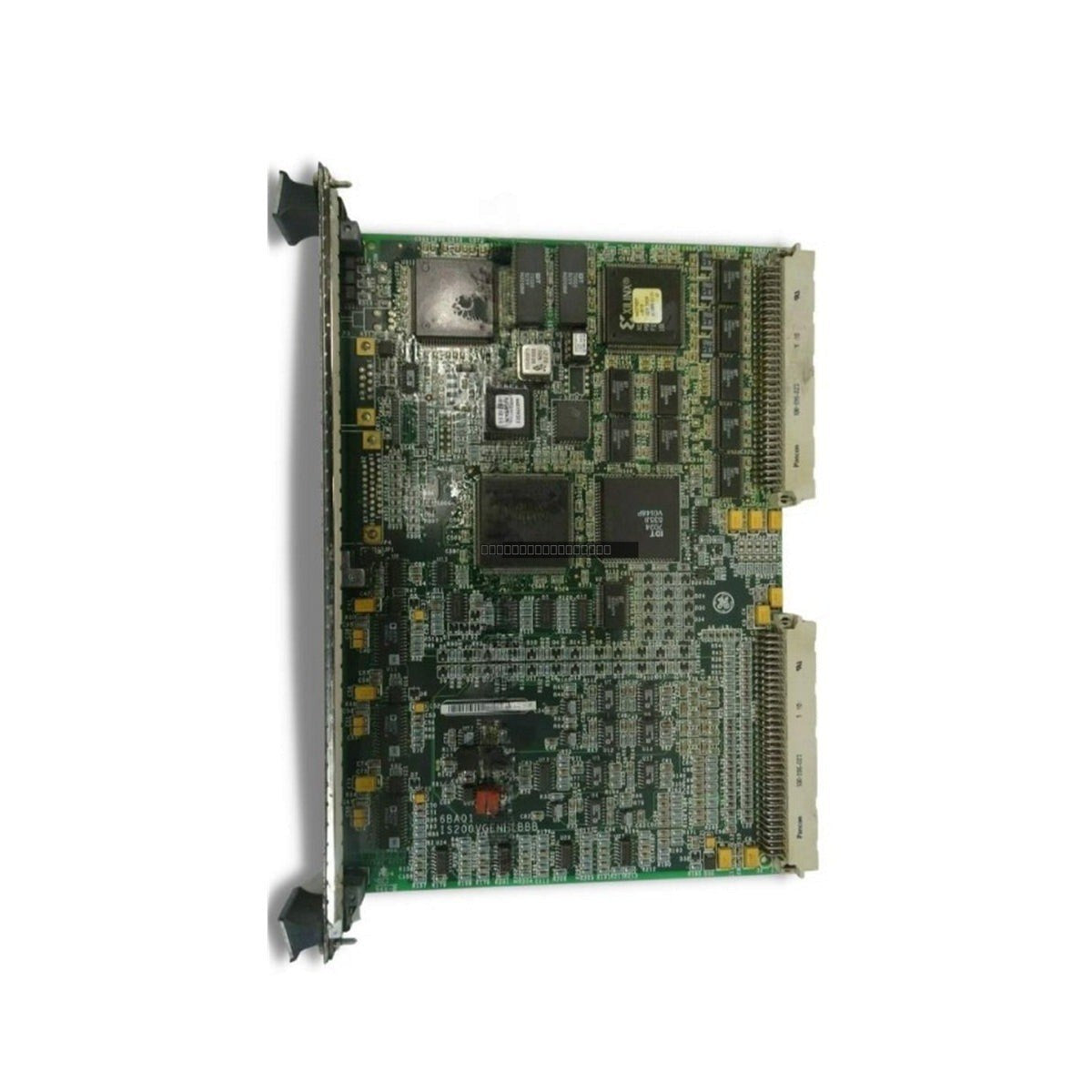

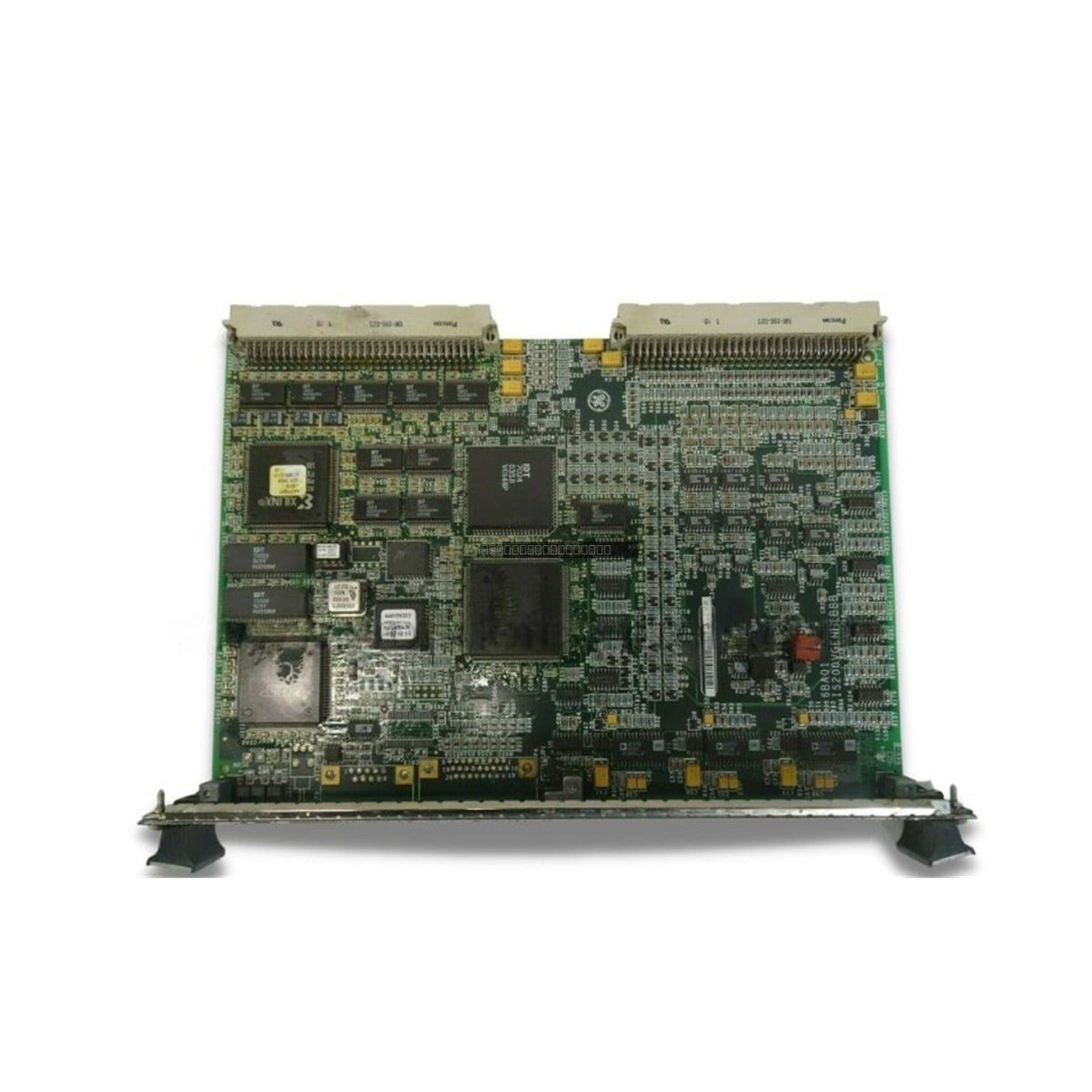

The GE Fanuc IS200VGENH1B is a specialized Generator Monitor and Trip Board engineered for the Mark VI Speedtronic control system. This module provides critical real-time monitoring of generator performance by analyzing three-phase voltage and current vectors. By interfacing with the generator's instrumentation, the board calculates essential parameters such as active power, reactive power, and the power factor. Its primary function is to detect anomalies like phase imbalances or under-voltage conditions, triggering rapid hardware-level trip loops to protect the alternator and maintain system stability within industrial power generation environments.

Features

• Designed for integration with the GE Mark VI Speedtronic platform.
• Utilizes high-precision surface mount technology (SMT) for reliable signal processing in high-voltage environments.
• Features eight independent signal processing channels for robust data acquisition.
• Computes real-time system metrics including three-phase power and true power factor.
• Facilitates high-speed hardware-level trip execution to bypass software latency during emergency conditions.
• Optimized for seamless operation with TGEN terminal boards.

Technical Specifications

Installation Guidelines

• Ensure the Mark VI rack power is completely de-energized before inserting or removing the IS200VGENH1B board.
• Handle the module using proper ESD (Electrostatic Discharge) precautions to prevent damage to internal SMT components.
• Verify that the board is correctly seated in the VME backplane slot to ensure reliable communication with the control processor.
• Confirm proper termination and shielding of input cables connected to the companion TGEN terminal board to minimize electromagnetic interference.
• Maintain adequate ventilation within the control cabinet to ensure the board operates within its specified temperature range.

FAQ

What is the primary role of the IS200VGENH1B board?
It serves as a monitor and trip interface that samples electrical inputs from a generator to detect dangerous conditions and initiate protective trips.

Does this board require software configuration for trip logic?
The board is designed for hardware-level trip execution, allowing it to respond to critical faults without the processing delays associated with software-based logic.

What terminal boards are compatible with this unit?
The IS200VGENH1B is designed to work in conjunction with TGEN terminal boards to facilitate field signal connectivity.
