Description

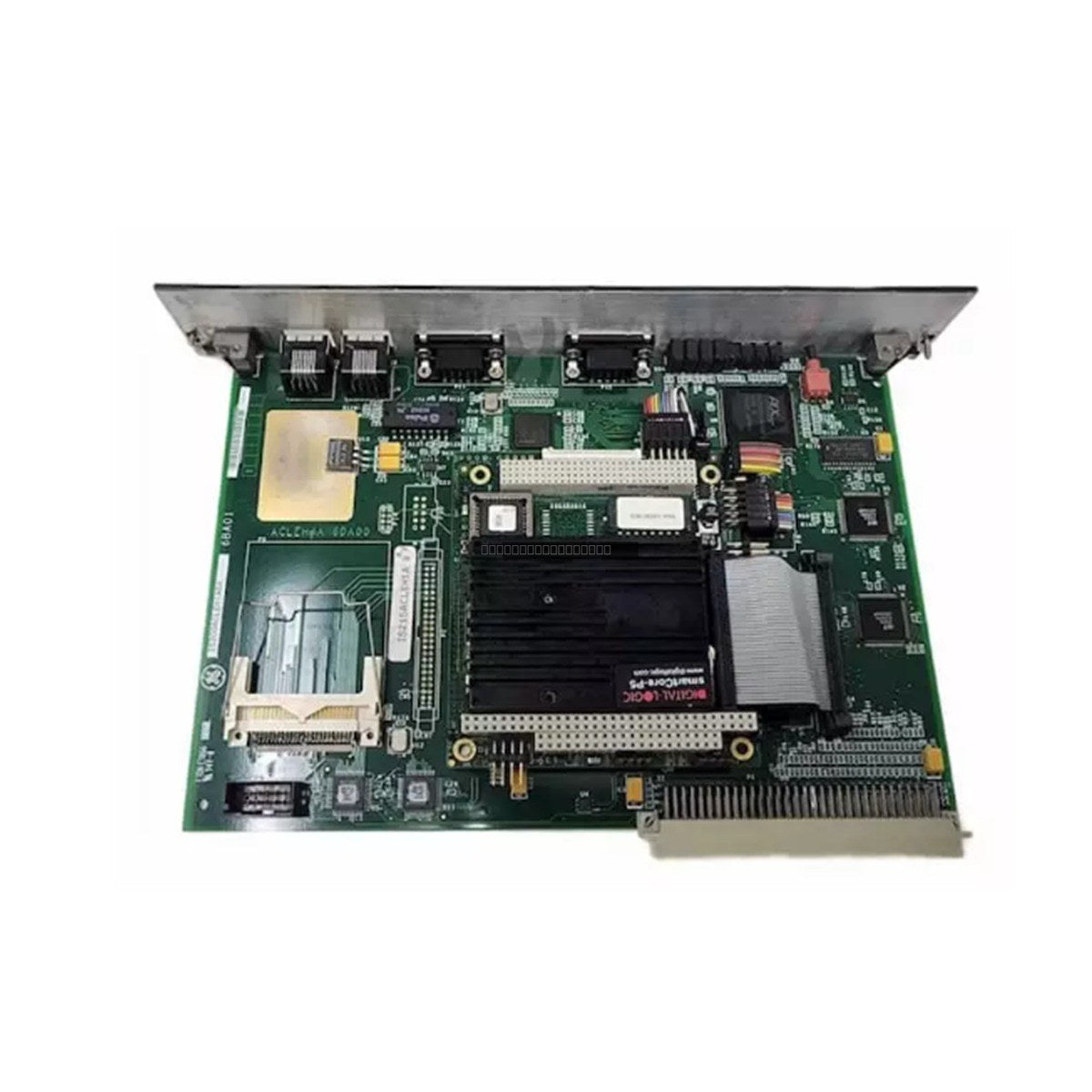

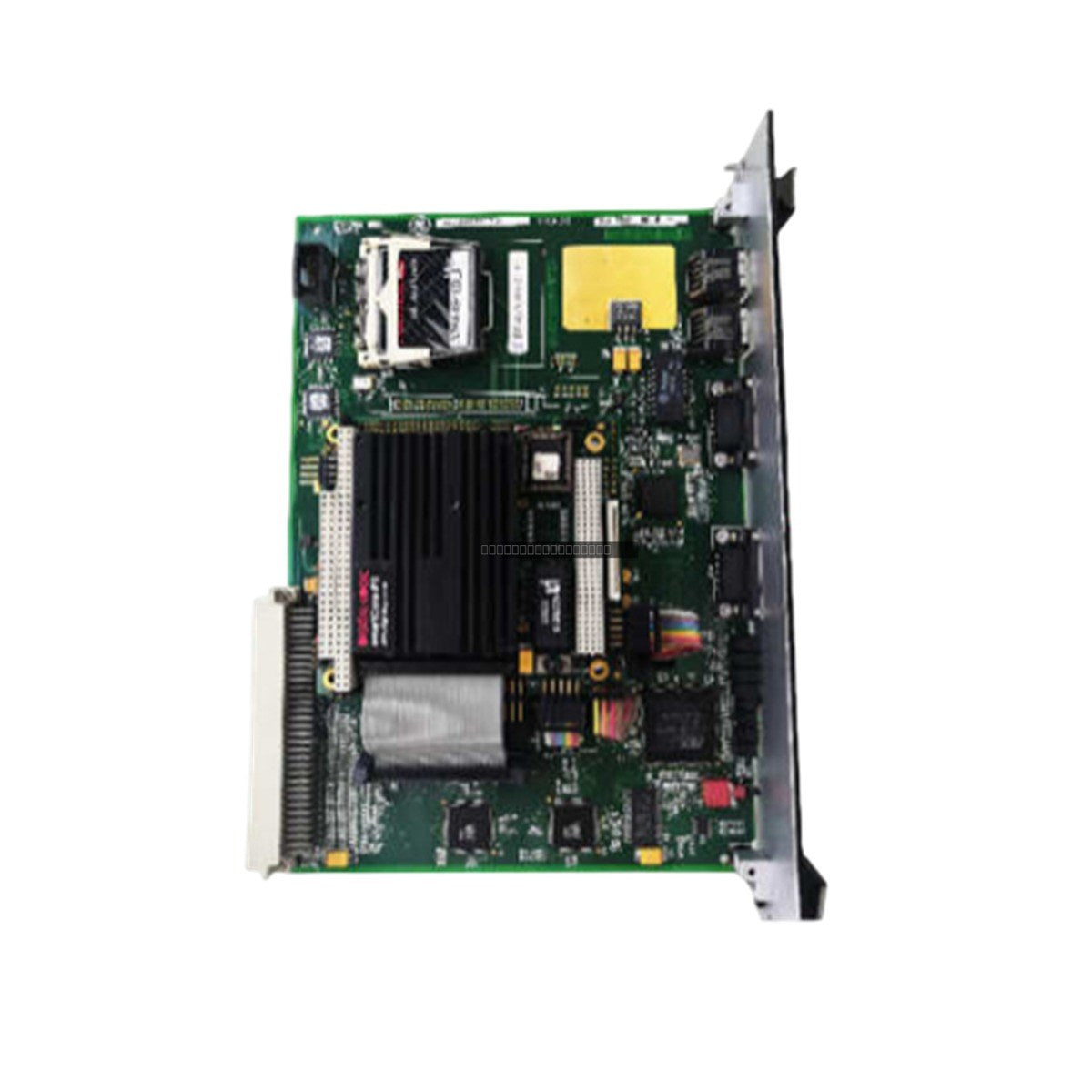

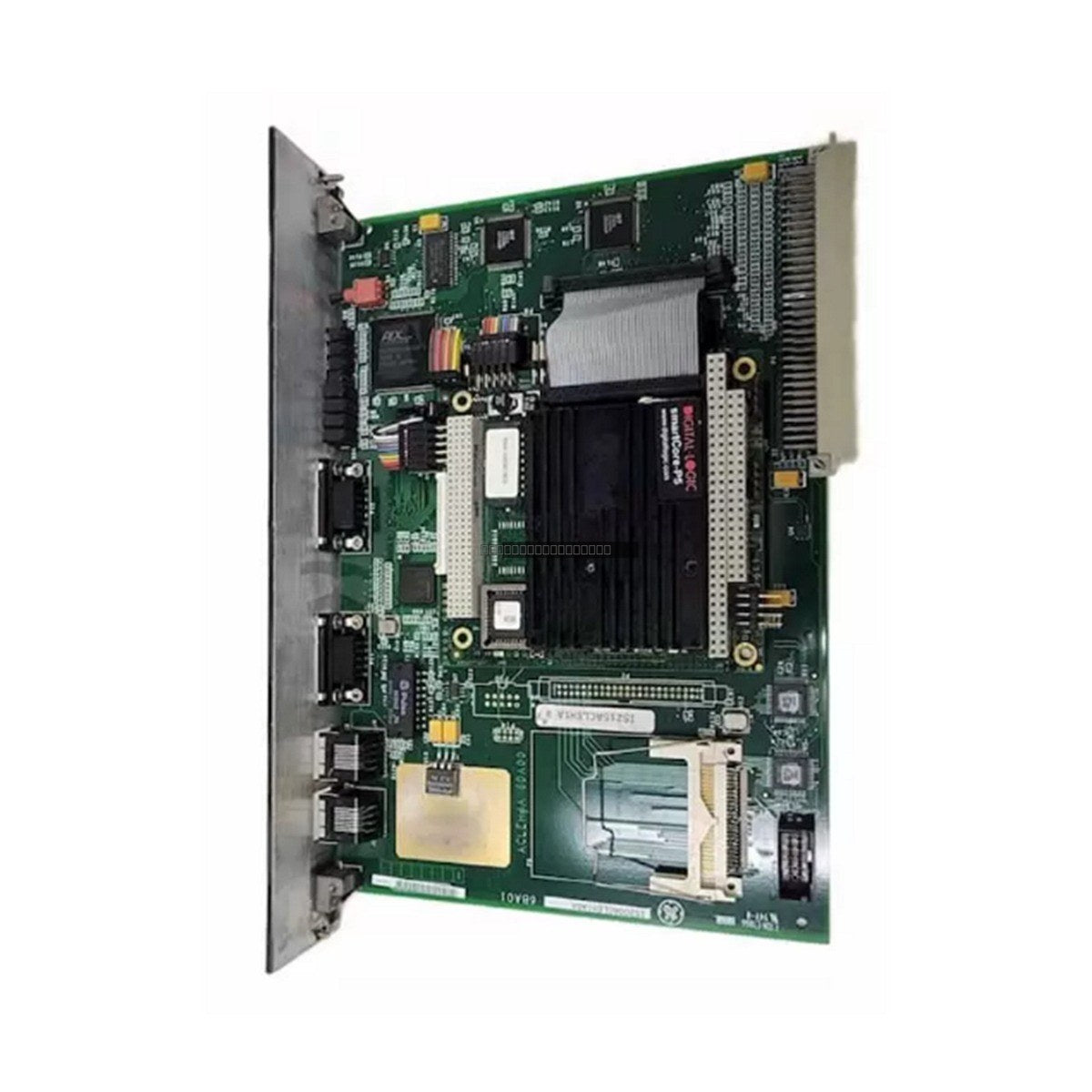

The GE Fanuc IS215ACLEH1A is an Application Control Layer (ACLE) module engineered for the EX2100 excitation control system. Serving as a primary controller, this unit is responsible for managing real-time excitation logic and coordinating communication across industrial Ethernet networks. It is designed to provide high-reliability control for power generation and large-scale excitation applications, effectively serving as an upgraded replacement for legacy ACLA modules to improve processing efficiency and reduce system latency.

Features

• High-performance 486 100 MHz microprocessor for deterministic control tasks.
• Operates on the QNX real-time operating system for reliable, time-critical execution.
• Integrated 10BaseT Ethernet interface for robust network communication.
• Occupies two standard slots within the EX2100 rack architecture.
• Fully compatible with various EX2100 backplanes, including IS200ESBP, IS200EBKP, IS200ERBP, and IS200ERRB.

Technical Specifications

Installation Guidelines

• Ensure the EX2100 rack power is disconnected before installing or removing the module.
• Handle the module using proper ESD (electrostatic discharge) protection measures to prevent damage to internal circuitry.
• Verify that the module is correctly seated in the two designated rack slots to ensure proper backplane connection.
• Ensure adequate ventilation around the rack to maintain operating temperatures within the 0 to 45 deg C range.
• Route Ethernet cabling away from high-voltage power lines to minimize electromagnetic interference (EMI).

FAQ

What is the primary function of the IS215ACLEH1A?
It serves as the Application Control Layer (ACLE) for the EX2100 excitation system, managing control logic and network communication.

Is this module compatible with legacy ACLA systems?
Yes, the IS215ACLEH1A is designed to replace the legacy ACLA module, offering increased processing power and improved reliability.

What operating system does this module use?
The module utilizes the QNX operating system to ensure deterministic performance in demanding industrial environments.
