Description

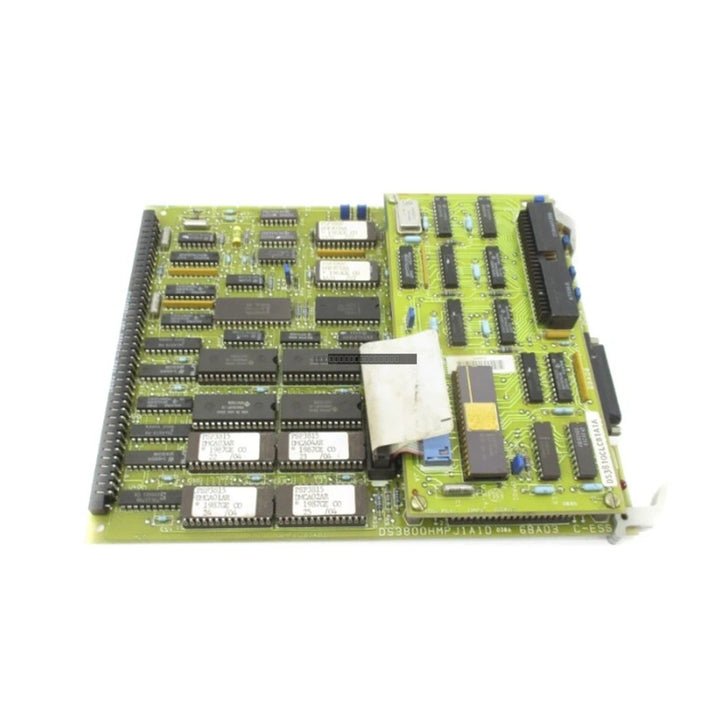

The DS3800HMPJ1A1D is a microprocessor-based circuit board engineered by General Electric for the Mark IV Speedtronic turbine control system. This component is integral to the management of industrial gas and steam turbines, providing reliable control and monitoring within power generation, petroleum refining, and chemical processing environments. Designed for use within the Triple Modular Redundant (TMR) framework, the board facilitates parallel input voting, which allows the system to maintain operational continuity by mitigating the impact of transient hardware faults.

Features

• Designed specifically for the GE Mark IV Speedtronic turbine control architecture.
• Supports TMR (Triple Modular Redundant) system configurations for high availability.
• Utilizes high-grade onboard components for consistent performance in demanding industrial conditions.
• Standard edge connector interface ensures secure integration into Mark IV chassis backplanes.
• Supports real-time processing to minimize turbine system downtime.

Applications

This circuit board is primarily utilized in heavy-duty industrial applications, including:

• Gas and steam turbine control systems.
• Power generation plant automation.
• Petroleum refinery process control.
• Large-scale chemical processing facilities.

Technical Specifications

Installation Guidelines

• Ensure the control system is powered down before inserting or removing the circuit board to prevent electrical damage.
• Handle the board using proper ESD (Electrostatic Discharge) precautions to protect sensitive onboard components.
• Verify that the edge connector is properly aligned with the chassis backplane slot before applying pressure.
• Ensure the environment meets the specified temperature and humidity ranges to prevent premature component failure.
• Regularly inspect the board for signs of dust accumulation or thermal stress in high-vibration environments.

FAQ

Is the DS3800HMPJ1A1D compatible with other Mark series systems?

This board is specifically designed for the Mark IV Speedtronic system. Compatibility with other Mark series platforms (such as Mark V or VI) is not supported due to differences in architecture and communication protocols.

What does the HMPJ suffix indicate?

The HMPJ acronym identifies the specific hardware circuit functionality and component layout profile unique to this board version within the Mark IV catalog.
