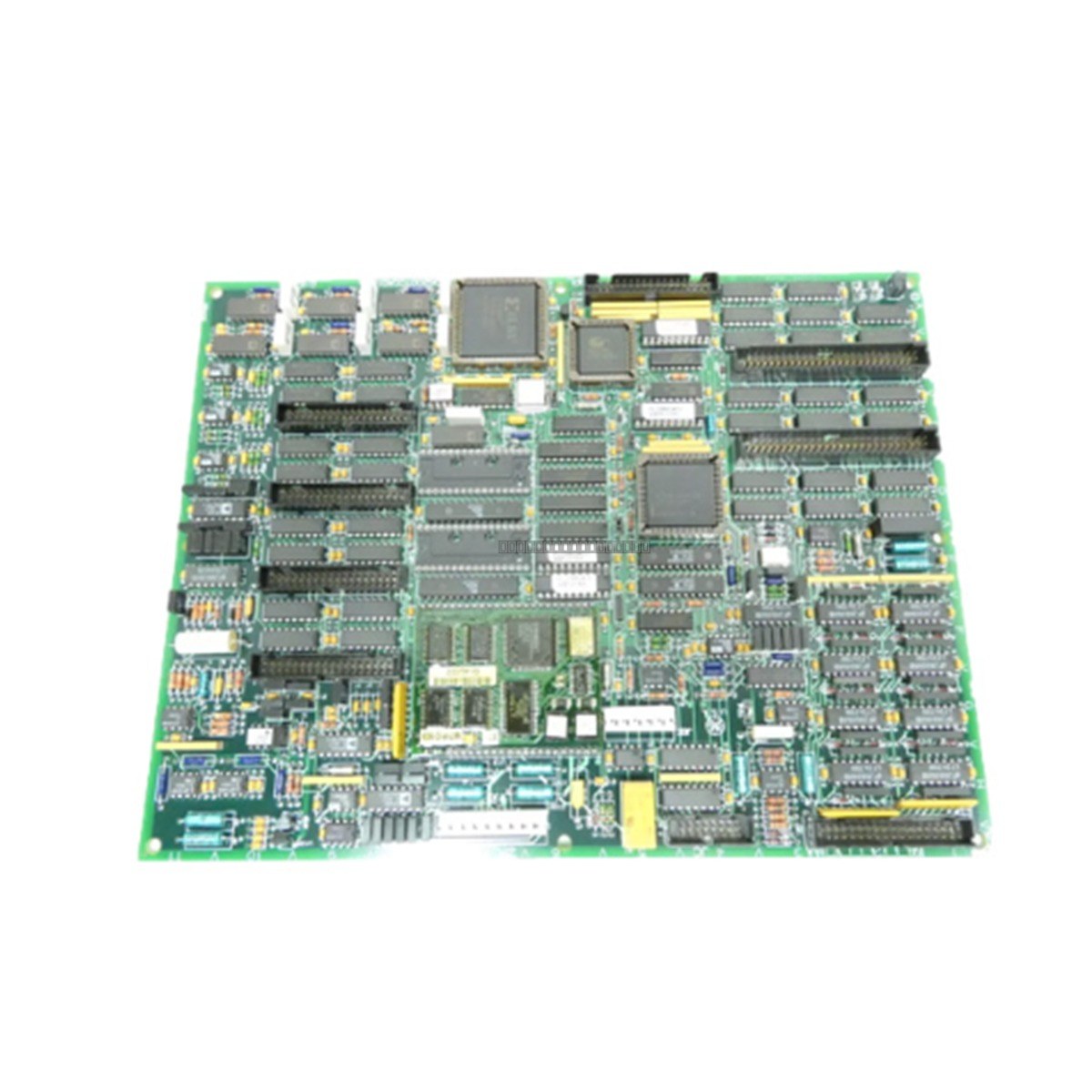

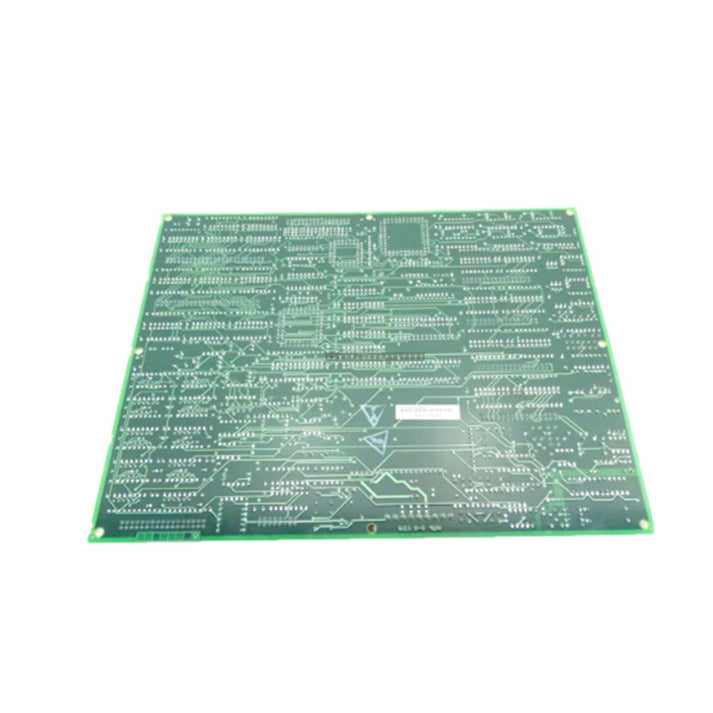

The General Electric DS200TCCAG1BAA is a TC2000 Common Analog I/O board designed for the Speedtronic Mark V turbine control system. This board serves as a critical component in the management and control of gas, steam, and wind turbine automated drive assemblies, providing versatile analog signal processing capabilities.

Features

• Equipped with an 80196 microprocessor for local signal processing.
• Features multiple removable PROM modules for firmware storage and updates.

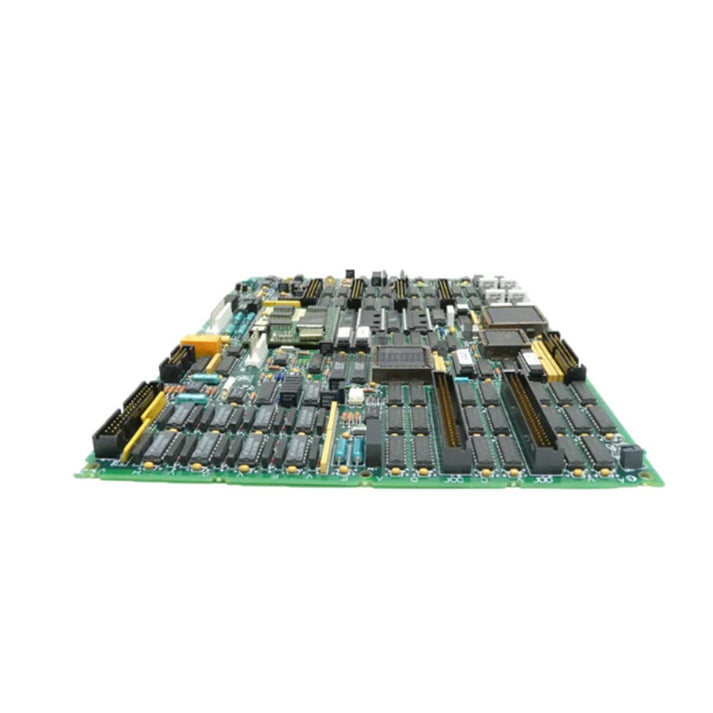

• Includes two 50-pin connectors (JCC and JDD) for signal distribution.
• Integrated status LED visible from the side of the board.
• Revised version of the DS200TCCAG1 board with three functional product revisions.

Applications

• Power Generation: Management of Frame 6, 7, and 9 gas and steam turbines.
• Oil and Gas: Control for LNG compressors and pipeline pumping stations.
• Petrochemical: Cogeneration and plant-wide process control.
• Marine and Mining: Turbine control for shipboard power and remote microgrid operations.

Technical Specifications

Installation Guidelines

• ESD Protection: The board contains static-sensitive components. Always handle the module using a grounded wrist strap and store in anti-static protective bags.
• Hardware Configuration: Configure jumpers J1 (RS232 port enable/disable), JP2 (oscillator test), and JP3 (factory reserved) before mounting the board.
• Software Setup: Use the I/O Configuration Editor on the HMI to define parameters for connected thermocouples, RTDs, and mA signals.
• Safety: Ensure the control system power is fully disconnected before inserting or removing the board from the rack.

FAQ

What is the primary function of the DS200TCCAG1BAA?

The DS200TCCAG1BAA is a Common Analog I/O board used within the General Electric Speedtronic Mark V series to interface with various analog sensors and control devices in turbine systems.

How are firmware updates handled?

The board uses removable PROM modules. These modules can be removed from their sockets to update or replace the firmware instructions used by the onboard microprocessor.

Are the PROM modules interchangeable with older revisions?

The DS200TCCAG1BAA is a revised version of the DS200TCCAG1. Always verify compatibility with your specific system revision before swapping components between different board versions.
