Description

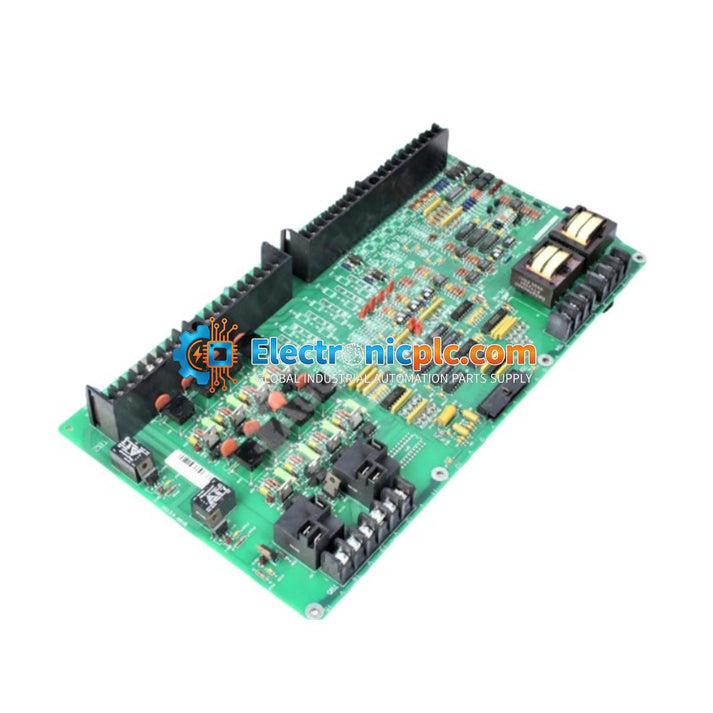

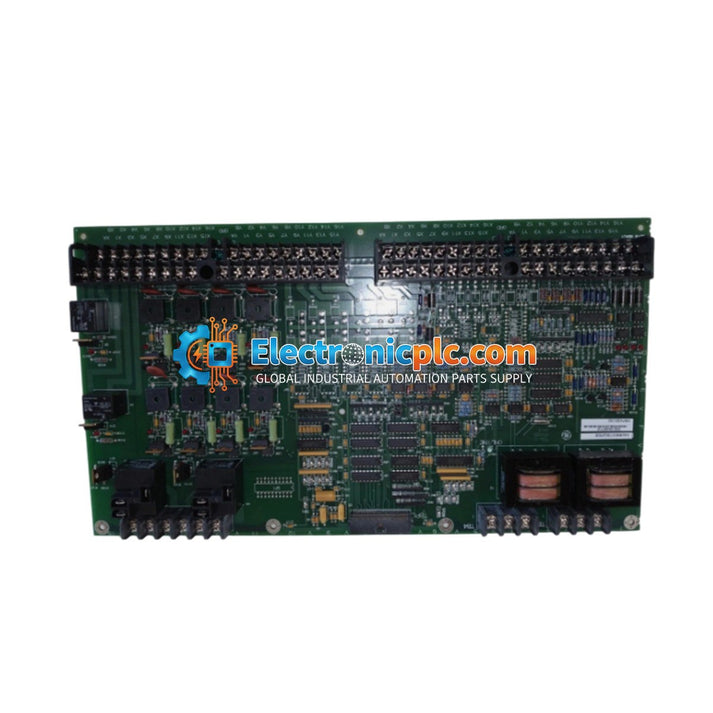

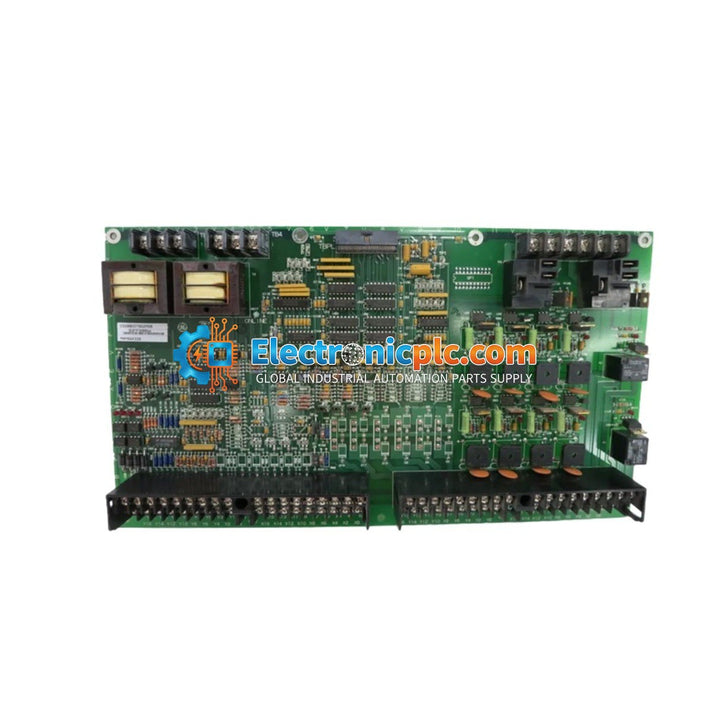

The DS200DDTBG2ABB is a high-voltage auxiliary I/O terminal board engineered for the GE Speedtronic Mark V LM gas turbine control system. This module serves as a critical interface for system-level signals, providing necessary signal conditioning, scaling, buffering, and electrical isolation required for demanding industrial environments. It is widely utilized in power generation, offshore oil and gas platforms, and complex mechanical drive applications. By facilitating the connection between high-voltage field signals and the digital signal processor, the DS200DDTBG2ABB ensures accurate data acquisition while protecting sensitive control logic from electrical transients.

Features

• System Integration: Functions as an essential link within the Load Commutated Inverter (LCI) architecture, connecting directly to the DS200ADMA analog-to-digital daughterboard.
• Signal Versatility: Supports a wide range of inputs, including high-voltage signals, contact I/O, low-level Hall-effect current measurements, and high-current CT (Current Transformer) inputs.
• Hardware Compatibility: Designed to mount to a DS200DSPC digital signal processor board, with power derived from the ADMA board.
• Enhanced Reliability: As a G2 version, this board includes hardware revisions for improved performance and reliability in high-interference industrial zones.
• Isolation: Provides robust electrical isolation to convert raw field data into clean, accessible signals for the DSP.

Technical Specifications

Installation Guidelines

• ESD Precautions: Always use an anti-static wrist strap and handle the board by its edges to prevent damage from electrostatic discharge.
• Power Down: Ensure all power is removed from the Mark V LM system before installing or removing the terminal board.
• Mounting: Ensure the board is securely seated on the DSP processor board and that all ribbon cable connections are fully engaged and locked.
• Wiring: Route high-voltage field wiring away from sensitive low-level signal cables to minimize electromagnetic interference (EMI).
• Grounding: Verify that the chassis ground is properly connected to maintain the integrity of the isolation barriers.

FAQ

What is the primary function of the DS200DDTBG2ABB?
It acts as an auxiliary I/O terminal board for the Mark V LM LCI system, providing signal conditioning and isolation for field inputs before they reach the digital signal processor.

Is this board compatible with the G1 version?
Yes, the G2 version is designed to incorporate the functionality of the G1 series with enhanced hardware revisions for better reliability.
