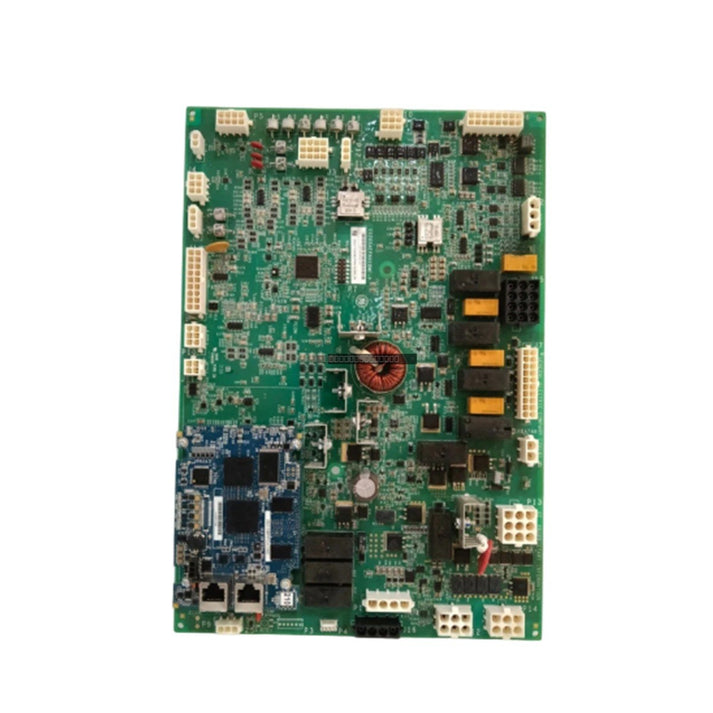

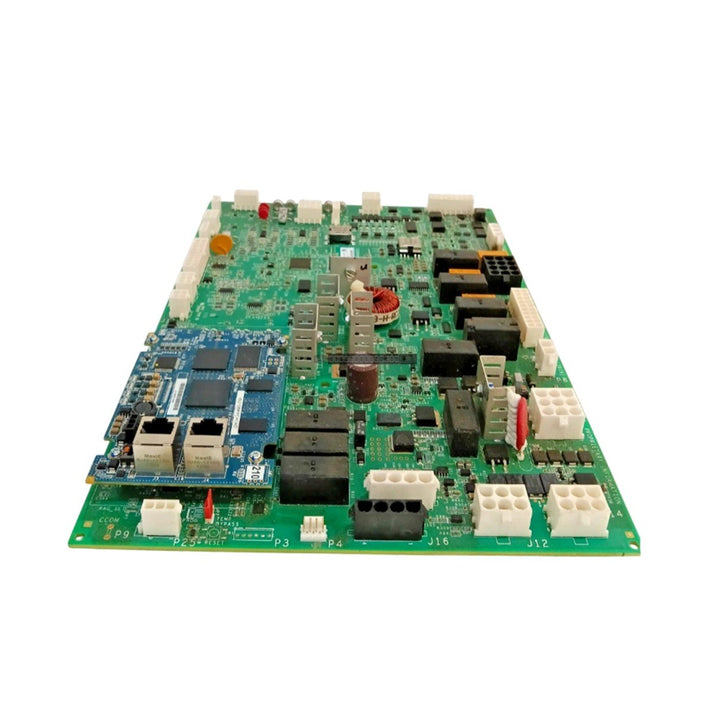

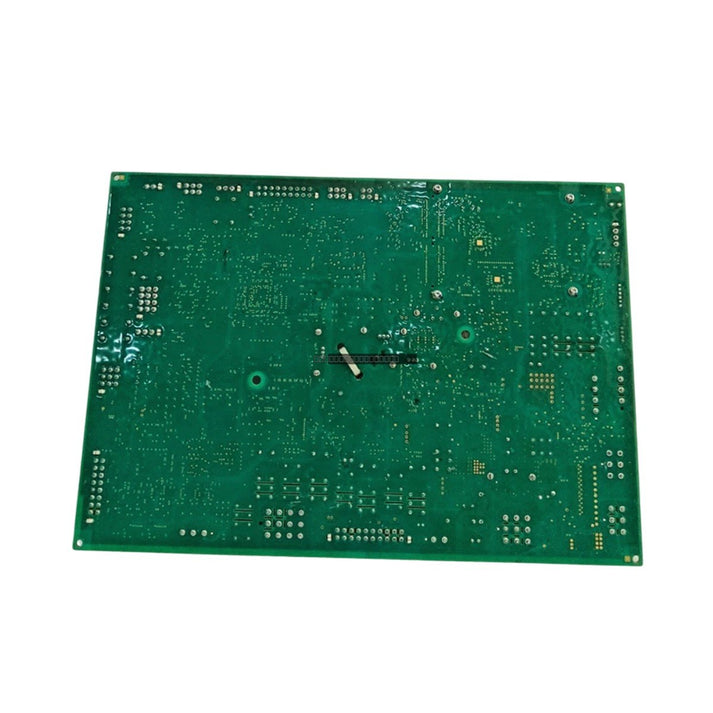

The General Electric IS200AEPAH1BMF-P (IS210BPPCH1AD) is a high-performance I/O Pack Processor Board designed for the Mark VIe turbine control system. This component serves as a critical interface for data acquisition and signal processing, facilitating communication between field devices and the main control system in demanding industrial environments.

Features

• Designed for the GE Mark VIe control platform.
• Utilizes Surface Mount Technology (SMT) on a double-sided PCB for high component density and reliability.
• Integrated dual Ethernet ports for robust network connectivity.
• Supports communication protocols including Modbus TCP/IP and Ethernet/IP.
• Factory-drilled mounting points for secure installation via standoffs.
• Includes onboard diagnostic indicators and signal processing circuitry.

Applications

• Power Generation: Integrated control for gas and steam turbine coordination in Combined Cycle Power Plants (CCPP).
• Oil & Gas: Control and monitoring of large-scale natural gas compressors in pipeline stations.
• Heavy Industry: Real-time distributed control for core refining processes and large-scale machinery drives, such as steel mill rolling systems.

Technical Specifications

Installation Guidelines

• Ensure the system power is completely disconnected before attempting to install or remove the board.
• Handle the PCB by the edges to avoid electrostatic discharge (ESD) damage to sensitive integrated circuits.
• Mount the board securely using the provided screw mounts and standoffs to ensure proper grounding and mechanical stability.
• Verify that all Ethernet and I/O connections are seated correctly to prevent intermittent signal loss.
• Maintain adequate airflow around the mounting area to ensure the board operates within its specified temperature range.

FAQ

What is the primary function of the IS210BPPCH1AD?

This board acts as an I/O pack processor, managing data acquisition, signal conversion, and communication between field instrumentation and the Mark VIe control system.

Does this board support redundant configurations?

Yes, the design supports communication redundancy to enhance system availability and fault tolerance in critical control applications.

What communication protocols are supported?

The module supports standard industrial protocols including Modbus TCP/IP and Ethernet/IP, as well as proprietary GE IONet and UDH protocols.
