Description

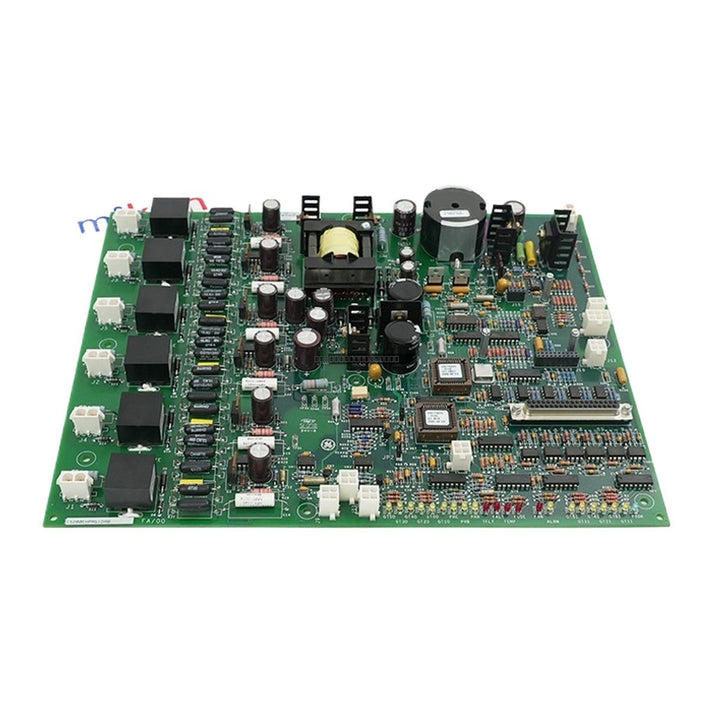

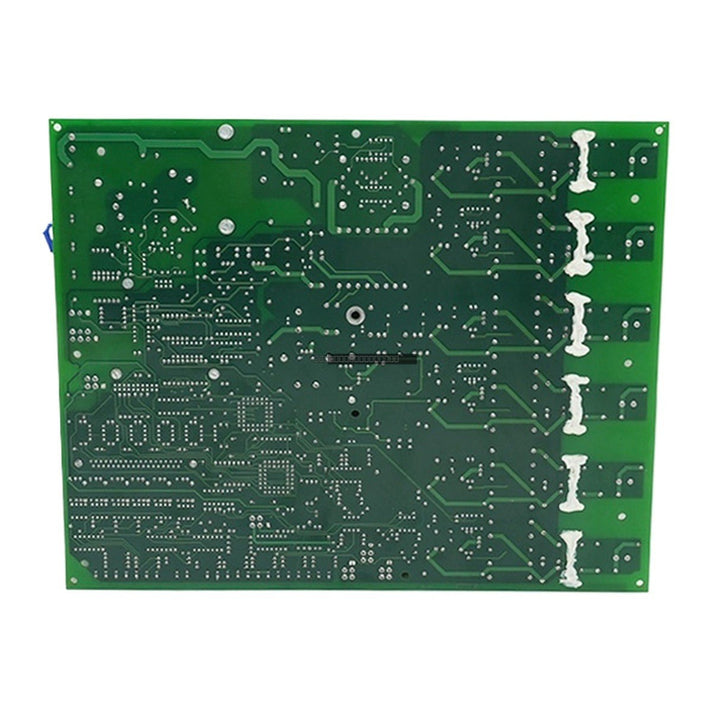

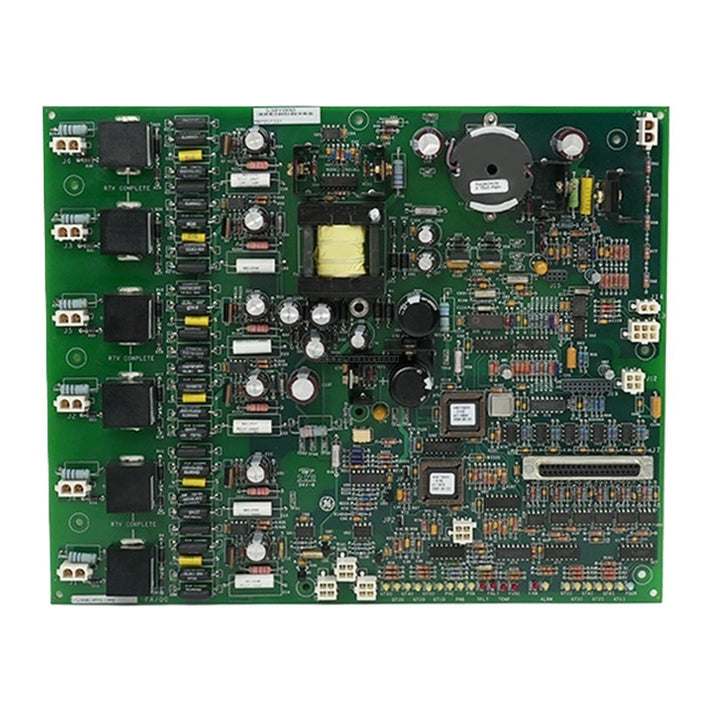

The IS200EHPAG1DAB is a high-voltage gate pulse amplifier board designed for use within the General Electric EX2100 excitation control system. This component is engineered to facilitate the precise control and amplification of gate pulse signals required for the operation of power electronics in industrial excitation applications.

Features

• Designed specifically for the EX2100 series exciter systems.
• High-voltage gate pulse amplification functionality.
• Robust construction suitable for demanding industrial environments.
• Integrated component of the Mark VIe control architecture.

Technical Specifications

Installation Guidelines

• Ensure the control system is fully powered down and isolated before attempting to install or remove the board.
• Handle the module using proper electrostatic discharge (ESD) precautions to prevent damage to sensitive electronic components.
• Verify that the board is securely seated in the designated EX2100 rack slot to ensure proper backplane connectivity.
• Ensure all cabling is routed away from high-EMI sources to maintain signal integrity.
• Confirm that the operating environment remains within the specified temperature range of 0 to 70 degC to ensure long-term reliability.

FAQ

What is the primary function of the IS200EHPAG1DAB?

This board acts as a gate pulse amplifier within the EX2100 excitation system, responsible for processing and amplifying signals to drive power electronics.

Is this board compatible with other GE series?

The IS200EHPAG1DAB is specifically designed for the EX2100 series. Please verify your system documentation to ensure compatibility with your specific exciter configuration.

What should I do if the board fails to initialize?

Check for proper seating in the rack, verify that the input voltage is within the 14-32 V dc range, and inspect the connections for any signs of physical damage or loose wiring.
