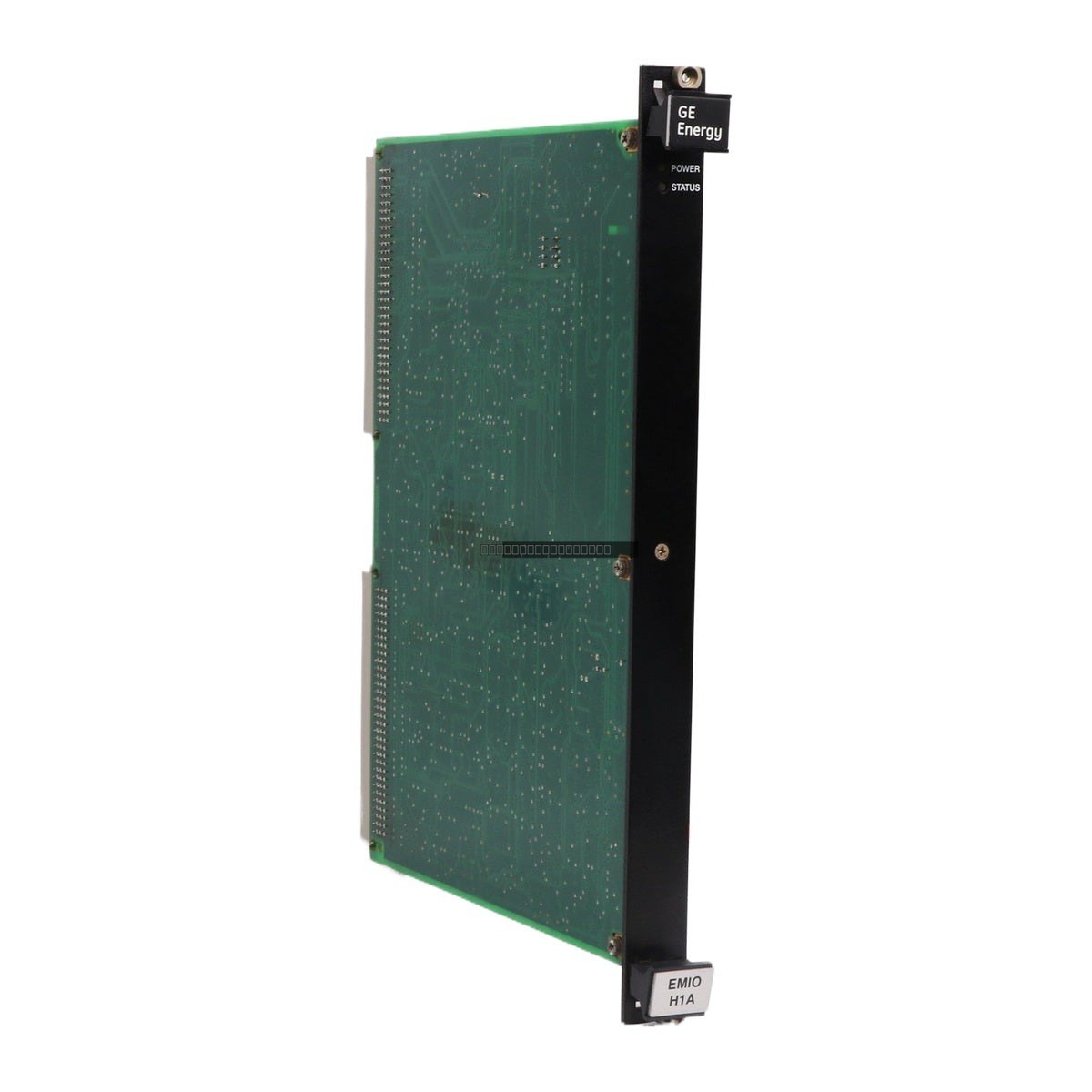

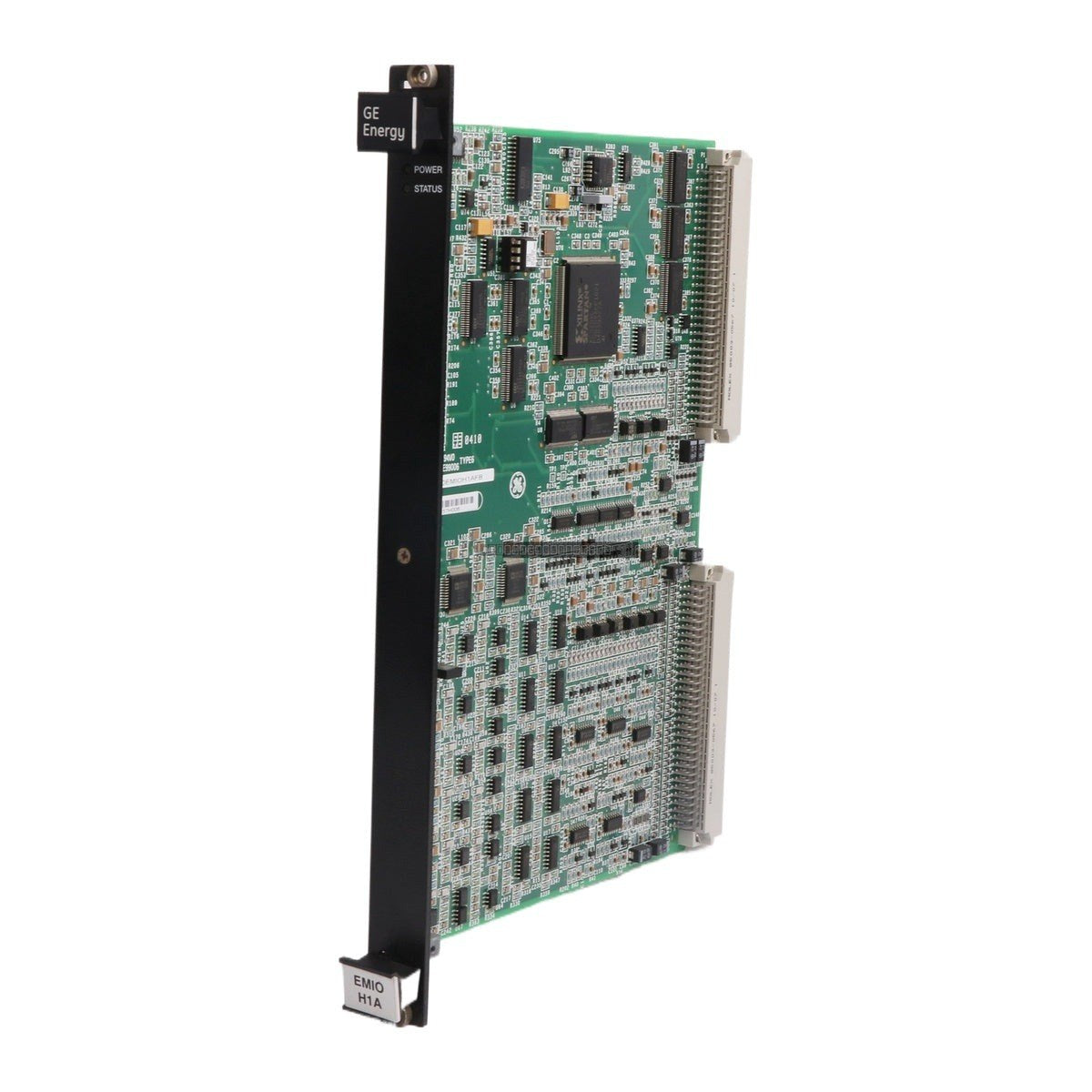

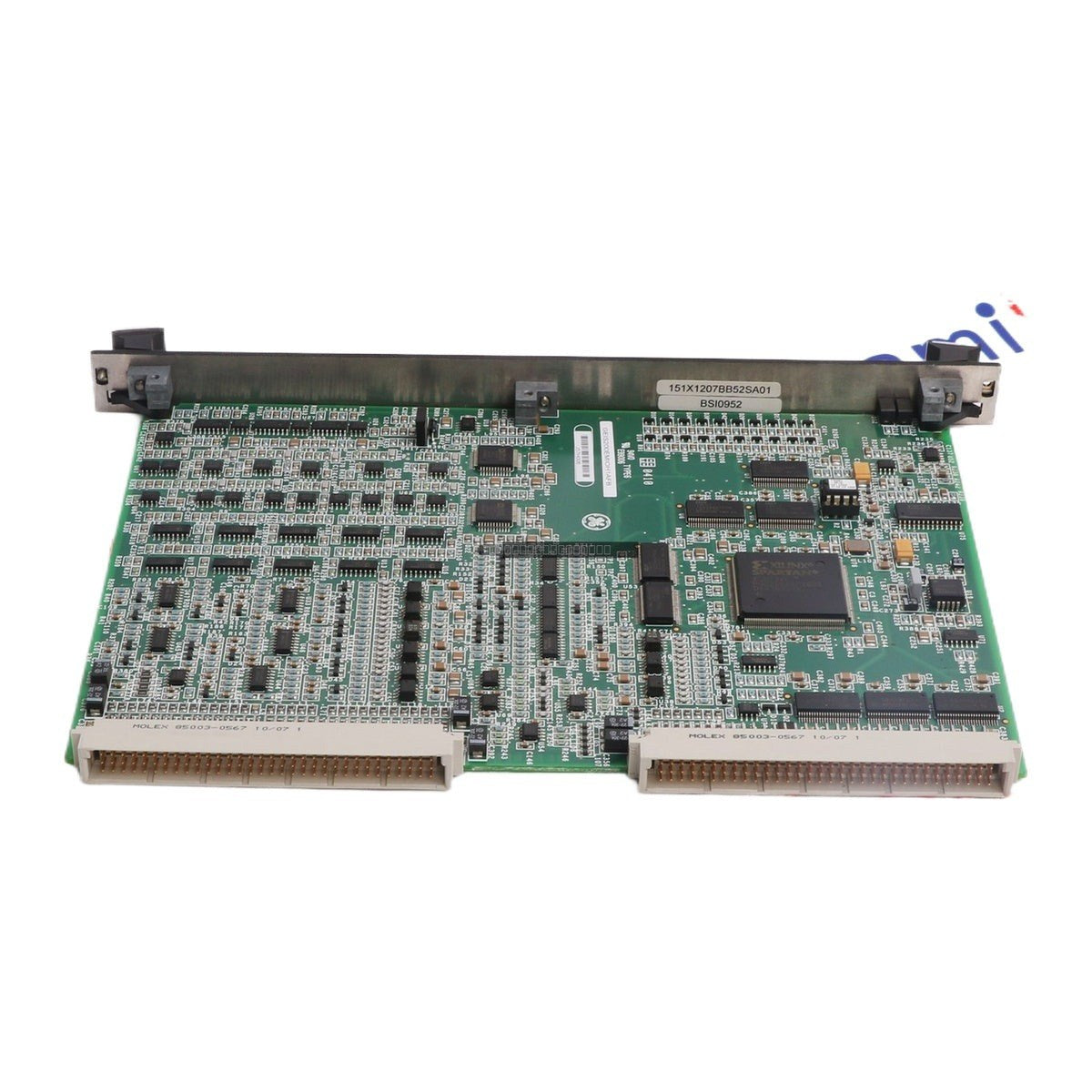

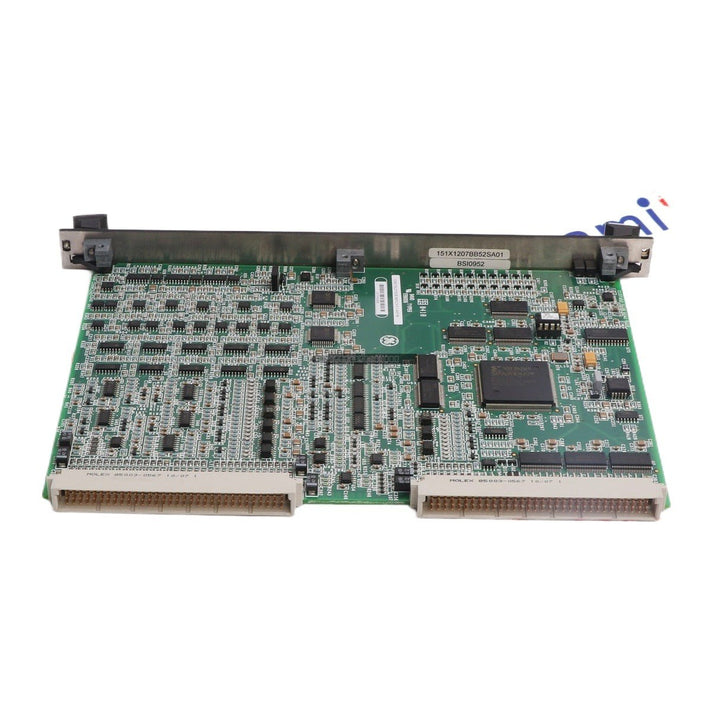

The General Electric IS200EMIOH1AFB is an Exciter Module I/O board engineered for the EX2100 Excitation Control System. This printed circuit board serves as a critical interface for managing input and output signals within GE's Mark VIe and EX2100 control architectures, ensuring precise power conversion and system protection.

Features

• Main I/O card designed for EX2100 Excitation Control Systems.
• Processes Potential Transformer (PT) and Current Transformer (CT) signals for real-time electrical monitoring.
• Integrated output and pilot trip relay drivers for emergency shutdown execution.
• Transmits logic-level gate pulse signals to ESEL boards for power conversion control.
• Supports management of ECTB, EACF, EPCT, and EXTB terminal boards.

Applications

• Steam and gas turbine control systems in power generation.
• Combined cycle power plants and heavy industrial gas turbine management.
• Large-scale power grid synchronization and substation distribution.
• Heavy industrial processes, including steel plant rolling mill control and mining equipment power distribution.

Technical Specifications

Installation Guidelines

• Ensure the system is powered down before attempting to install or remove the module to prevent electrical damage.
• Handle the PCB using proper ESD (Electrostatic Discharge) mitigation techniques to protect sensitive components.
• Verify that all motherboard connectors are properly aligned and seated before applying power.
• Ensure the module is installed in an environment compliant with the specified temperature and humidity ratings to prevent premature failure.
• Maintain proper grounding of the control cabinet to minimize EMI/RFI interference with signal processing.

FAQ

What is the primary function of the IS200EMIOH1AFB?

It acts as the Main I/O board for the EX2100 system, responsible for processing PT/CT signals, managing contact inputs, and driving trip relays for system protection.

Does this board support legacy systems?

Yes, the IS200EMIOH1AFB is designed for the EX2100 series and remains a critical component for maintaining these legacy excitation control systems.

What terminal boards does this module interface with?

The IS200EMIOH1AFB manages I/O for the ECTB, EACF, EPCT, and EXTB terminal boards.
