Description

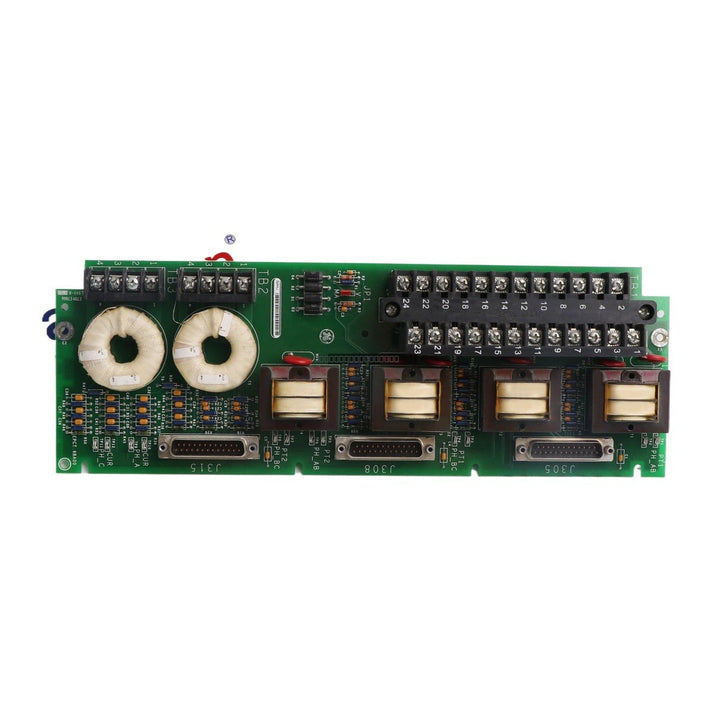

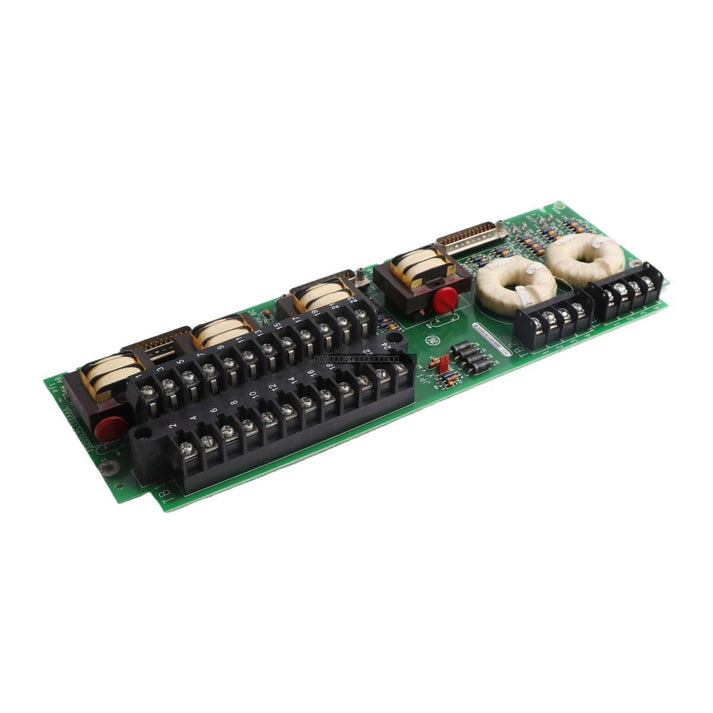

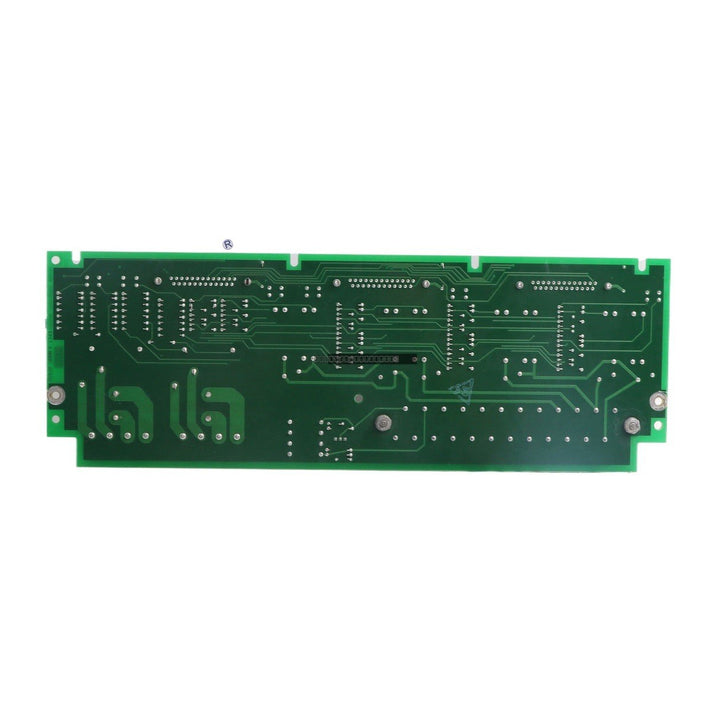

The IS200EPCTG1AAA is a specialized Exciter PT/CT Terminal Board designed for the General Electric Mark VIe and EX2100 control systems. This component serves as a critical interface for potential transformer (PT) and current transformer (CT) signals, facilitating accurate monitoring and regulation within exciter control applications. Engineered for high-precision signal conditioning, the board ensures reliable data acquisition for industrial power generation environments.

Features

• Designed for integration with GE EX2100 series exciter systems.
• Supports standard PT and CT input configurations for power monitoring.
• High-accuracy signal processing with minimal phase error.
• Robust construction suitable for demanding industrial temperature ranges.
• Compatible with both 1 A and 5 A current input standards.

Technical Specifications

Installation Guidelines

• Ensure all power is disconnected from the exciter cabinet before attempting to install or remove the board.
• Handle the module using proper ESD (electrostatic discharge) protection protocols to prevent damage to sensitive electronic components.
• Verify that the PT/CT wiring is correctly terminated according to the specific EX2100 system schematic to prevent signal phase misalignment.
• Ensure the board is securely seated in its designated slot within the cabinet to maintain proper electrical contact and mechanical stability.
• Verify that the input voltage and current ranges match the system requirements before energizing the circuit.

FAQ

What is the primary function of the IS200EPCTG1AAA board?

This board acts as a terminal interface for potential and current transformers, allowing the EX2100 exciter control system to monitor electrical parameters accurately.

Is this board compatible with the Mark VI system?

The IS200EPCTG1AAA is specifically designed for the EX2100 series and Mark VIe architecture. Please verify your specific controller revision before installation.

What are the environmental operating limits for this board?

The board is rated for operation in temperatures ranging from -30 degC to +70 degC, making it suitable for most industrial control room and cabinet environments.
