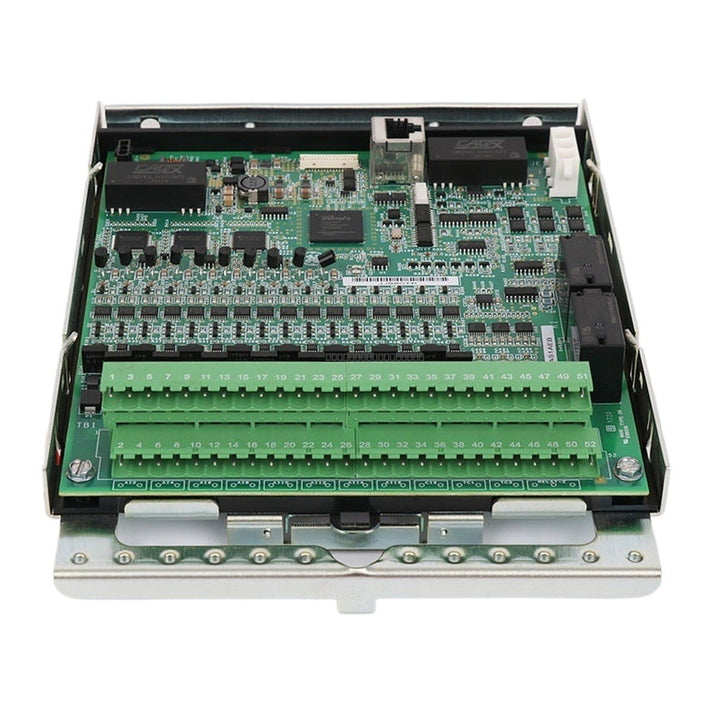

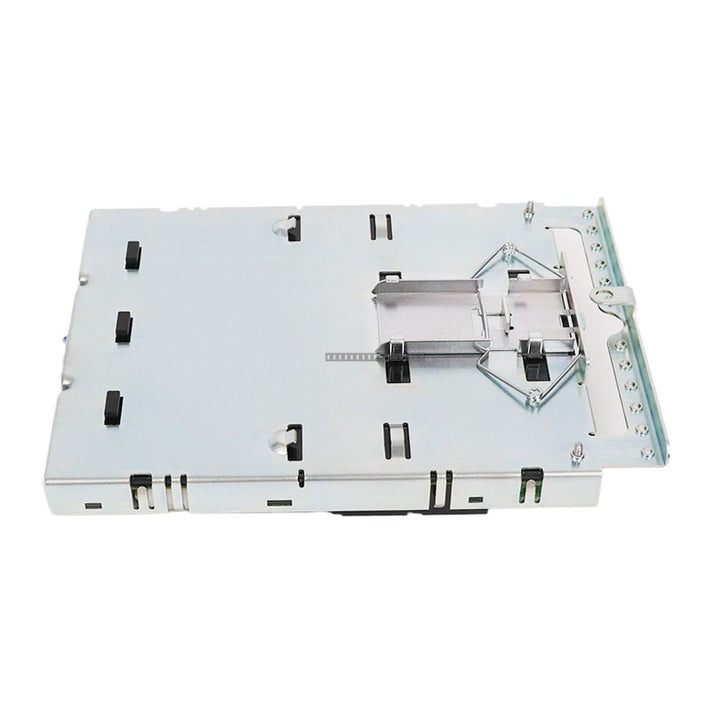

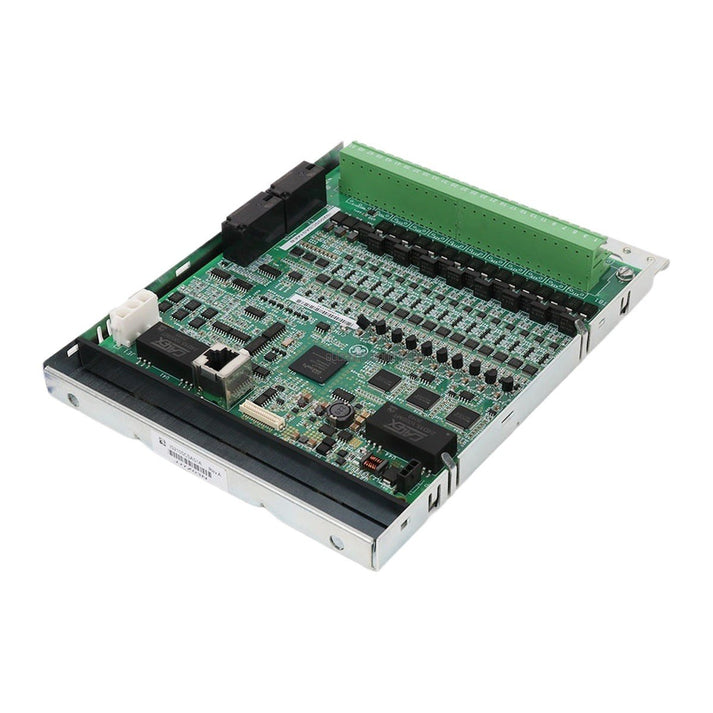

The General Electric IS200SCSAS1AEB is an I/O expansion board designed for the Mark VIe control system. This module provides enhanced input/output capabilities for industrial automation environments, facilitating reliable data acquisition and signal processing.

Features

• Supports 16 analog input channels and 4 analog output channels.
• Includes 32 digital I/O channels for versatile control applications.
• Features 1500V AC channel-to-system isolation to ensure signal integrity and protection.
• Configurable via hardware dip-switches for addressing.
• High-speed data transfer rate of 100 Mbps.
• Designed for operation in extreme temperatures ranging from -40 degC to +70 degC.

Technical Specifications

Installation Guidelines

• Ensure the control system is powered down before installing or removing the module from the backplane.
• Handle the board by the edges to prevent electrostatic discharge (ESD) damage to sensitive components.
• Verify that the hardware dip-switches are correctly configured for the specific system address before installation.
• Ensure proper ventilation within the cabinet to maintain operating temperatures within the specified range.
• Use shielded cabling for analog signals to minimize electromagnetic interference (EMI) in high-noise industrial environments.

FAQ

Is the IS200SCSAS1AEB compatible with the IS210SCSAS1A?

Yes, the IS210SCSAS1A is the designated spare model for the IS200SCSAS1AEB.

What is the primary function of this board?

This board serves as an I/O expansion module for the GE Mark VIe system, providing additional analog and digital I/O capacity for monitoring and control tasks.
