Description

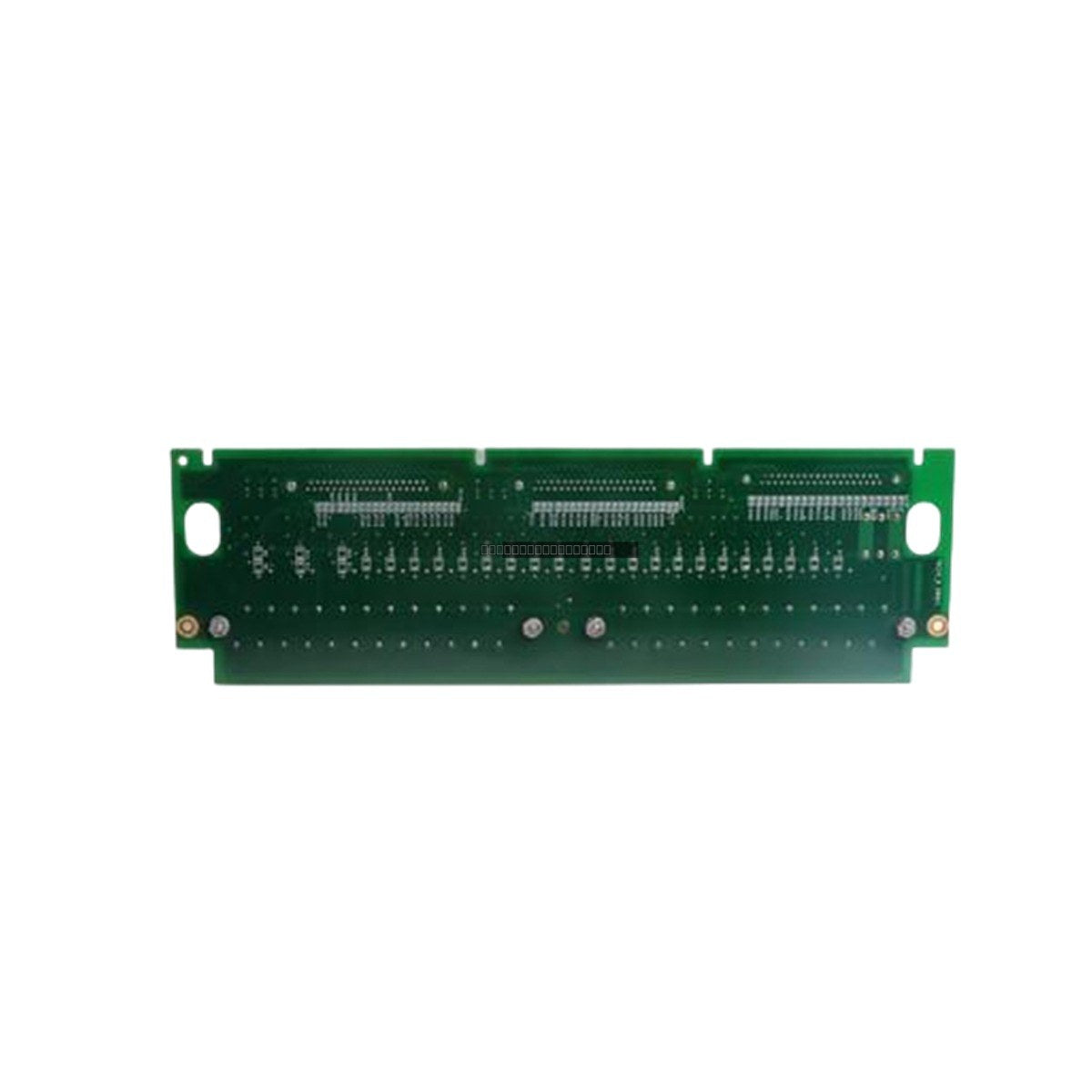

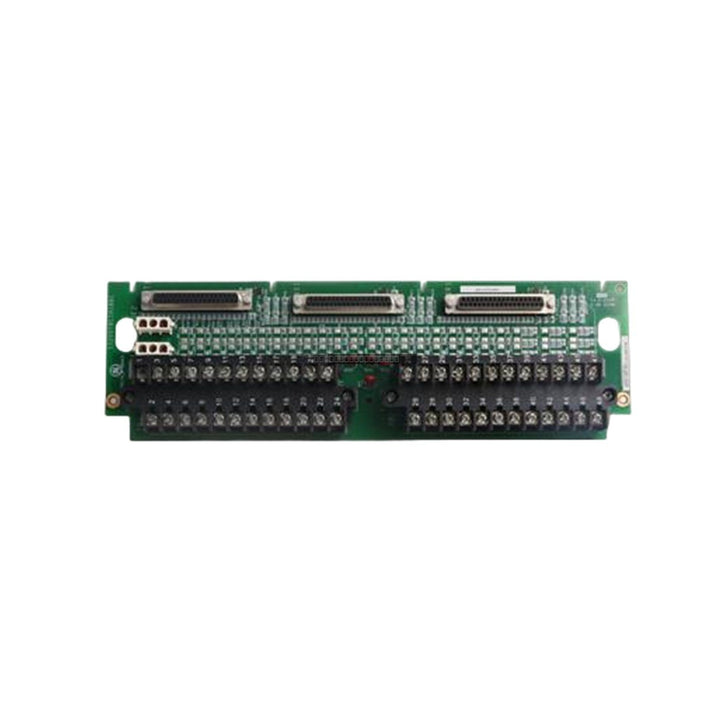

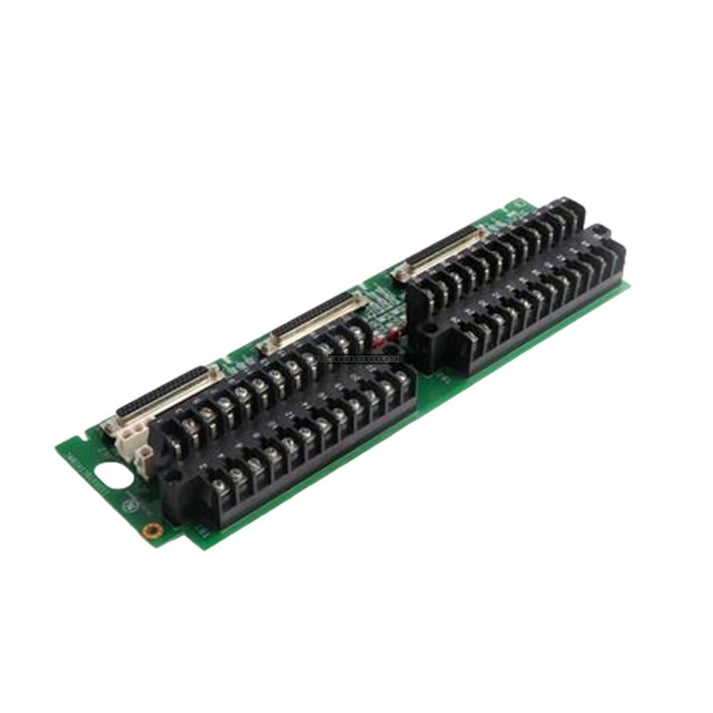

The IS200TBCIH1BCE is a Terminal Contact Board designed for use within the General Electric Mark VIe Speedtronic control system. This component serves as a critical interface for managing contact inputs, ensuring reliable signal processing and connectivity within the turbine control architecture. It is designed to facilitate the integration of field-level contact signals into the broader control network.

Features

• Provides 24 dedicated contact inputs for system monitoring.
• Integrated 24 Vdc input circuitry for direct field interface.
• Features a 4 ms hardware filter to ensure signal integrity and debounce.
• Robust isolation rating of 500 Vdc channel-to-bus to protect control electronics.
• Compatible with Mark VIe Speedtronic control platforms.

Technical Specifications

Installation Guidelines

• Ensure the control system is powered down before installing or removing the board.
• Handle the module using proper ESD (Electrostatic Discharge) protection practices to prevent damage to sensitive components.
• Verify that all field wiring is properly secured to the terminal blocks and routed to minimize EMI interference.
• Ensure the board is correctly seated in the designated rack slot to maintain proper electrical contact with the backplane.
• Maintain adequate ventilation in the cabinet to ensure operation within the specified temperature range.

FAQ

What is the primary function of the IS200TBCIH1BCE?
This board acts as a terminal interface for 24 contact inputs, allowing the Mark VIe system to monitor field-level digital signals.

Is this board compatible with the IS200TBCIH1B?
Yes, the IS200TBCIH1BCE is often used as a direct replacement or spare for the IS200TBCIH1B model.

What is the isolation rating for this board?
The board provides 500 Vdc isolation between the channels and the bus to ensure system safety and signal stability.
