Description

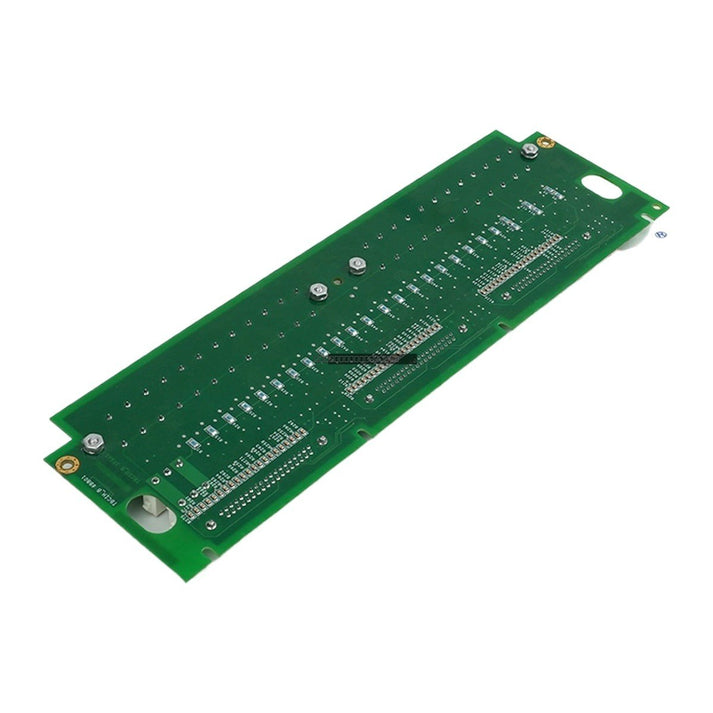

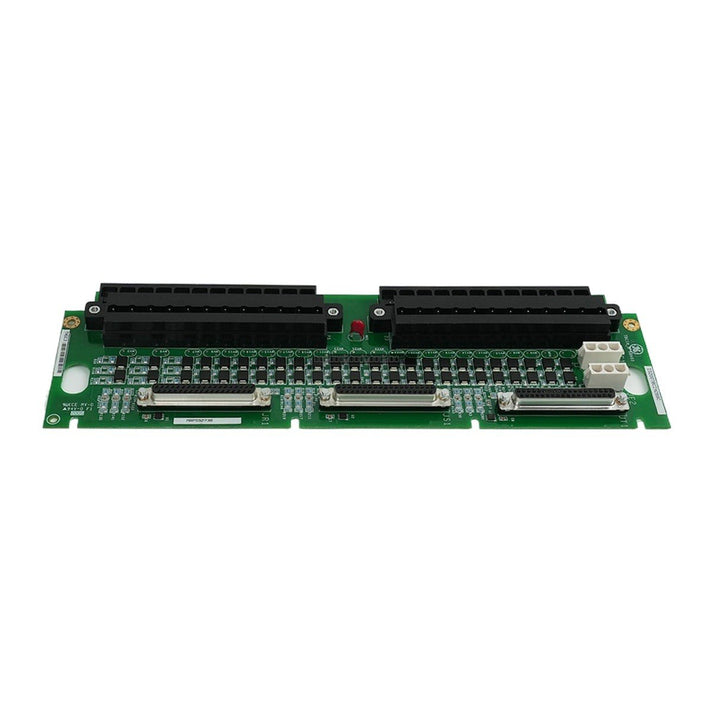

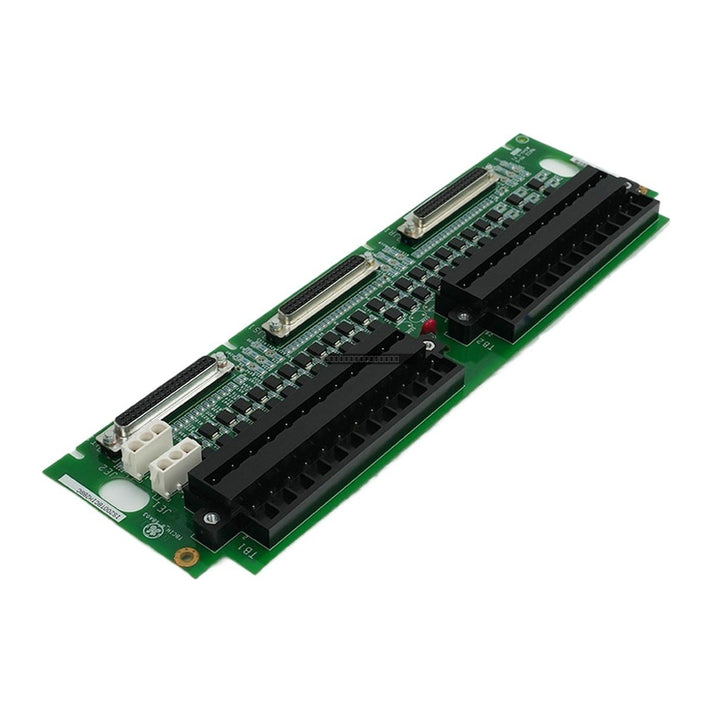

The General Electric IS200TBCIH2BBC is a contact input terminal board designed for the Mark VIe Speedtronic control system. This component serves as a critical interface for processing field-side contact inputs, facilitating reliable signal acquisition for industrial turbine and generator control applications. The board features a robust design with conformal coating to protect against environmental contaminants, ensuring longevity in demanding industrial environments.

Features

• Designed for integration with the Mark VIe Speedtronic series.
• Supports 24 dry-contact input channels for comprehensive monitoring.
• Equipped with conformal coating for enhanced protection against moisture and dust.
• Provides reliable signal threshold detection with built-in hysteresis.
• Compact form factor suitable for standard rack mounting configurations.

Technical Specifications

Installation Guidelines

• Ensure the control system is powered down before installing or removing the terminal board to prevent electrical damage.
• Handle the board using proper ESD (Electrostatic Discharge) mitigation practices to protect sensitive electronic components.
• Verify that all field wiring is properly secured to the terminal blocks and that shielding is grounded according to site-specific electrical standards.
• Maintain adequate airflow within the rack to ensure the board operates within the specified temperature range of -30 to +65 degC.
• Ensure the board is firmly seated in its designated slot to maintain reliable backplane connectivity.

FAQ

What is the primary function of the IS200TBCIH2BBC?

This board acts as a termination point for field-side contact inputs, converting raw contact states into signals compatible with the Mark VIe control system.

Is this board compatible with the IS200TBCIH2B?

Yes, the IS200TBCIH2BBC is often used as a functional replacement or spare for the IS200TBCIH2B model.

What environmental conditions are required for this board?

The board is designed for industrial use with an operating temperature range of -30 to +65 degC and requires a non-condensing environment with humidity levels between 5% and 95%.
