Description

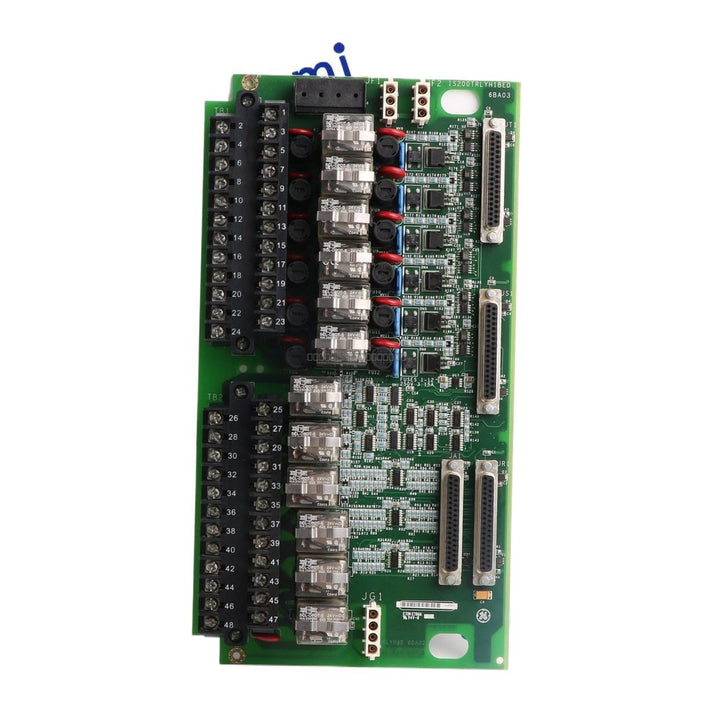

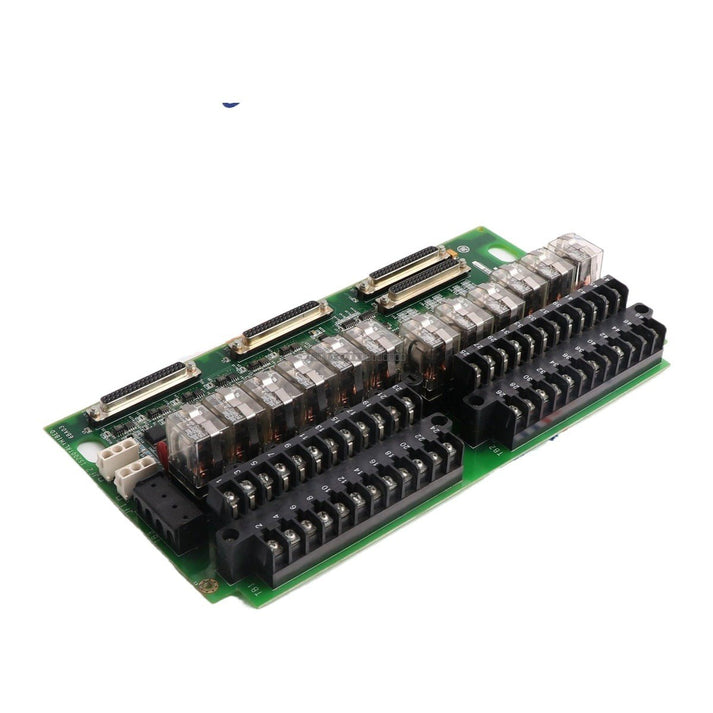

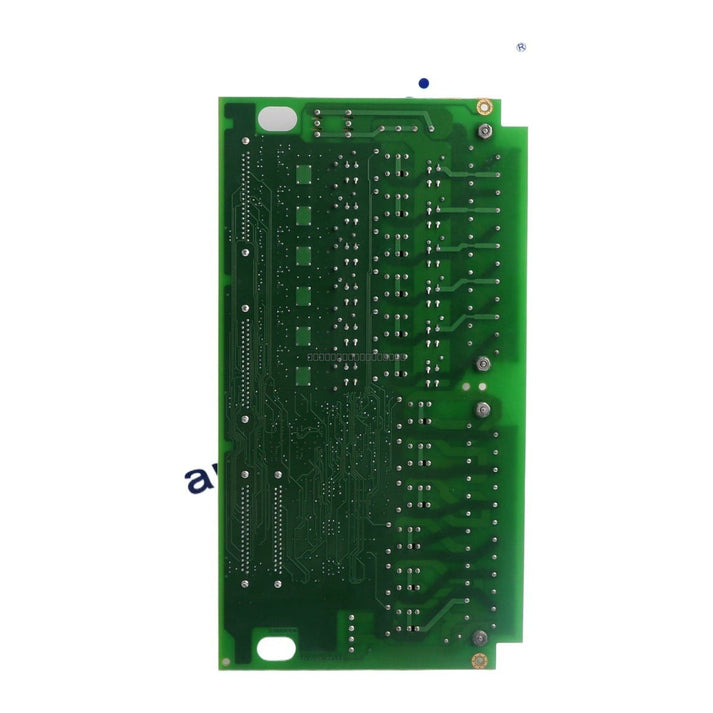

The IS200TRLYH1BED is a Relay Terminal Board designed for the General Electric Mark VIe control system. This board provides reliable relay output interfacing, facilitating the distribution of power and control signals within industrial automation environments. It is engineered to support high-density relay switching, featuring multiple fused branches and a variety of relay configurations to meet specific application requirements.

Features

• Equipped with 12 Form C relays for versatile switching operations.
• Includes 6 fused branches for circuit protection and 1 special unfused branch.
• Supports diverse voltage and current ratings: 24V DC at 3A, 125V DC at 0.6A, and 120/240V AC at 3A.
• Designed for seamless integration with the Mark VIe control architecture.

Technical Specifications

Installation Guidelines

• Ensure the control system is powered down before installing or removing the terminal board to prevent electrical damage or injury.
• Verify that all wiring connections are secure and properly terminated according to the system wiring diagrams.
• Maintain proper grounding practices to minimize electromagnetic interference (EMI) and ensure signal integrity.
• Handle the board using ESD-safe procedures to protect sensitive electronic components from electrostatic discharge.
• Ensure adequate ventilation in the cabinet to prevent thermal buildup during continuous operation.

FAQ

What is the primary function of the IS200TRLYH1BED?

This board acts as a relay terminal interface for the Mark VIe system, allowing the controller to switch external field devices using its onboard Form C relays.

Can this board be used as a replacement for the IS200TRLYH1B?

Yes, the IS200TRLYH1BED is often utilized as a functional replacement or upgrade for the IS200TRLYH1B model. Please verify your specific system revision requirements before installation.
