Description

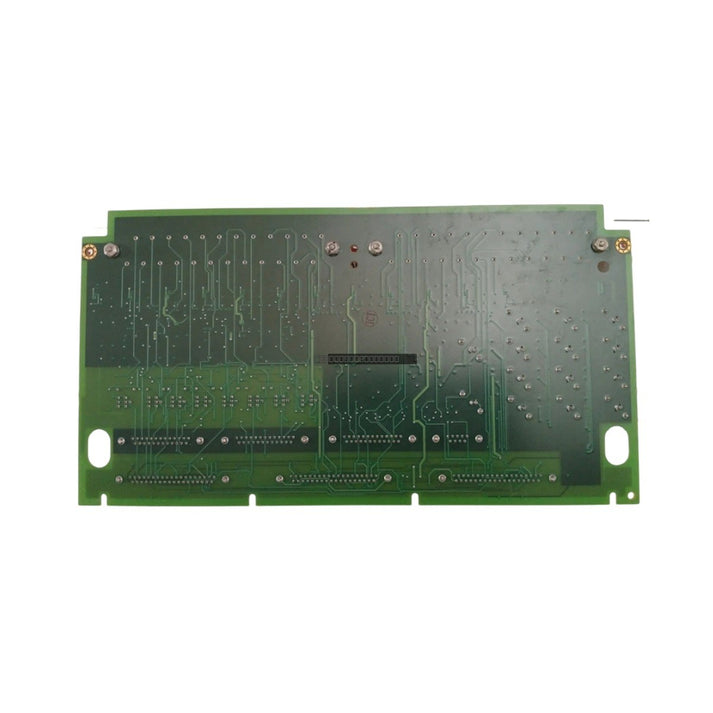

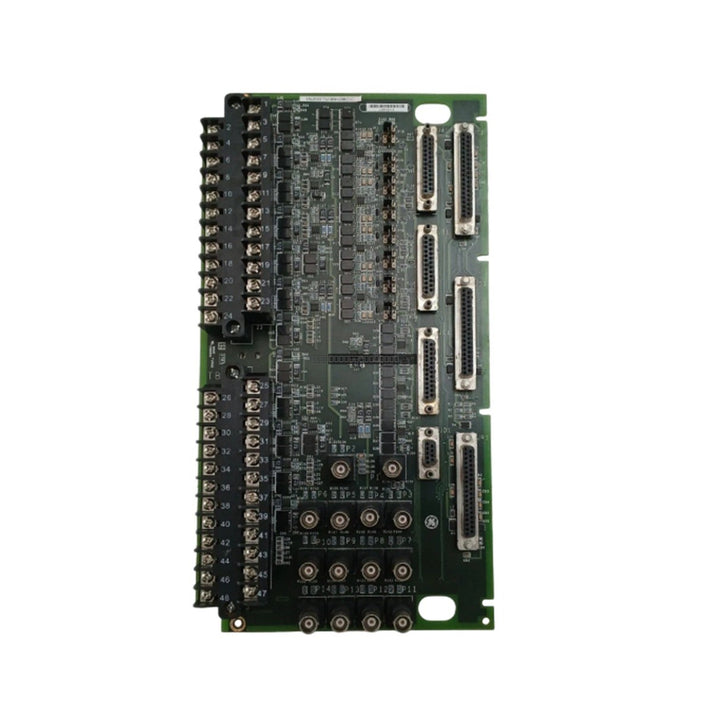

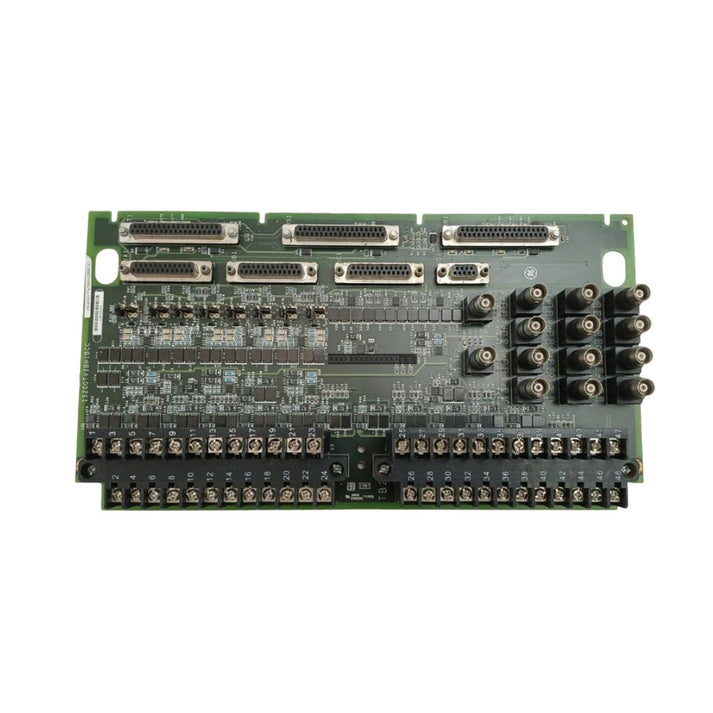

The IS200TVIBH2BCC is a vibration input terminal board designed for the General Electric Mark VIe control system. This component serves as a critical interface for vibration monitoring applications, providing high-precision signal conditioning and terminal connectivity for up to 13 vibration probes. Engineered for reliability in demanding industrial environments, it facilitates the integration of sensor data into the broader turbine or machinery control architecture.

Features

• Supports up to 13 vibration probe inputs.
• Designed for integration within the Mark VIe control series.
• Differential input impedance of 10 kΩ.
• Channel-to-earth isolation rated at 500 V dc for signal integrity.
• Wide operating temperature range suitable for harsh industrial settings.

Technical Specifications

Installation Guidelines

• Ensure the control system power is disconnected before installing or removing the terminal board.
• Handle the board using proper ESD (Electrostatic Discharge) mitigation techniques to prevent damage to sensitive electronic components.
• Verify that the terminal board is securely seated in the designated rack slot and that all field wiring is properly terminated according to the system wiring diagrams.
• Maintain adequate ventilation around the control cabinet to ensure operating temperatures remain within the specified -40 degC to +70 degC range.
• Route signal cables away from high-voltage lines or high-EMI sources to minimize signal interference.

FAQ

What is the primary function of the IS200TVIBH2BCC?

This board acts as a vibration input terminal, allowing the Mark VIe control system to acquire and process signals from up to 13 vibration probes for machinery health monitoring.

Is this module compatible with other Mark VI series components?

The IS200TVIBH2BCC is specifically designed for the Mark VIe system. It is also listed as a spare for the IS200TVIBH2B model.

What are the environmental requirements for this board?

The board is designed to operate in temperatures between -40 degC and +70 degC with a non-condensing humidity range of 5% to 95%.
