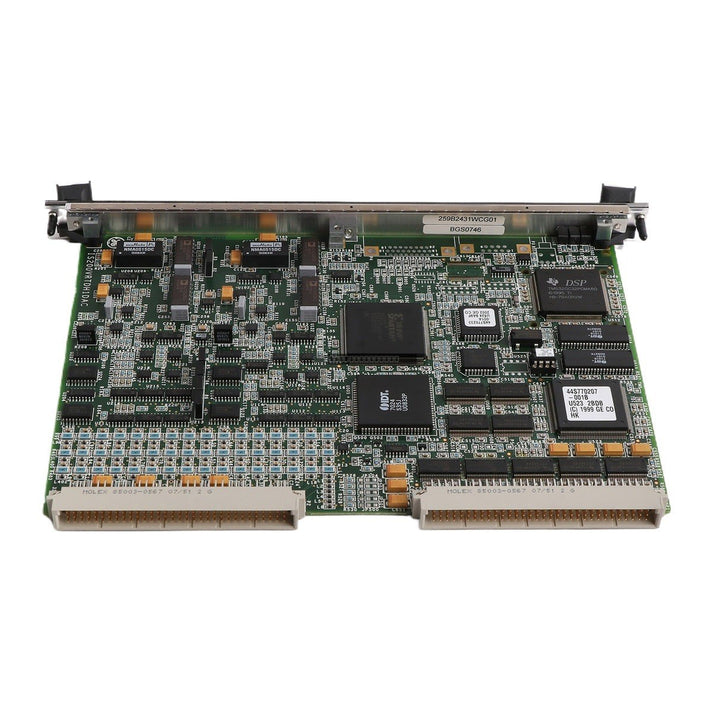

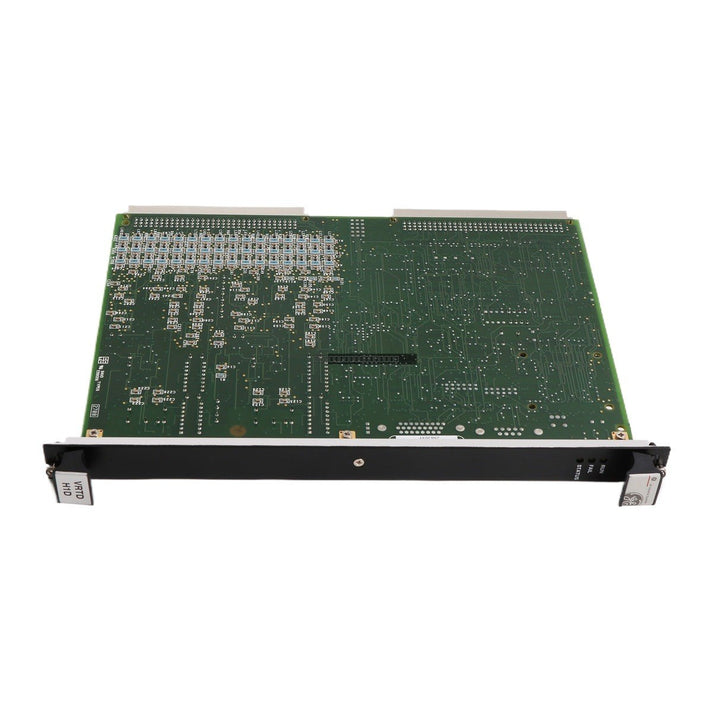

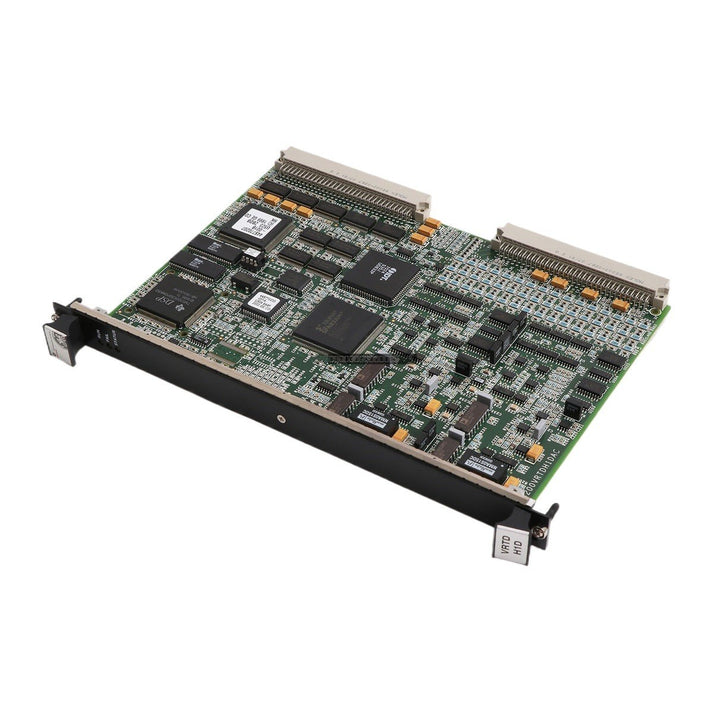

The General Electric IS200VRTDH1DAC is a VME-bus compatible Resistance Temperature Detector (RTD) input module designed for the Mark VIe control system. This module provides high-precision temperature monitoring capabilities, facilitating the integration of RTD sensors into industrial control architectures.

Features

• 16 differential input channels for high-density temperature monitoring.
• High-resolution 16-bit Analog-to-Digital Converter (ADC) for accurate signal processing.
• 1,500 V RMS isolation to protect sensitive control circuitry from ground loops and electrical noise.
• Designed for seamless integration within the Mark VIe VME rack architecture.

Technical Specifications

Installation Guidelines

• Ensure the control system is powered down before inserting or removing the module from the VME rack.
• Handle the module using proper Electrostatic Discharge (ESD) protection practices to prevent damage to internal components.
• Verify that the module is fully seated in the VME backplane slot to ensure reliable electrical contact.
• Route signal wiring away from high-voltage or high-EMI sources to maintain signal integrity.
• Ensure the operating environment remains within the specified temperature and humidity ranges to prevent premature failure.

FAQ

Is the IS200VRTDH1DAC still in production?
No, this module has been discontinued by the manufacturer. We provide high-quality refurbished or surplus units to support legacy Mark VIe systems.

What is the difference between IS200VRTDH1DAC and IS200VRTDH1D?
The IS200VRTDH1DAC is the specific orderable version, while IS200VRTDH1D is the base model reference. They are generally interchangeable within the Mark VIe series, provided the revision level meets your system requirements.
