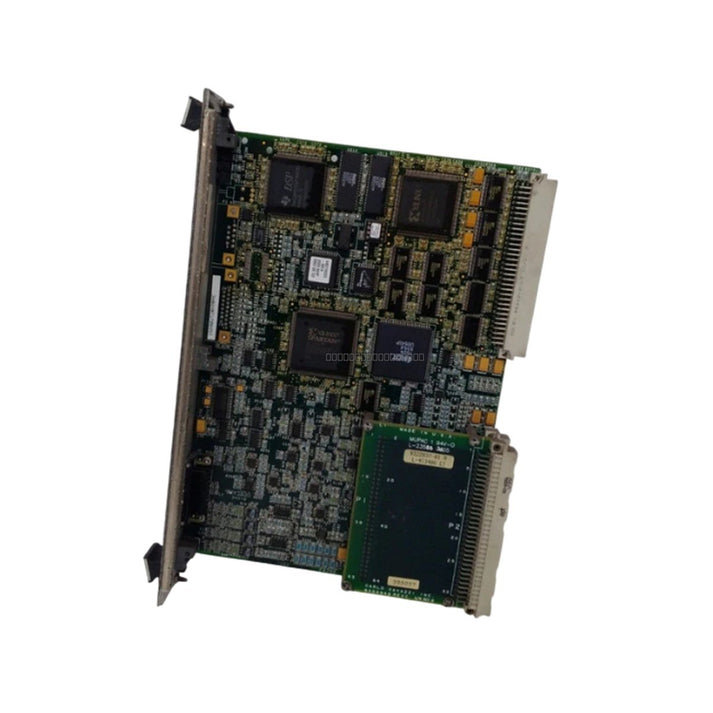

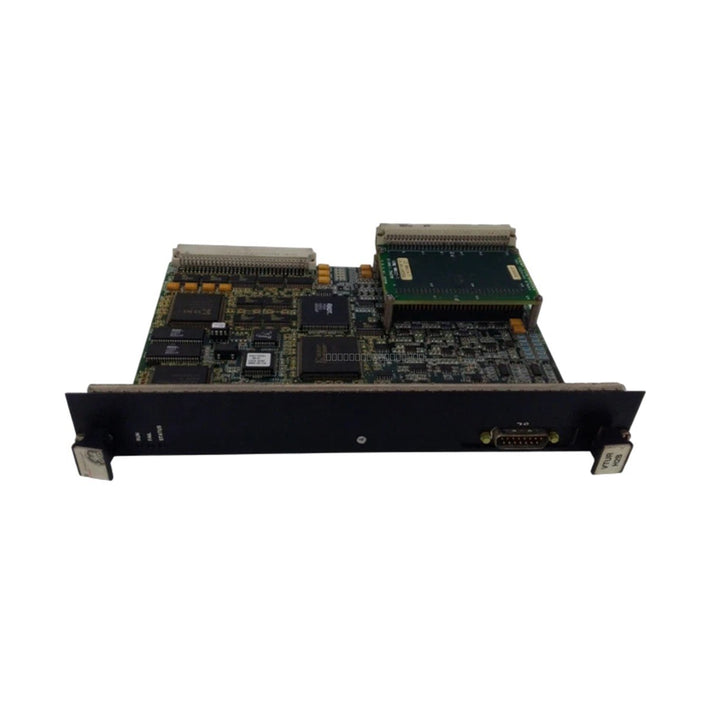

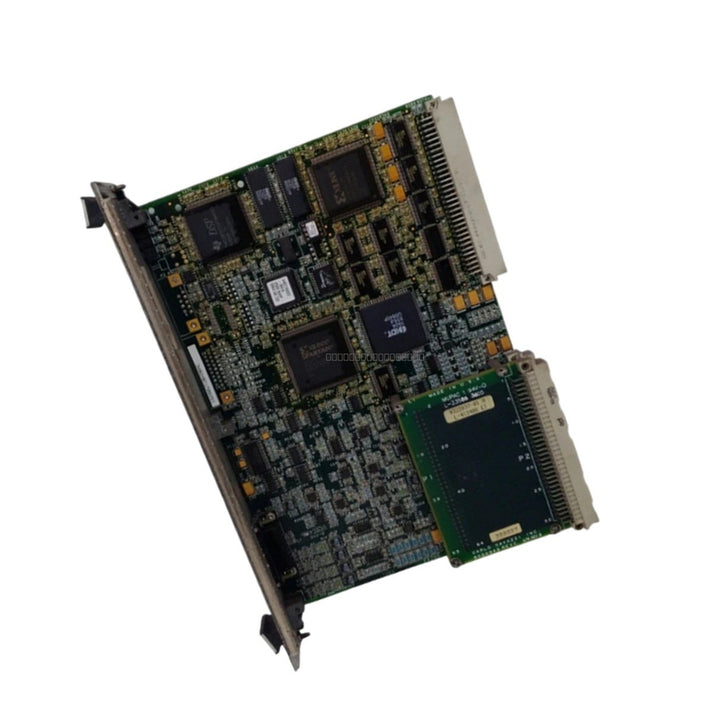

The General Electric IS200VTURH2BAC is a Vibration Transducer Interface Module designed for the Mark VIe control system. This module facilitates the acquisition and processing of vibration data from sensors, providing critical monitoring capabilities for rotating machinery in industrial environments.

Features

• Designed for high-precision vibration monitoring within the Mark VIe platform.
• Supports multiple analog voltage input channels for versatile sensor connectivity.
• Integrated proximity probe power supply with stable voltage output.
• Robust channel-to-channel isolation to prevent signal interference and ensure measurement integrity.
• Wide operating temperature range suitable for demanding industrial cabinet environments.

Applications

This module is primarily utilized in power generation and heavy industrial applications, including the monitoring of turbines, compressors, and large motors. It serves as a critical interface between field-mounted vibration transducers and the main control system, ensuring accurate data acquisition for predictive maintenance and operational safety.

Technical Specifications

Installation Guidelines

• Ensure the control system is powered down before inserting or removing the module from the rack.
• Use appropriate ESD protection when handling the module to prevent damage to sensitive electronic components.
• Ensure proper grounding of the module chassis to the system common to minimize noise and EMI.
• Route signal cables away from high-voltage power lines to maintain signal fidelity.
• Verify that the rack slot is clean and free of debris before installation to ensure reliable backplane connection.

FAQ

What is the primary function of the IS200VTURH2BAC?

This module acts as an interface for vibration transducers, converting field signals into a format compatible with the GE Mark VIe control system for monitoring and analysis.

Is this module compatible with the IS200VTURH2B?

Yes, the IS200VTURH2BAC is often considered a functional replacement or revision for the IS200VTURH2B model; however, always verify system revision requirements before installation.
