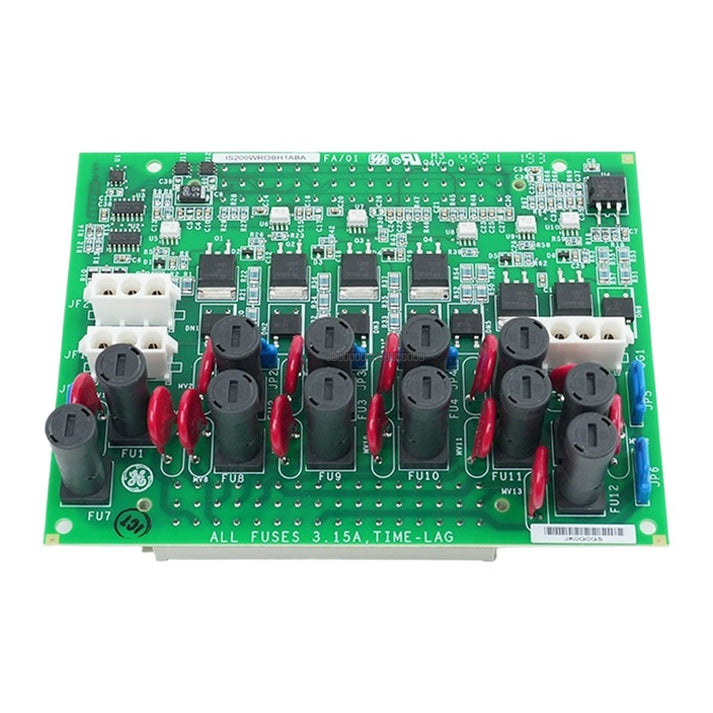

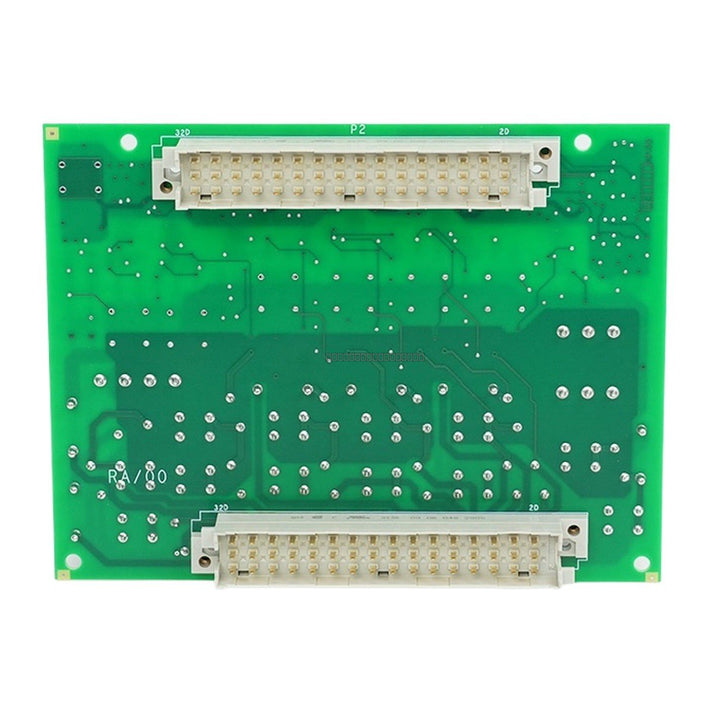

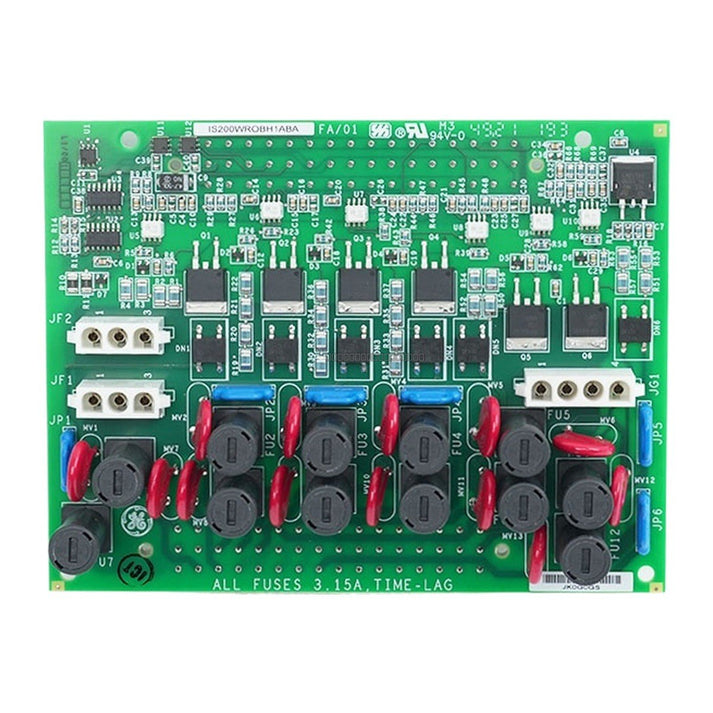

The IS200WROBH1ABA is a WROB Relay Fuse and Power Sensing Board, a critical component of the General Electric Mark VIe control system. This option board is designed to integrate with PDIO Discrete Input/Output modules, specifically supporting attachment to TDBS, SRLY, and TDBT terminal boards.

Features

• Designed for the Mark VIe control system architecture.
• Supports Simplex, Redundant, and Triple Modular Redundant (TMR) configurations.
• Provides fused power distribution and isolated voltage sensing for relay outputs.
• Features 12 fuse positions for circuit protection.
• Enables diagnostic fault generation to the controller if a fuse opens during operation.
• Compatible with a wide range of application voltages, including 24/48/125 VDC and 120/240 VAC.

Applications

• Combined Cycle Power Plants: Manages gas and steam turbine interplay.
• Heavy Industrial Refineries: Supports turbine compressors and overspeed protection systems.
• Metallurgy and Smelting: Provides high-current relay sensing for critical process control.
• Large-Scale Manufacturing: Facilitates precise relay-driven machine control via PDIO modules.
• Utilities and Municipal Engineering: Enables redundant fault detection for boilers and energy plants.

Technical Specifications

Installation Guidelines

• Ensure the control system is powered down before installing or removing the board from the PDIO module.
• Handle the board using proper ESD (Electrostatic Discharge) protection practices to prevent damage to sensitive electronic components.
• Verify that the board is securely seated in the designated slot on the TDBS, SRLY, or TDBT terminal board.
• Ensure all wiring connections are tightened to the specified torque requirements for the terminal blocks.
• Maintain adequate ventilation in the cabinet to ensure the operating temperature remains within the specified -40 degC to +70 degC range.

FAQ

Which I/O redundancies are supported by this board?

The IS200WROBH1ABA supports both Simplex and Triple Modular Redundant (TMR) I/O pack configurations.

What is the primary purpose of the IS200WROBH1ABA?

It serves as a relay fuse and power sensing board, providing fused power distribution to relay outputs and real-time diagnostic feedback to the Mark VIe controller.

How does the board handle fuse status detection?

When used with isolated voltage on a compatible terminal board like the TDBS, the IS200WROBH1ABA detects the state of fuse pairings and generates a diagnostic fault if a fuse opens while voltage is present.
