Description

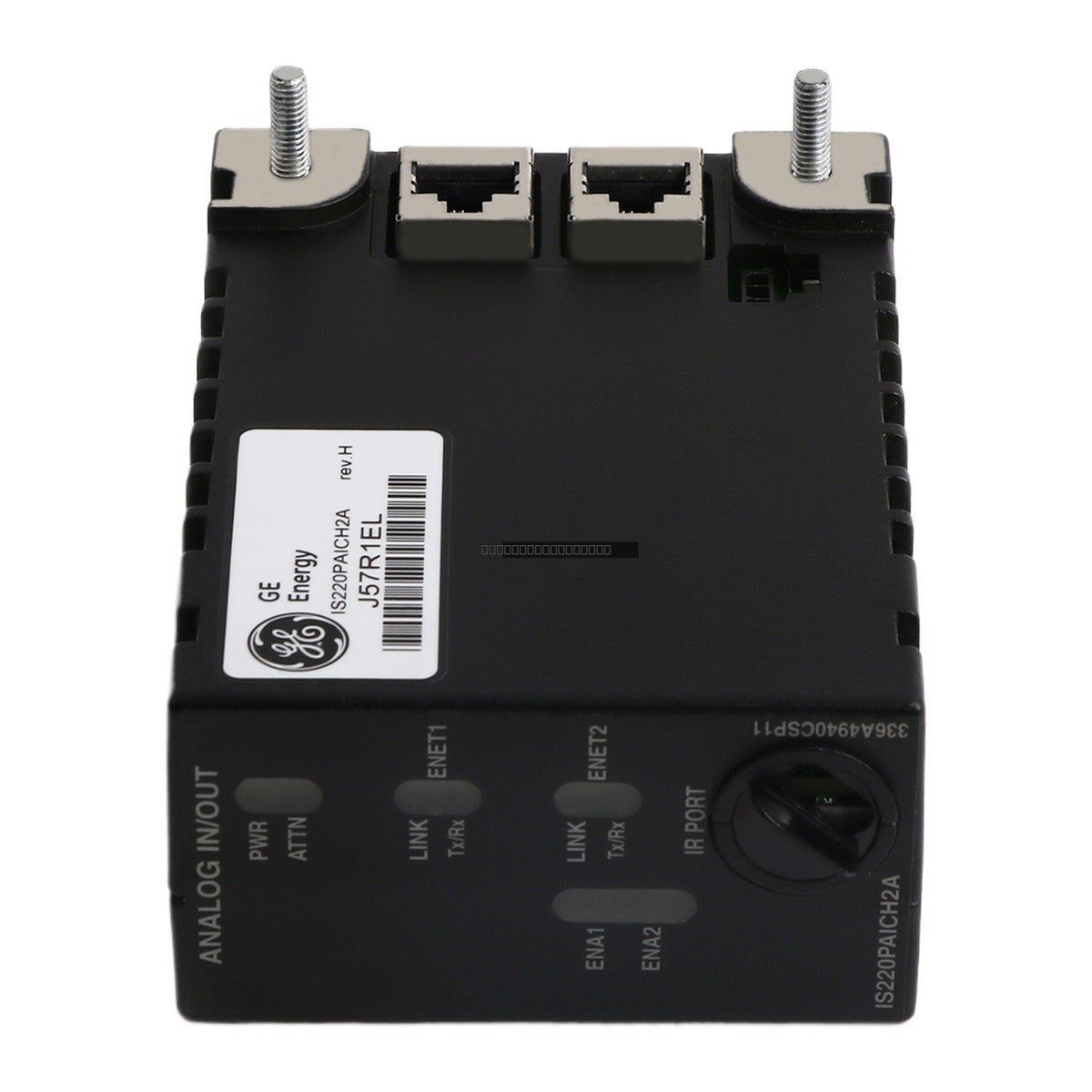

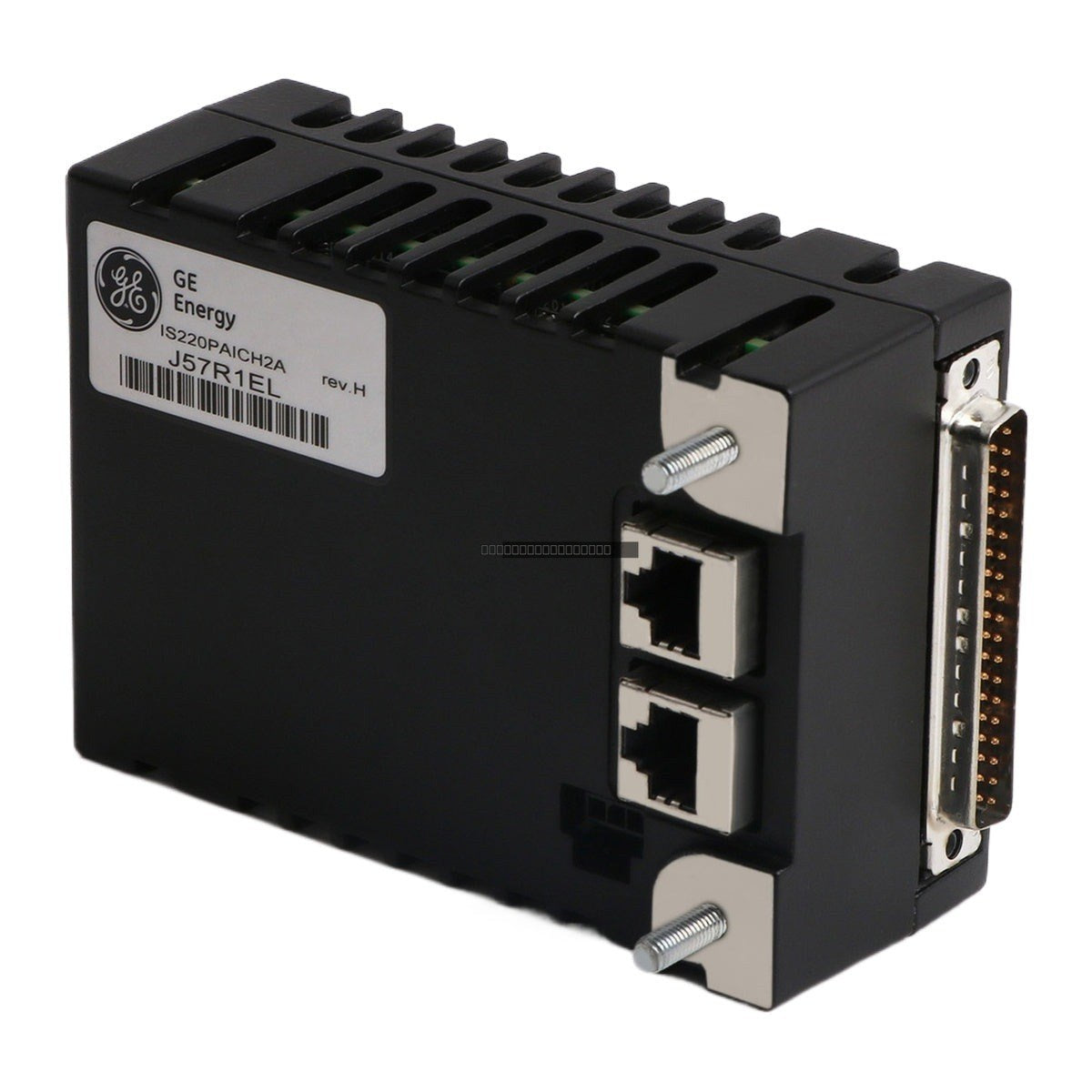

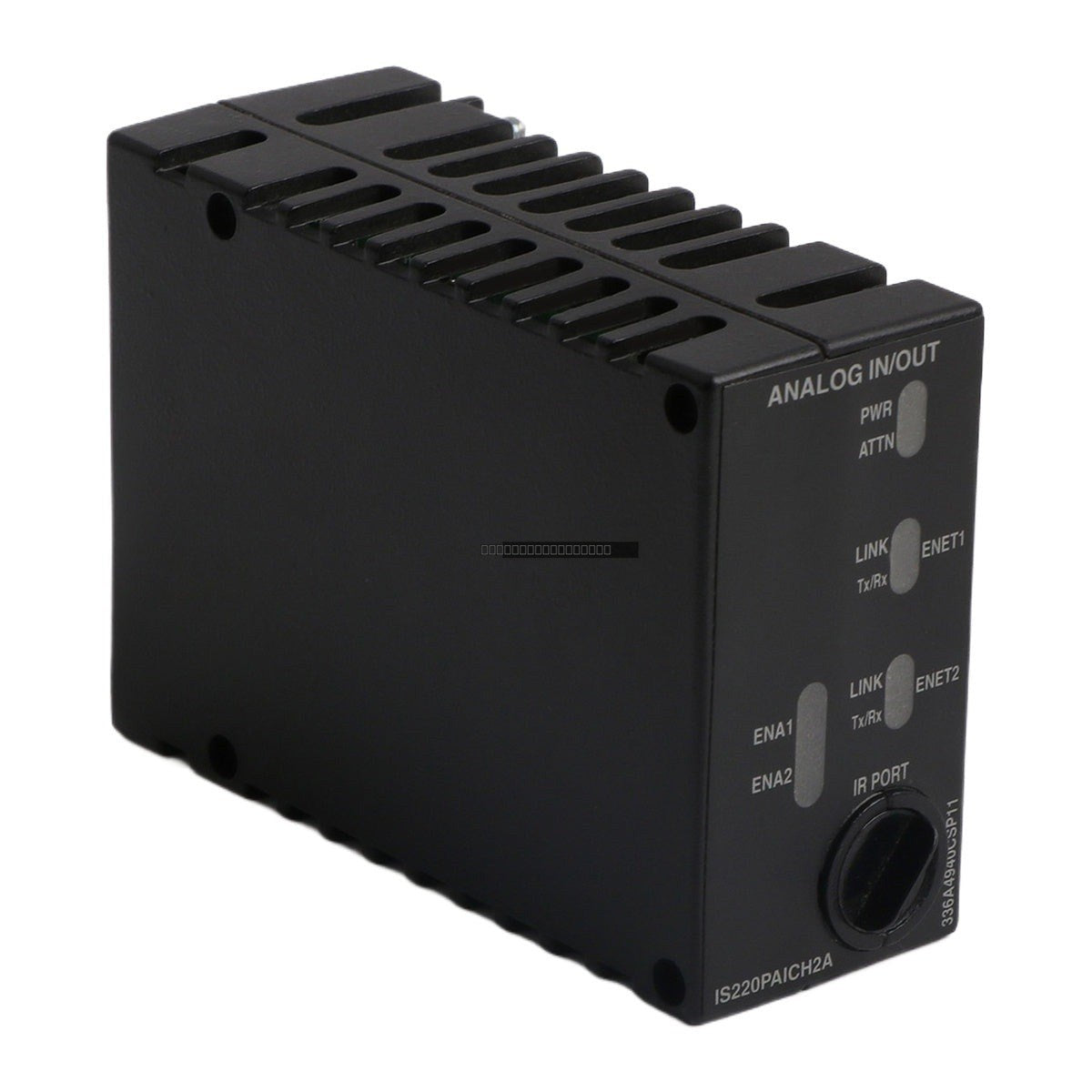

The General Electric IS220PAICH2A is a high-performance Analog I/O Pack designed for the Mark VIe turbine control system. This module facilitates precise analog signal processing, providing 12 channels of input/output capability to support complex control loops and monitoring requirements in industrial power generation environments.

Features

• 12-channel analog I/O configuration for versatile signal management.
• High-resolution 16-bit analog-to-digital conversion.
• Designed specifically for integration within the GE Mark VIe control architecture.
• Supports 1-5 V dc input spans with robust signal handling.
• Optimized for 28 V dc power supply environments.

Technical Specifications

Installation Guidelines

• Ensure the Mark VIe rack is powered down before inserting or removing the I/O pack to prevent electrical damage.
• Verify that the module is correctly seated in the designated slot to ensure proper backplane communication.
• Maintain proper grounding practices for all analog signal wiring to minimize electromagnetic interference (EMI).
• Use shielded twisted-pair cabling for analog signals to ensure signal integrity in high-noise industrial environments.
• Adhere to standard ESD (Electrostatic Discharge) handling procedures when touching the module circuitry.

FAQ

What is the primary function of the IS220PAICH2A?

This module acts as an analog I/O pack for the Mark VIe system, handling the conversion and transmission of analog signals between field devices and the turbine controller.

What is the input resolution of this module?

The IS220PAICH2A features a 16-bit input converter resolution, ensuring high-precision data acquisition.

Is this module compatible with other control systems?

No, this module is specifically engineered for the GE Mark VIe turbine control platform and is not intended for use in other control systems.
