Description

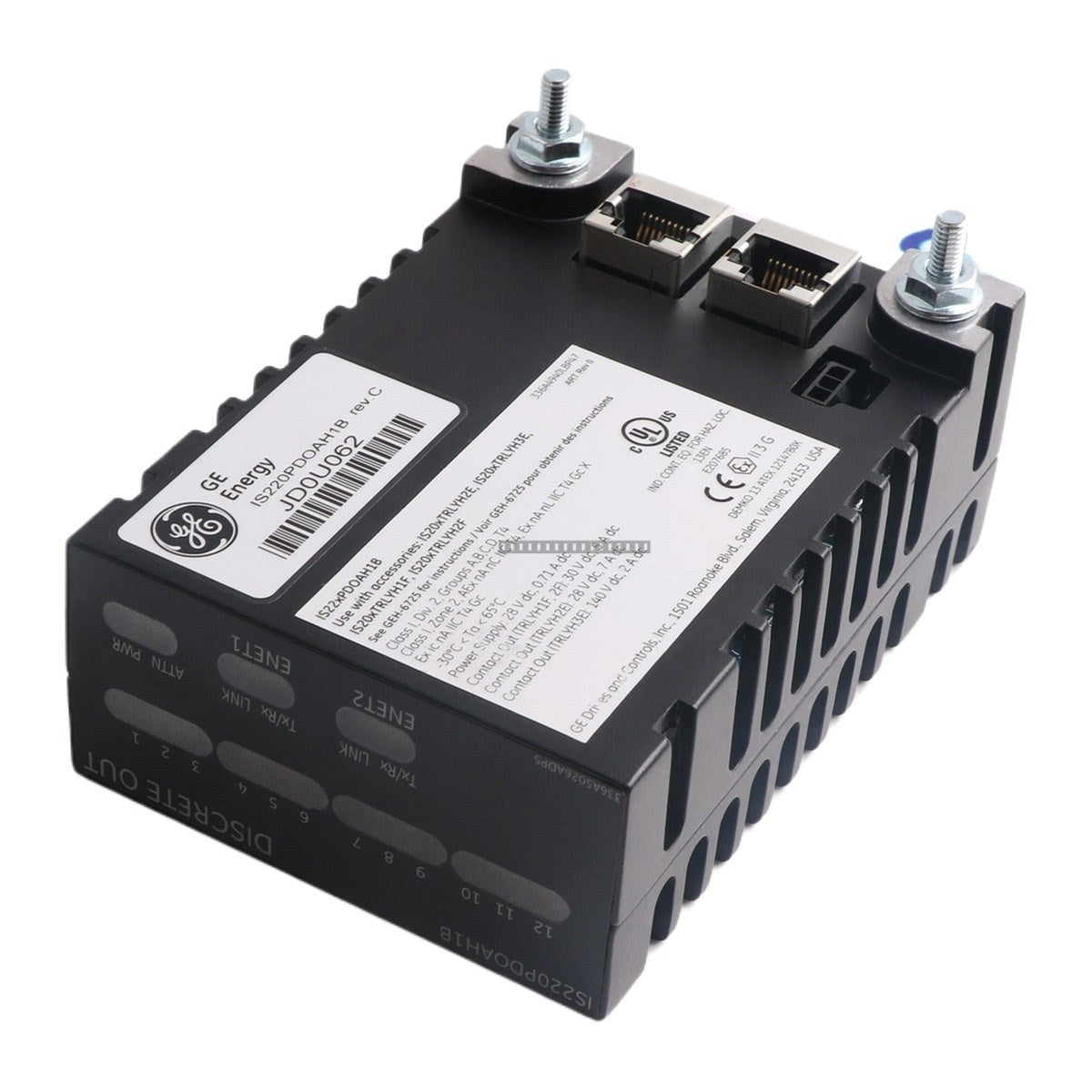

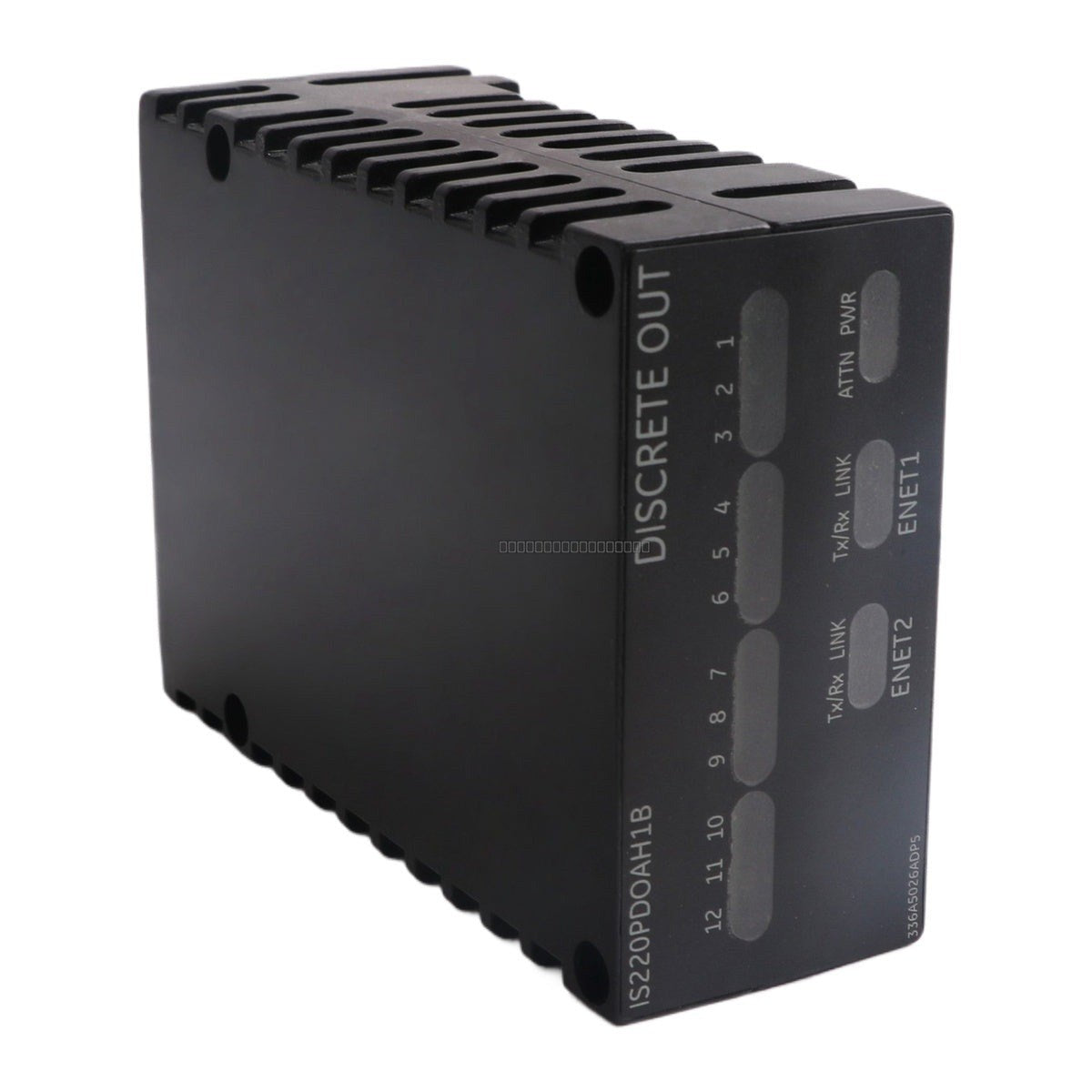

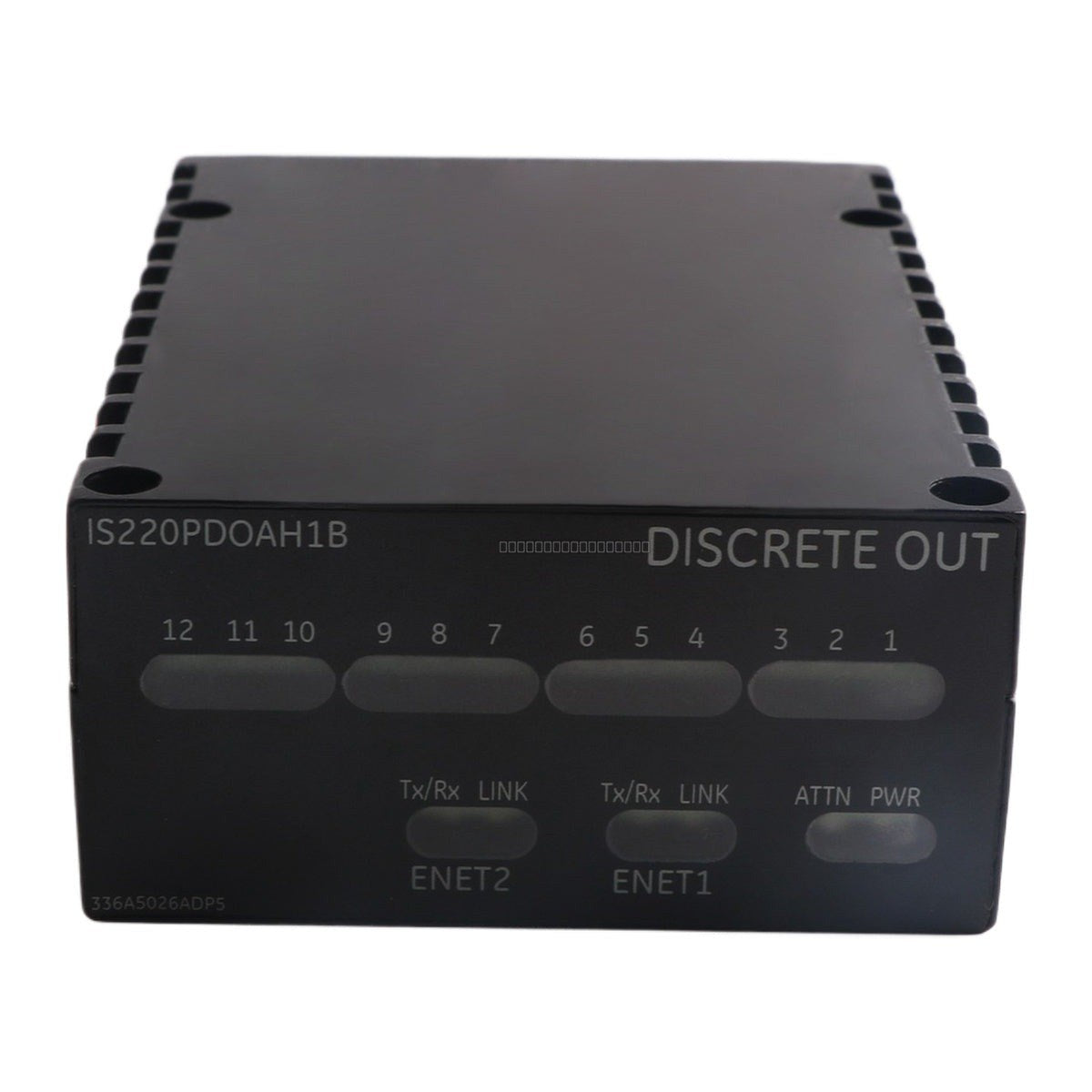

The IS220PDOAH1B is a high-performance Digital Output Module designed for the General Electric Mark VIe control system. This I/O pack provides reliable discrete output control for industrial automation processes. It features integrated TX/RX link communication capabilities and is engineered to operate within the robust Mark VIe architecture, ensuring seamless integration with existing control hardware.

Features

• 16 discrete output channels for versatile control applications.
• Supports a load voltage range of 12-48V DC.
• Continuous current rating of 0.5A per channel with 2A peak capacity.
• Designed for high-reliability operation in demanding industrial environments.
• Integrated TX/RX link for efficient data exchange within the Mark VIe system.

Technical Specifications

Installation Guidelines

• Ensure the control system is powered down before installing or removing the module from the rack.
• Verify that the module is properly seated in the designated Mark VIe I/O slot to ensure secure electrical contact.
• Use shielded cabling for output connections to minimize electromagnetic interference (EMI) in high-noise environments.
• Maintain proper ventilation within the cabinet to ensure the module operates within its specified temperature range.
• Handle with standard ESD (Electrostatic Discharge) precautions to prevent damage to sensitive internal components.

FAQ

What is the primary function of the IS220PDOAH1B?

The IS220PDOAH1B is a discrete output module used in the GE Mark VIe system to provide 16 channels of digital output control for field devices.

What is the operating temperature range for this module?

This module is designed for industrial environments and supports an operating temperature range of -40 degC to +70 degC.

Does this module require external power?

The module operates on a 24V DC input voltage (within a +/- 10% tolerance) as specified in the technical documentation.
