Description

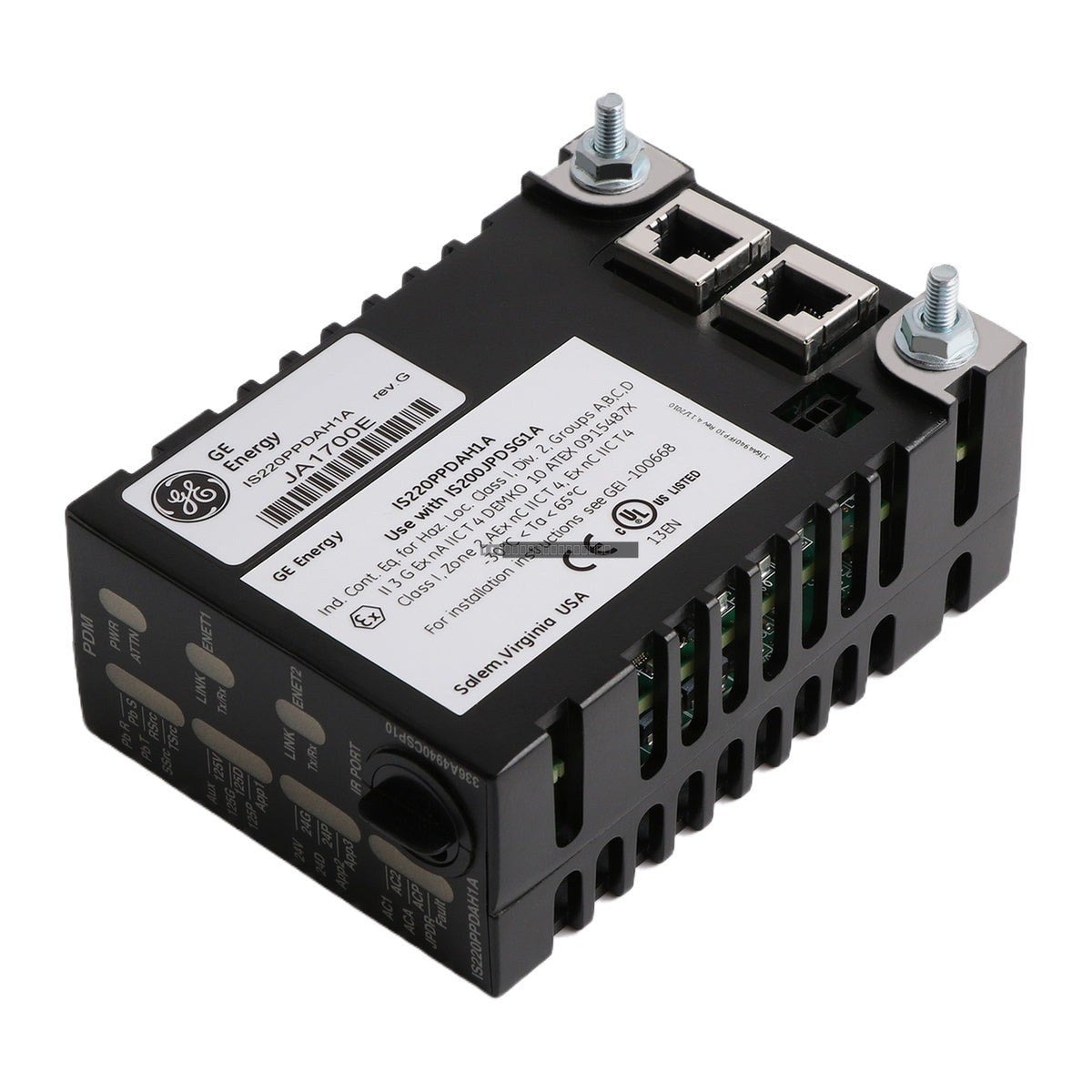

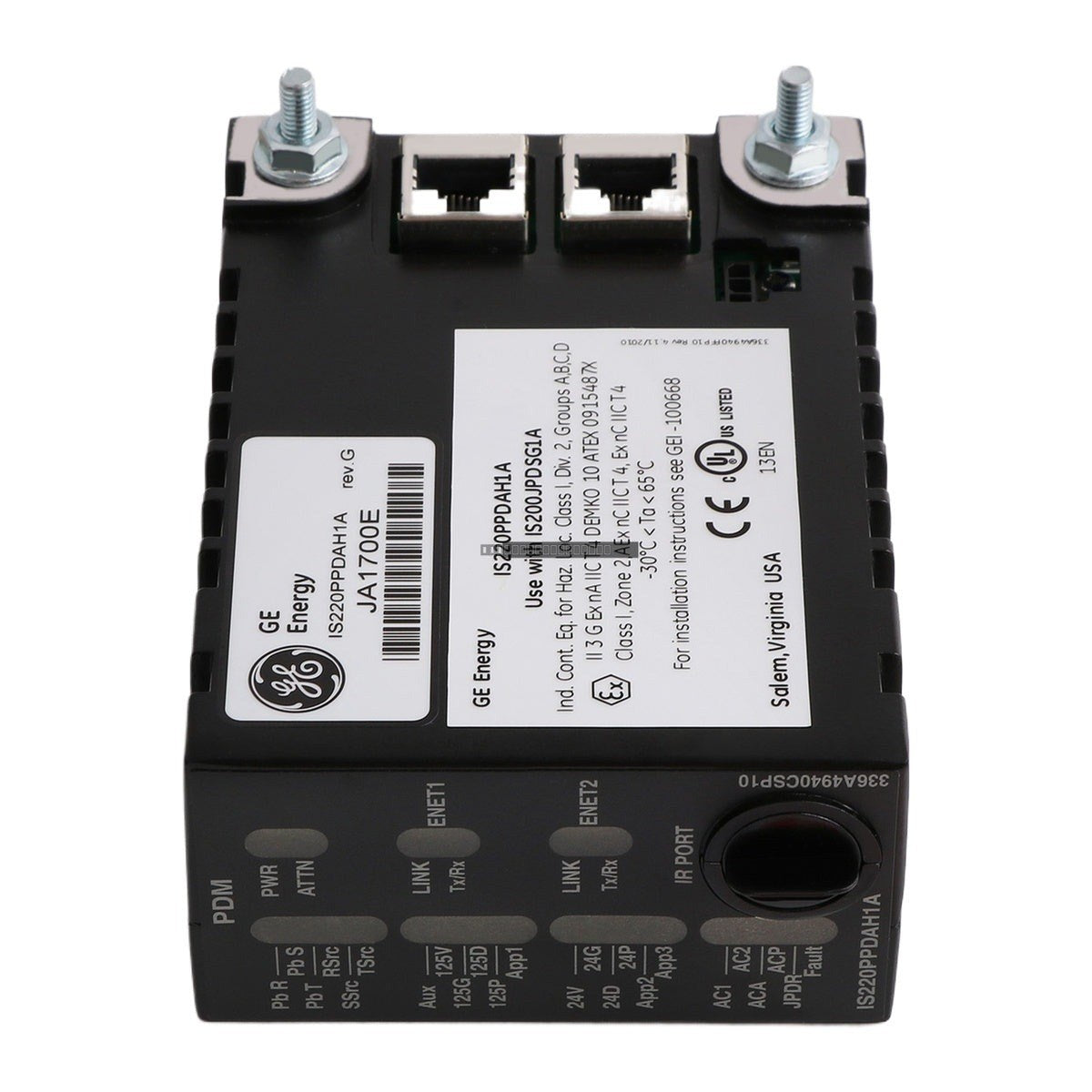

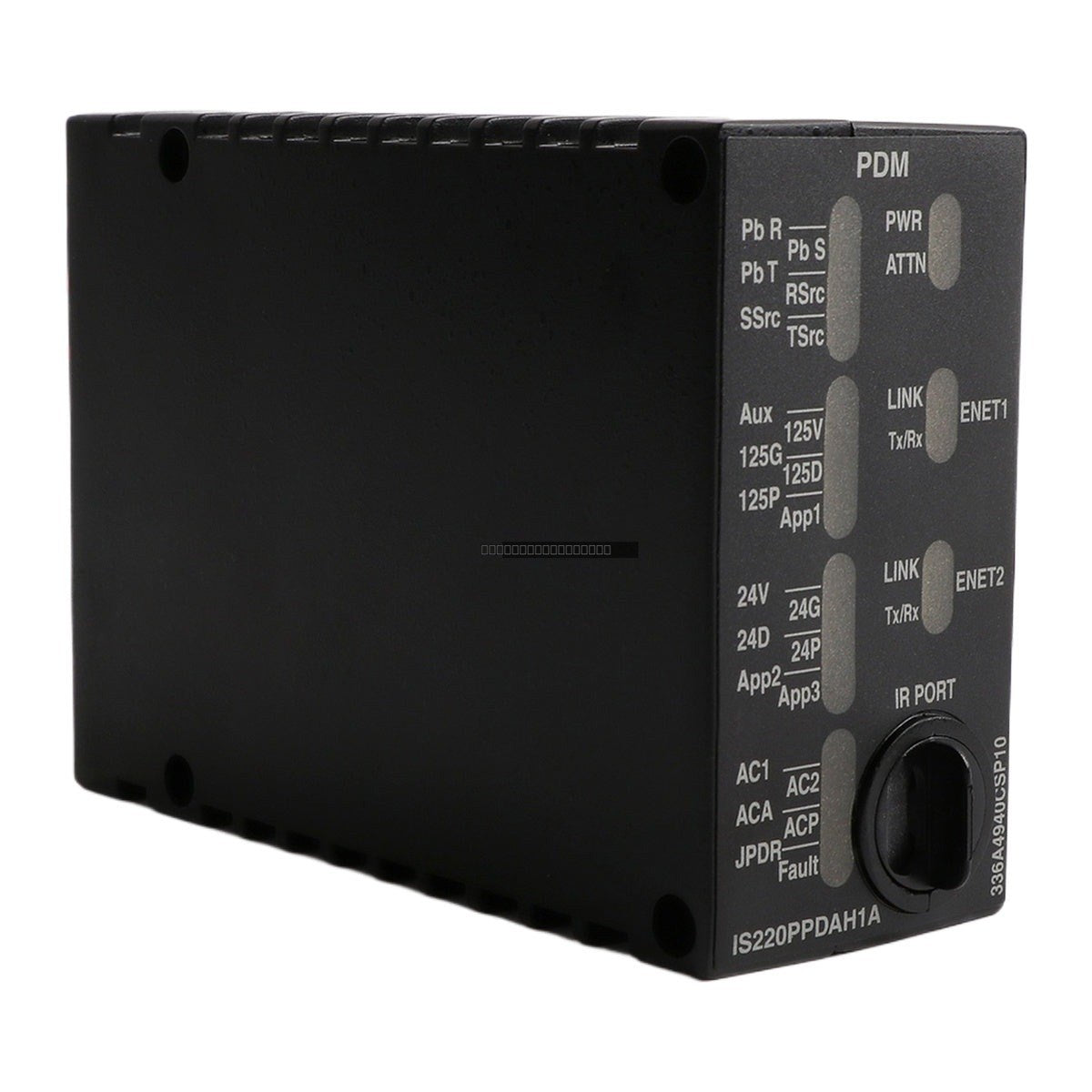

The General Electric IS220PPDAH1A is a Feedback I/O Pack designed for the Mark VIe turbine control system. This module serves as a critical component within the Power Distribution System (PDS), providing advanced diagnostic capabilities and feedback monitoring for industrial control applications. It is engineered to integrate seamlessly into the Mark VIe architecture, ensuring reliable data acquisition and system monitoring in demanding turbine environments.

Features

• Designed specifically for the GE Mark VIe control series.
• Integrated PDM (Power Distribution Module) diagnostic functionality.
• Robust construction suitable for high-reliability turbine control environments.
• Supports feedback monitoring for power distribution systems.

Technical Specifications

Installation Guidelines

• Ensure the control system is powered down before installing or removing the I/O pack to prevent electrical damage.
• Verify that the module is correctly seated in the designated Mark VIe rack slot to ensure proper backplane communication.
• Use appropriate ESD (Electrostatic Discharge) precautions when handling the module to protect sensitive internal circuitry.
• Ensure all field wiring is properly secured and routed away from high-voltage interference sources to maintain signal integrity.
• Confirm that the ambient operating temperature remains within the specified -30 degC to 65 degC range for optimal performance and longevity.

FAQ

What is the primary function of the IS220PPDAH1A?

The IS220PPDAH1A is a Feedback I/O Pack used within the GE Mark VIe system to facilitate power distribution monitoring and diagnostics.

Is this module compatible with other control systems?

This module is specifically designed for the General Electric Mark VIe turbine control system architecture.

What are the environmental requirements for this module?

The module is rated for an ambient operating temperature range of -30 degC to 65 degC. Ensure the cabinet environment is well-ventilated and free from excessive dust or corrosive elements.
