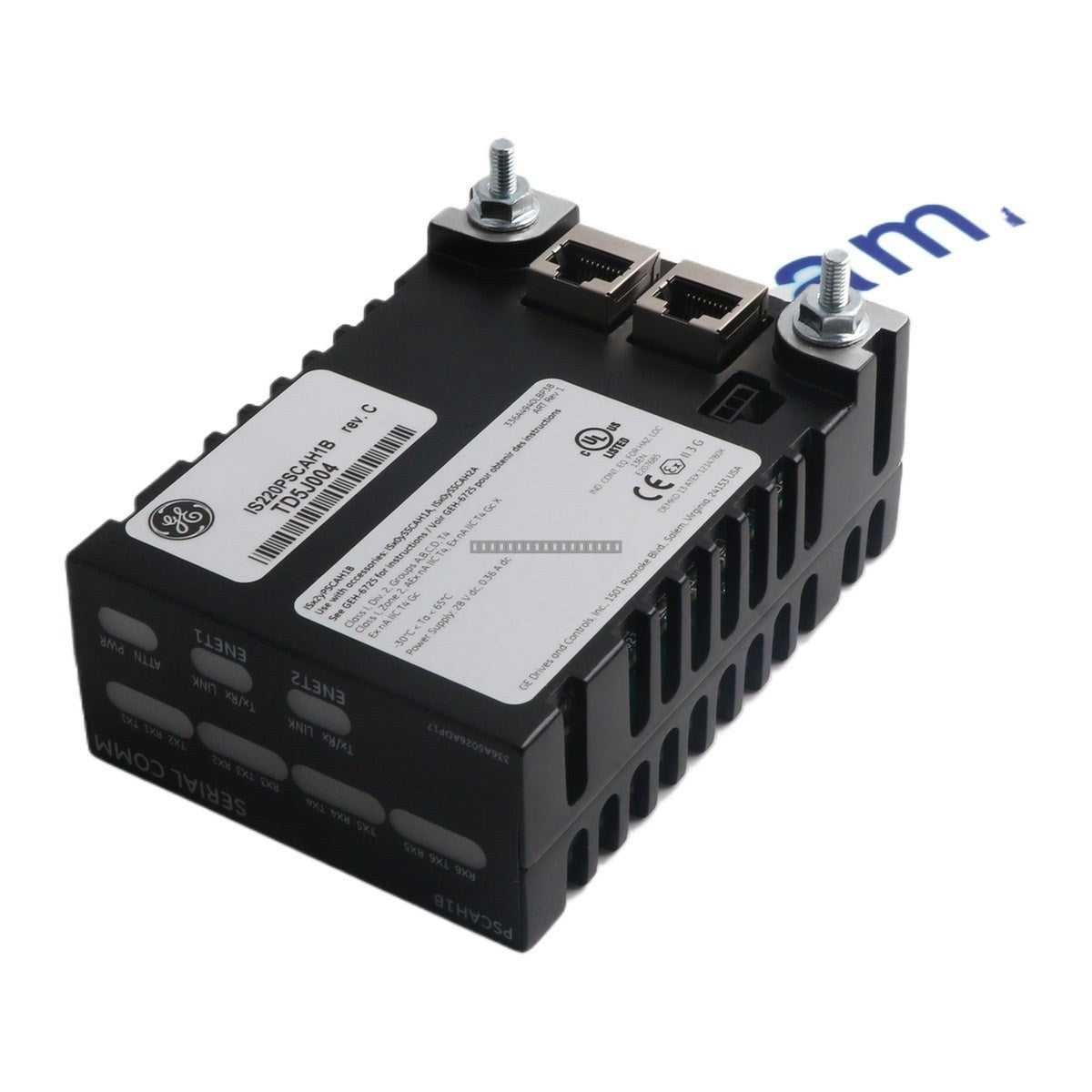

The General Electric IS220PSCAH1B is a Serial Modbus Communication I/O Module designed for the Mark VIe Distributed Control System (DCS). This module serves as a critical interface between I/O Ethernet networks and serial communication terminal boards, facilitating seamless data exchange in industrial environments.

Features

• Six configurable serial transceiver channels supporting RS-232, RS-422, or RS-485 half-duplex standards.
• Dual RJ45 Ethernet connectors for network connectivity.
• Integrated processor board compatible with the Mark VIe distributed I/O pack architecture.

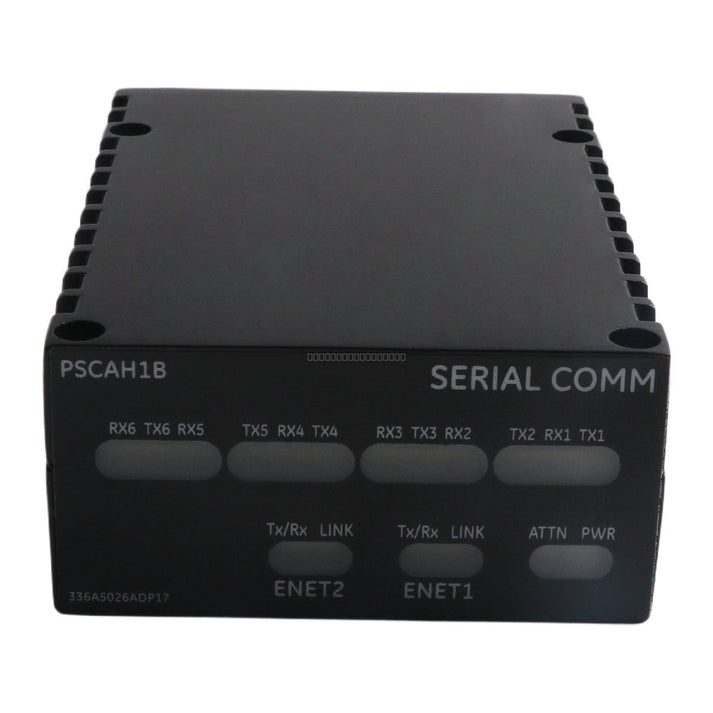

• Visual diagnostic indicators via onboard LEDs.
• Supports Ethernet Modbus communication on Simplex Networks.

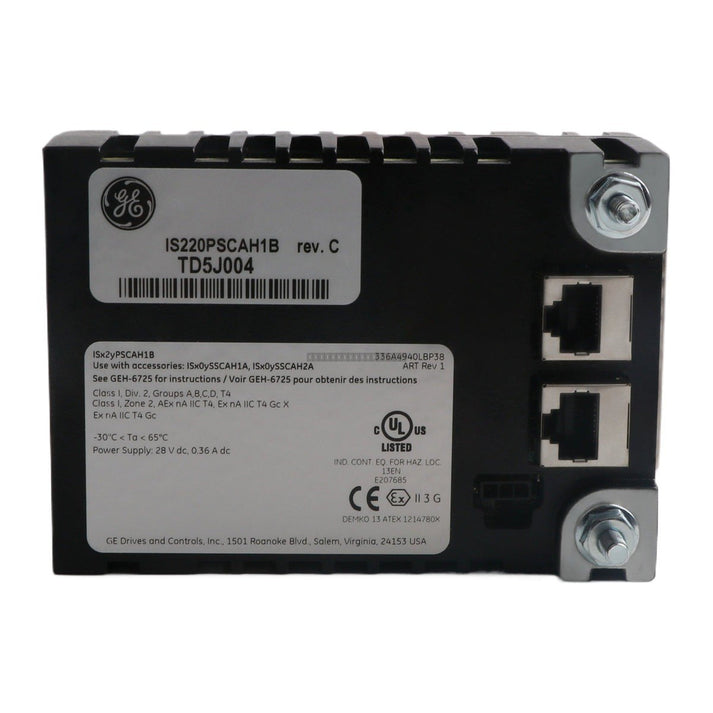

• Hazardous location rating: Class I, Zone 2, AEx nA IIC T4, Ex nA IIC T4 Gc X.

Applications

• Power Generation: Steam turbine generators, gas turbines, and large water pumps.
• Oil & Gas: Centrifugal and reciprocating compressors, turbine-driven pumps, and offshore platform power systems.
• Petrochemical: Ethylene cracking gas compressors and ammonia compressors.
• Heavy Industry: Blast furnace blowers, sintering blowers, and rolling mill main motors.
• Maritime: Main propulsion systems and auxiliary power generation monitoring.

Technical Specifications

Installation Guidelines

• Ensure the module is mechanically secured using the threaded inserts adjacent to the Ethernet ports, connecting to the terminal board-specific mounting bracket.
• Adjust the bracket position to prevent right-angle force on the DC-62 pin connector; this adjustment is typically performed once during initial installation.
• The module is not sensitive to Ethernet port selection; it will negotiate operation over either port. Standard practice for dual connections is to assign ENET1 to the R controller network.
• The module features inherent soft-start capability to manage current inrush; power may be applied via the side connector without requiring prior disconnection of the power cable.

FAQ

What is the primary function of the IS220PSCAH1B?

The IS220PSCAH1B acts as a bridge between Ethernet-based control networks and serial-based field devices, enabling Modbus protocol communication over RS-232, RS-422, or RS-485 interfaces.

How are the serial channels configured?

Each of the six serial transceiver channels is configurable to support RS-232, RS-422, or RS-485 half-duplex standards, allowing for flexible integration with various legacy and modern industrial devices.
