Description

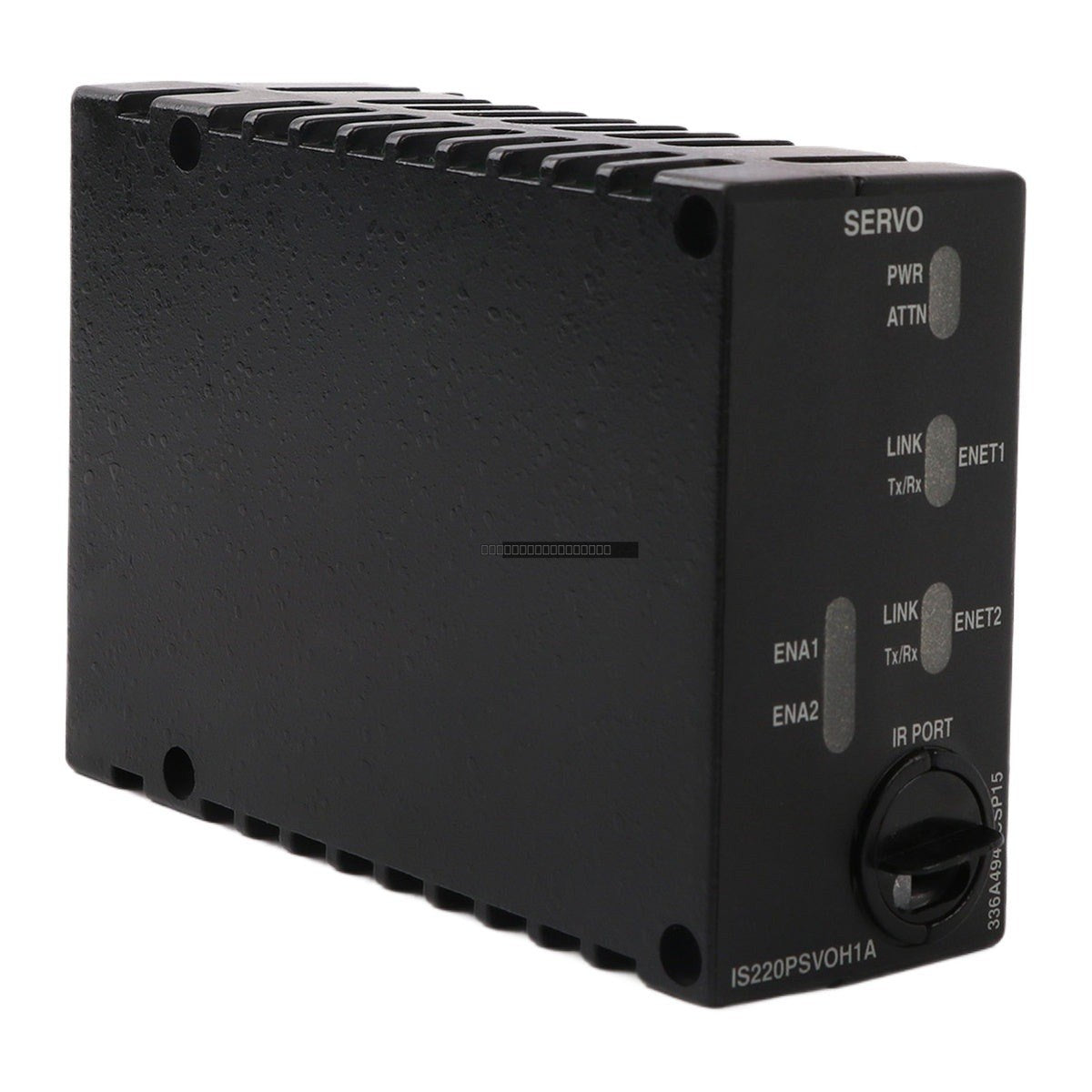

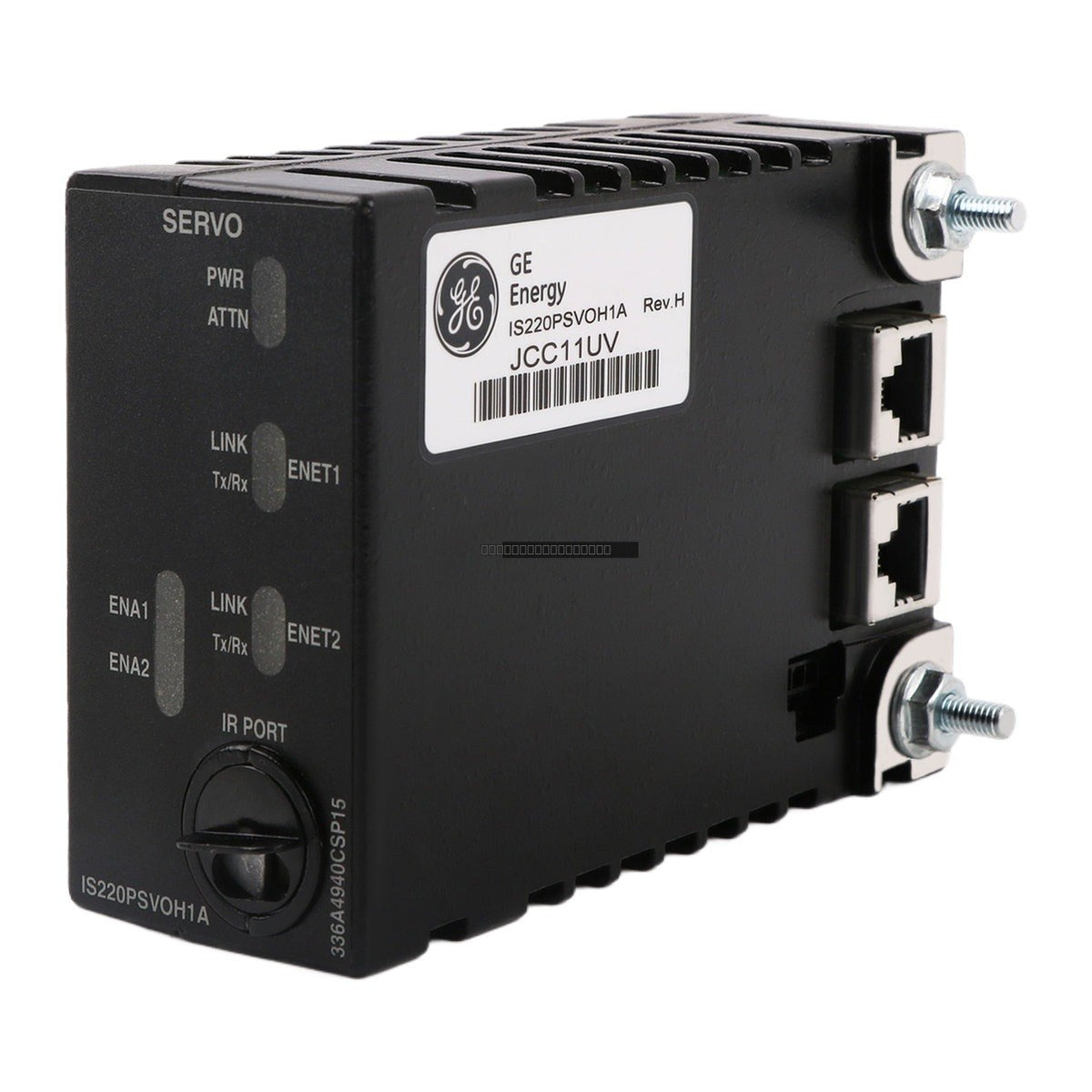

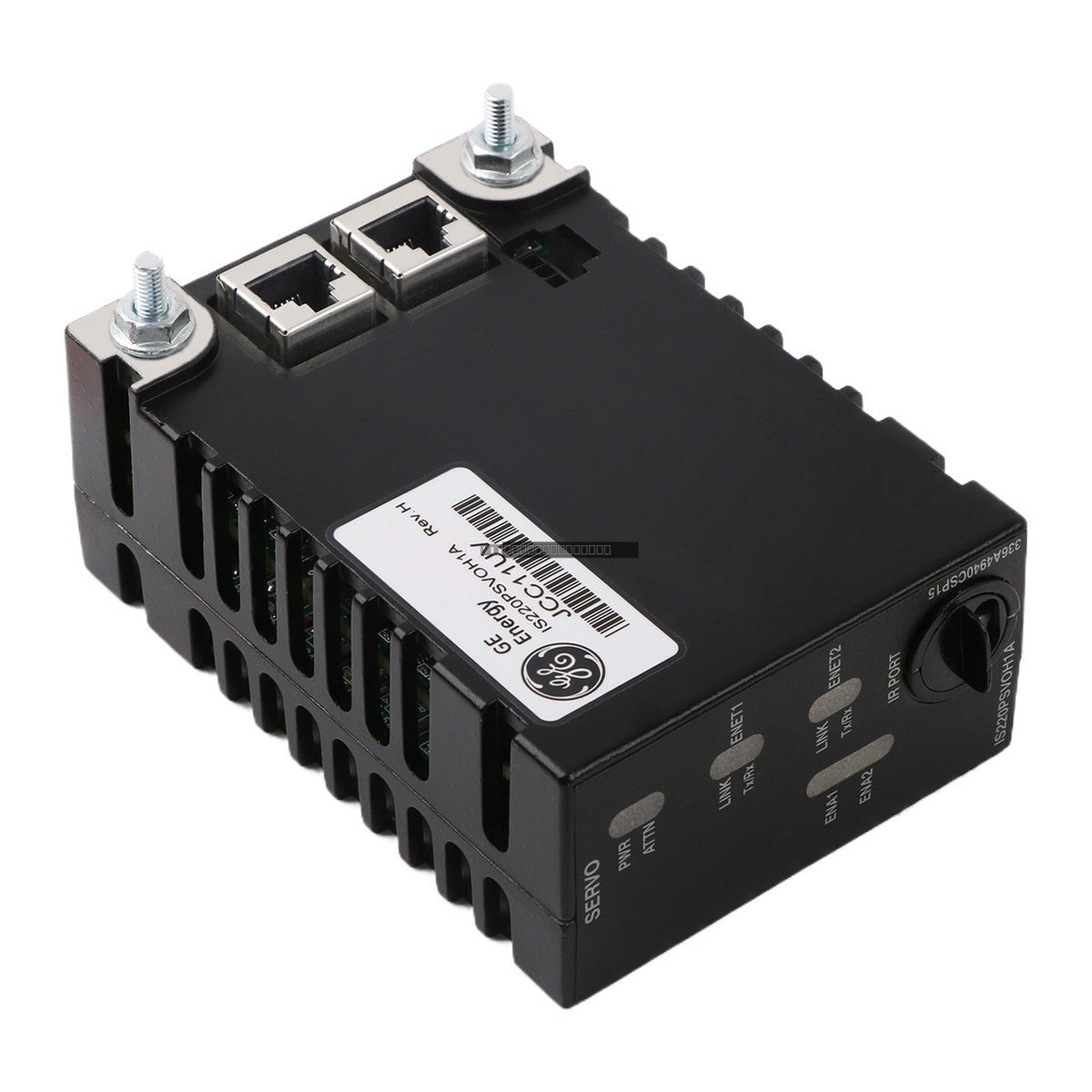

The General Electric IS220PSVOH1A is a specialized Servo Control Module designed for the Mark VIe control system. As a critical I/O pack within the Mark VIe architecture, this module provides precise control and monitoring capabilities for servo-actuated systems. The unit features integrated processing power and robust communication interfaces to ensure reliable operation in demanding industrial environments.

Features

• Integrated Intel Celeron 650 MHz microprocessor for high-speed control loop execution.
• Equipped with two Ethernet ports for seamless integration into the Mark VIe control network.
• Includes dedicated status indicators for real-time diagnostic and operational monitoring.
• Supports 8 inputs for comprehensive system feedback.
• Provides LVDT excitation output at 3.2 kHz for accurate position sensing.
• Designed for high-reliability performance with a wide operating temperature range.

Technical Specifications

Installation Guidelines

• Ensure the control system is powered down before installing or removing the I/O pack to prevent electrical damage.
• Handle the module using proper ESD (Electrostatic Discharge) precautions to protect sensitive internal components.
• Verify that the module is correctly seated in the designated Mark VIe rack slot and that the Ethernet connections are secure.
• Ensure adequate ventilation around the module to maintain the specified operating temperature range.
• Route communication cables away from high-voltage or high-EMI sources to maintain signal integrity.

FAQ

What is the primary function of the IS220PSVOH1A?
This module acts as a servo control I/O pack within the GE Mark VIe system, handling servo-actuator control and LVDT feedback processing.

Does this module require a specific power supply?
Yes, the module is designed to operate on a 28 V DC power supply.

How does this module communicate with the rest of the system?
It features two Ethernet ports, allowing it to communicate directly over the Mark VIe control network.
