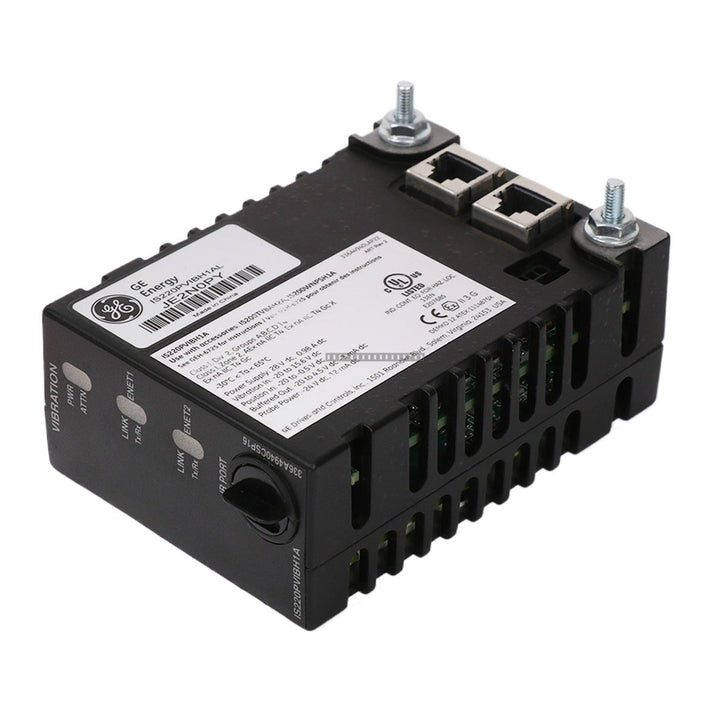

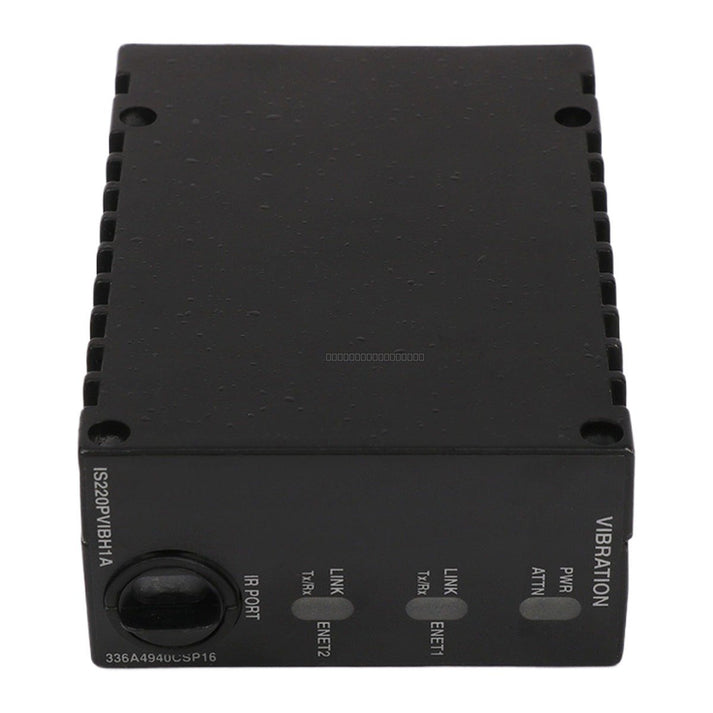

The GE IS220PVIBH1AL is a high-performance Vibration Monitor I/O Pack designed for the Mark VIe control system. As a revised version of the IS220PVIBH1, this module incorporates updated hardware to provide reliable signal acquisition and processing for critical rotating machinery in power generation and industrial applications.

Features

• Thirteen-channel vibration and proximity signal acquisition.
• Dual independent 10/100 Mbps Ethernet ports for IONet communication and network redundancy.
• Sensor-channel specificity for optimized signal processing of accelerometers, Velomitors, seismic sensors, and Proximitors.
• Support for both Simplex and Triple Modular Redundant (TMR) configurations.
• Integrated hardware reset circuit and watchdog timer for system reliability.
• Internal sensor monitoring for temperature and diagnostic health.

Applications

• Gas and Steam Power Plants: Monitoring turbine vibration to prevent failure during load transients.
• Hydroelectric Power Generation: Managing turbine speed and generator grid synchronization.
• Industrial Cogeneration Facilities: Providing high-availability monitoring for backup steam turbines.
• Hazardous Environment Applications: Designed for operation in extreme temperature ranges with high electrical isolation.

Technical Specifications

Installation Guidelines

• Handling: Use standard ESD precautions when handling the module to prevent damage to internal circuitry.
• Simplex Configuration: Plug the PVIB pack directly into the DC-37 pin connector on the compatible terminal board.
• TMR Configuration: Install three PVIB I/O packs into their corresponding connectors for redundant operation.
• Mechanical Securing: Lock the packs into the mounting bracket using the threaded studs located adjacent to the Ethernet ports.
• Alignment: Adjust the bracket position to ensure no lateral force is applied to the DC-37 connector; this alignment is typically performed once during initial installation.
• Power: Always ensure the system is powered down before inserting or removing the I/O pack from the rack.

FAQ

Does it support network redundancy?

Yes. The module is equipped with dual, fully independent 10/100 Mbps Ethernet ports for network redundancy on the IONet. If one connection fails, communication is automatically maintained through the other.

What terminal boards are compatible?

It is specifically designed to interface with the GE TVBA vibration terminal board.

Are there channel-specific sensor restrictions?

Yes. Channels 1–3 support accelerometers, Proximitors, Velomitors, and seismic sensors. Channels 9–12 are reserved exclusively for Proximitor sensors. Channel 13 is dedicated to reading a Keyphasor or proximity-type pulse signal.
