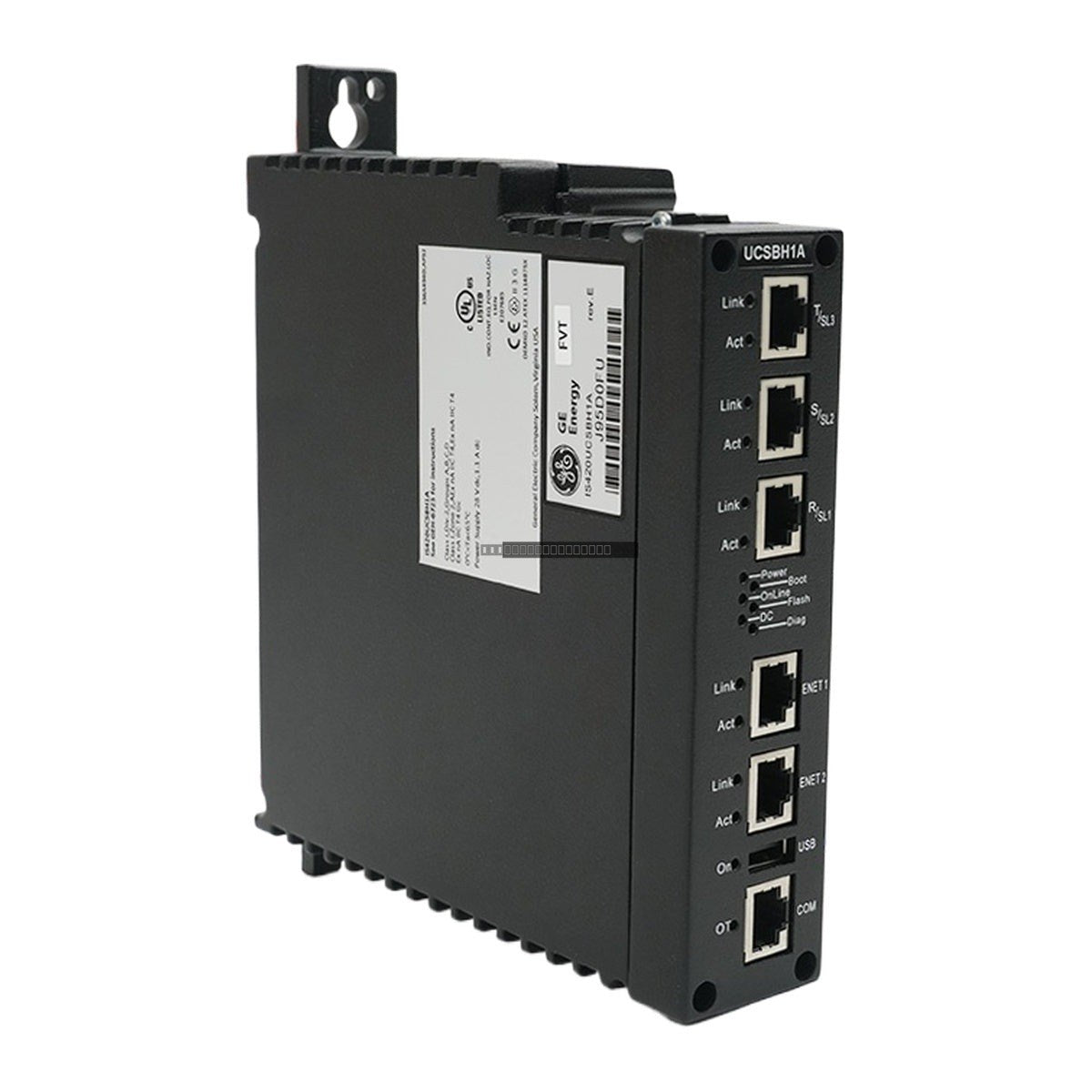

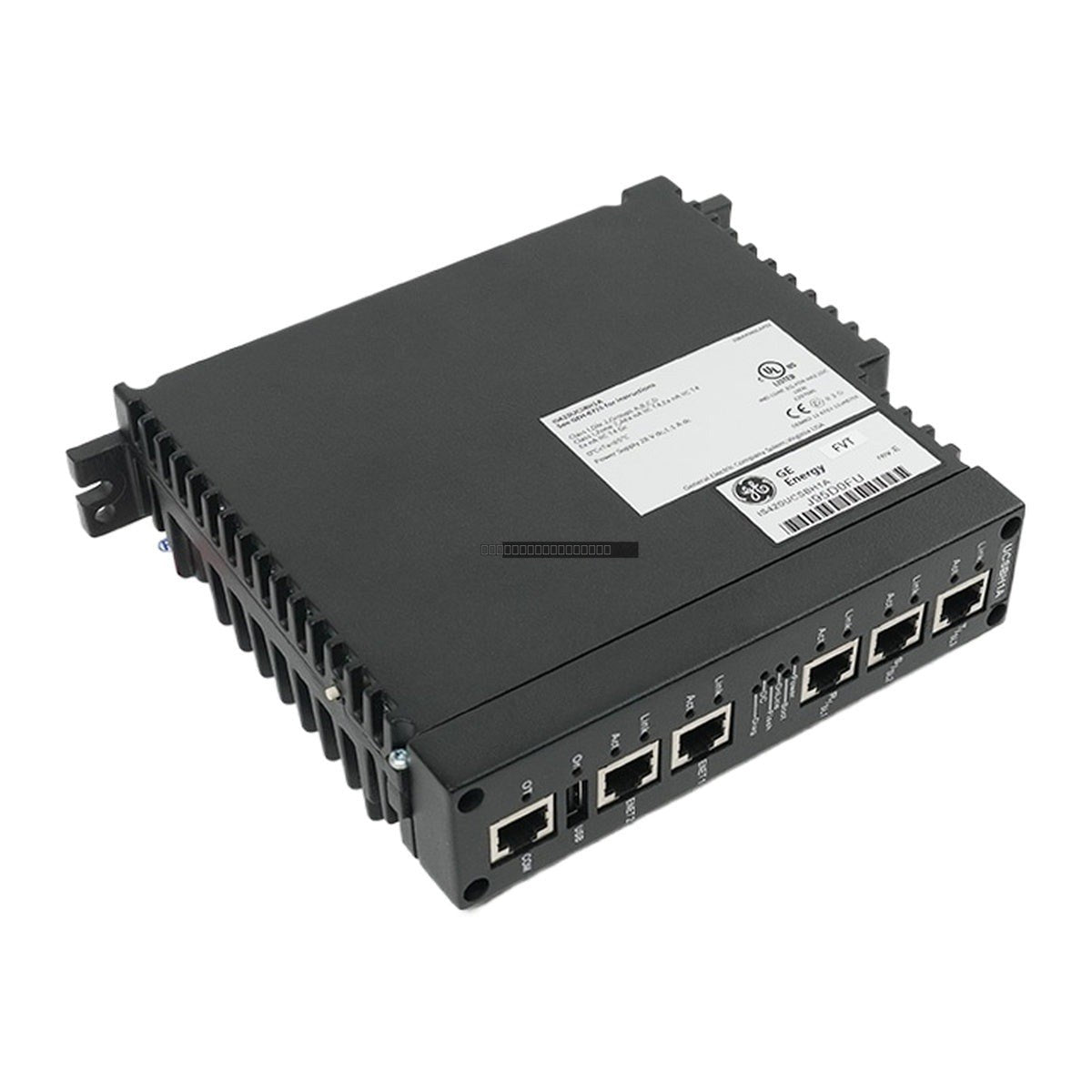

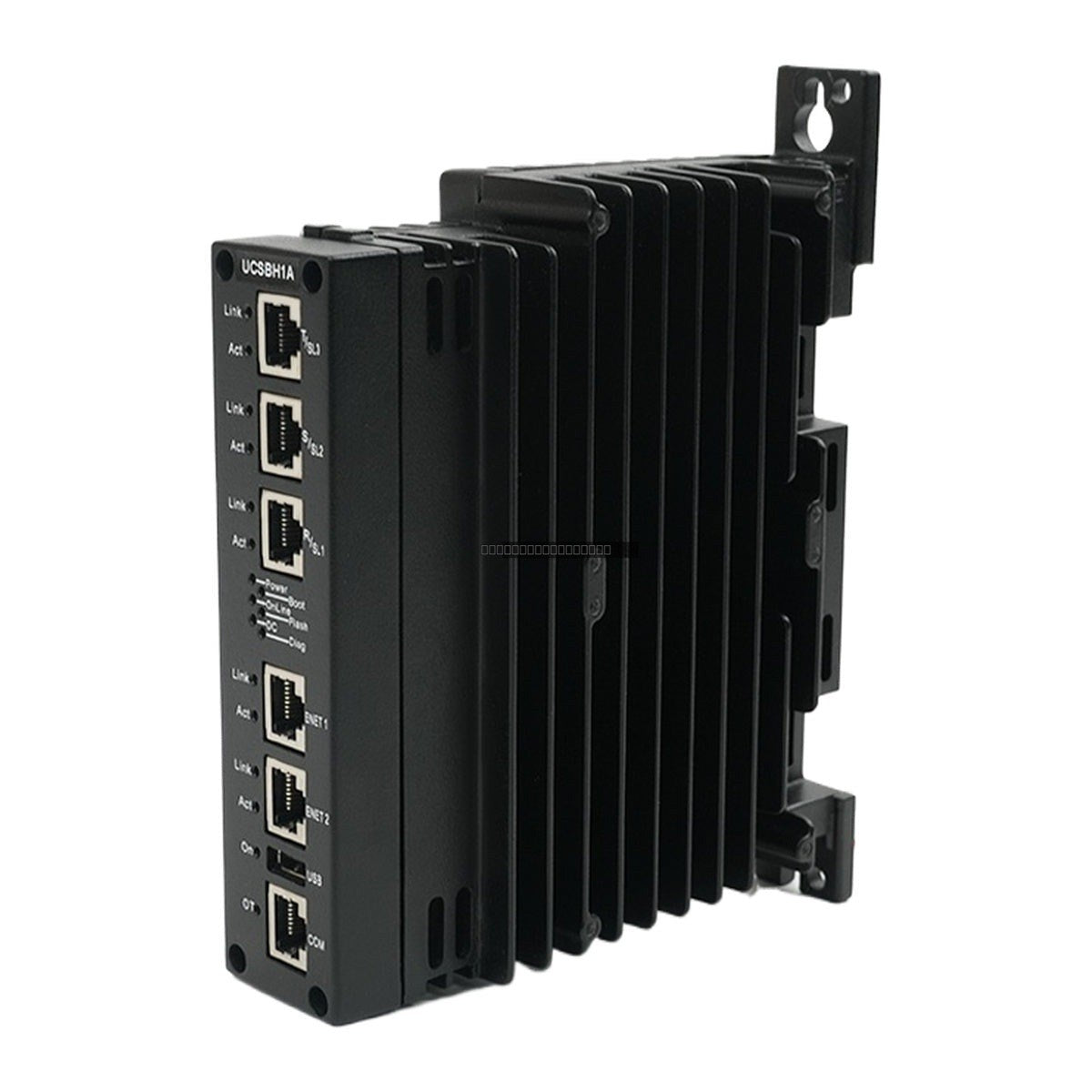

The General Electric IS420UCSBH1A is a high-performance UCSB (Universal Control System Board) controller module designed for the Mark VIe and Mark VIeS Control Safety System series. As a self-contained computing unit, it executes application-specific control logic and manages communication across the control network. Unlike traditional controllers that host local I/O, the UCSB architecture centralizes I/O network connectivity, ensuring that input data remains available even if individual controllers undergo maintenance or power cycles.

Features

• Core component of the GE Mark VIe/VIeS Control Safety System.
• Equipped with a 600 MHz Intel EP80579 microprocessor.
• Runs on the QNX Neutrino real-time, multitasking operating system for high-speed reliability.
• Supports IEEE 1588 protocol for precise clock synchronization across the control network.
• Designed for high-availability applications with redundant I/O network connectivity.
• Certified for non-hazardous environments, with specific ratings for UL E207685 and ATEX Zone 2, Group IIC.

Applications

• Gas Turbines: Real-time monitoring of fuel flow and speed parameters to optimize turbine efficiency.
• Steam Turbines: Precision management of valve positioning and rotational speed.
• Renewable Energy: Integration into wind and hydroelectric control frameworks.
• Oil & Gas: Reliable control for complex DCS processes, including gasification and refinery operations.

Technical Specifications

Installation Guidelines

• Ensure the system is powered down before inserting or removing the module from the rack.
• Mount the module in a clean, dry, and well-ventilated cabinet to maintain the specified operating temperature range.
• Use shielded Ethernet cables for all IONet connections to minimize EMI interference.
• Verify that the power supply meets the 18-30 VDC input range requirements before applying power.
• Handle with standard ESD precautions to prevent damage to internal sensitive components.

FAQ

What is the primary function of the IS420UCSBH1A?

The IS420UCSBH1A acts as a standalone controller that executes control logic and communicates with I/O packs via the IONet, providing centralized control for Mark VIe systems.

How does this module communicate with I/O?

It utilizes dedicated Ethernet-based IONet interfaces, which allow for high-speed, synchronized communication with remote I/O packs using the IEEE 1588 protocol.

Can the IS420UCSBH1A be replaced by the H4A model?

Yes, the IS420UCSBH4A is often used as a successor. While they share a similar footprint, the H4A features a faster 1.2 GHz processor, providing more overhead for complex logic and modern software updates.
