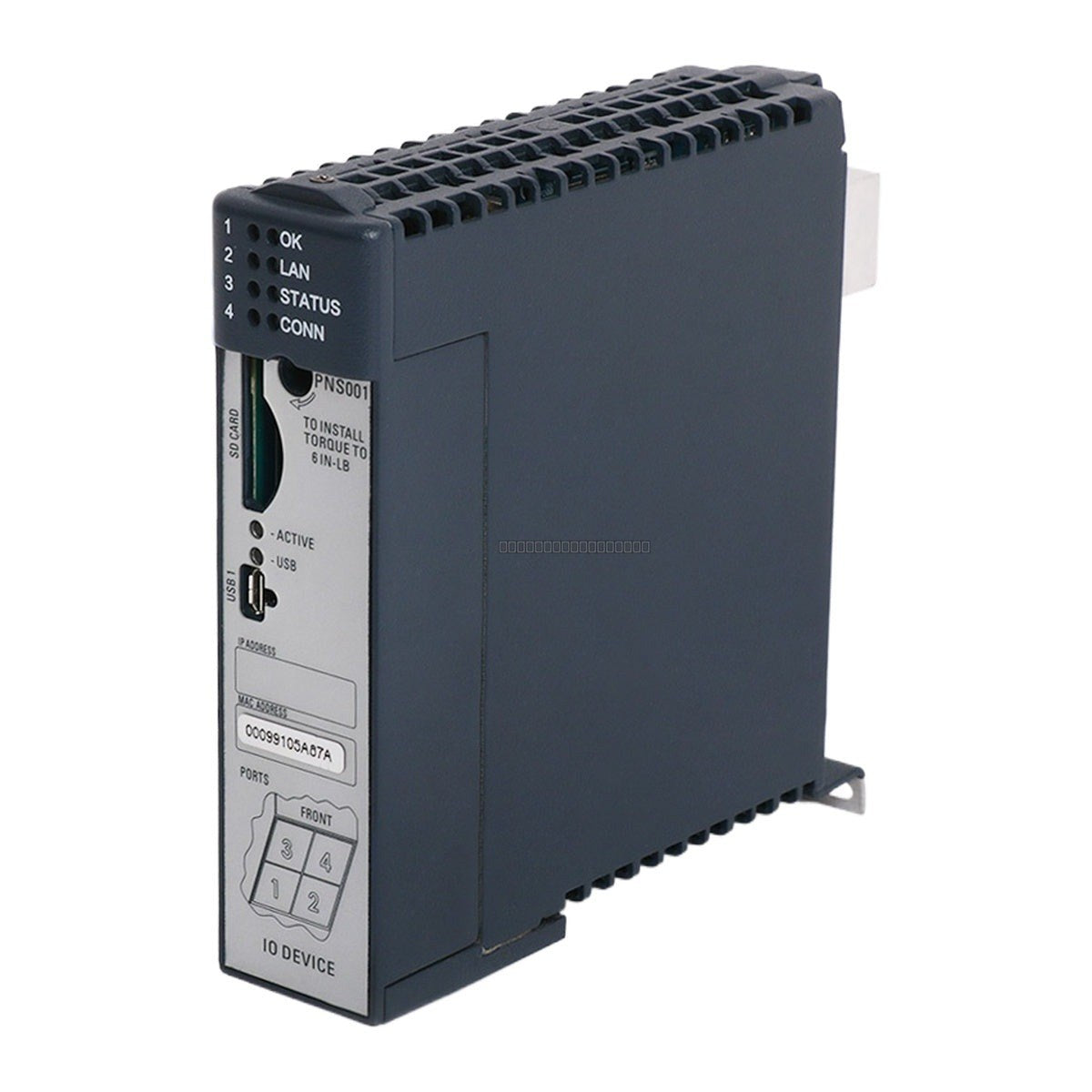

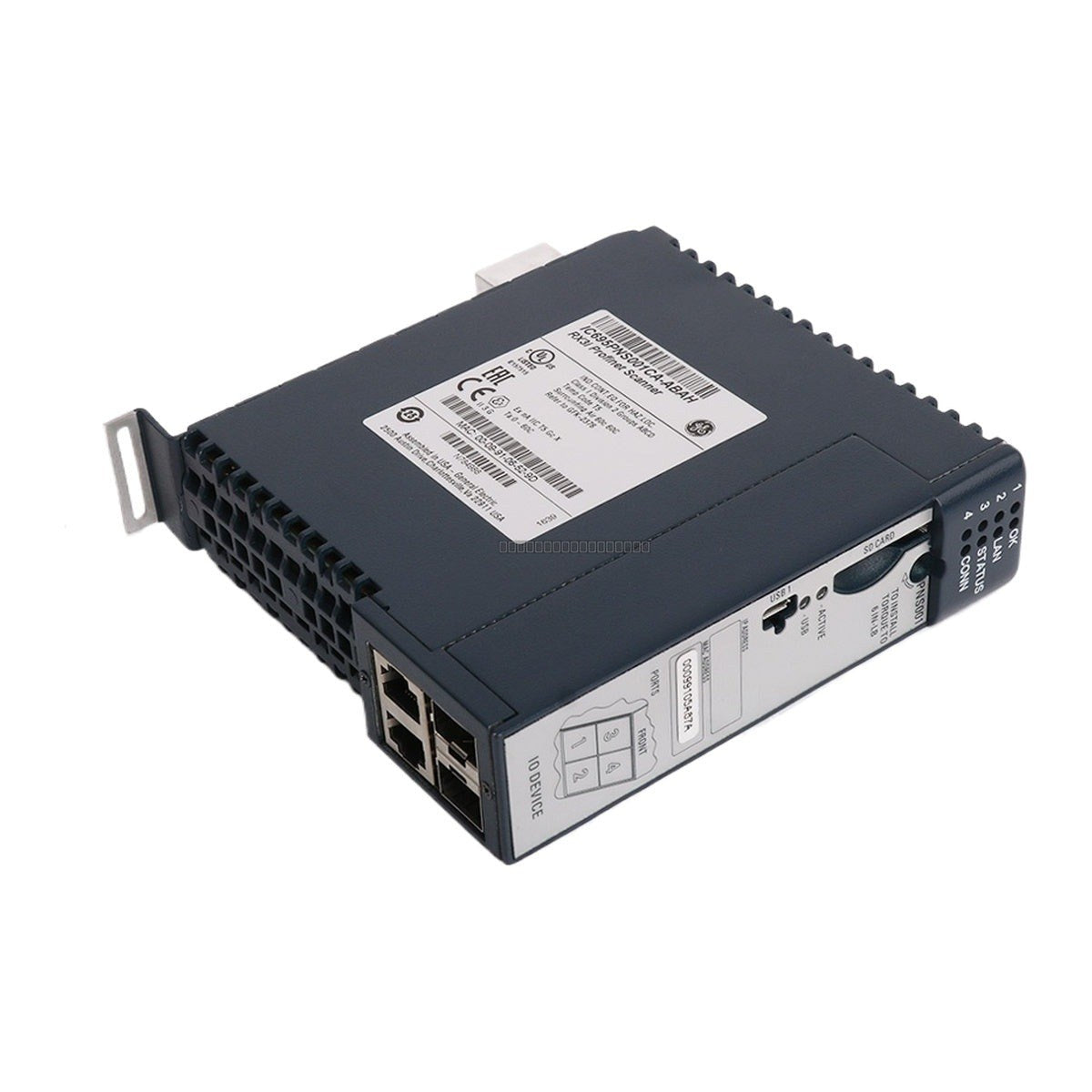

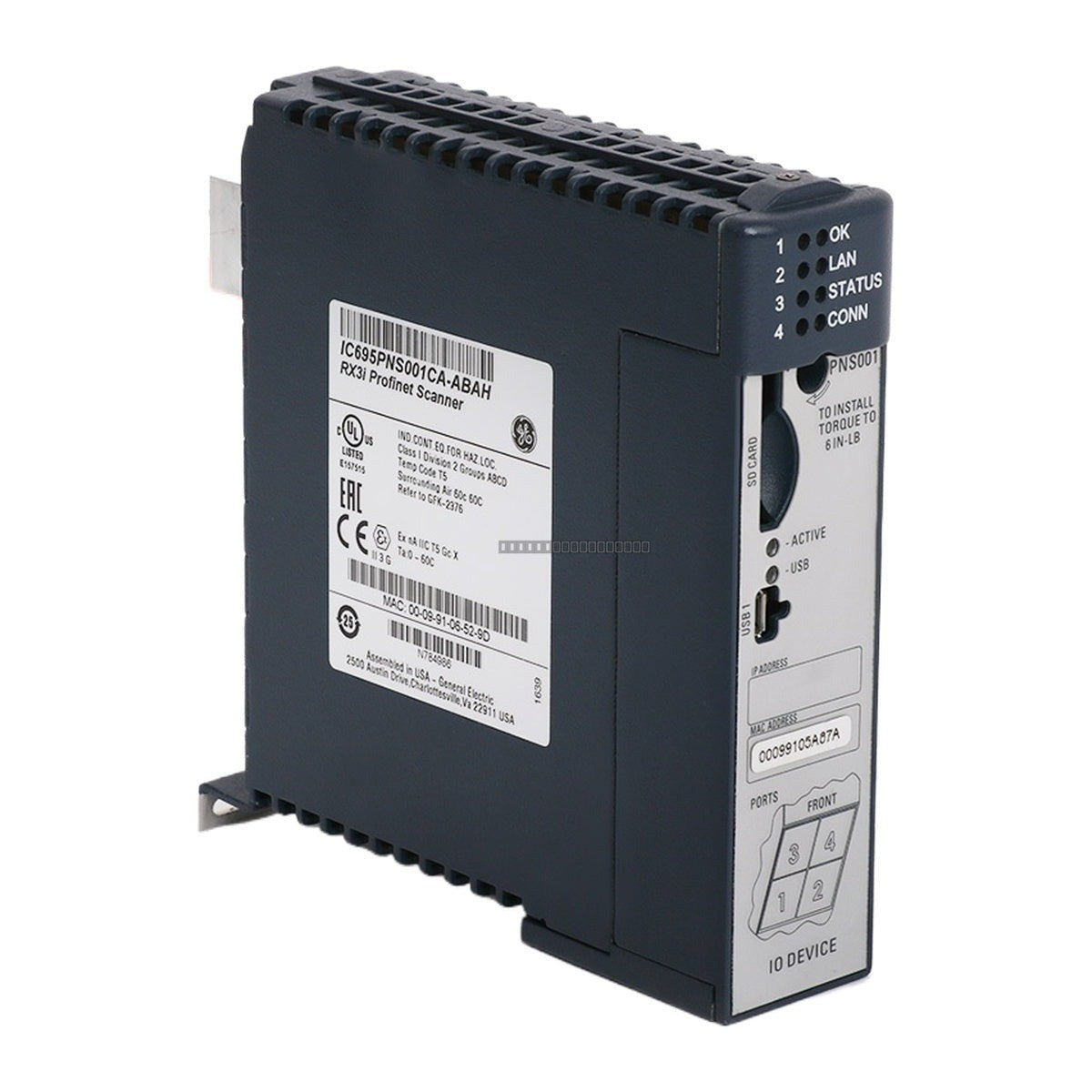

The General Electric IC695PNS001CA-ABAH is a high-performance PROFINET scanner module designed for the PACSystems RX3i automation platform. This module serves as a PROFINET I/O device, enabling seamless communication between a remote RX3i or Series 90-30 I/O rack and a central PROFINET I/O controller. It is engineered to manage I/O data exchange, module configuration, and network diagnostics across various industrial topologies.

Features

• Single-slot module for RX3i universal backplanes
• Supports PROFINET V2.3 Class A I/O device functionality
• Equipped with four Ethernet ports: two RJ45 and two SFP slots for flexible copper or fiber optic media
• Conformal-coated PCB for enhanced environmental protection
• Supports multiple network topologies including line, daisy-chain, star, ring, and redundant media
• Includes a front-panel Micro USB port for firmware updates and maintenance
• Integrated SD card support for device name transfer and simplified replacement

Applications

• Water/Wastewater: Telemetry and monitoring for remote pumping stations and treatment basins
• Oil & Gas: Management of distributed pipeline manifolds, flow meters, and wellhead valves
• Automotive Assembly: Integration of multi-segmented assembly line data
• Power Generation: Real-time diagnostics for switchgear, cooling systems, and auxiliary operations

Technical Specifications

Installation Guidelines

• Power down the RX3i rack completely before inserting or removing the module; hot-swapping is not supported.
• Install the module in a NEMA/UL Type 1 or IP20-rated enclosure to ensure proper protection.
• Ensure adequate ventilation to maintain operating temperatures within the specified range.
• Use shielded Ethernet cabling for high-EMI environments to maintain link integrity.
• Verify that the PACSystems Machine Edition software (version 8.0 or later) is used for configuration.

FAQ

Does it act as a PROFINET Controller?

No, it acts exclusively as a PROFINET Device (Slave/Scanner). It manages the I/O for its local rack and reports back to a controller.

Can I hot-swap this module?

No. The IC695PNS001 does not support insertion or removal while the rack is powered on. You must completely power down the RX3i rack before installing or removing the module to avoid hardware damage.

How many Ethernet ports does the module have?

This module is equipped with four Ethernet ports: two standard RJ45 ports and two SFP ports for fiber optic or copper SFP modules.
